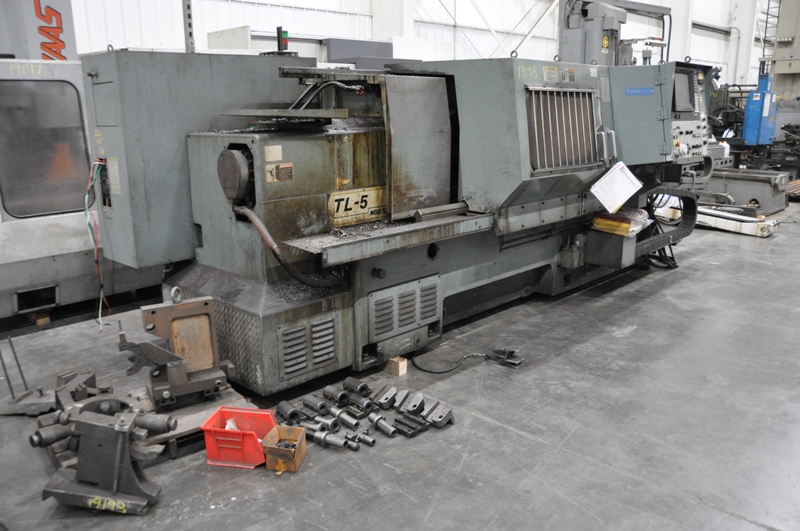

MORI SEIKI TL-5A CNC LATHE
PRICE: Loaded on Truck, Our Warehouse, York, PA $10,500.00
HMC Stock # 19198
Machine Serial No.: 1681
Model No.: TL-5A
New Date: January 1987
Swing Over Bed: 24.41"
Swing Over Carriage: 14.96"
Distance Between Centers: 77"
Chuck Size: 12"
Spindle Nose: A2-8 Direct Bolt On
Hole Thru Spindle: 3.03" (without draw tube)
Spindle Speeds: 17 to 2,000 RPM
Tailstock Quill Diameter: 5.91"
Tailstock Quill Taper: #5 Morse
Tailstock Quill Stroke: 3.94"
Tailstock Quill Thrust: 1400 Kg

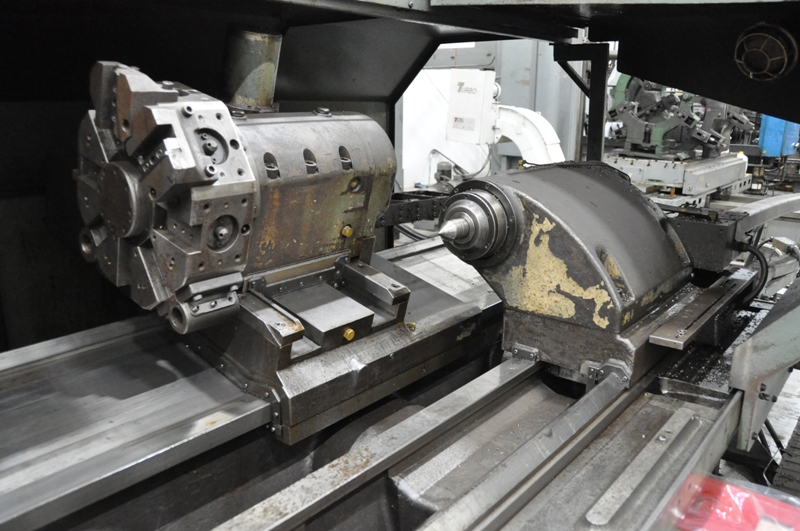

Tool Turret Stations: 8
Tool Turret Slots for 1" Square Tools
Rapid Traverse Rate: 189 IPM on X, 378 IPM on Z
EQUIPPED WITH:

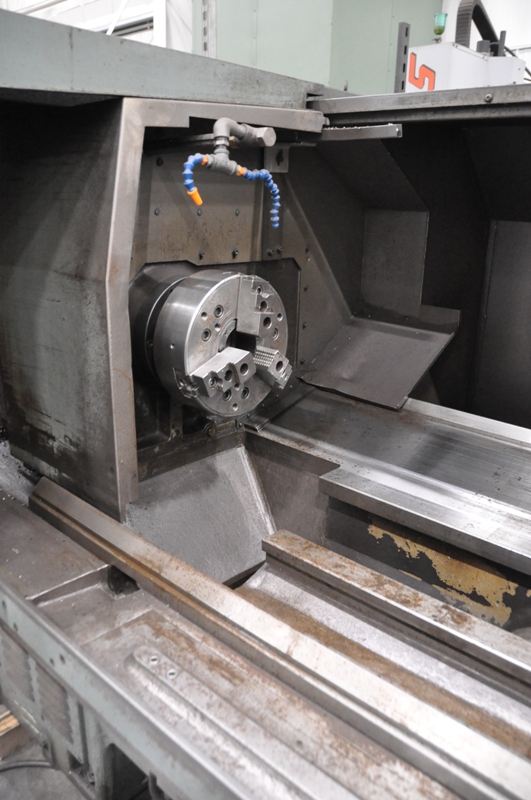

12" 3 Jaw Hydraulic Chuck with 3-1/2" thru Hole and Thru Hole Actuator
Chuck Controls for OD or ID Chucking
Foot Pedal Chuck Control

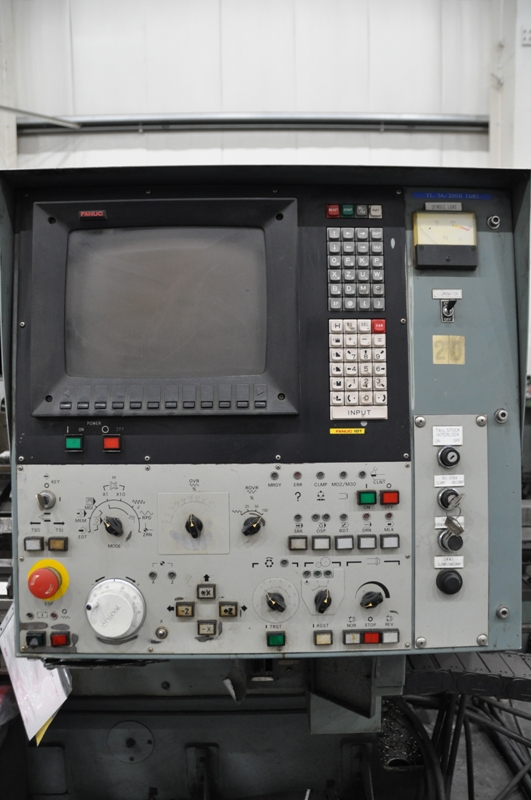

Fanuc 10T 2 Axis CNC Control, Model F (red cap drives)
12" Color CRT

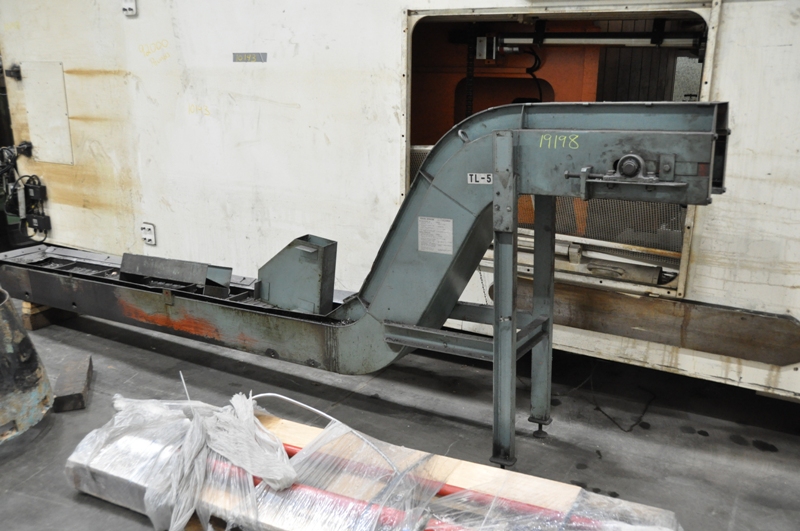

Chip Conveyor
Spindle Load Meter
OEM and Fanuc Manuals and Schematics
(1) Dead Center in Tailstock Quill
Flat Bed Way Design with Rear Way at a 15 Degree Incline
Hardened and Ground Bed Ways in Good Condition
Full Work Area Enclosure
(1) Follow Rest
(1) 8" Roller Type Steady Rest
(1) Custom Work Support Rest

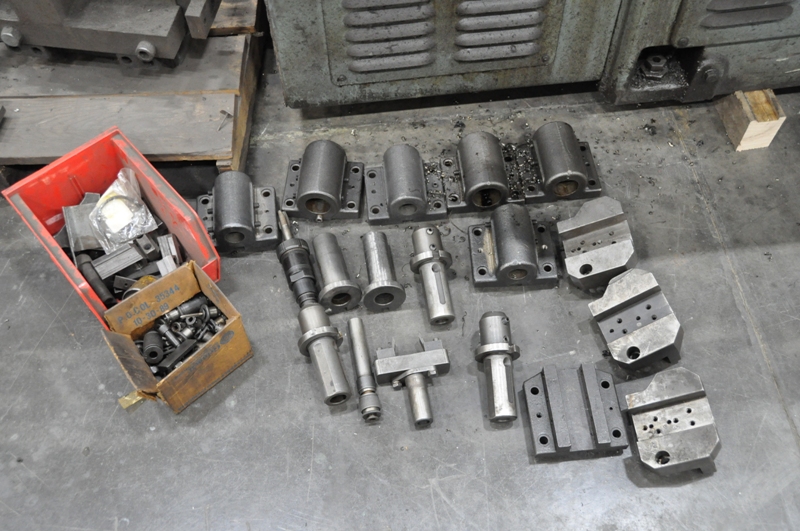

(7) Assorted Boring Bar Type Tool Holders
(7) Assorted Shank Type Tool Holders
24.8 Continuous / 29.5 30 Minute HP
Overall Size:
Machine: 226" LR x 79" FB x 72" High (on 3-1/2" Blocks)
Chip Conveyor: 25" Wide x 168" Long x 56" High
Skid With Tooling: ?
Estimated Total Weight: 19,000 Lbs.
