Specifications:

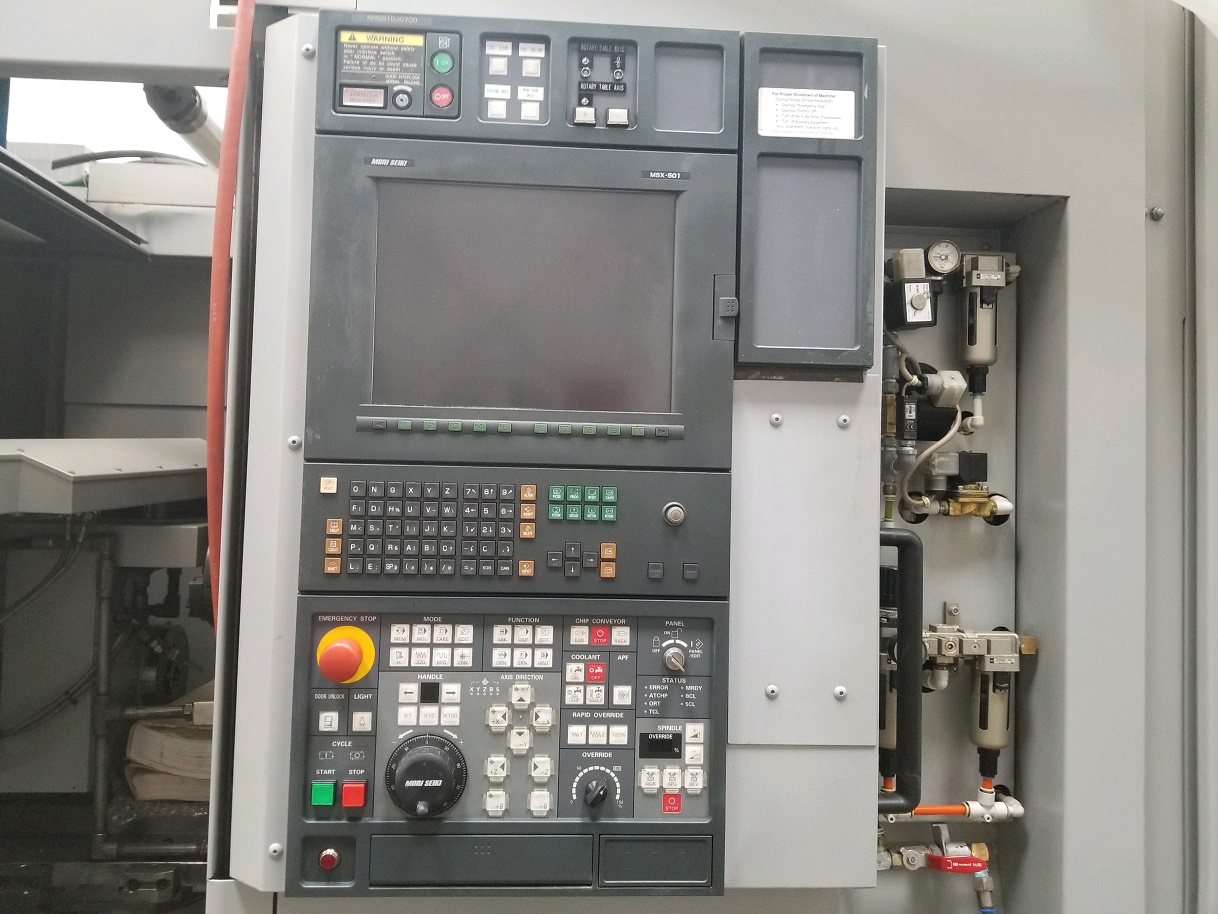

CNC Control MSX-501 (1MB)
Model NH5000-40
Serial number NH501DJ0700
Date of manufacture 11/2004
Travels, X-Y-Z 24.8 in x 23.6 in x 26.4 in
Fifth axis Yes
Pallet Surface to Spindle Center 2 in to 25.6 in
Table Center to Spindle Gauge Plane 3.9 in to 30.3 in
Pallet Size 19.7 in x 19.7 in
Number of Pallets 2
Max Pallet Load 1,100 LBS
Pallet Index Time 2 Sec
Spindle Motor 30 HP (22/18.5 kW 30 minute rating)
Speed 14,000 RPM
Spindle Taper CAT 40

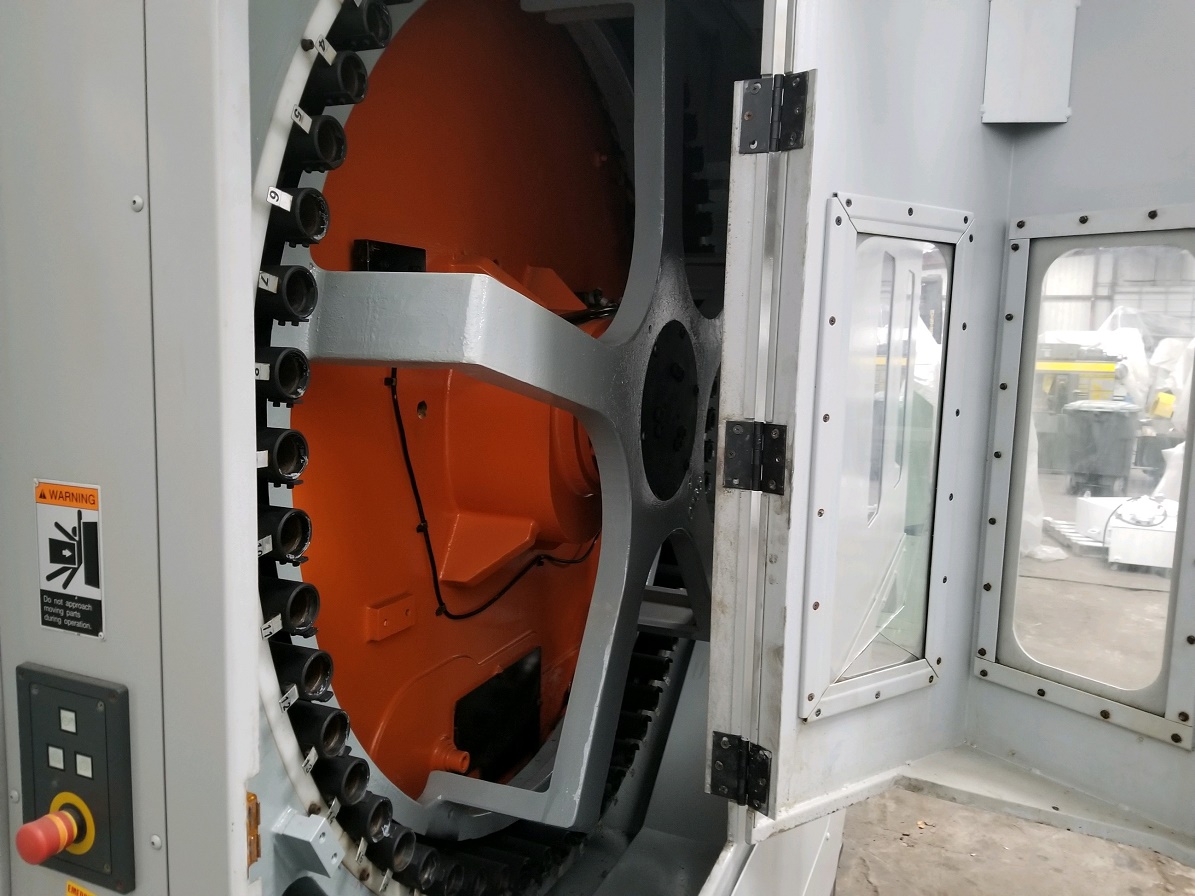

Tool Changer Capacity 60 ATC
Electrics 3/60/220
Max. amp draw 185 amps
Max. kVA 53 kVA
Machine Dimensions 195 in x 95 in x 115 in
Machine Weight 25,840 lbs.

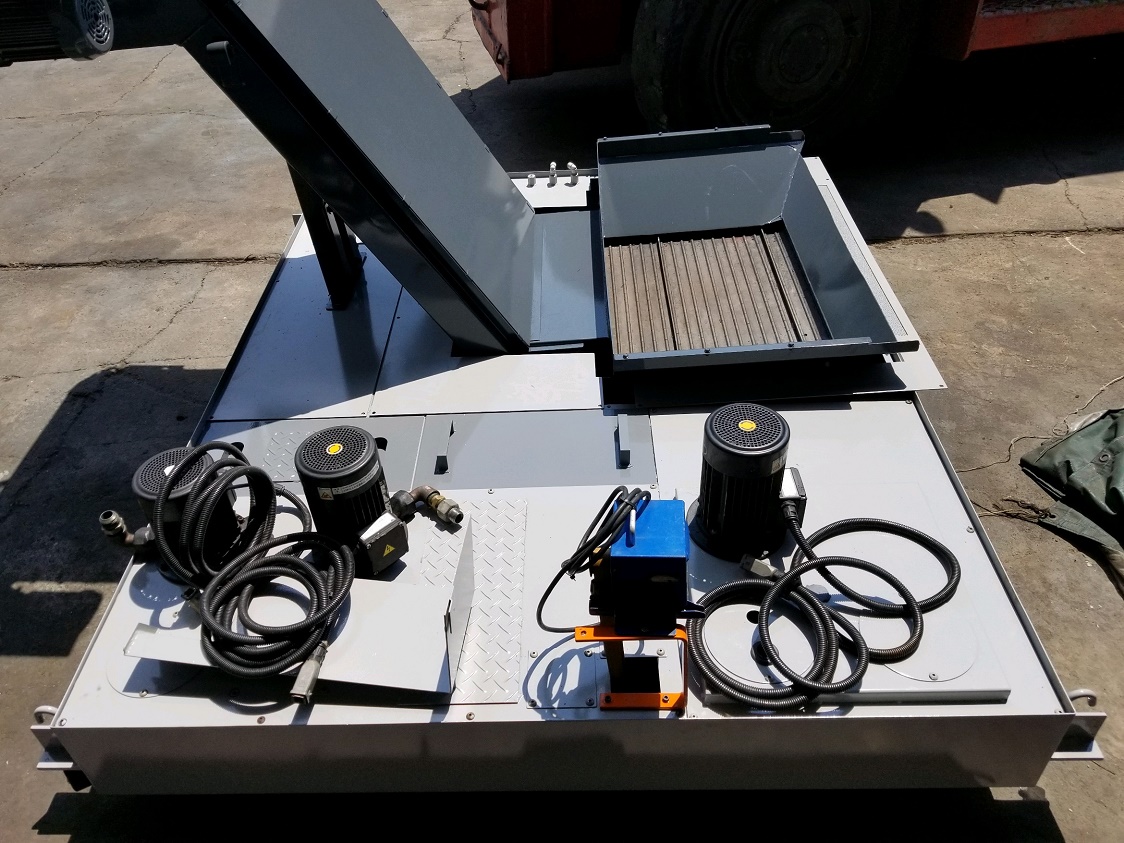

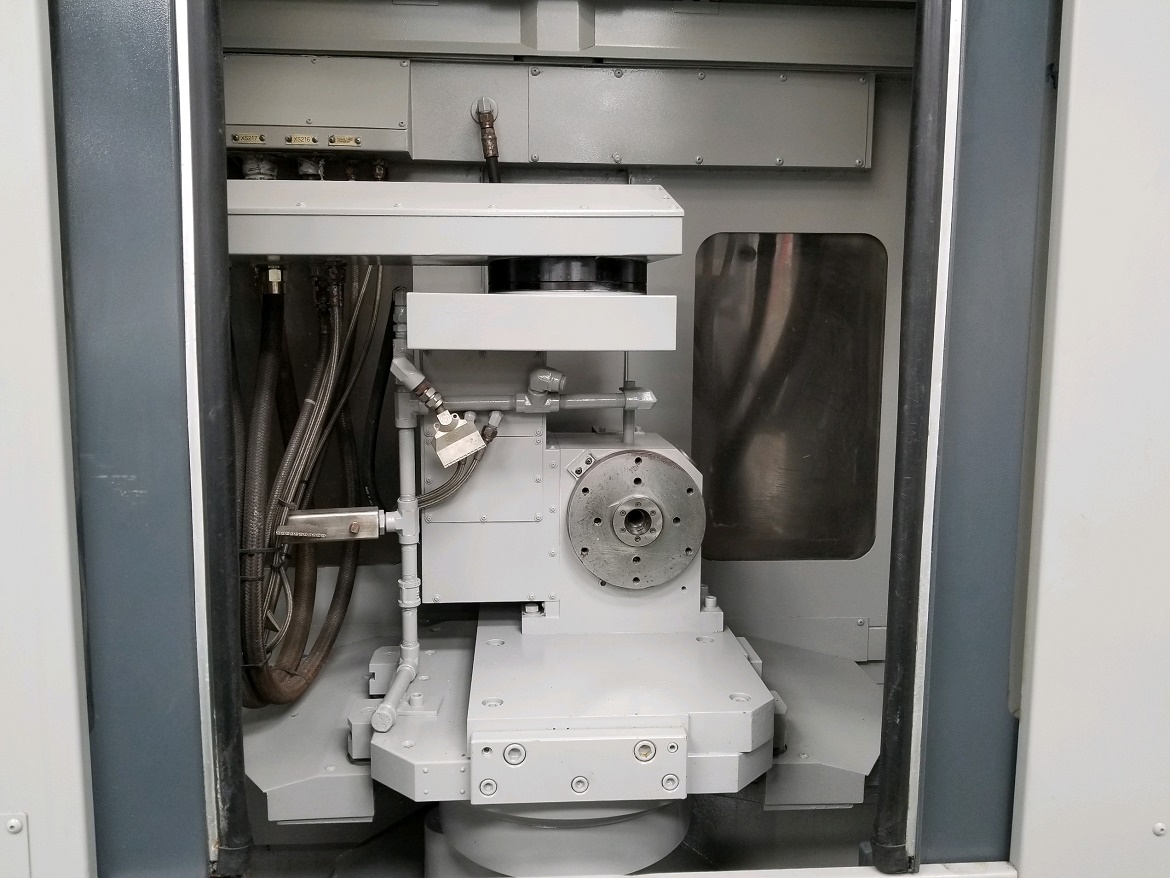

Equipped with: Full 4th Axis Rotary Tables, Oil Spindle Chiller and a Chip Conveyor
