MORI SEIKI CNC TURNING CENTER

PRICE: Loaded on Truck, Our Warehouse, York, PA   $69,500.00

HMC Stock # 19199

Machine Serial No.: NL301GJ1016

Machine Model No.: NL3000MC/700
New Date: 2007

Swing Over Bed: 39.2"
Swing Over Cross Slide: 32.5"
Maximum Turning Length: 28"
Maximum Turning Diameter: 16.5"
Standard Turning Diameter: 14"
Approx. Maximum Distance Between Centers: 40"
Bar Work Capacity: 3.5"
Spindle Speed: 3000 RPM
Spindle Taper: JIS A2-8
Through Spindle Hole: 4.1"
X Axis Travel: 11"
Z Axis Travel: 32.3"
X Axis Rapid Traverse: 1181 IPM
Tailstock Travel: 28.9"
Tailstock Rapid Traverse: 275 IPM
Taper in Tailstock: #5 Morse

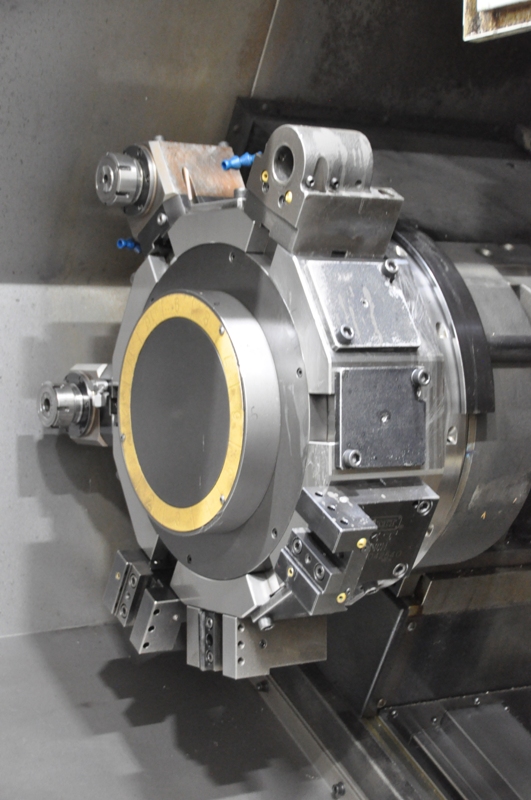

Turret: 12 Station
Shank Height for Square Tool: 1"
Shank Diameter for Boring Bar: 2"
Tool Shank Diameter for Rotary Tool: 1"

EQUIPPED WITH:

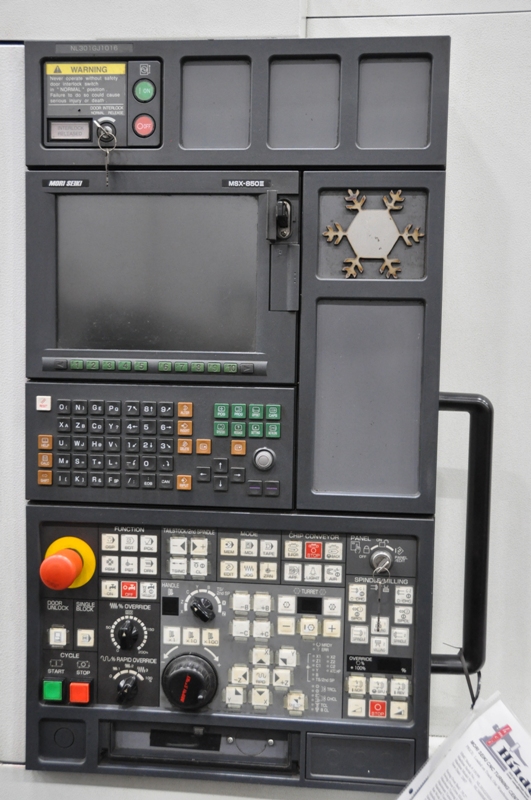

MSX-850 III Control
Live Tooling: 6000 RPM
C Axis, Minimum Spindle Increment: .001 Degrees

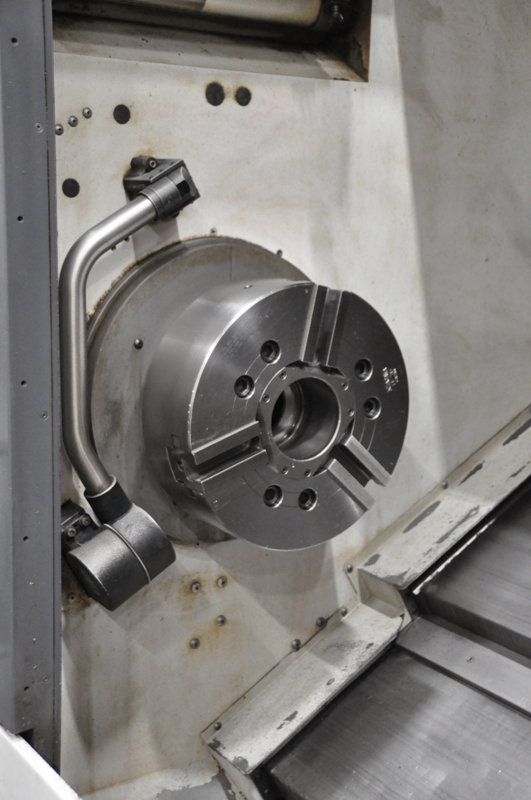

15" 3 Jaw Kitagawa Hydraulic Chuck
Thru Hole Type Hydraulic Chuck Actuator

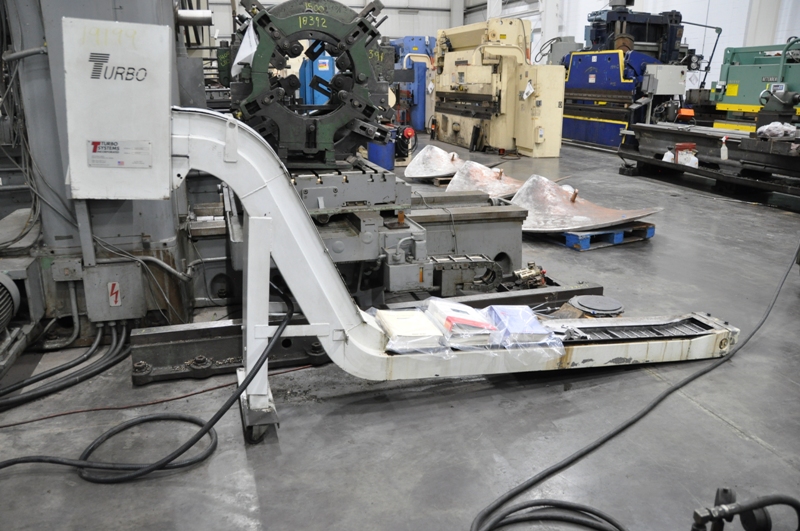

Turbo Chip Conveyor

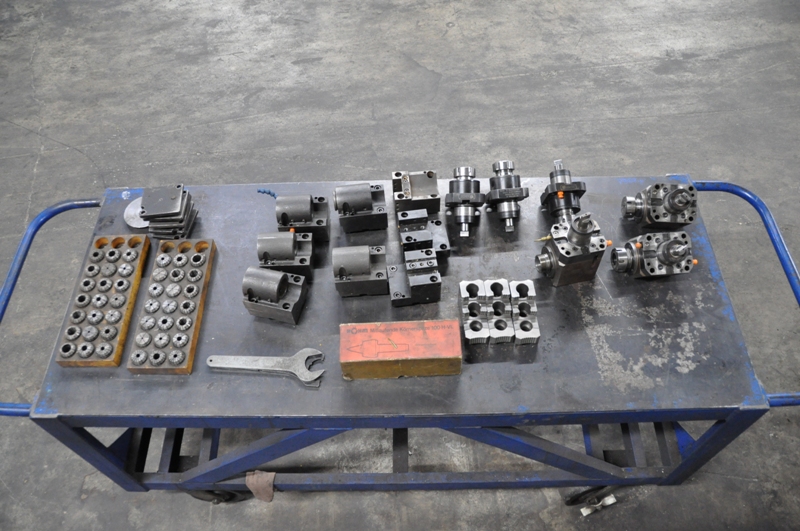

(1) Set Hard Top Jaws

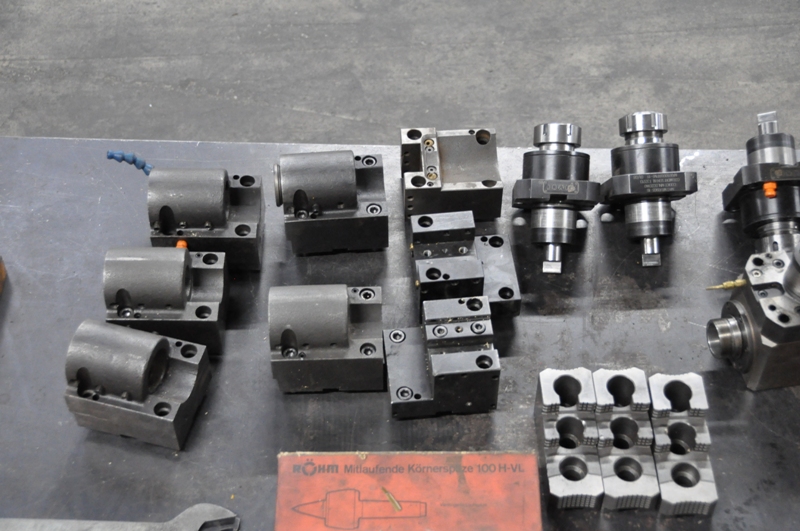

(6) O.D. Tool Holders
(6) I.D. Holders/Boring Bar

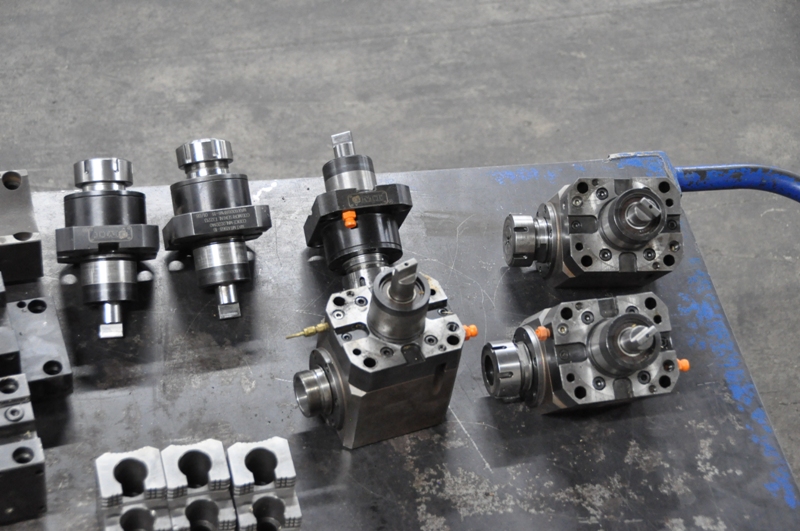

(8) Live Tools
Assorted Collets

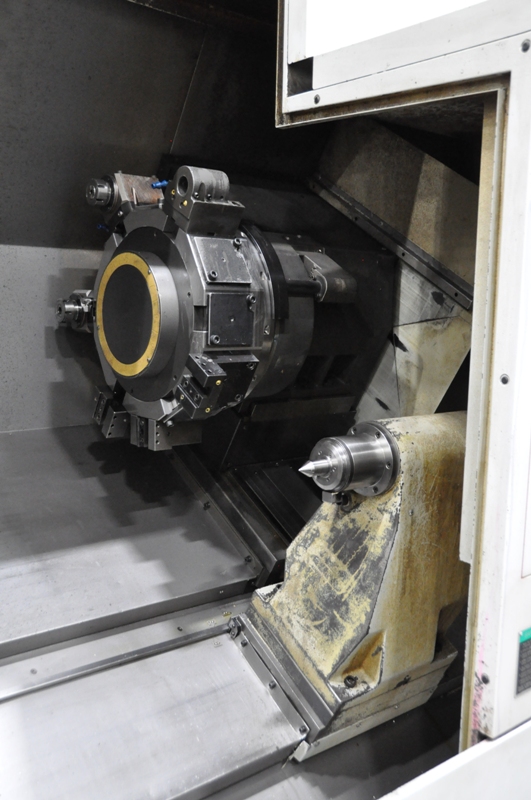

Tailstock
Tool Setting Arm

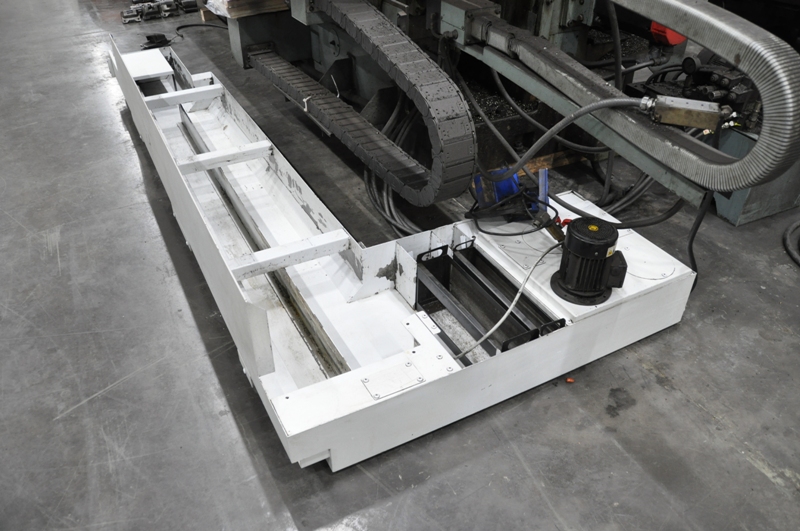

Coolant Tank (No Coolant Pump)
Mounting Feet
30 HP Motor
Wired for 3 Phase, 60 Cycle, 220 Volts

DIMENSIONS:
Machine Size: 126" L x 81" FB x 93" H
Coolant Tank: 125" L x 53" FB x 21" H
Chip Conveyor: 127" L x 24" FB x 65" H
