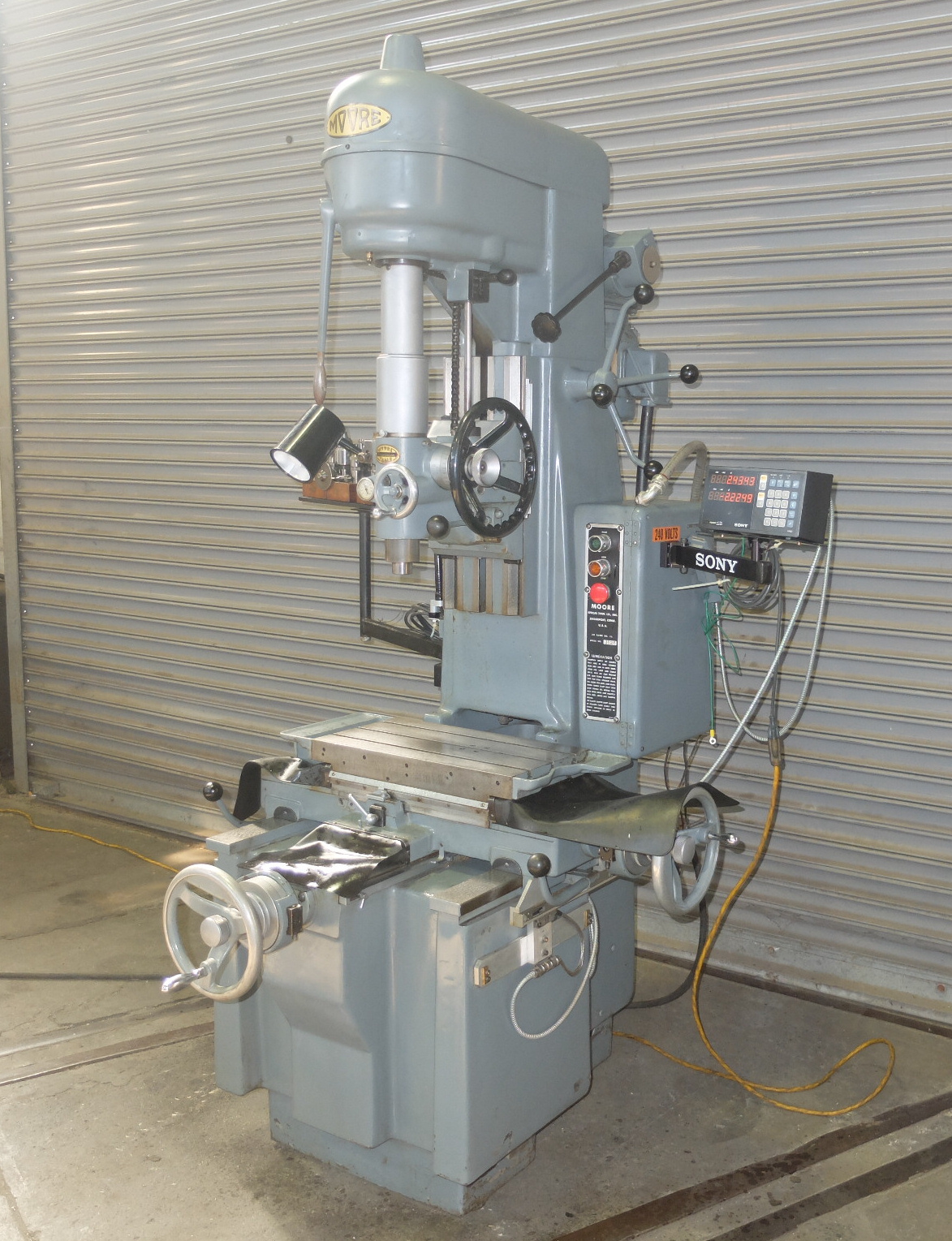

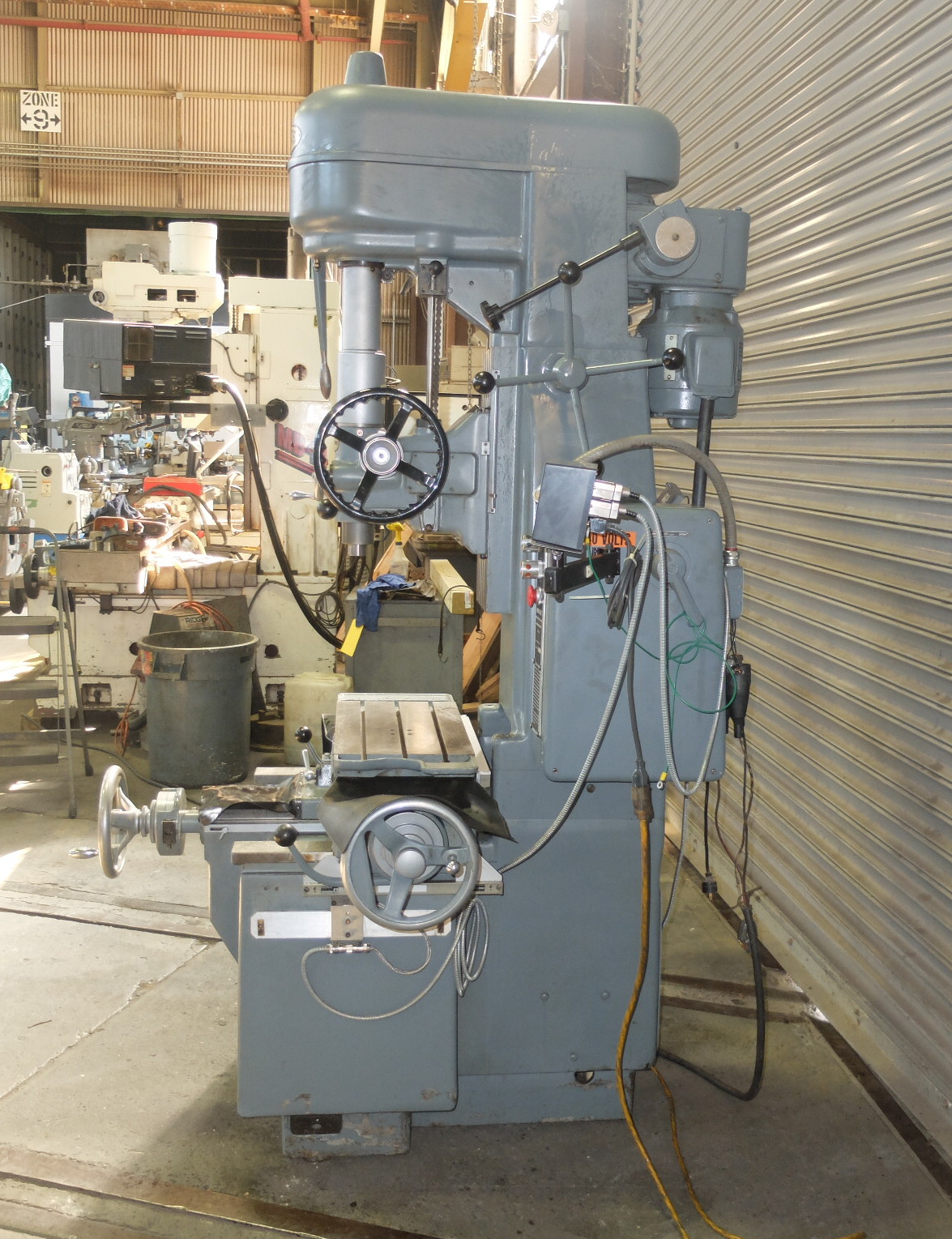

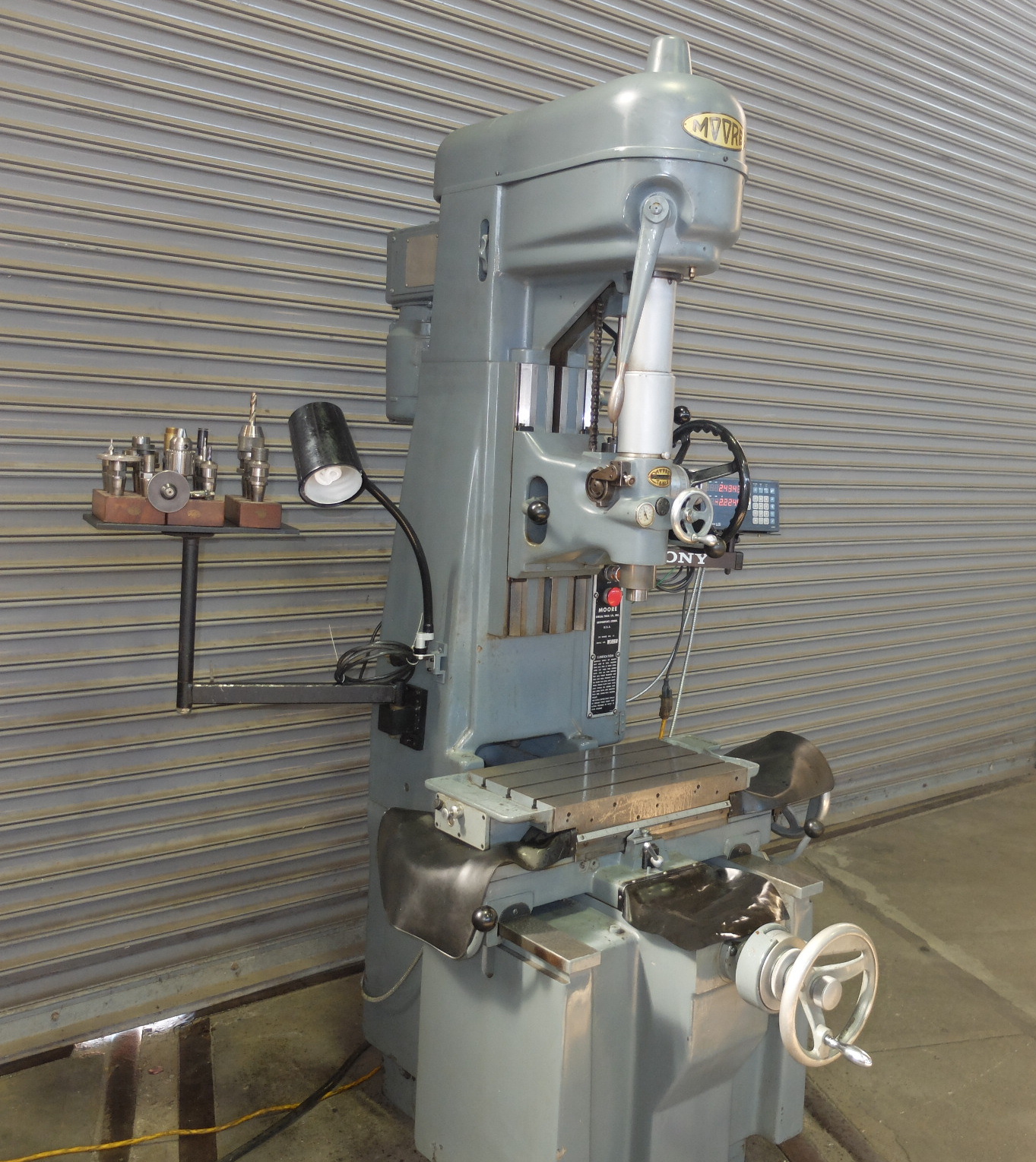

MOORE MODEL 1 1/2 JIG BORER WITH SONY 2-AXIS DIGITAL READ OUT AND LARGE ASSORTMENT OF TOOLING, NICE!
Moore No. 1-1/2 Precision Jig Borer: Serial Number J625,
The 1-1/2 features close tolerance ways and slides.
Variable speed spindle 120 to 2400 RPM
Vee and flat ways, no gibs, longer life.
No overhang of table or slide.
Two feeds 0.001 or 0.003 inches per revolution.
Single lever front and back table clamps, non influencing.
More accessible cross clamps, all non-influencing.
Protected chrome plated dials and reference scales.
Micro-setting of vernier dials.
1-3/8 inch diameter Nitroloy lead screws.
220 volt 60 cycle 3 phase power.

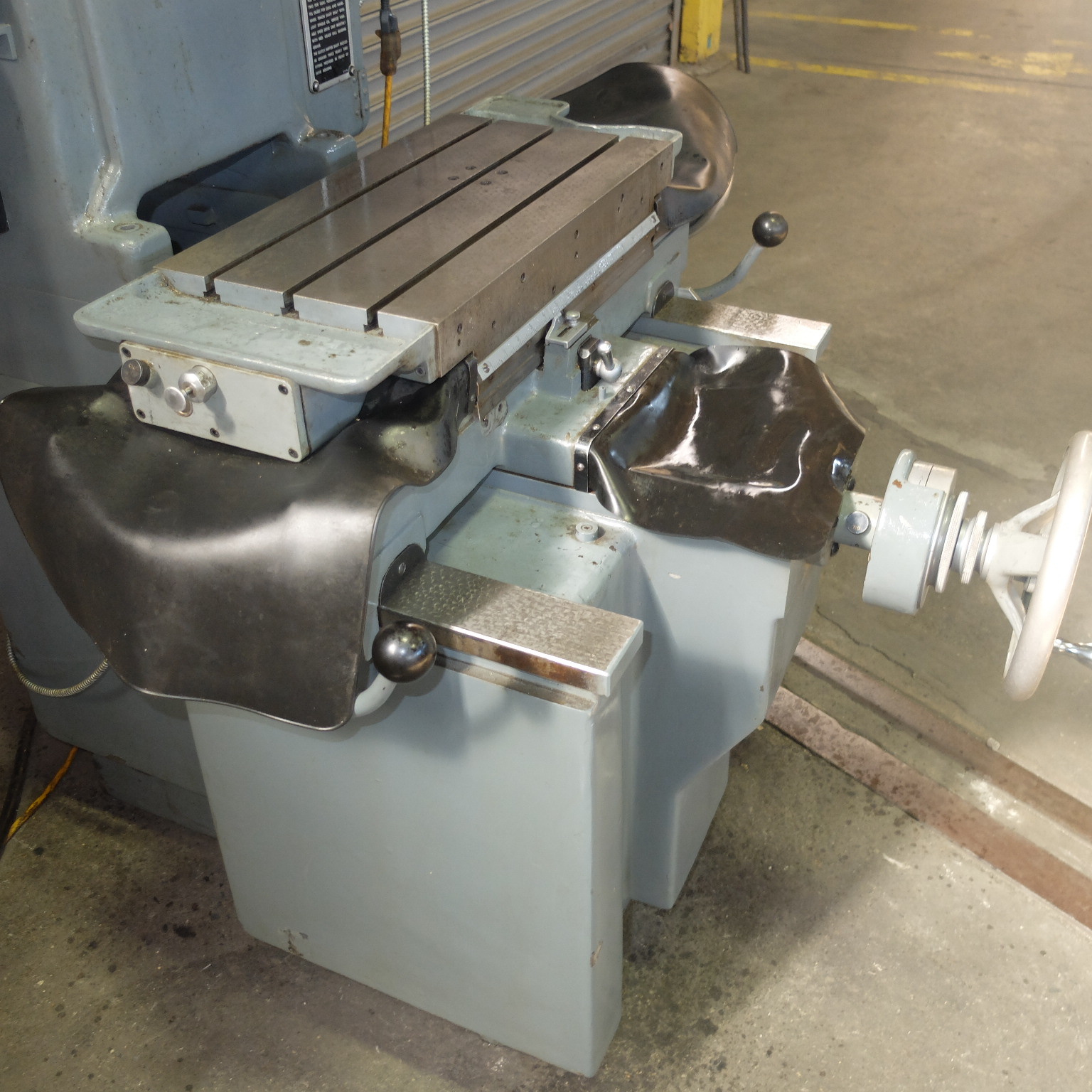

Table Travel Longitudinal 14 Inches
Table Travel Crosswise 9 Inches
Table Top to spindle end 3 to 16 inches.
Vertical adjustment of quill housing 9 inches.

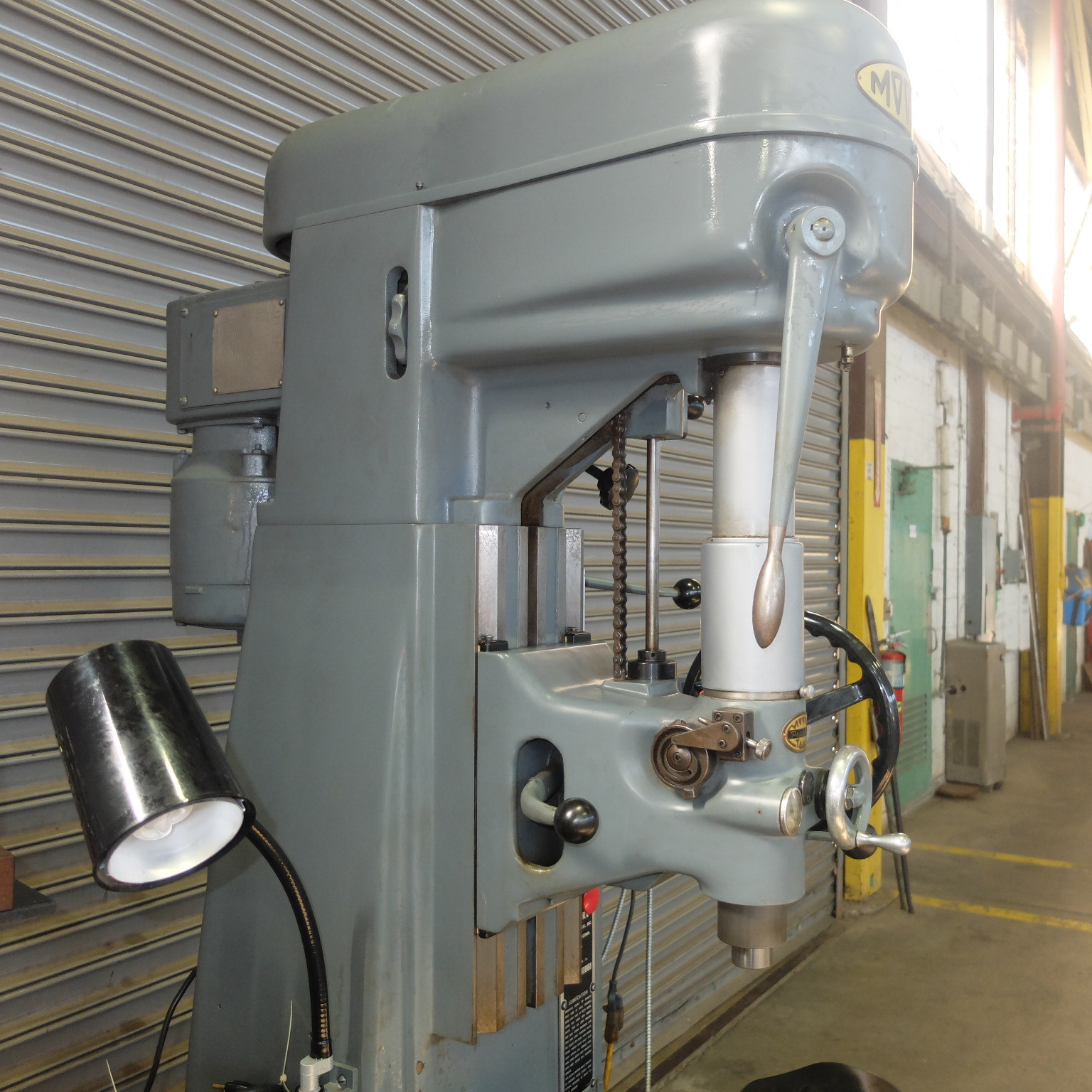

Spindle quill travel 3-7/8 inches.
Equipped With:

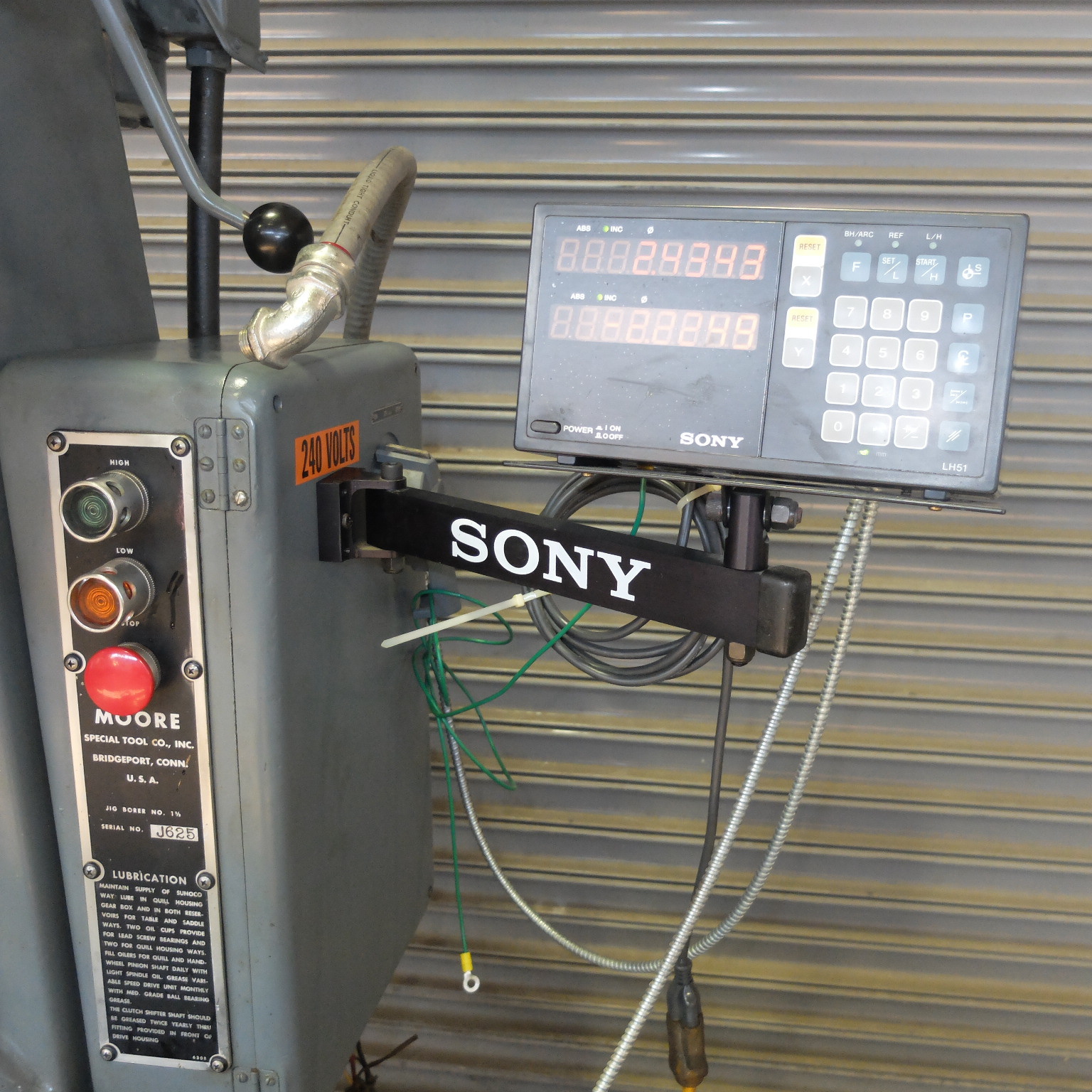

Sony 2 Axis DRO, .0001 Resolution
6 in Riser Block

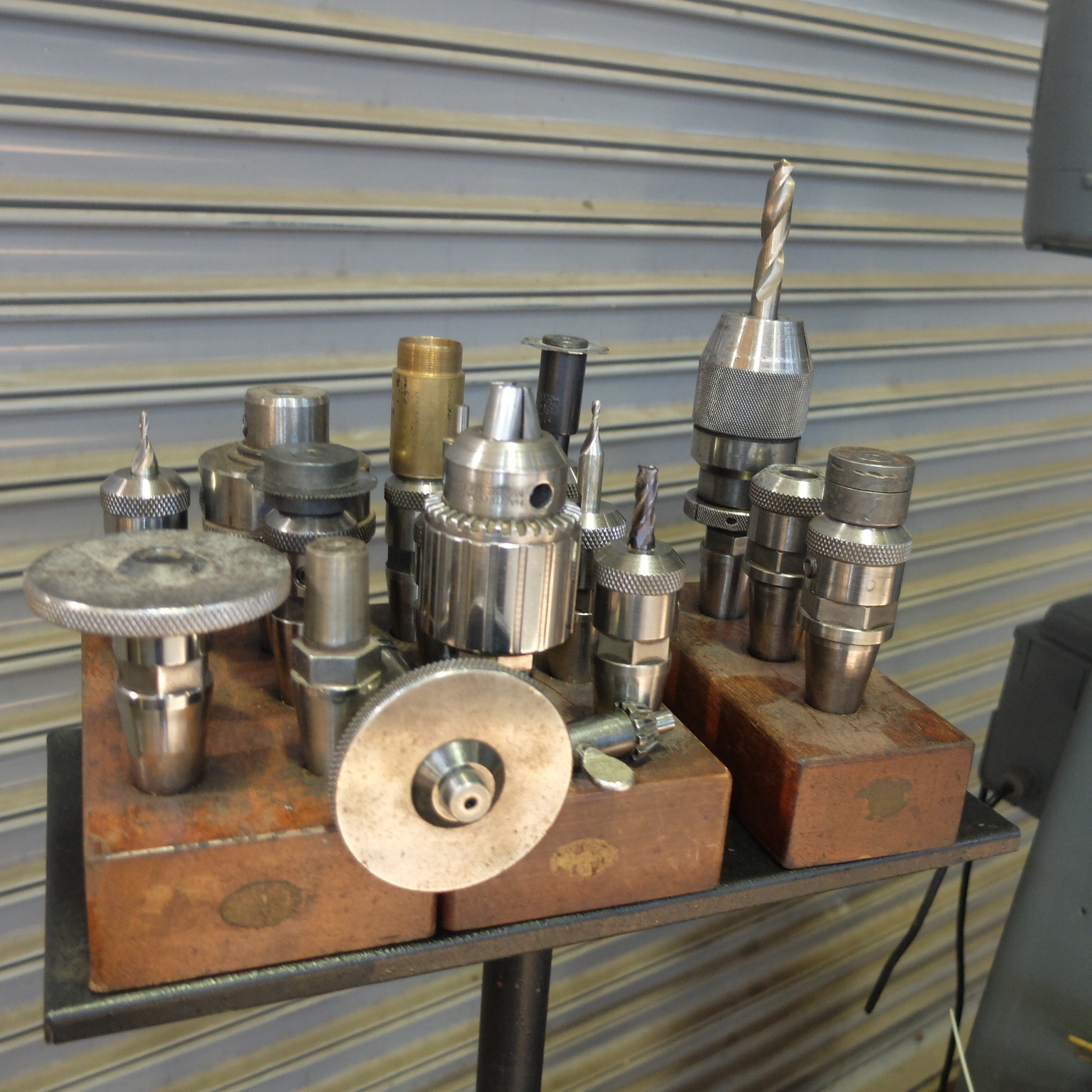

(16) Moore Tools
Jacobs and Albrecht Chuck
Boring Head
2 Indicator Holders
Standard Tool Holders
Work Light
Very Good Condition
Call Marc @ (732) 390-0006 To Inspect Under power in Lebanon, NJ
