SPECIFICATION:
Reference # GMT-2886
Model # G-18

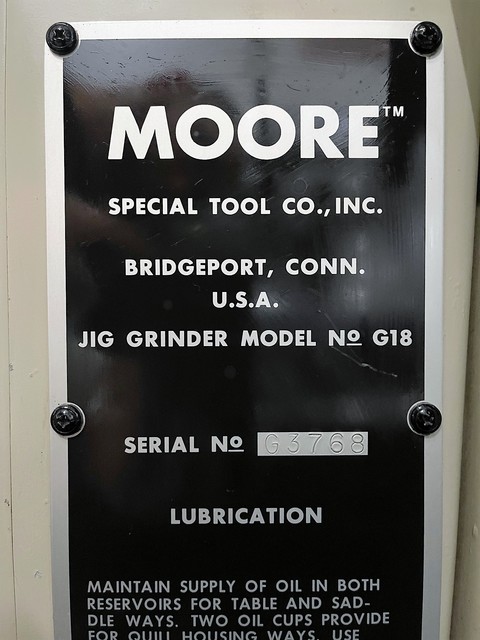

Serial # G-3768
Year of Manufacture 3/1987

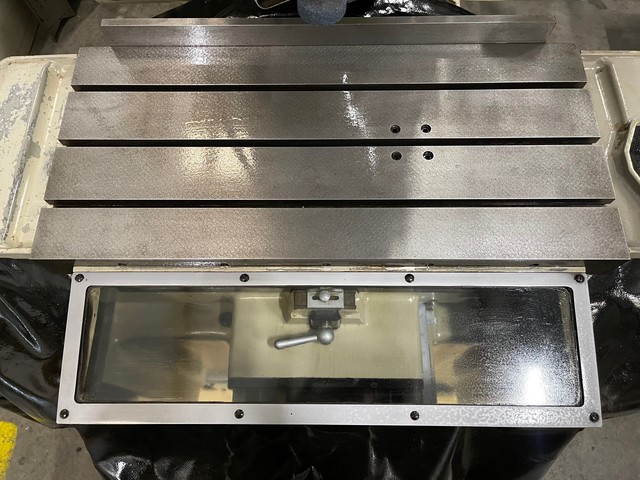

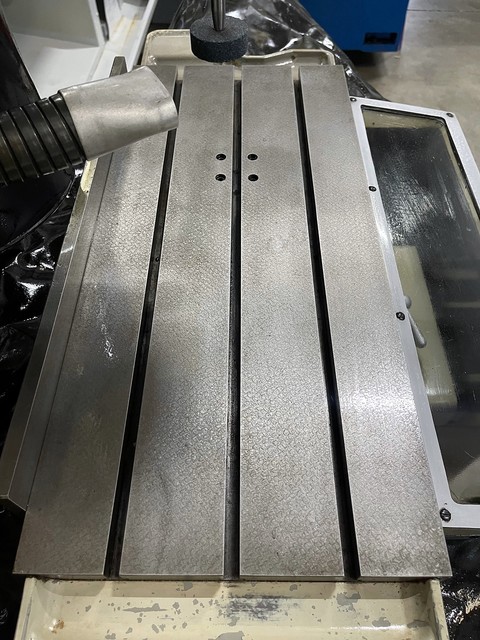

Table size 11 in x 24 in
Ranges
-
Table movement 11 in x 18 in
Table top to wheel collet, minimum 2 in
Table top to wheel collet, maximum 18 in
Spindle to column ways 10 in
Spindle to column below ways 13-1/2 in
Infinitely variable spindle speeds 25-225 R.P.M.
Infinitely variable spindle feeds 2-120 S.P.M.
Spindle feed adjustable from 0.100 in to 3-5/8 in
Grinding wheel speeds 6,000-175,000 R.P.M.
Grinding capacity, grinding wheels 1/64 in to 3-1/2 in
Angular adjustment of spindle, either way 1-1/2 deg
included angle 3 deg
CHARACTERISTICS:
Equipped With:
Hardened, ground, and lapped steel ways (no gibs)
Hardened, ground, and lapped nitralloy leadscrews
Leadscrews and nuts that are fully immersed & operated in a bath of oil
MOORE 40,000 R.P.M. grinding head
Work light
Dust shield
Machine is wired for 1/60/230 volt operation.
Approximate Weight (Machine Only): 4000 Lbs.
APPROXIMATE DIMENSIONS:
58 in L x 62 in W x 88 in H
PRICE: $29,500
