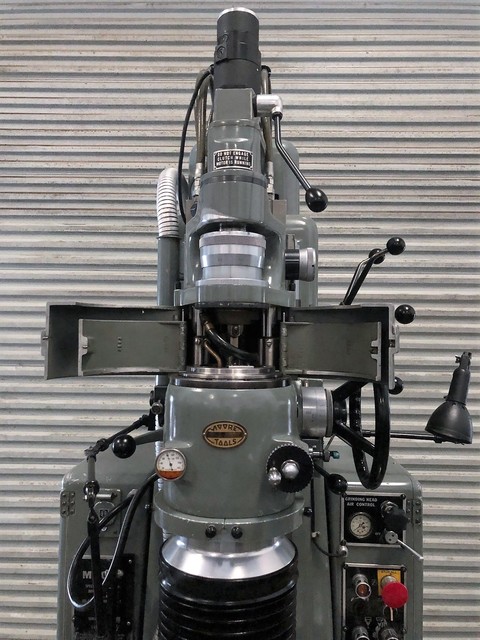

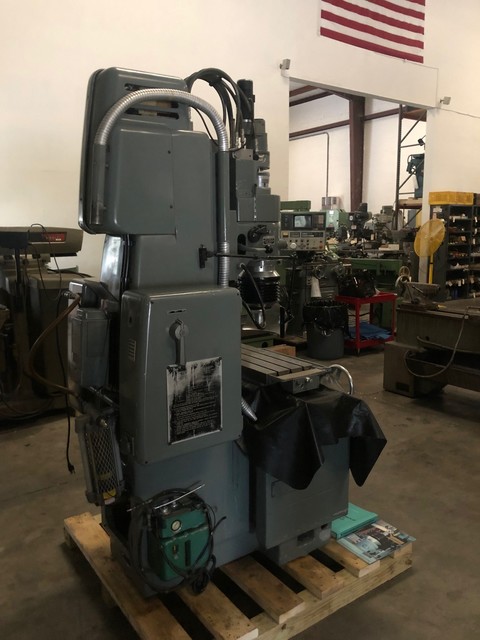

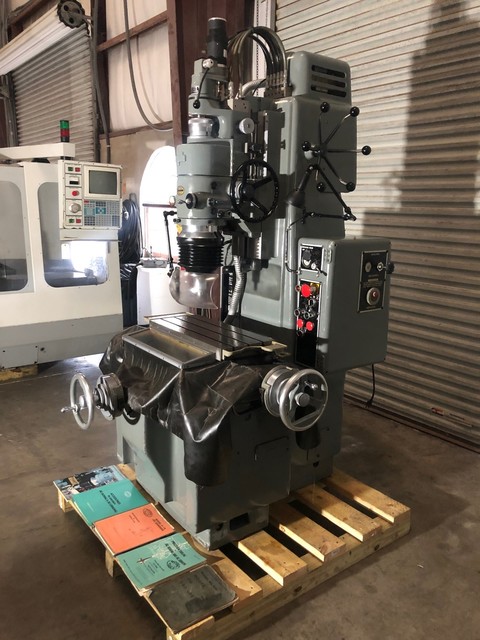

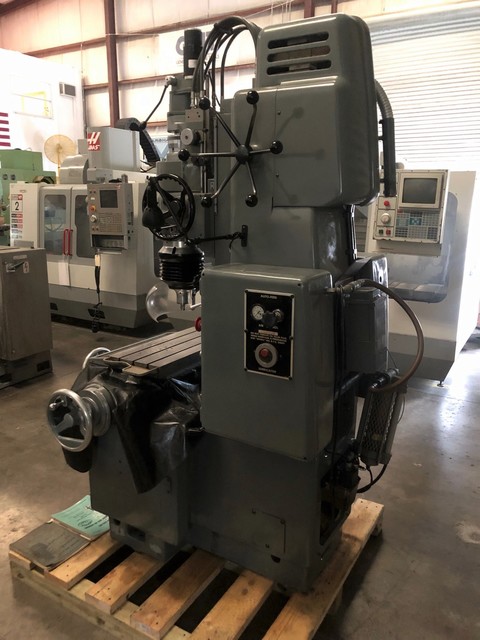

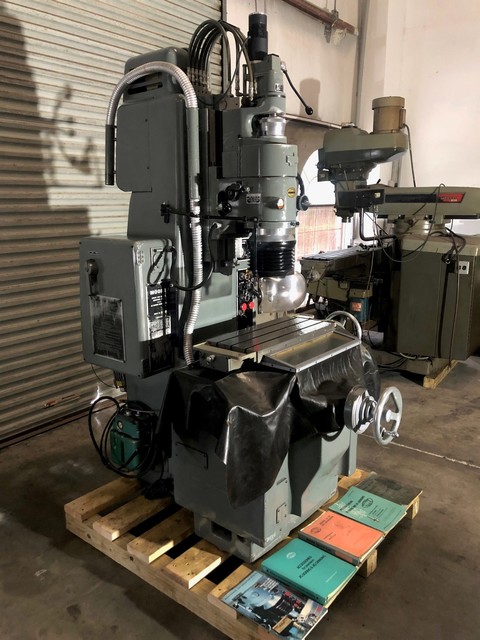

MOORE #G-18 PRECISION JIG GRINDER 1975’ EXCELLENT #GMT-1903

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


# G-18
G-2279
Grinders
Jig Grinders
used
(LB)
1975
$12,450.00

Description

SPECIFICATIONS

Reference # GMT-1903

Model # G-18

Serial # G-2279

Year of Manufacture 1975

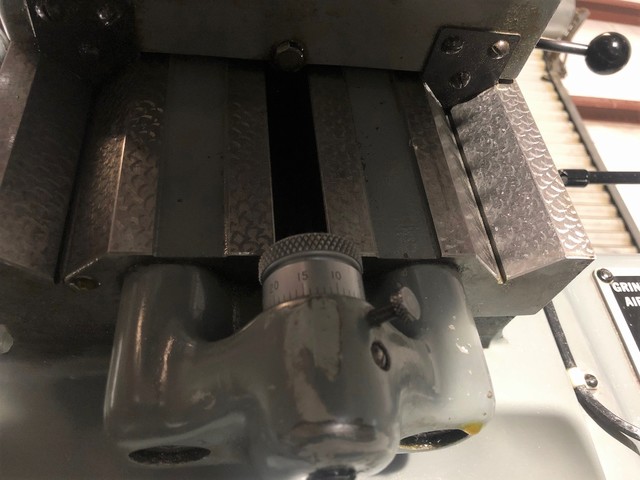

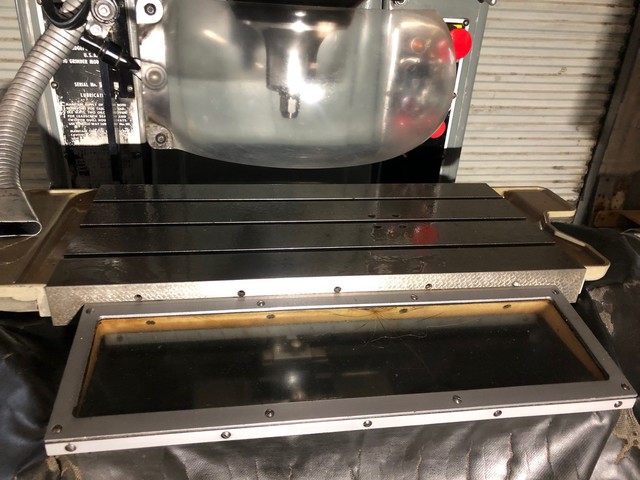

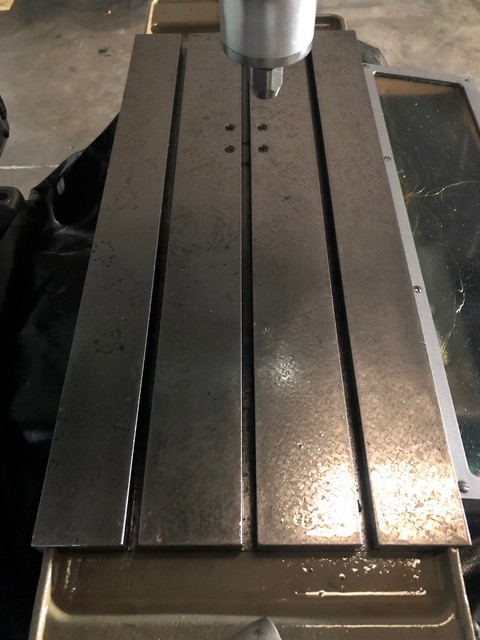

Table size 11" x 24"

Ranges Table movement 11 in x 18 in

Table top to wheel collet, minimum 2" Table top to wheel collet, maximum 18"

Spindle to column ways 10 in

Spindle to column below ways 13-1/2 in

Infinitely variable spindle speeds 25-225 R.P.M.

Infinitely variable spindle feeds 2-120 S.P.M.

Spindle feed adjustable from 0.100" to 3-5/8"

Grinding wheel speeds 6,000-175,000 R.P.M.

Grinding capacity, grinding wheels 1/64"-3-1/2" Angular adjustment of spindle, either way 1-1/2 in included angle 3" Radial offset of grinding spindle: a) from center to 1-1/8" off center by rough adjustment while running b) .0001" adjusted for distance of .100" anywhere in the 1-1/8" range

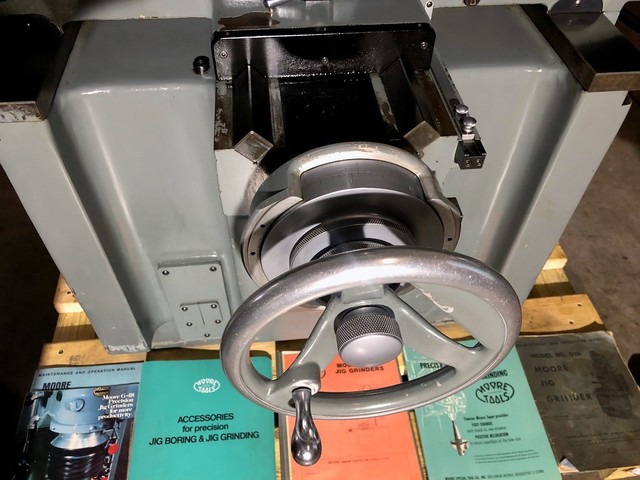

EQUIPPED WITH: Hardened, ground, and lapped steel ways (no gibs) Hardened, ground, and lapped nitralloy leadscrews Leadscrews and nuts that are fully immersed & operated in a bath of oil MOORE 40,000 R.P.M. grinding head Work light Dust shield Machine manuals Machine is wired for 1/60/230 volt operation.

APPROXIMATE WEIGHT (MACHINE ONLY): 4000 Lbs.

APPROXIMATE DIMENSIONS: 58 in L x 62 in W x 88 in H

LOCATION: F.O.B. Bradenton, Florida REFERENCE #: Jig Borer-GMT-902

PRICE #: $12,450.00
