MOORE CNC JIG GRINDER

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


G18 CP
G2355
Grinders
Jig Grinders
used
(LB)
1977
$79,500.00

Description


Description
& Specifications

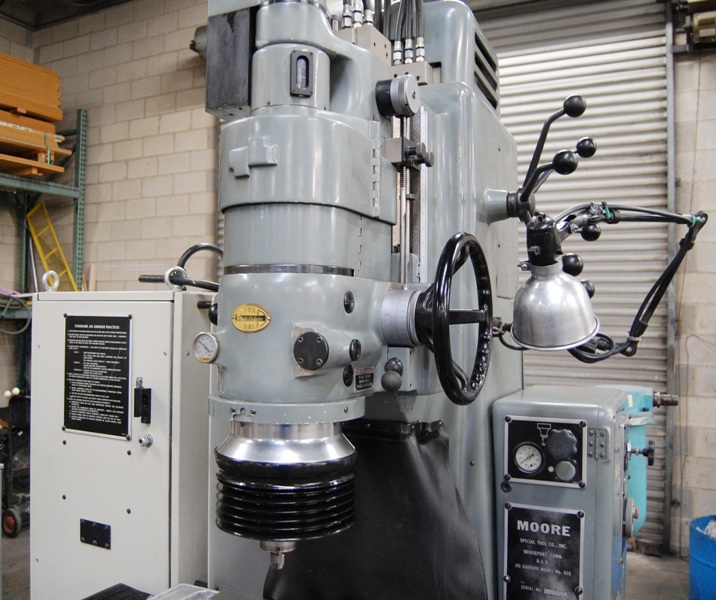

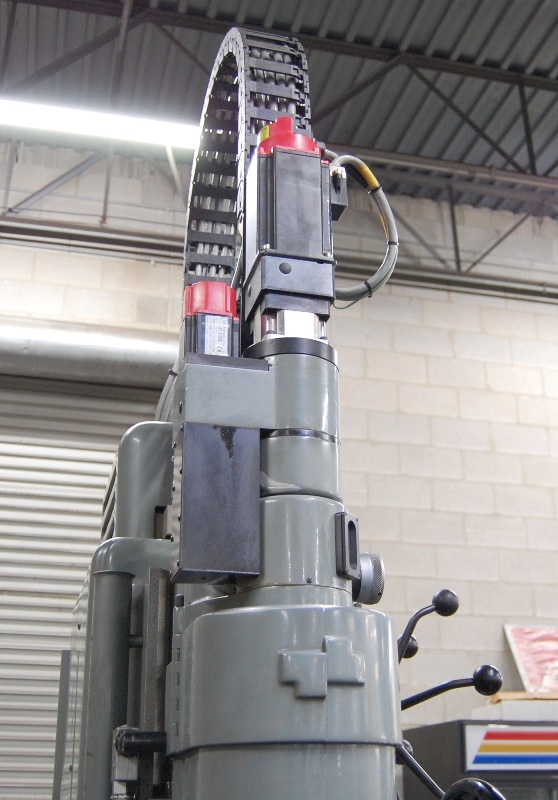

MOORE

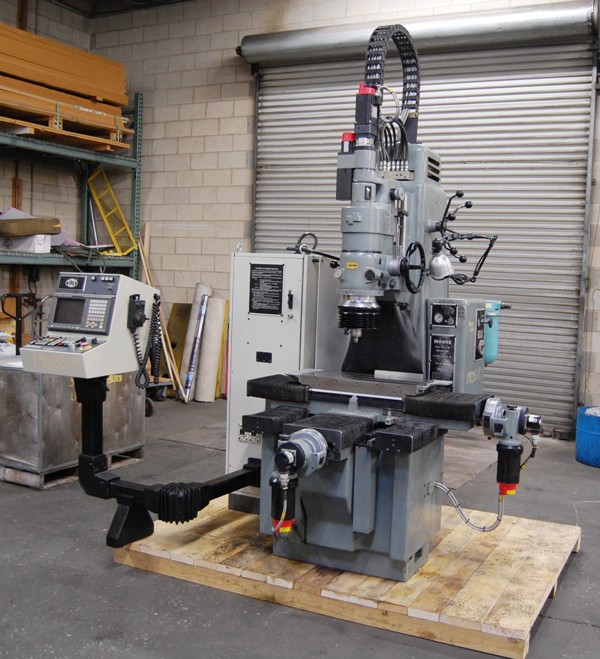

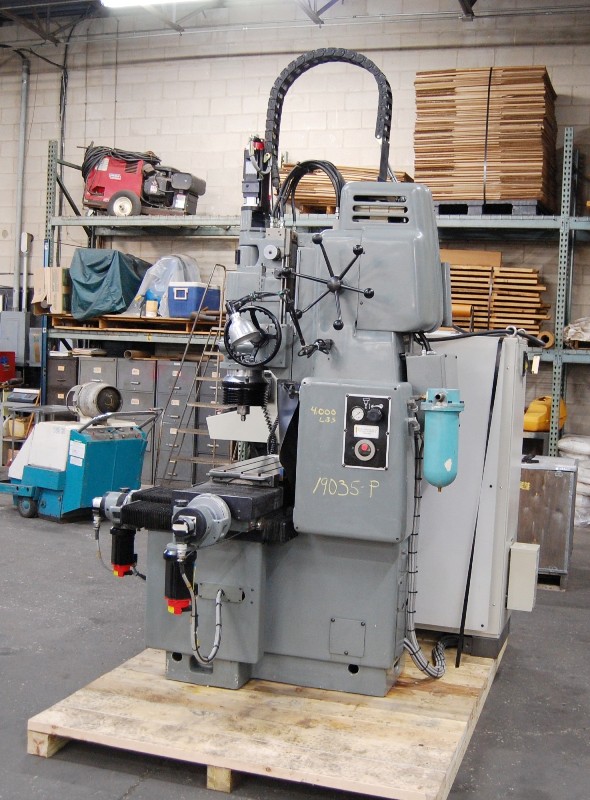

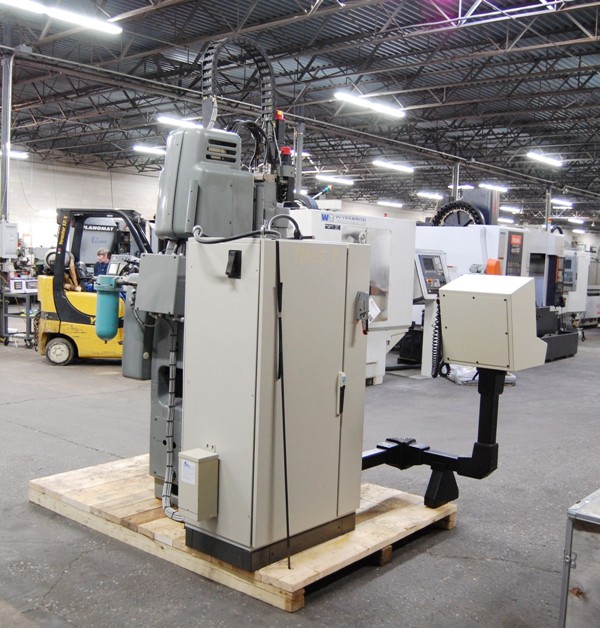

CNC JIG GRINDER

PRICE: Loaded on Truck, Our Warehouse, York, PA    $79,500.00

HMC Stock No. 19035-P

Machine Serial No.
G2355

Machine Model No. G18 CP
New Date: 1977 / Retrofit
1998

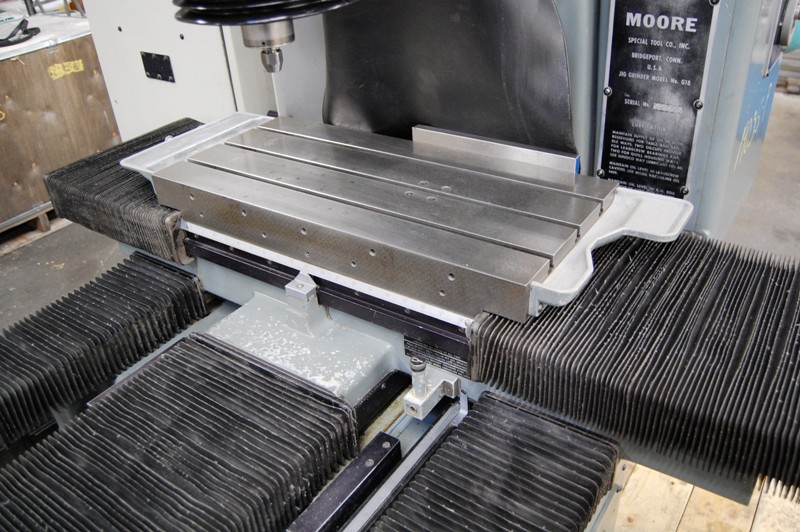

Table Size: 24in x 11in
X Axis Travel: 18.1in
Y
Axis Travel: 11.0in
U Axis Travel: 0.07in
C Axis Travel: Rotary
Axis
MAXIMUM PROGRAMMABLE VALUES:

X Axis: 9999.99999in
Y
Axis: 9999.99999in
U Axis: 9999.99999in
C Axis: 9999.99999
Degrees (360 Degrees = 1 Revolution)
MINIMUM PROGRAMMABLE
VALUES:

X Axis: .00001in
Y Axis: .00001in
U Axis: .00001in
C
Axis: .00001 Degrees
JOGGING FEEDRATES:
X Axis: 0.020 - 20
IPM
Y Axis: 0.020 - 20 IPM
U Axis: 0.00047 - .47 IPM
C Axis:
0.020 - 20 RPM
PROGRAMMABLE FEEDRATES:
X Axis: 0.00001 - 20
IPM
Y Axis: 0.00001 - 20 IPM
U Axis: 0.00001 - .47 IPM
C
Axis: 0.0000003 - 20 RPM
Programmable Spindle Speed: 1.0 -
300 RPM
Resolution: 1 RPM
Compressed Air Requirement: 100 PSI
at 35 CFM, Oil Tree at Less Than 75% Humidity
EQUIPPED
WITH:

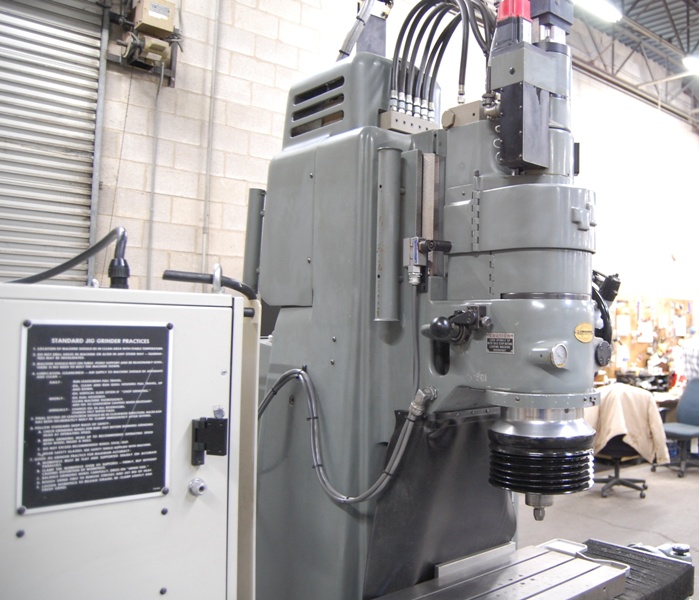

(1) Grinding Head: RPM to be Determined

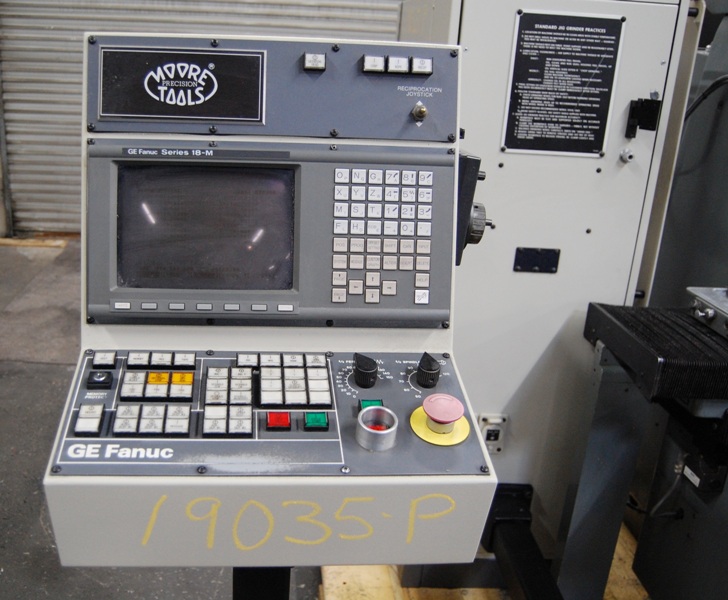

Fanuc 18M
Control
Remote Control Pulse Generator
RS-232 Port
(2)
Auxiliary Outlets
Hard Ways with Roller Type Way
Bearings
Accordion Style Way Covers
Wired for 3 Phase, 60
Cycle, 208 Volts
Overall Size: 84in LR x 84in FB x 114in High
