Used Grinders For Sale - CINCINNATI MONOSET TOOL & CUTTER GRINDER

Model: MONOSET

Serial No. :

Category: Grinders

Sub Category: GRINDERS, TOOL and CUTTER

Condition: used

Weight: 1600 (LB)

Year Built: 1975

Status:

Price: $0.00

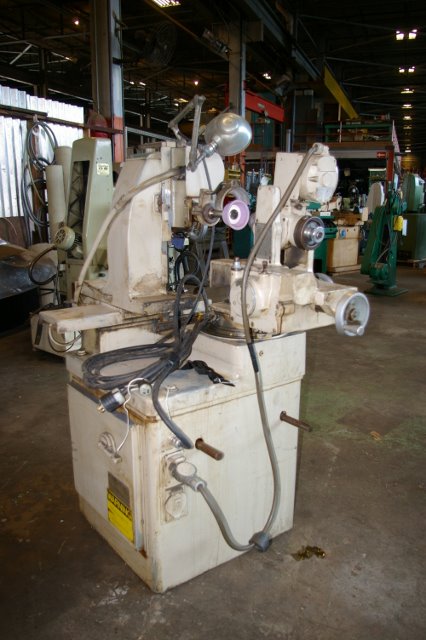

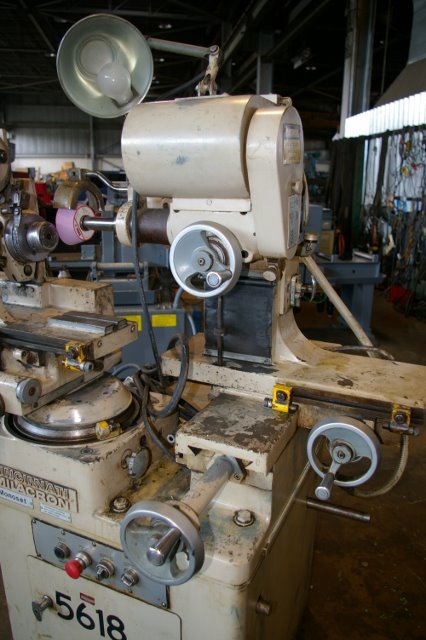

CINCINNATI MONOSET TOOL & CUTTER GRINDER MANUFACTURED 1975 STOCK# 18534
COLLET WORK DIAMETER ----- ( MINIMUM ) ---- .125"
COLLET WORK DIAMETER ----- ( MAXIMUM ) ---- 1.25"
SWING OVER MAIN SLIDE ---- ( MAXIMUM ) ---- 12"
WORK LENGTH CAPACITY ---------------------- 6"
GRINDING WHEEL DIAMETER -- ( MAXIMUM ) ---- 4"
WORKHEAD MAIN SLIDE TRAVEL ---------------- 5.75"
WORKHEAD ANGULAR ADJUSTMENT --------------- 235 DEG.
VERTICAL PLANE ABOVE CENTER --------------- 40 DEG.
VERTICAL PLANE BELOW CENTER --------------- 40 DEG.
WHEELHEAD LONGITUDINAL SLIDE TRAVEL ------- 6"
WHEELHEAD CROSS SLIDE TRAVEL -------------- 7.5"
WORKHEAD SPINDLE SPEED -------------------- 436 RPM
WHEELHEAD SPINDLE SPEEDS - ( 3 ) ---------- 4000 TO 8000 RPM
WHEELHEAD MOTOR --------------------------- 1/2 HP 230/3/60
EQUIPPED WITH ---
MOTORIZED WORKHEAD
ONE SHOT LUBRICATION
TOOTH REST

Weight : 1600

Dimension (IN) : 026-025-062
