Specification | Description |
---|---|
Swing over Apron | 14.17" |
Swing over Cross Slide | 10" |
Turning diameter | 10" |
Chuck Size | 10" |
Max Cutting Diameter | 11" |
Max Cutting Length | 39" |
Bar capacity | 3.3" X 25" deep |
X-Axis | 10.62" |
Z-Axis | 40.55" |
Rapid Traverse Rates | 590 IPM |
Spindle Speeds | 4,000 RPM |
Spindle Motor | 20 HP |
Spindle Bore | 3.7" |
Spindle Nose | A2-8 |

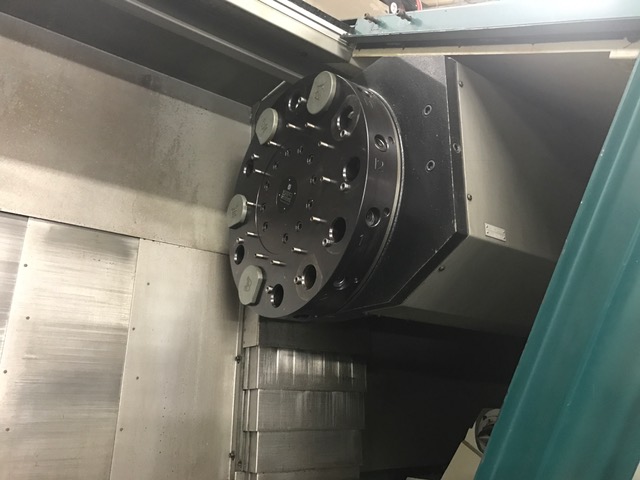

Turret Stations | 12 |
Tool holder type | VDI 40 |
Machine weight | 17,000 Lbs. |

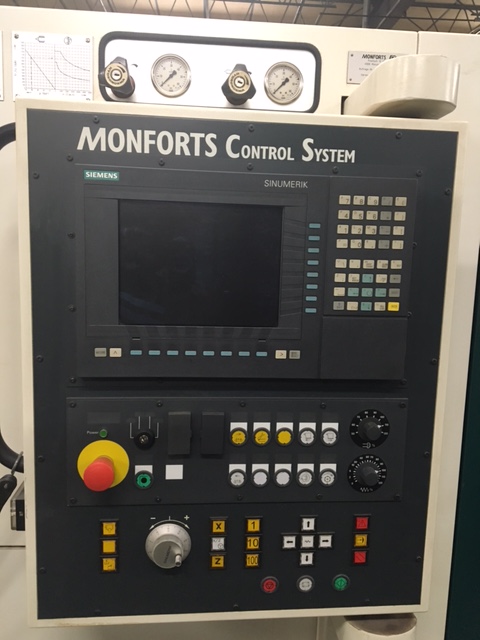

Control | Siemens |
Turning center, chucker, tailstock, Combination lathe, Mori Seiki, Mazak, Cincinnati, Haas, DMG,

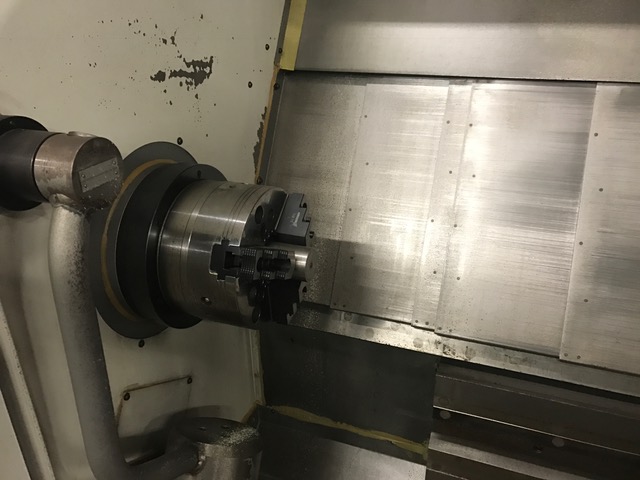

Equipped With:Siemens Control with Conversational or "G" code programming "C" Axis drill and Mill Tail stock, 10" 3-jaw chuck none hole thru type, 12" 3-jaw with 3.3" hole X 25" deep, Chip conveyor, tool presetter, Large box of Spare parts, Imcluding, Ballscrews, Bearings, seals, switches and all available manuals.

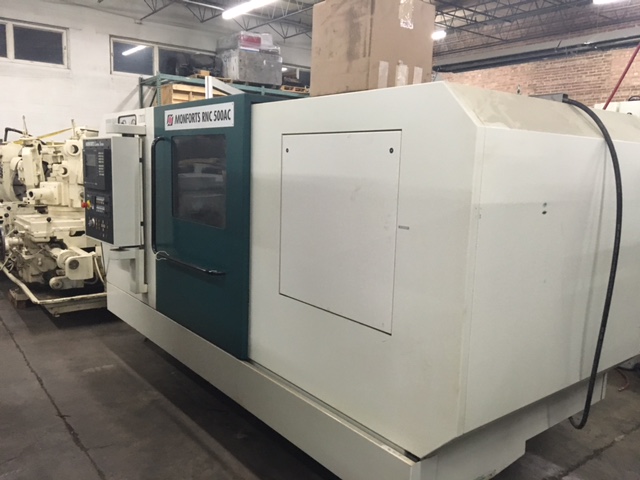

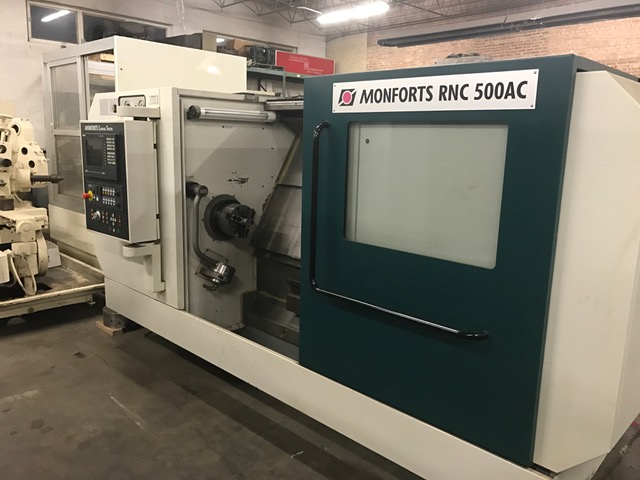

To view more information on the MONFORTS RNC 500 CNC LATHE WITH "C" AXIS, including reviews, brand information, photos, videos, and more,
