MONARCH VMC 75 VERTICAL MACHINING CENTER

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


VMC 75
97004B
Machining Centers Vertical Horizontal CNC
Vertical Machining Centers
used
22000 (LB)
0
$37,500.00

Description

Specifications:
Model                                                 VMC 75

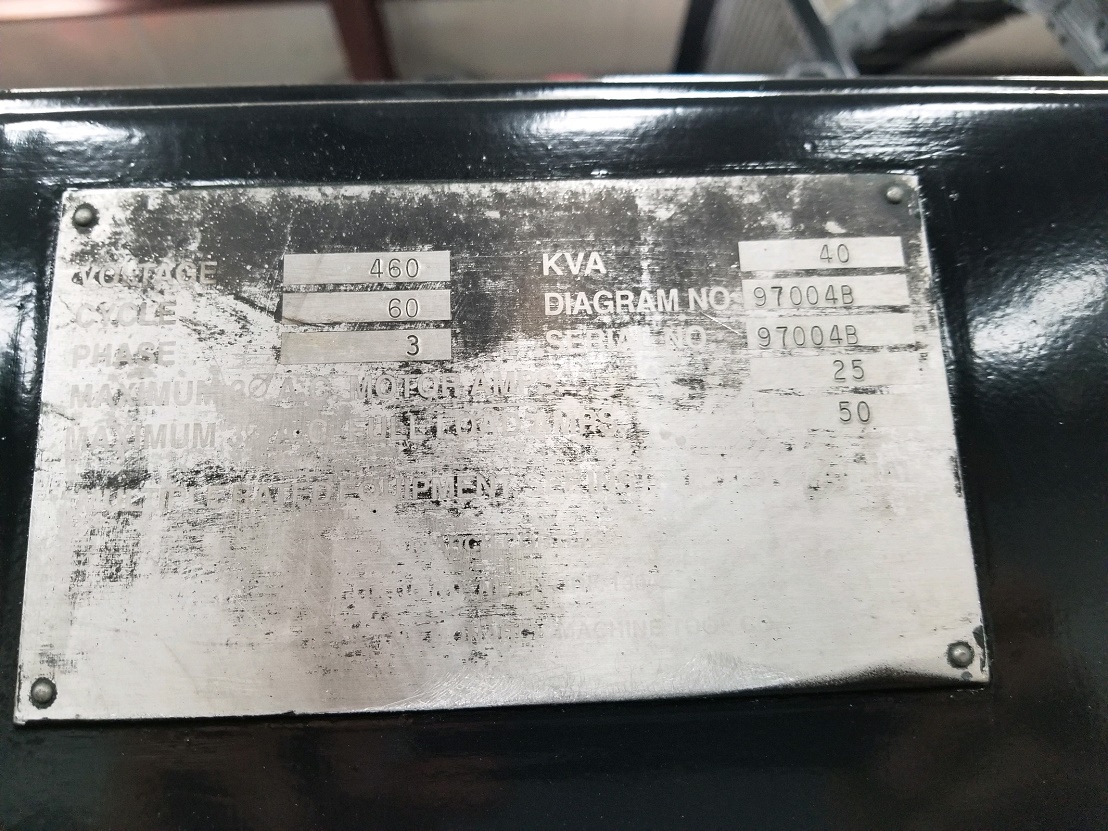

Serial no.                                            97004B

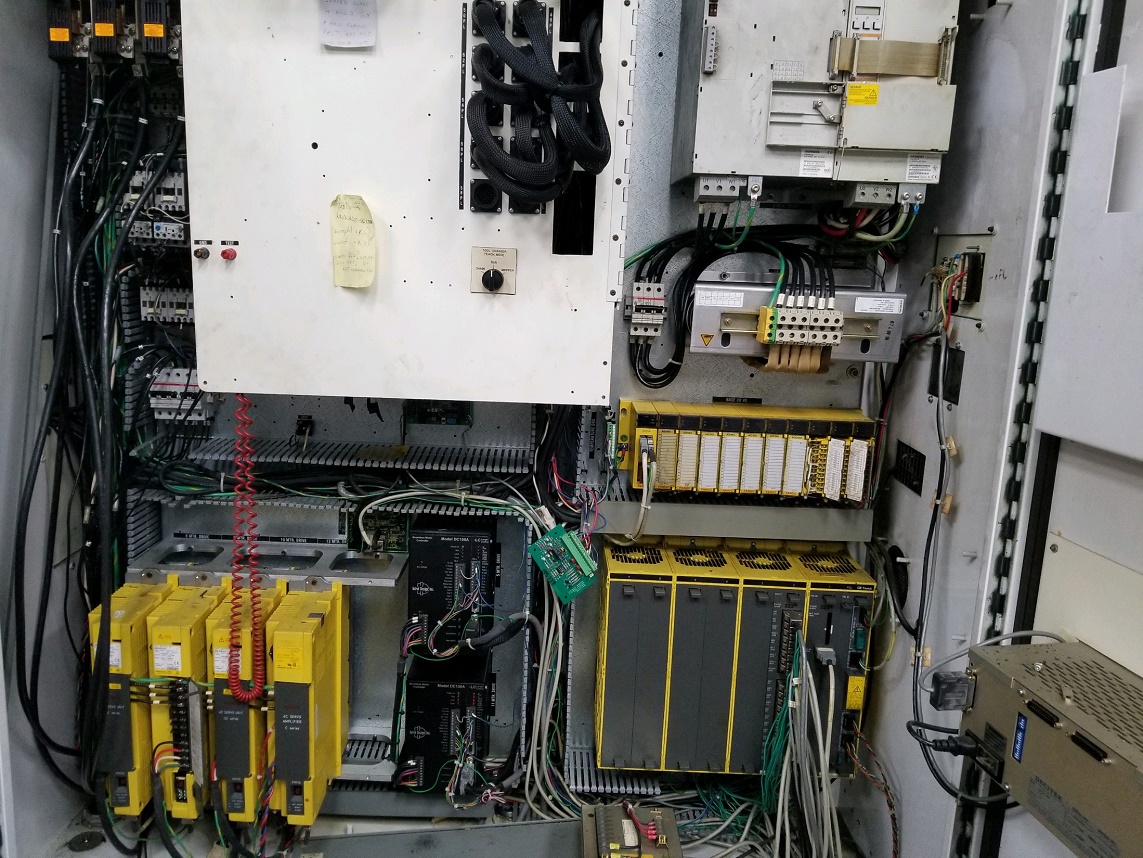

Control                                               Fanuc 15M
Overall table size                               20" x 40"
Table load capacity                            2000 lbs.
Travels:
X Axis travel (left & right)                   40"
Y Axis travel (in & out)                       20"
Z Axis travel (up & down)                  20"

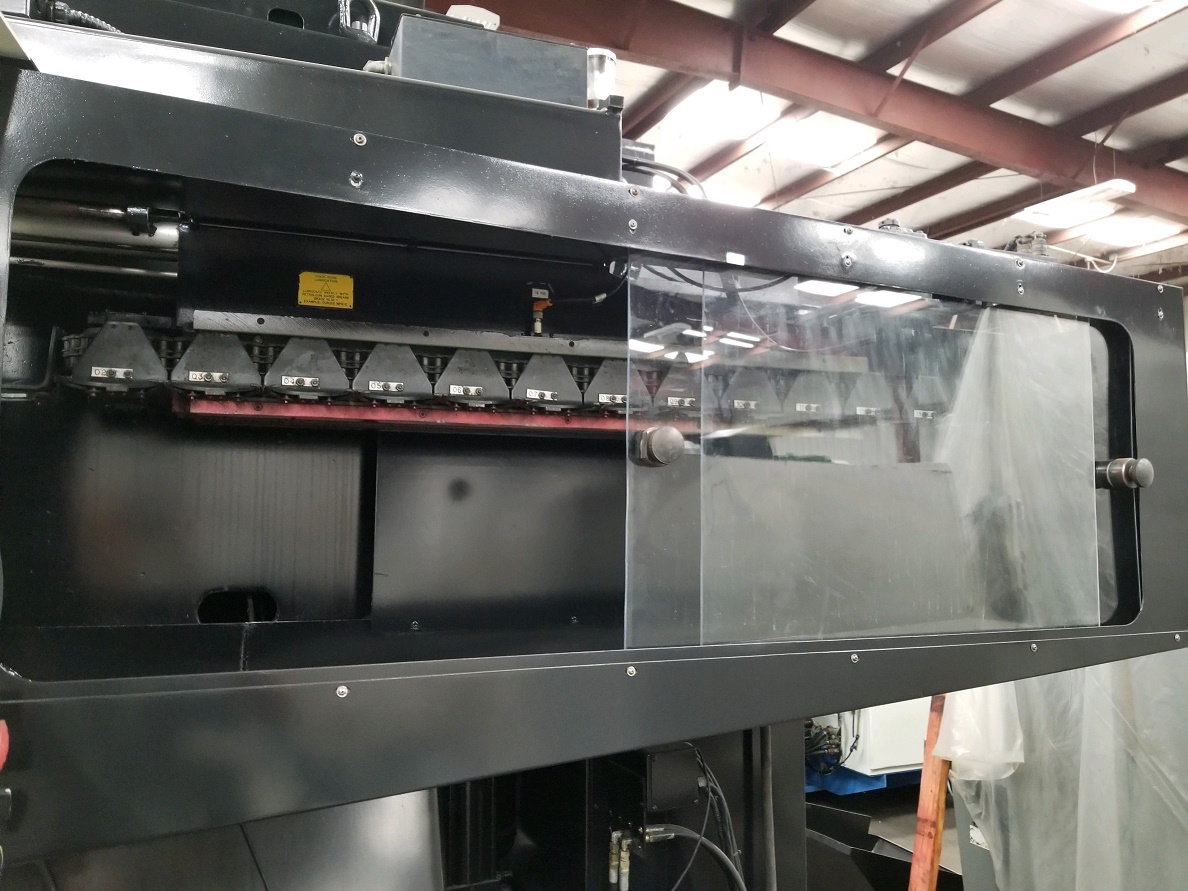

ATC                                                   20 tools
Spindle speeds                                 0-3,000 rpm
Spindle drive motor                           25 hp.
Spindle chuck taper                          Cat 50
Rapid traverse rate                           400 ipm

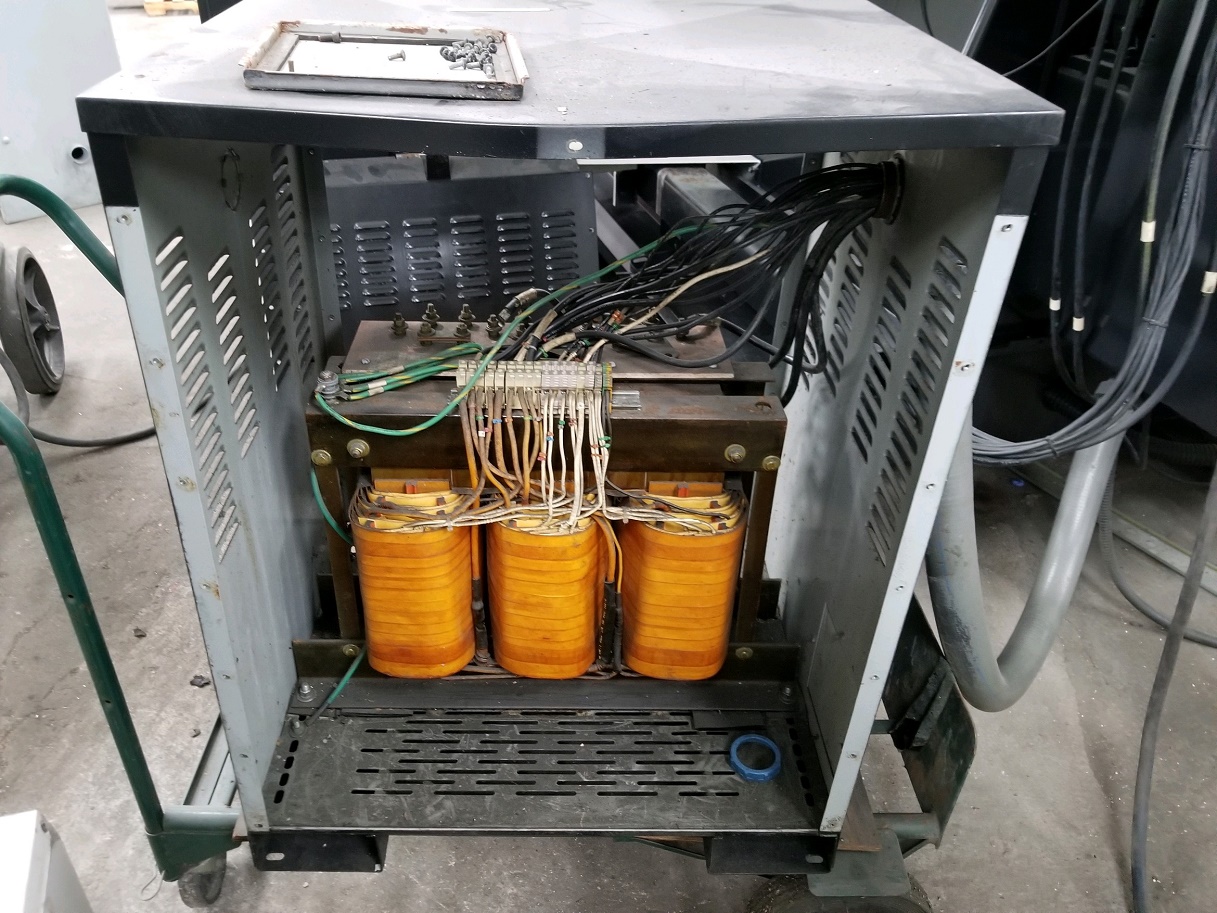

Electrics                                            440/3/60 (has a step up transformer)
Approx. shipping weight                   22,000 lbs.

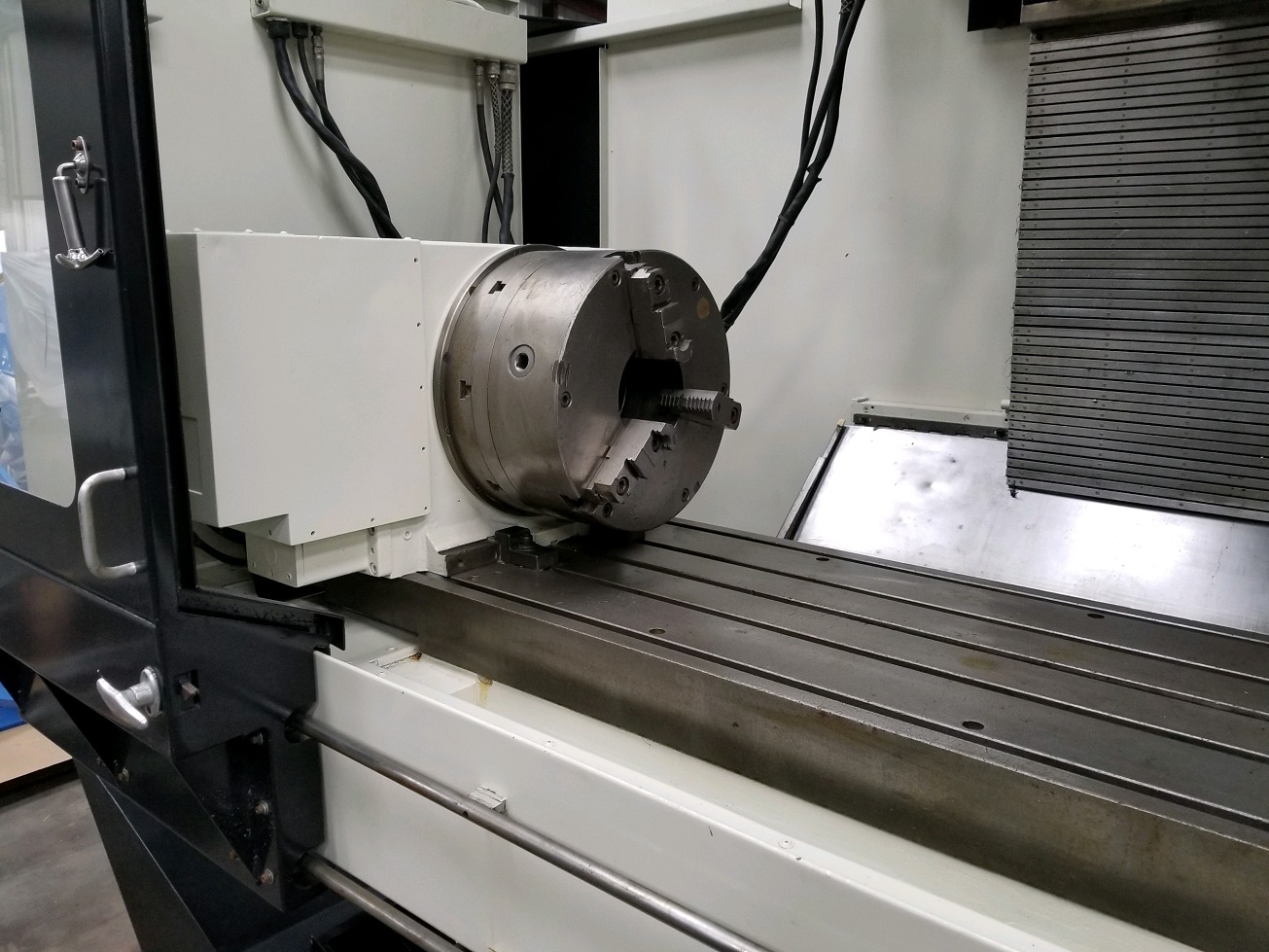

Equipped with: A 16 in Tsudacoma rotary table with a 6 in bore.

Price: $37,500.00 Houston, Texas SUBJECT TO PRIOR SALE
