80-series 3-way steady rest
T3953
---Unknown---
used
(KG)
0
$0.00

Description

Specifications:

  • V-center to flat end distance: 16-5/8\"
  • Flat to center: 18\"
  • Casting center: 13\"

Comments:

  • Color White

Description:

  • ------ V-center to flat end distance --------

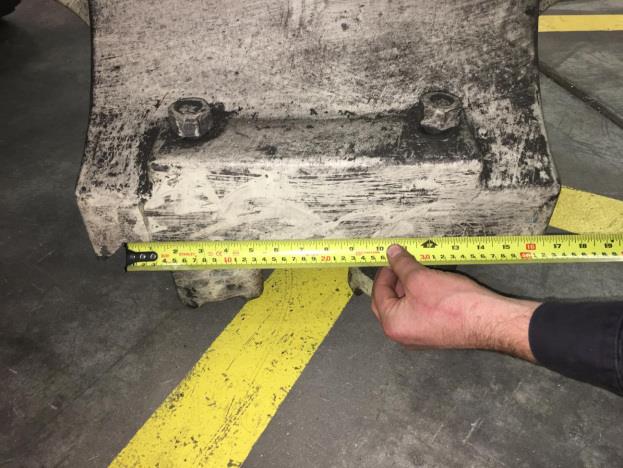

  • V-center to flat end distance = Measures horizontally the “v” cutout on the
  • bottom of the rest to opposite edge flat side. This will measure the width
  • needed to see if it will sit on the lathe properly.
  • ------ Flat to center --------
  • Flat to center = Measures from that same flat vertically to the center of the
  • rest`s circular hole. Used to verify if the lathe`s chuck will line up properly to the
  • rest.
  • ------ Casting center --------
  • Casting center = Diameter when rest is closed from inner left cast to inner right
  • cast. Basically diameter of the circular opening and what determines the size
  • part that will fit.
