SPECIFICATIONS:
TABLE
TABLE SIZE 1500 X 660 mm (59 X 26)
TABLE HEIGHT 850 mm (33.5)
T-SLOT (W/PITCH/NO) 18x 135 x 6 mm
MAX. TABLE LOAD 1500 kg (3,300 lbs.)
TRAVEL:
X AXIS 1300mm (51)
Y AXIS 710 mm (28)
Z AXIS 710mm (28)
SPINDLE NOSE TO TABLE 120-830mm (4.7 to 32.7)

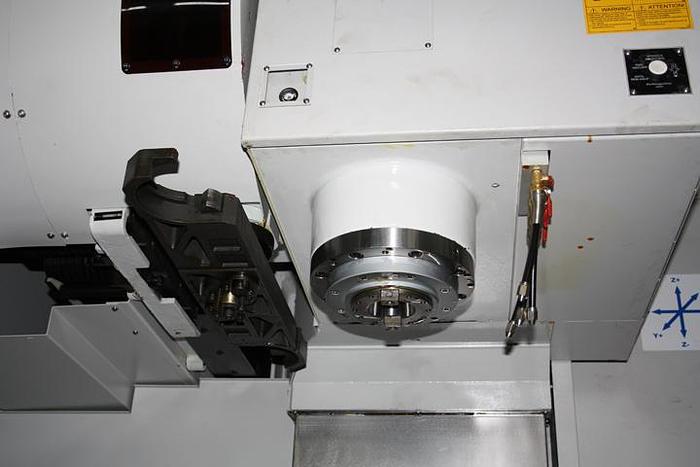

SPINDLE:
SPINDLE TAPER ISO 50
SPINDLE DIAMETER 70 mm (2.75 in)
SPINDLE SPEED 2 SPEED GEARED 1200 RPM LOW RANGE
6000 RPM HIGH RANGE
MOTOR SPEED (RATED/MAX.) 9000 (FAGOR)
MOTOR OUTPUT 11/15 kw (15/20 hp)
TRANSMISSION BELT & GEAR BOX
TOOL CLAMPING FORCE 1200 kg f (2600 lb f)
AXES TRANSMISSION
X AXIS:
BALLSCREW D40x P12 x C3
GUIDEWAY:
X GUIDE WAY .SQUARE BOX WAYS
WIDTH 80mm (3.15)
THICK 35mm (1.37)
GUIDE DISTANCE 500mm (19.68)
LUBRICATION OIL:
Y GUIDE WAY SQUARE WAYS
WIDTH 225mm (8.85)
THICK 40mm (1.57)
GUIDE DISTANCE 600mm (23.62)
LUBRICATION OIL
Z GUIDE WAY SQUARE WAYS
WIDTH 100mm (3.93)
THICK 35mm (1.37)
GUIDE DISTANCE 350mm (13.78)
LUBRICATION OIL

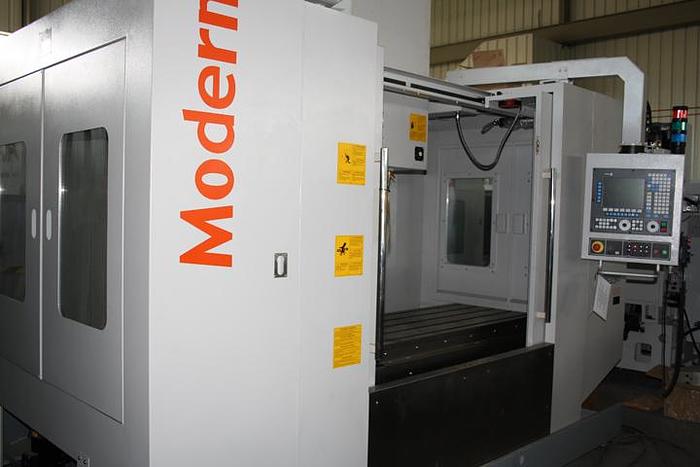

To view more information on the MODERN VMC-1300 #50 TAPER VERTICAL MACHINING CENTER C/W: FAGOR 8065 MC CONTROLS, including reviews, brand information, photos, videos, and more,
