MODERN MM-430 CNC
VERTICAL MACHINING CENTRE

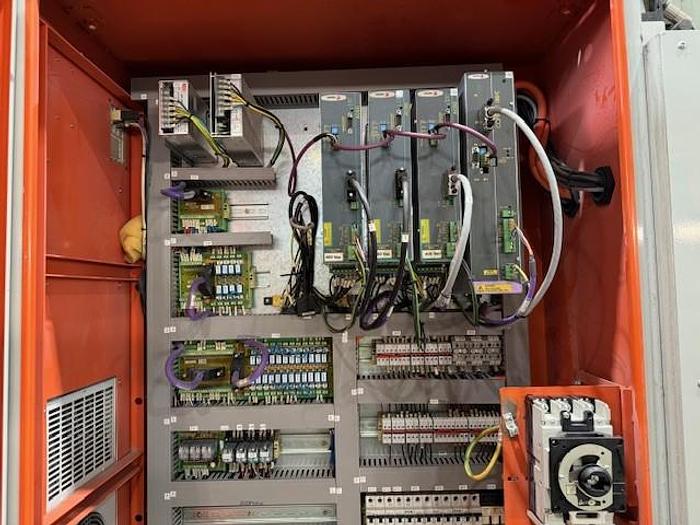

C/W: FAGOR 8055MC CNC CONTROL Yaskawa Drives (220V)
SPECIFICATIONS:

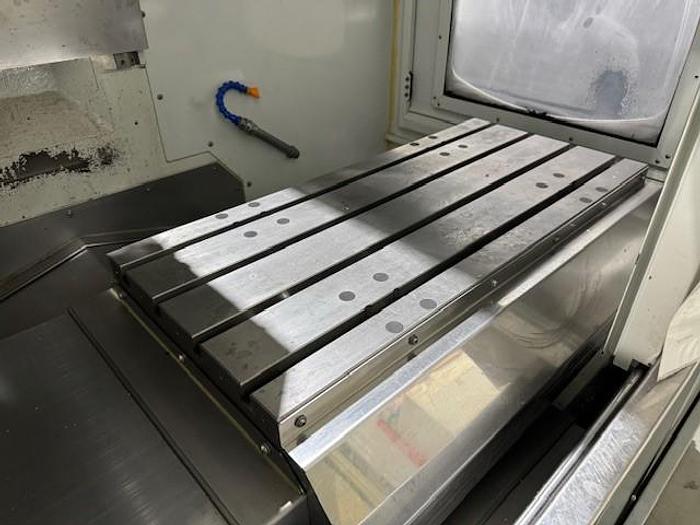

TABLE
TABLE SIZE 35.43 in X 16.14 in
DISTANCE TABLE TO FLOOR 32.28 in
TABLE WEIGHT CAPACITY 770 LBS.
TABLE T SLOTS (4) CENTERS 625 in X 3.93 in
TRAVEL
X AXIS 29.92 in
Y AXIS 16.93 in
Z AXIS (STD/OPT) 15.74 in/ 18.11 in
SPINDLE
TAPER ISO 40
SPINDLE BEARING I.D 2.36 in
SPINDLE SPEED 8,000 RPM
SPINDLE CENTER TO GUIDE WAY 18.89 in
SPINDLE NOSE TO TABLE SURFACE 4.01 in to 22.12 in
BALLSCREW
X AXIS (DIA.) 1.259 in x P8
Y AXIS (DIA.) 1.259 in x P8
Z AXIS (DIA.) 1.259 in x P8
LINEAR GUIDEWAYS (BALL) X/Y/Z 1.377 in

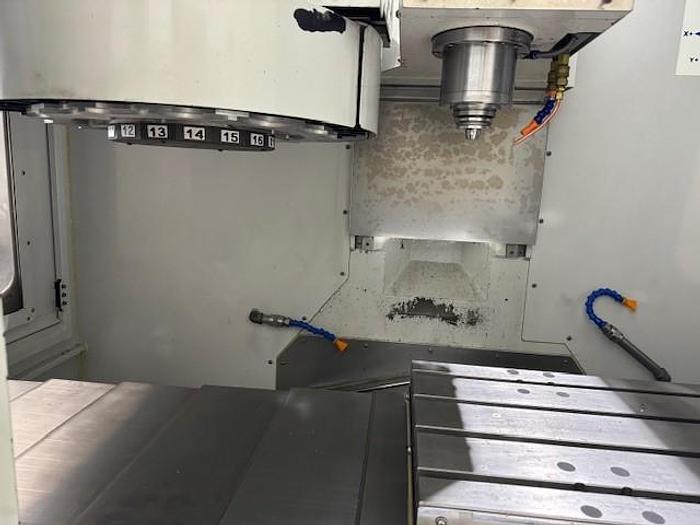

AUTOMATIC TOOL CHANGER
POCKETS 16
TOOL TAPER BT#40/CAT#40/DIN69871
MAX TOOL WEIGHT 11.88 LBS
MAX TOOL DIAMETER (USING ALL POCKETS) 3.5 in
More Specifications:
Manufacturer BUFFALO MACHINERY
Model Modern MM430 machining center
Year 2012
Condition Used
Serial Number 082121303
Stock Number MM430
C/W FAGOR 8055MC CNC CONTROL
