MODERN BNC-2260XL FLAT BED TEACH TYPE CNC LATHE 22″ SWING, 60″ CENTERS, 4″ BORE

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


BNC-2260XL
Lathes and Turning Centers CNC
CNC Lathe (Flat Bed)
used
8118 (LB)
0
$0.00

Description

Description:

SPECIFICATIONS:
CAPACITY
 SWING OVER BED 22 in
 SWING OVER GAP 29 in
 SWING OVER CROSS SLIDE 12 in
 CENTERS HEIGHT 11 in
 WIDTH OF BED 16 in
 DISTANCE BETWEEN CENTERS 60 in
 SPINDLE SPEED 80 to 2400 (2 STEPS)

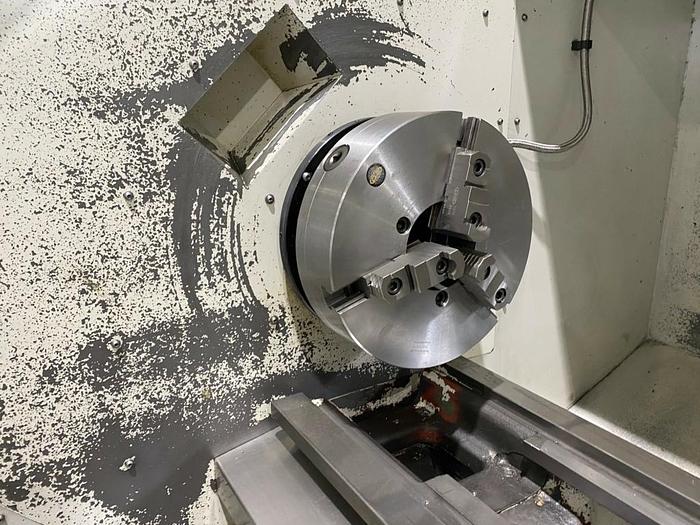

 SPINDLE NOSE D1-8
 SPINDLE BORE 4.17 in
 SPINDLE BEARING TAPER ROLLER P5
 Z TRAVEL 65 in
 X TRAVEL 13.5 in
 CROSS SLIDE WIDTH 8.5 in

TAILSTOCK:
 QUILL DIAMETER 3.94 in
 QUILL TRAVEL 6 in
 QUILL TAPER MT5

MOTOR:
 AC SERVO MOTOR 20 HP
 XZ FEED MOTOR 2.5 HP
 COOLANT PUMP 1/8 HP
 AUTO. LUBE PUMP 1/16 HP
 RAPID TRAVERSE X/Z 240/315 IPM
 POSITIONING ACCURACY 0.0002 in
 REPEATABILITY 0.0001  in
 SPINDLE RUNOUT 0.0001 in
 CUTTING TOOL ALLOWANCE 1 in X 1 in
 Z BALL SCREW 50MM X 10MM C5
 X BALL SCREW 25MM X 5MM C5
 WEIGHT OF MACHINE 8,118 LBS.
 FLOOR SPACE 140 in X 60 in


STANDARD ACCESSORIES:

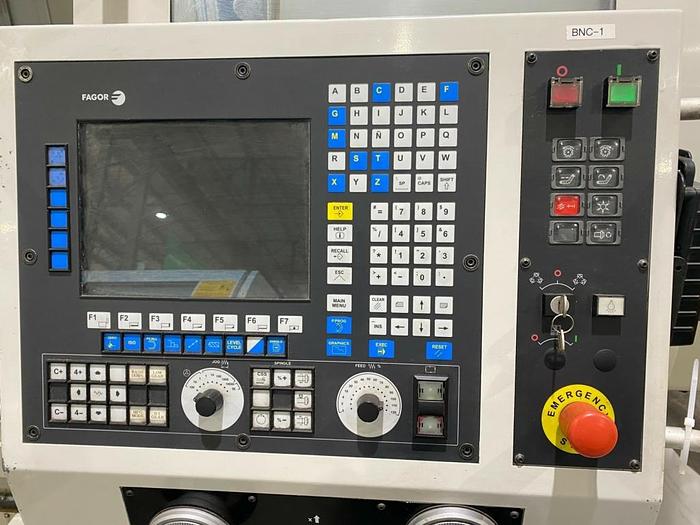

 FAGOR 8055FL CONTROL WITH 10.14 in LCD FULL KEYS
 FAGOR PACKAGE SERVO MOTOR INCLUDING SPINDLE AND AXIS SERVO MOTORS
 2 STEP VARIABLE DSPEED
 AUTOMATIC SPINDLE STEP
 TURCITE B ON CARRIAGE WAY
 COOLANT SYSTEM 220V/3PH
 AUTOMATIC LUBE SYSTEM
 HALOGEN WORK LIGHT
 TOOLBOX AND KITS
 LEVELING PADS AND BOLTS
 LOW VOLTAGE CONTROL CIRCUIT
 FULL ENCLOSURE FRONT DOOR
 PORTABLE MPG
 CSA
