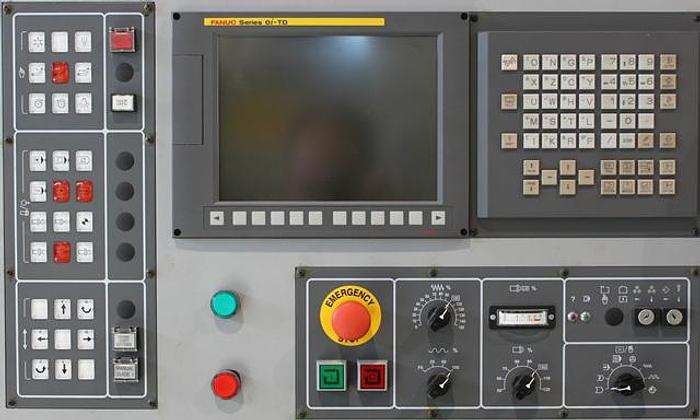

MODERN 76-HT SLANT BED TURNING CENTER C/W: FANUC 0ITD CONTROLS

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


MODERN 76-HT SLANT BED TURNING CENTER C/W: FANUC 0ITD CONTROLS
76-HT
Lathes and Turning Centers CNC
Slant Bed Turning center
used
(LB)
0
$0.00

Description

Description:

FEATURES:
CAPACITY
 MAX. SWING MM 600
 MAX. CUTTING DIAMETER MM 484
 MAX. CUTTING LENGTH MM 750
 SLANT BED DEGREE DEGREE 45

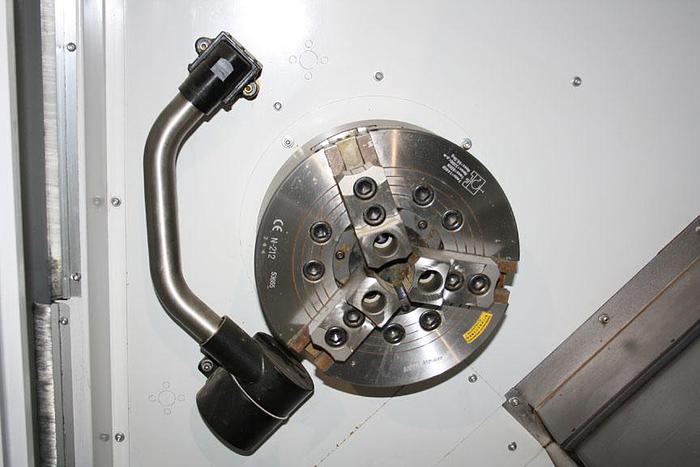

 CHUCK SIZE INCH 12
 BAR WORK CAPACITY MM 78

SPINDLE:
 SPINDLE NOSE A2-8
 MAX. SPINDLE SPEED RPM 3000
 SPINDLE FRONT BEARING INNER DIA. MM 130

MOTOR:
 SPINDLE MOTOR POWER (STD.) KW 18.5/22 (STD)
 SPINDLE MOTOR TYPE FANUC (OPT.) aP40
 X-AXIS MOTOR POWER KW/NM 3 / 12
 Z-AXIS MOTOR POWER KW / NM 4 / 22
 I.D. TOOL (BORING BAR) SHAFT DIA. MM 40

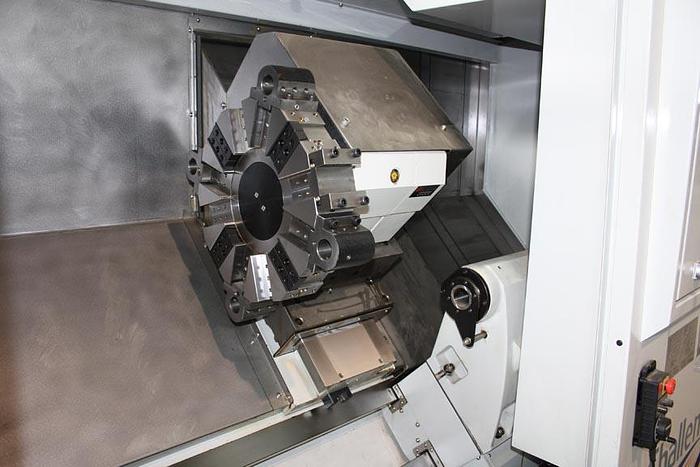

TURRET:
 TURRET TYPE HYDRAULIC
 TURRET SIZE LS-200
 TURRET NUMBER OF STATION 12
 O.D. TOOL SHANK SIZE MMXMM 25 X 25

Optional Equipment Included in Price:
 Bar Feeder Interface (Bar Feeder is not included)
 Automatic Parts Catcher
 Automatic Door
 Coolant System
 Chip Conveyor
 Optional at additional cost:
 V65-LE Bar Feeder

Specifications:
Condition Used
