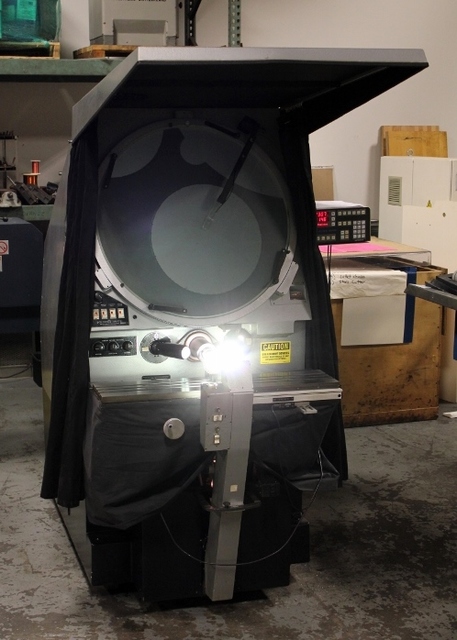

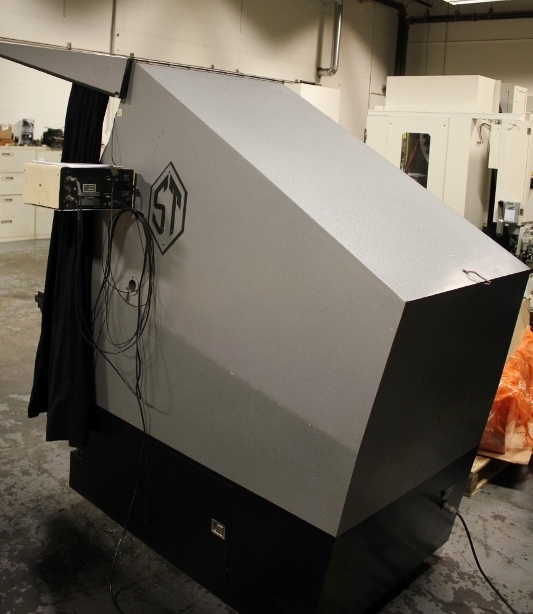

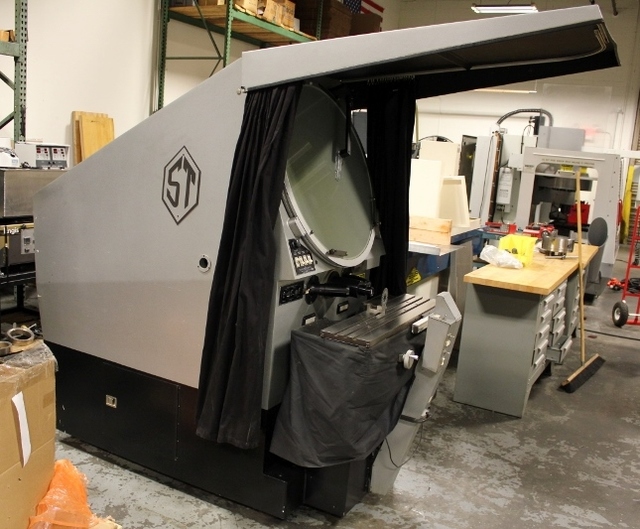

MODEL: SCHERR-TUMICO #P-2500 30” OPTICAL COMPARATOR 2 AXIS DRO #GMT-1763
P-2500
353
Measuring (Metrology) Equipment
Comparators, Optical
used
2000 (LB)
1973
$8,950.00

Description

SPECIFICATIONS:
Reference #
GMT-1763
Model #

P-2500

Serial #
353
Year of manufacture
1973

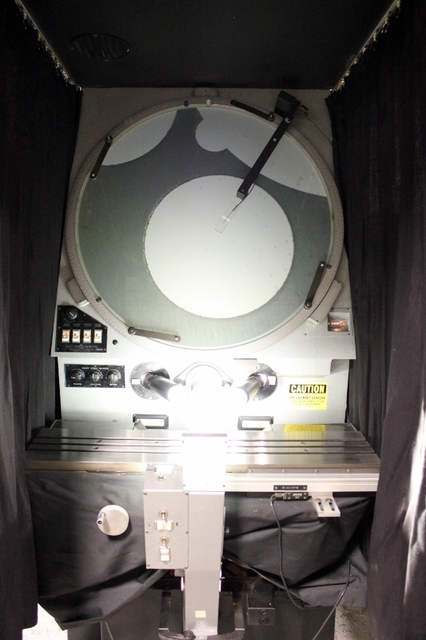

Screen diameter
30"
Size of measuring table
8" x 35"
Measuring capacity
Longitudinal table travel
12"
Vertical table travel (with 10X & 20X)
9"
Vertical table travel (with 25X to 100X)
7"
Angular measuring capacity
360 Degree chart rotation
Cross travel for focusing
3"
Allowable work load on table
500 Lbs.
Helix adjustment (by means of swinging lamphouse)
10"
EQUIPPED WITH:

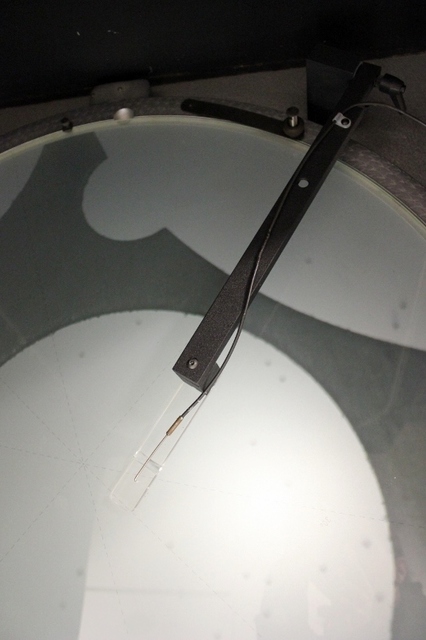

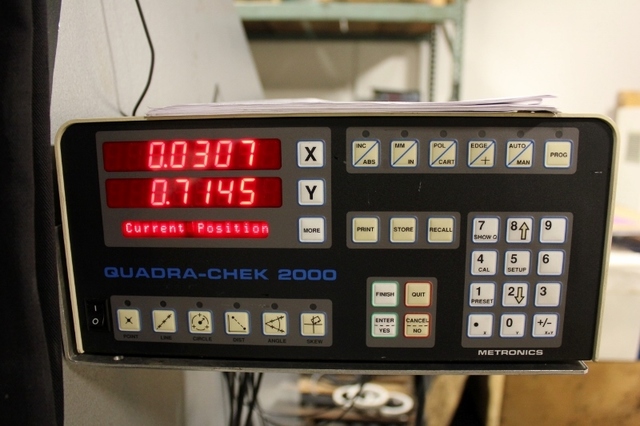

  • Quadra-Chek 2000 two-axis geometric digital readout (0.0001" resolution) with edge detection feature
  • Power protractor ring with illuminated mechanical scale

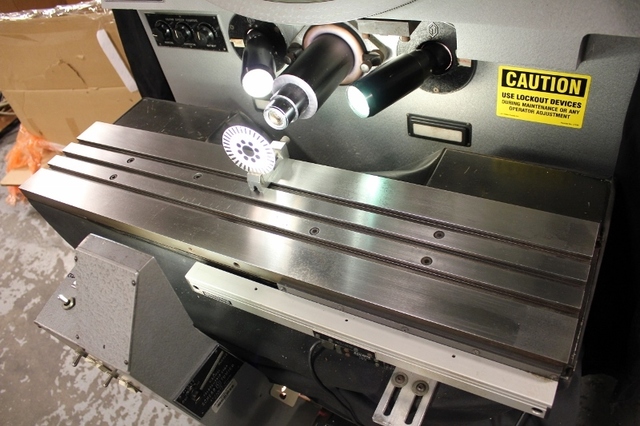

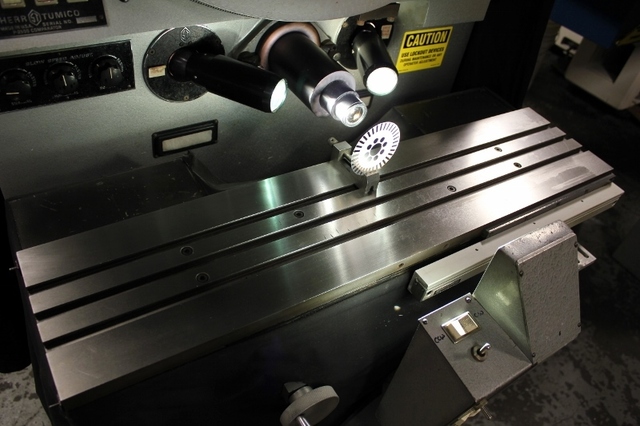

  • 8" x 35" Chrome plated power table
  • Speed adjustment rheostats that work in conjunction with toggle switches for table movements (longitudinal & vertical) and screen rotation
  • +/- 10 deg Helix adjustment by swinging lamphouse
  • Duplex adjustable surface illumination (tungsten halogen)
  • Tungsten halogen profile illumination
  • 50X Projection lens

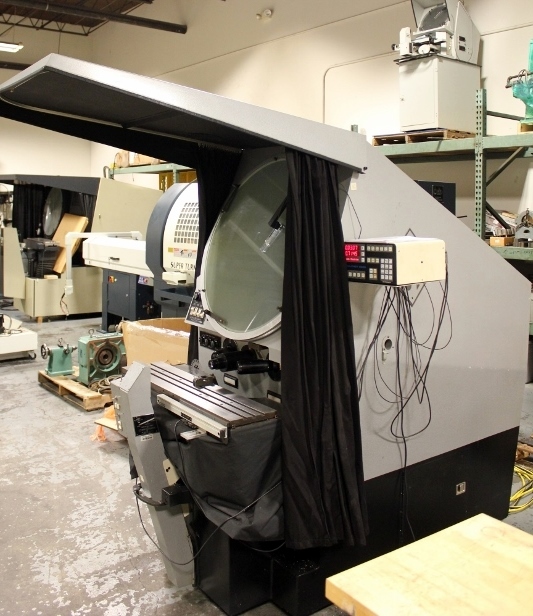

  • Hood with curtain

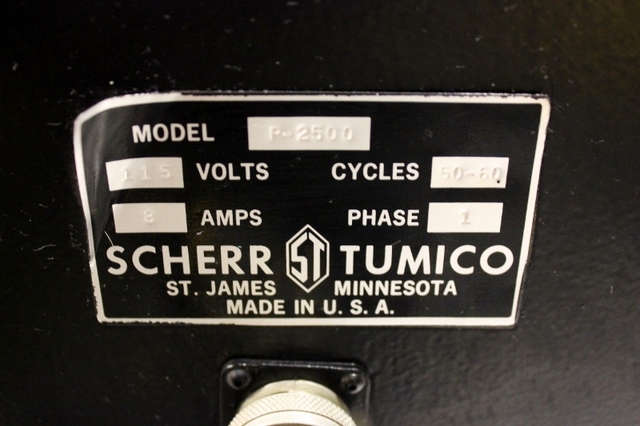

  • 1/60/115 Volt electrics
APPROXIMATE WEIGHT (MACHINE ONLY):
2000 Lbs.
APPROXIMATE DIMENSIONS:
42 in L x 84 in w x 75 in H
LOCATION:
F.O.B. Long Island, NY
REFERENCE #:
Comparator -GMT-764
PRICE #:
$8,950.00
