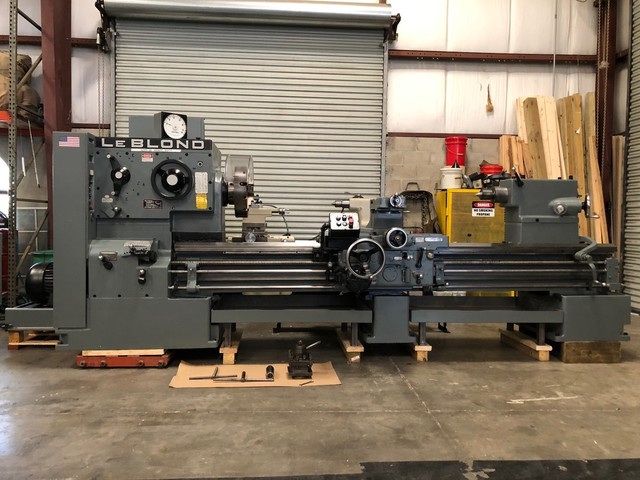

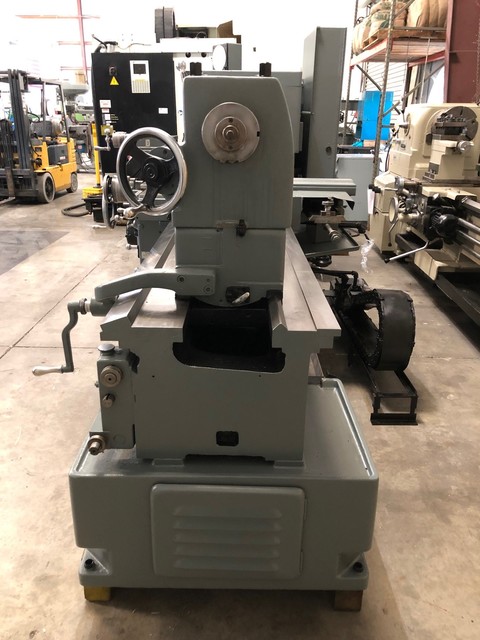

MODEL: LEBLOND 3230-25 36-1/2” X 96” CC HEAVY DUTY LATHE 1978’ #GMT-2090
3220-25
3NFL-1310
Lathes (Manual)
Engine Lathes
used
24500 (LB)
1978
$24,500.00

Description

SPECIFICATIONS:
Reference #
GMT-2090
Model #
3220-25
Serial #
3NFL-1310
Year of manufacture
1978
Swing over bed
36-1/2 in
Swing over cross slide
25 in
Distance between centers
96 in
Spindle center to floor
49-13/16 in
Spindle nose
D1-8
Center size
# 5 Morse
Spindle bore
2-3/16 in
Bed width
24-1/2 in
Cross slide travel
18-1/2 in

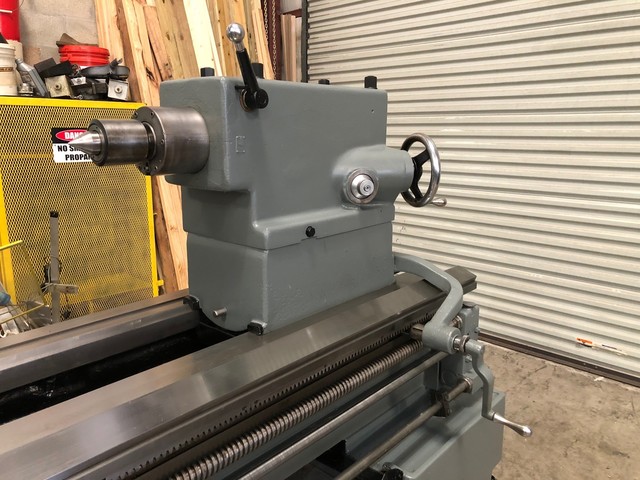

Tailstock taper
# 5 Morse
Tailstock quill diameter
6 in
Tailstock spindle travel
15 in
(36) Spindle speeds
10  to 1300 R.P.M.
(60) Feeds
.0045 in to .269 in
(60) Thread range
1 to 60 T.P.I.
EQUIPPED WITH:
  • Hardened, replaceable steel, bed, and cross ways
  • Hardened and ground cross feed screw and nut

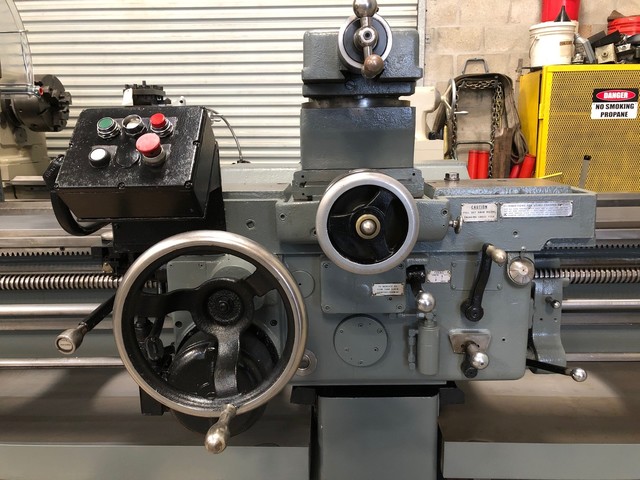

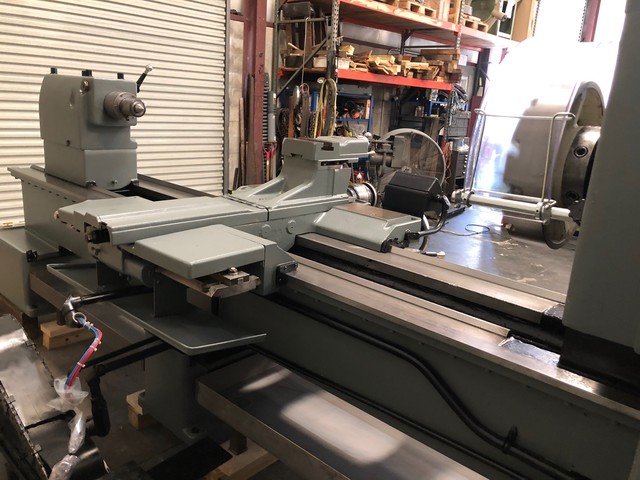

  • Four-way motorized power rapid traverse carriage and cross slide
  • Thread dial
  • Four-way square toolpost

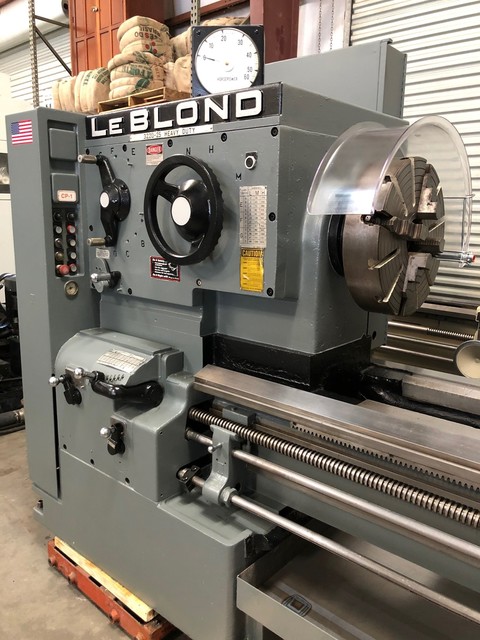

  • Horsepower Meter
  • Taper attachment (less guide block)
  • Inch / Metric Dials on Compound & Cross

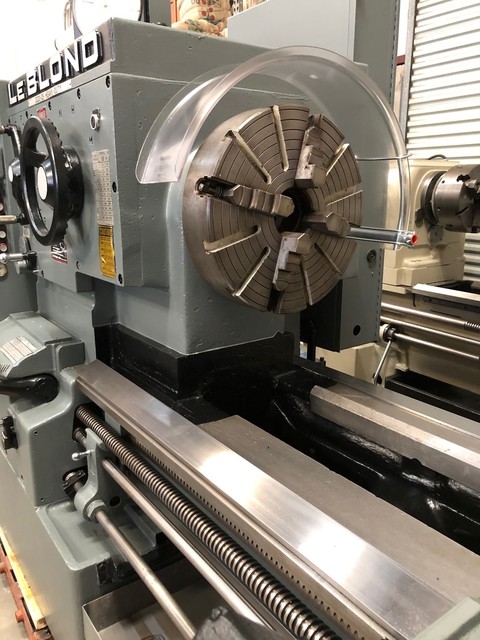

  • 17-1/2 in 4 Jaw Chuck Independent type with 3.75 in Bore
  • (2) Chuck Keys
  • (2) Removal chip pans on stands
  • Chuck shield

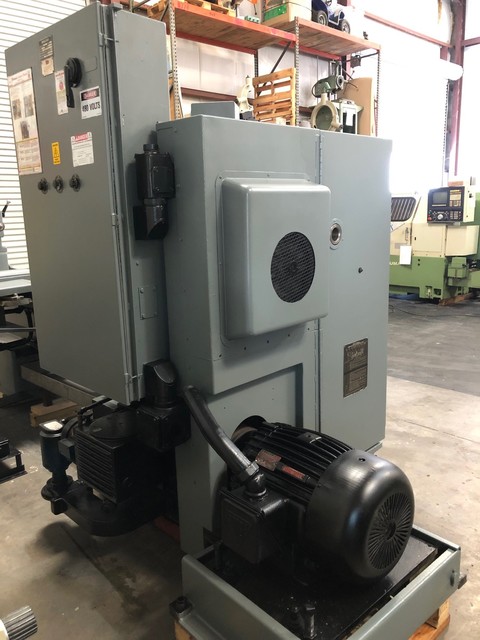

  • 40 H.P. 3/60/230-460 volt spindle drive motor with electrical controls
  • Machine is wired for 3/60/460 volt operation.
APPROXIMATE WEIGHT (MACHINE ONLY):
24500 Lbs.
APPROXIMATE DIMENSIONS:  224 in L x 76 in W x 84 in H
LOCATION:

F.O.B Bradenton, FL
REFERENCE #:
Lathe -GMT-1089
PRICE #:
$24,500.00
