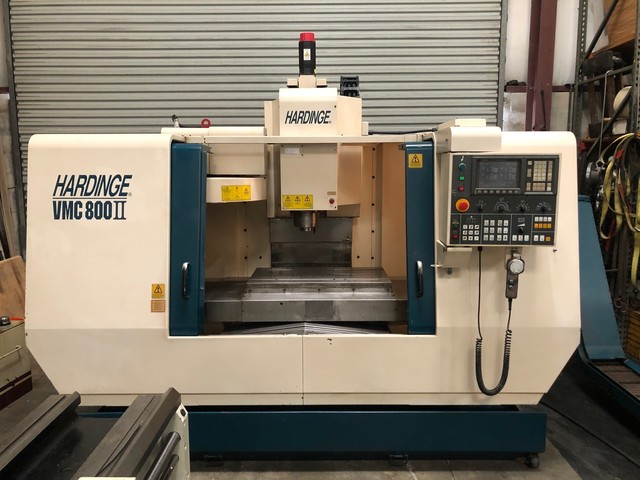

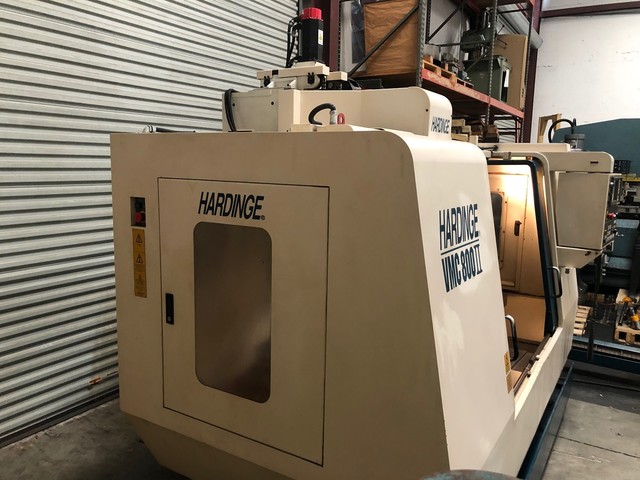

MODEL: HARDINGE #VMC-800 II CNC VERTICAL MACHINING CENTER VMC #GMT-2313

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


VMC-800 II
NVBA0I0025
Machining Centers Vertical Horizontal CNC
Vertical Machining Centers
used
10500 (LB)
2000
$18,500.00

Description

SPECIFICATIONS:
Reference #
GMT-2313
Model #

VMC-800 II

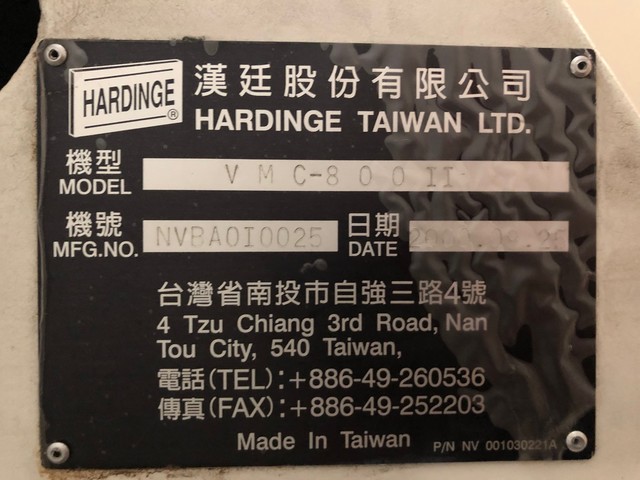

Serial #
NVBA0I0025
Year of Manufacture

9/2000

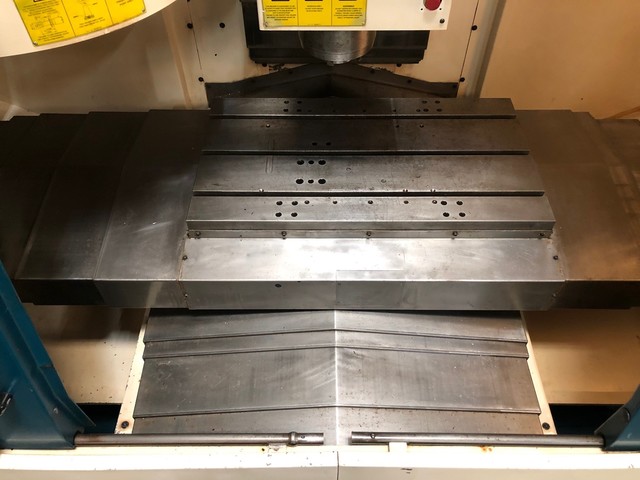

Table work area

36.4" x 20"
Table load capacity
1,540 Lbs.
Longitudinal travel (X-axis)
31.5"
Cross travel (Y-axis)
20.08"
Vertical travel (Z-axis)
20.08"
Minimum/Maximum distance from working surface of table to spindle nose-
6.1"/26.1"
Distance from centerline of spindle to face of column
23"
Spindle taper






CAT-40
Maximum spindle speed, direct drive

8,000 R.P.M.
Rapid traverse rate, X ,Y & Z-axes
1,181 I.P.M.
Cutting feed rate

Up to 472 I.P.M.
Maximum tool diameter

3.5"
Maximum tool diameter without adjacent tools

5.9"
Maximum tool length

9.84"
Maximum tool weight
13.2 Lbs.
EQUIPPED WITH:
  • AC servo motors and ball screws on all axes

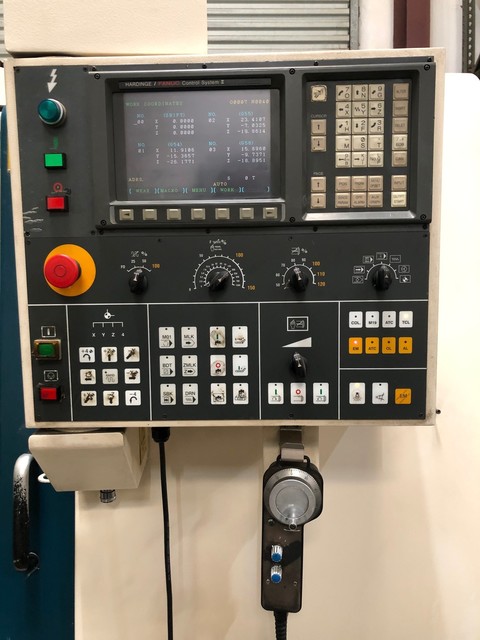

  • Manual Pulse Generator

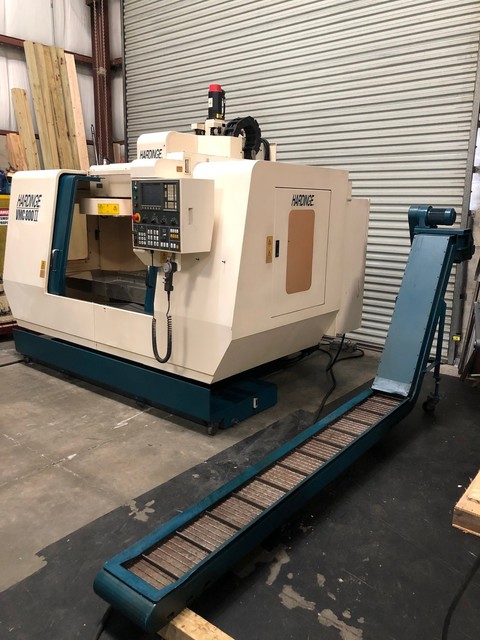

  • Chip conveyor

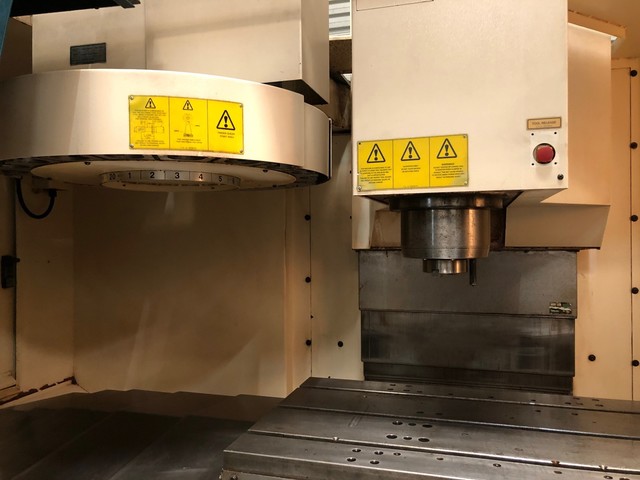

  • (20) Tool capacity umbrella-type automatic tool changer
  • Direct drive spindle
  • Cast iron spindle carrier, column, and base
  • Linear way construction with telescopic way covers on all axes
  • Coolant system with external tank
  • 17.3 H.P. AC spindle drive motor

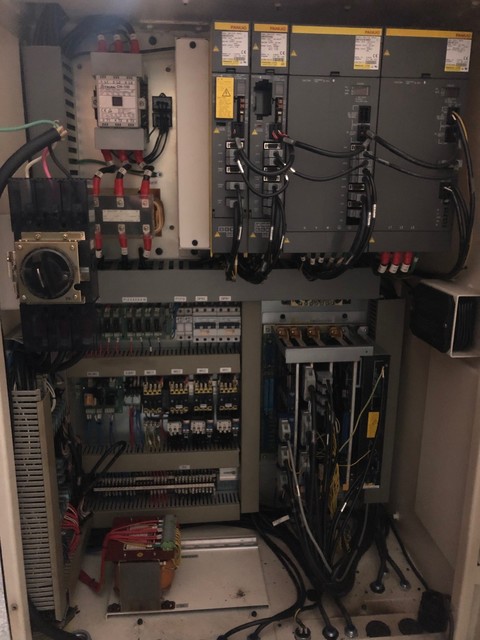

  • Machine is wired for 220 Volt / 3 Phase / 60 HZ
APPROXIMATE WEIGHT (MACHINE ONLY):
10,500 Lbs.
APPROXIMATE DIMENSIONS:
116 in L x 86 in W x 96 in H
LOCATION:
F.O.B. Bradenton, Floirda
REFERENCE #:
Machining Centers -GMT-1313
PRICE #:
$18,500.00
