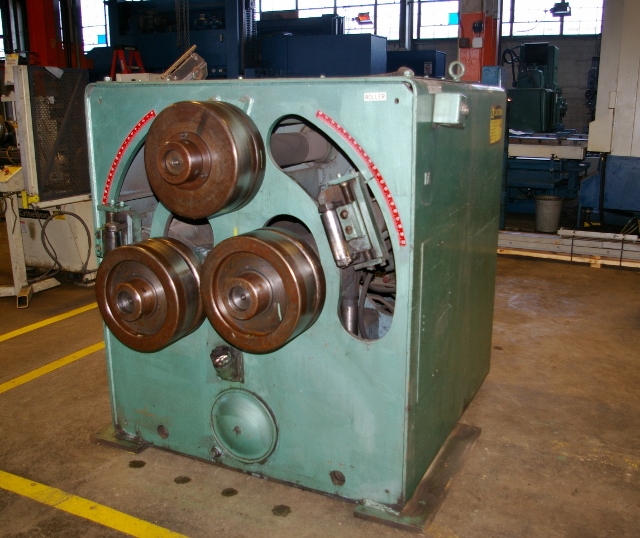

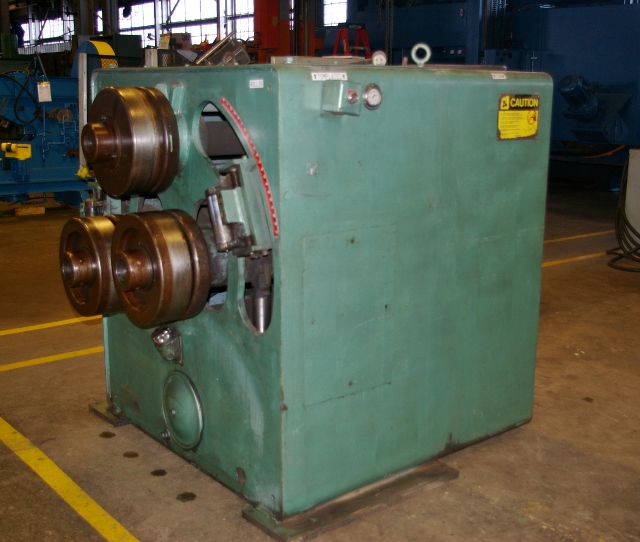

BERTSCH #AR25 HYDRAULIC ANGLE BENDING ROLLMANUFACTURED 1996STOCK# 18474
MANUFACTURED 1996STOCK# 18474
MODEL AR25
CAPACITY:
ANGLE LEG-OUT ----------------------------- 5" X 5" X 3/8" TO 68" MIN. DIA.
ANGLE LEG-IN ------------------------------ 4" X 4" X 3/8" TO 60" MIN. DIA.
PLATE ON EDGE ----------------------------- 1" X 4" TO 40" MIN. DIA.
FLAT PLATE -------------------------------- 1-1/2" X 7" TO 23" MIN. DIA.
SQUARE BAR -------------------------------- 2-1/2" TO 25" MIN. DIA.
"T" LEG-OUT ------------------------------- 5" X 9.5# TO 192" MIN. DIA.
"T" LEG-IN -------------------------------- 5" X 9.5# TO 192" MIN. DIA.
CHANNEL FLANGE-OUT ------------------------ 6" X 13# TO 20" MIN. DIA.
CHANNEL FLANGE-IN ------------------------- 6" X 13# TO 20" MIN. DIA.
"I" BEAM ON WEB --------------------------- 6" X 17.25# TO 22" MIN. DIA.
PIPE -------------------------------------- 3-1/2" SCH. 40 TO 48" MIN. DIA.
DIE DIAMETER ------------------------------ 15"
ROLLING SPEED ----------------------------- 0 TO 16 PER MINUTE
MAIN DRIVE MOTOR -------------------------- 15 HP A.C.
EQUIPPED WITH ---
3 ROLL HYDRAULIC DRIVE
HYDRAULIC ADJUSTABLE GUIDE ROLLS
DOUBLE PINCH DESIGN
VERTICAL OR HORIZONTAL WORKING POSITION

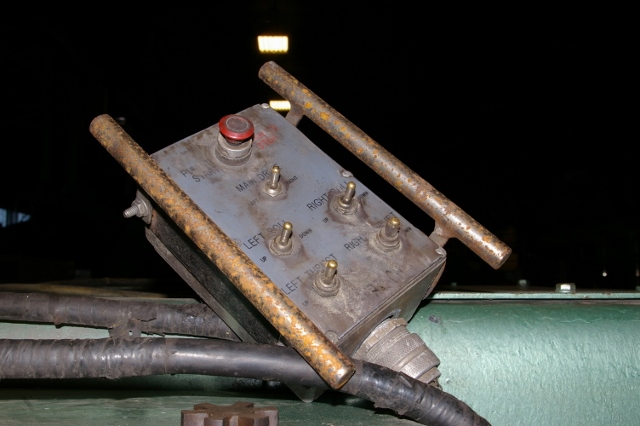

HAND HELD PENDANT CONTROL
TEMPORARY SPECIFICATIONS PENDING ARRIVAL
Weight : 7520
Dimension (IN) : 070-070-065
