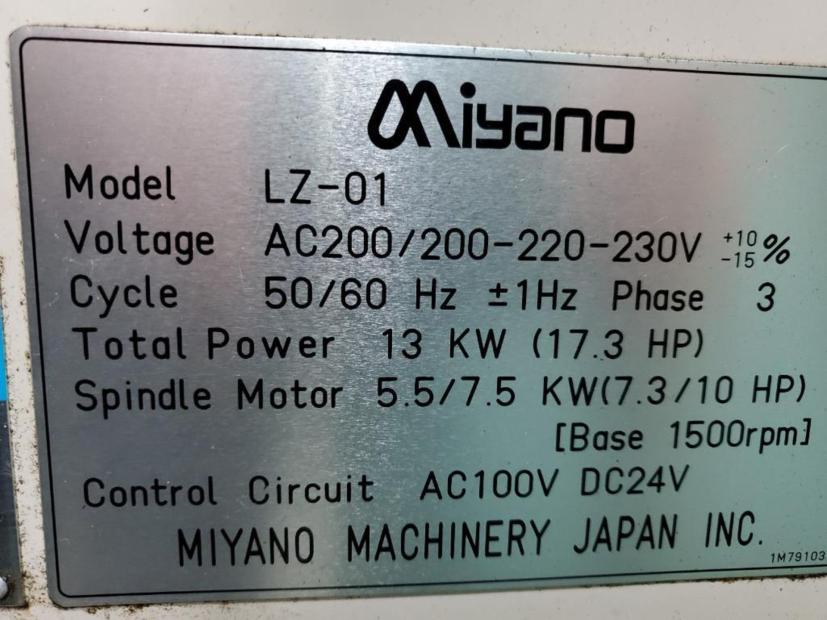

Spindle motor (cont./30 min. rating) VAC 5.5kW : 7.5HP /
7.5kW : 10 HP
Spindle speed 60 - 6000 RPM
Slide traverse:
X-axis 9.45"
Z-axis 7.48"
No. of tool stations 8
Indexing time 0.3 sec/pos.
Max. part size 2.76"D x 3.15"L
Max. part weight 1.54 Lbs x 2
Part service time Min. 4 sec. (with collet
chuck)
Machine size (W x L x H) 55" x 65" x 65"
Weight (including NC unit) 6500 lbs.
Equipped With:

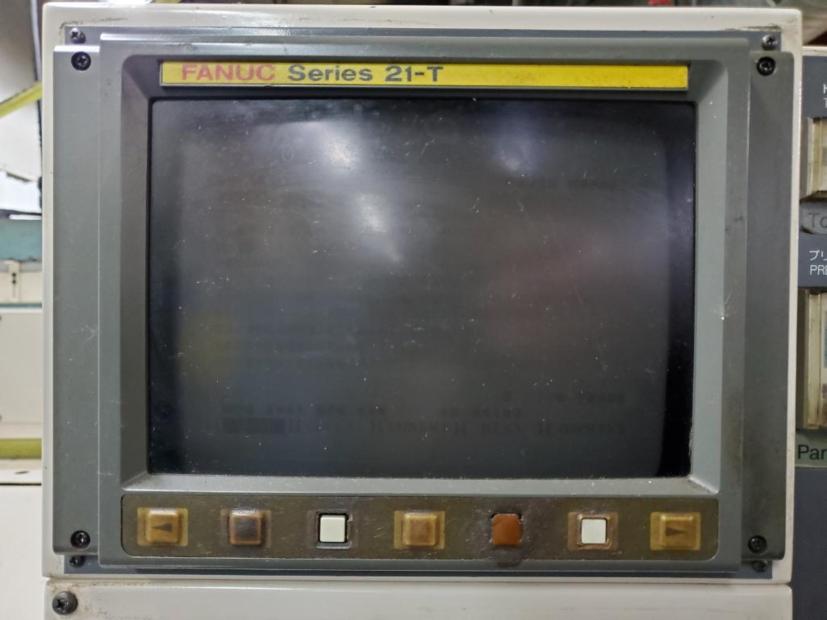

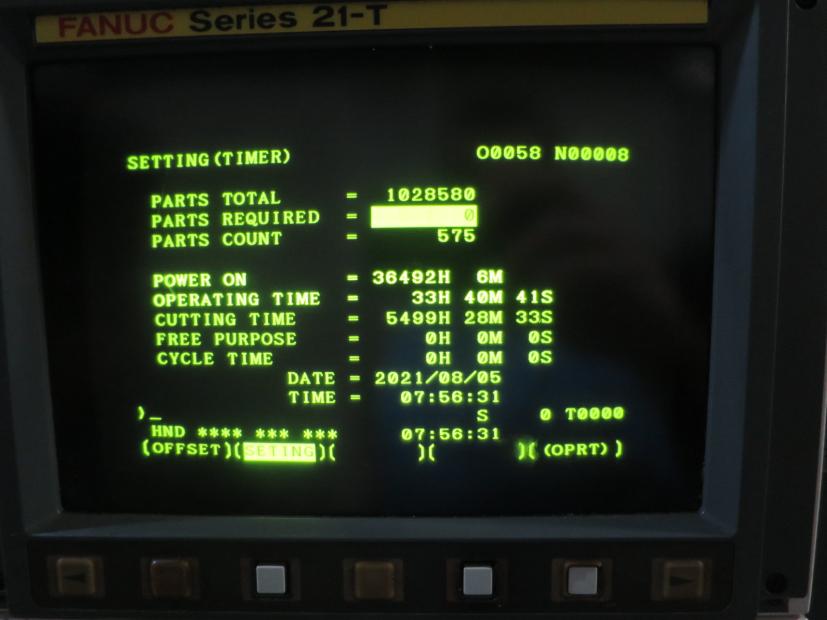

Fanuc 21T CNC control

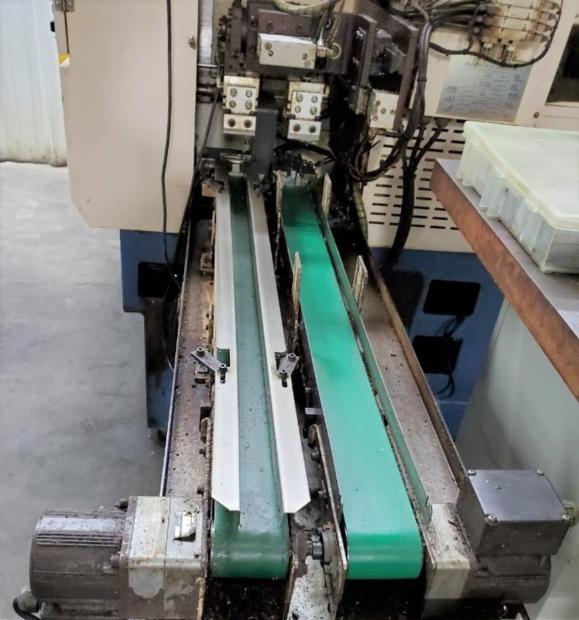

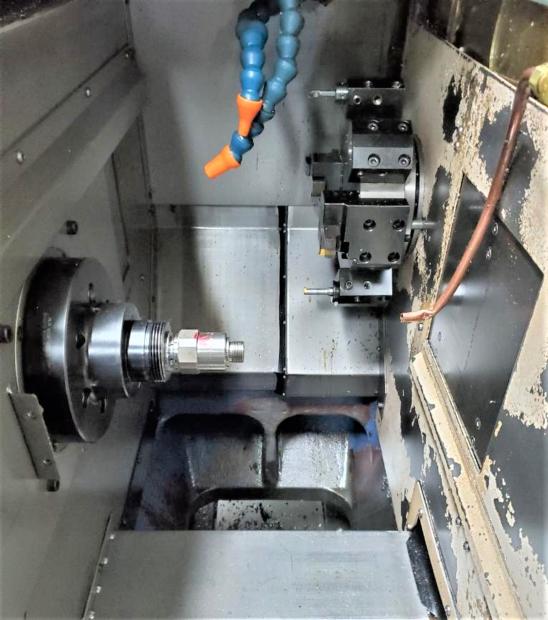

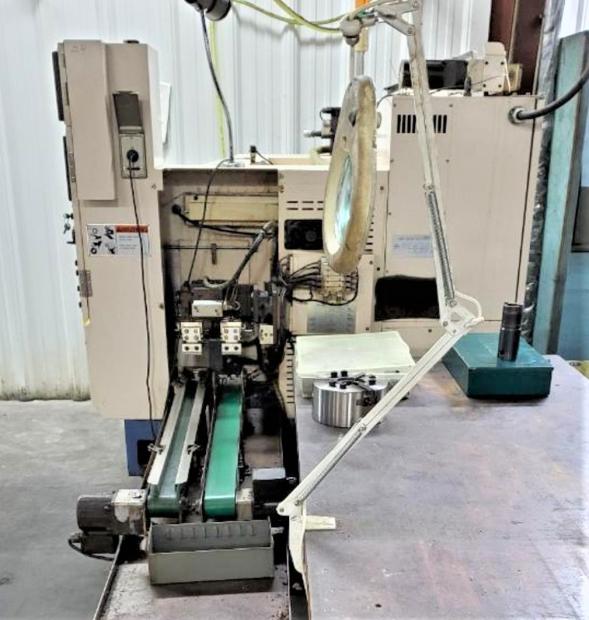

Automatic load/unload system, Rear top loading
collet chuck

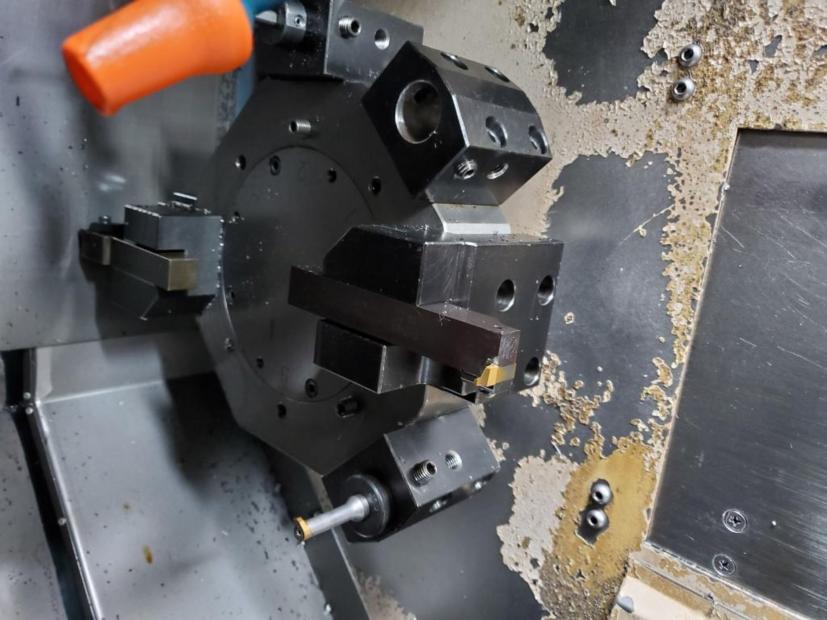

8 Position Turret
Splash guards
Chip Conveyor & Coolant System

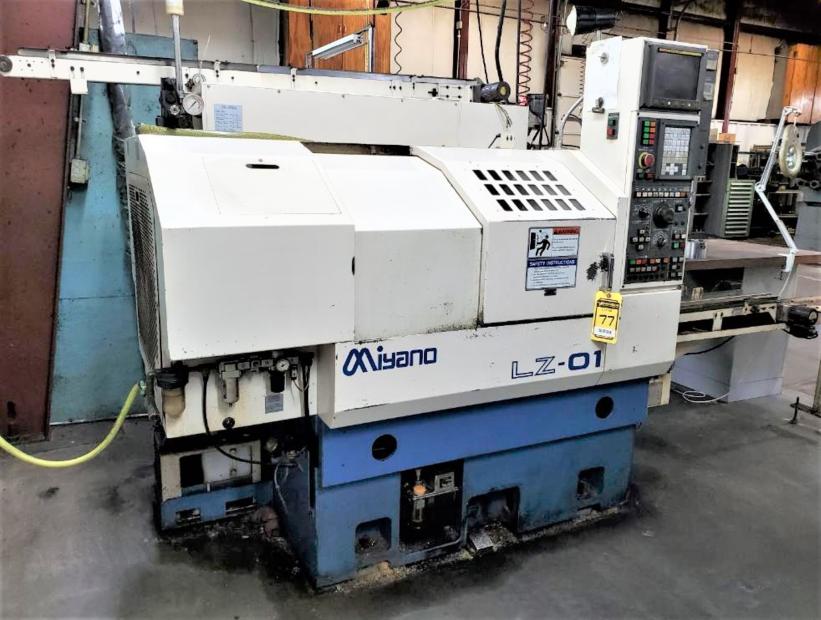

MIYANO MODEL LZ-01 2-AXIS TURNING CENTER WITH AUTO LOAD/UNLOAD SYSTEM
Stock Number 12647
