Mitutoyo Crysta-Apex S7106
Age: 2012
Condition: As Is, Where Is

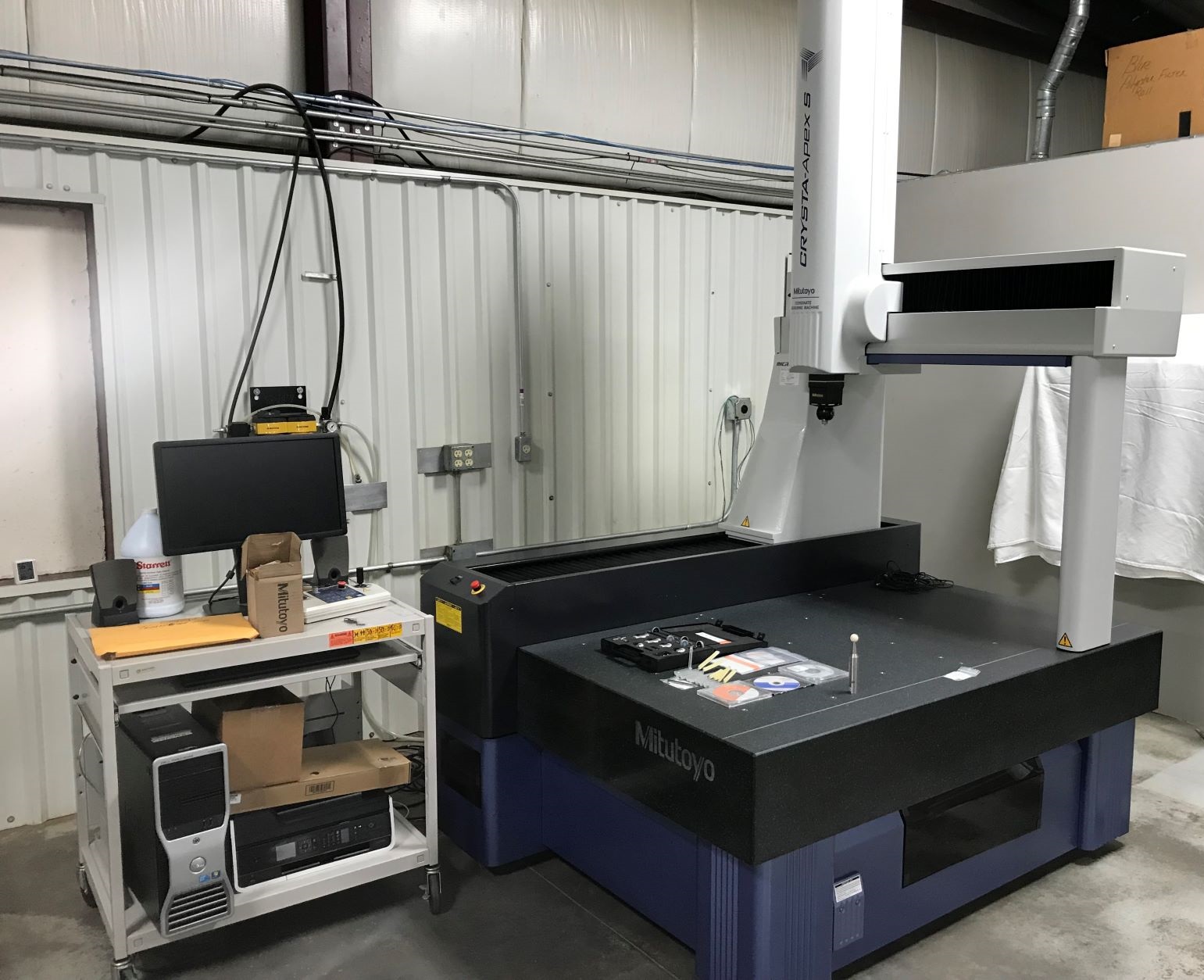

MITUTOYO CRYSTA-APEX S SERIES COORDINATE MEASURING MACHINES High-performance, low-price CNC coordinate measuring machine meets global standards. * High accuracy in the 1.7 Mu m class * Temperature compensation system * High-speed, high-acceleration drive * Designed for high rigidity A video of this machine operating can be seen on youtube at:
https://youtu.be/oKiXHR0dHfMRequest A Quote On Our Stock Number: 5140 Mitutoyo Crysta-Apex S7106 Coordinate Measuring MachineRequest a quote on stock# 5140
Specification Description
Measuring Range / Axis Travel (X,Y & Z) 27.6" x 39.4" x 23.6"
Maximum Work Capacity (X, Y & Z) 33.8" x 67.7" x 31.5"
Workpiece Maximum Weight 2,200 lbs
Display Resolution .000004"
Maximum Vector Positioning Velocity 20.4"/Sec
Maximum Acceleration 90.7"/Sec
Measuring Speed - CNC Mode .04" - .31"/Sec
Measuring Speed - Joystick Mode 0 - .31"/Sec
Guide Method Air Bearings on Each Axis
Measuring System Linear Encoder
Workpiece Clamping M8 x 1.25
Electrical Requirement 115VAC/50-60HZ/15A
Air Requirement 58 PSI/3.53 CFM/26 gal/min
Machine Size 58" x 79" x 108"H
Machine Weight 4,301 lbs
Maximum Work Capacity (X, Y & Z) 33.8" x 67.7" x 31.5"
Workpiece Maximum Weight 2,200 lbs
Display Resolution .000004"
Maximum Vector Positioning Velocity 20.4"/Sec
Maximum Acceleration 90.7"/Sec
Measuring Speed - CNC Mode .04" - .31"/Sec
Measuring Speed - Joystick Mode 0 - .31"/Sec
Guide Method Air Bearings on Each Axis
Measuring System Linear Encoder
Workpiece Clamping M8 x 1.25
Electrical Requirement 115VAC/50-60HZ/15A
Air Requirement 58 PSI/3.53 CFM/26 gal/min
Machine Size 58" x 79" x 108"H
Machine Weight 4,301 lbs

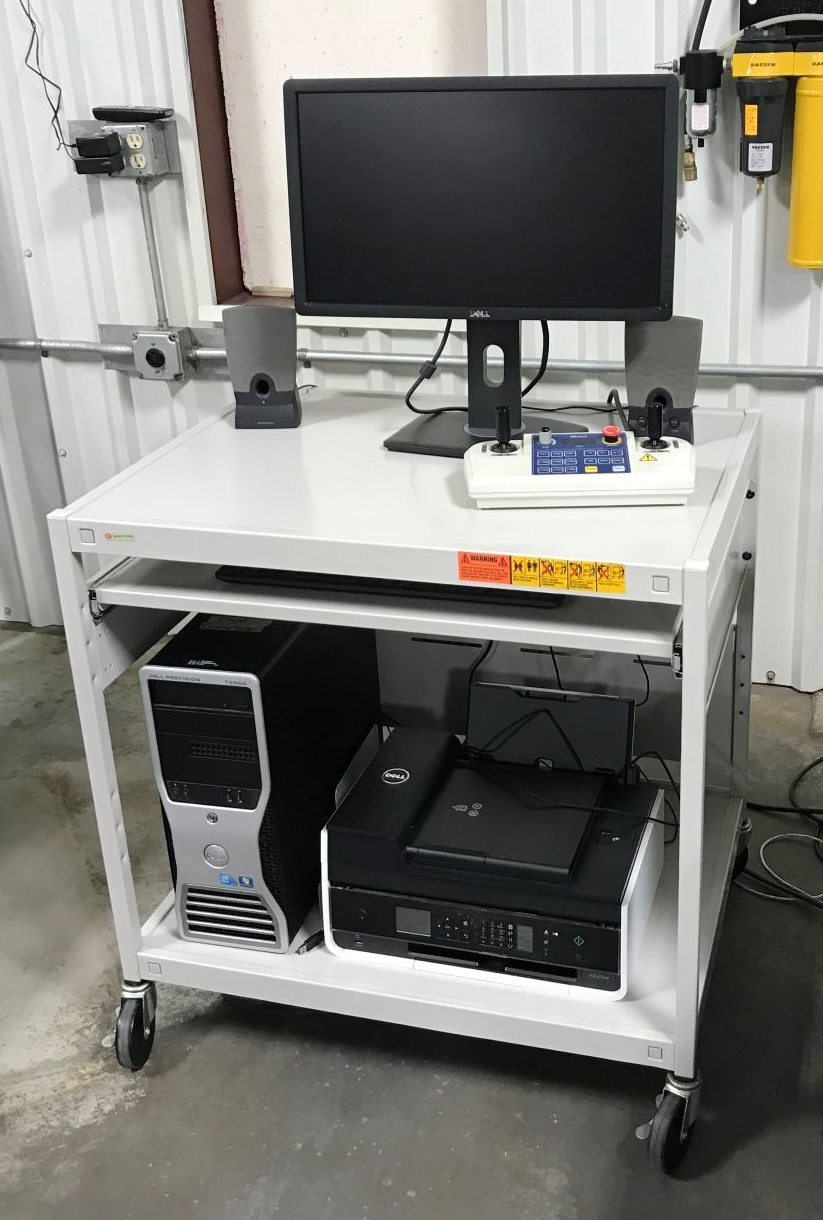

Equipped With:
* Full CNC Joy Stick Driven System * MCOSMOS-3 Mitutoyos Global Software System CMC V3.4. * Scanning of profile with data feedback to the CAD system and machine control languages * (TRANSPACK) PatchScan generator for digitizing unknown 3D surfaces from a measured or user defined perimeter profile. * Renishaw Indexable Probe Head System (PH10MQ) * TP20 Touch Trigger Probe * SP25M Full Combination Kit * CMM Head Connection for SP25 * Ruby Stylus PSI-9R, -10R, -11R, -12R * Stylus PSI 28R, -29R * Complete work station with Dell Computer/Monitor/Wireless Printer System. * Mitutoyo Certified Calibration (June, 2021)
