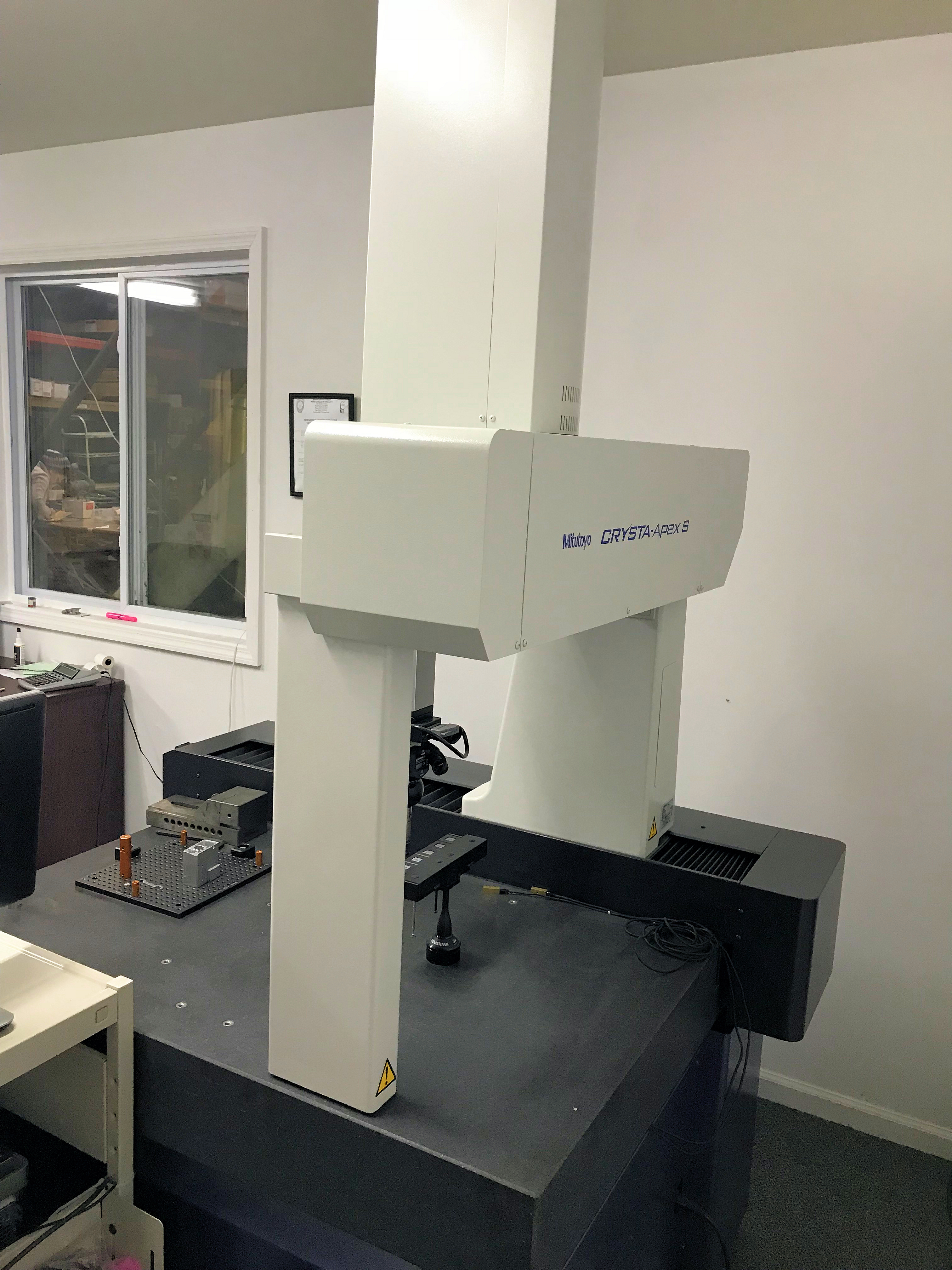

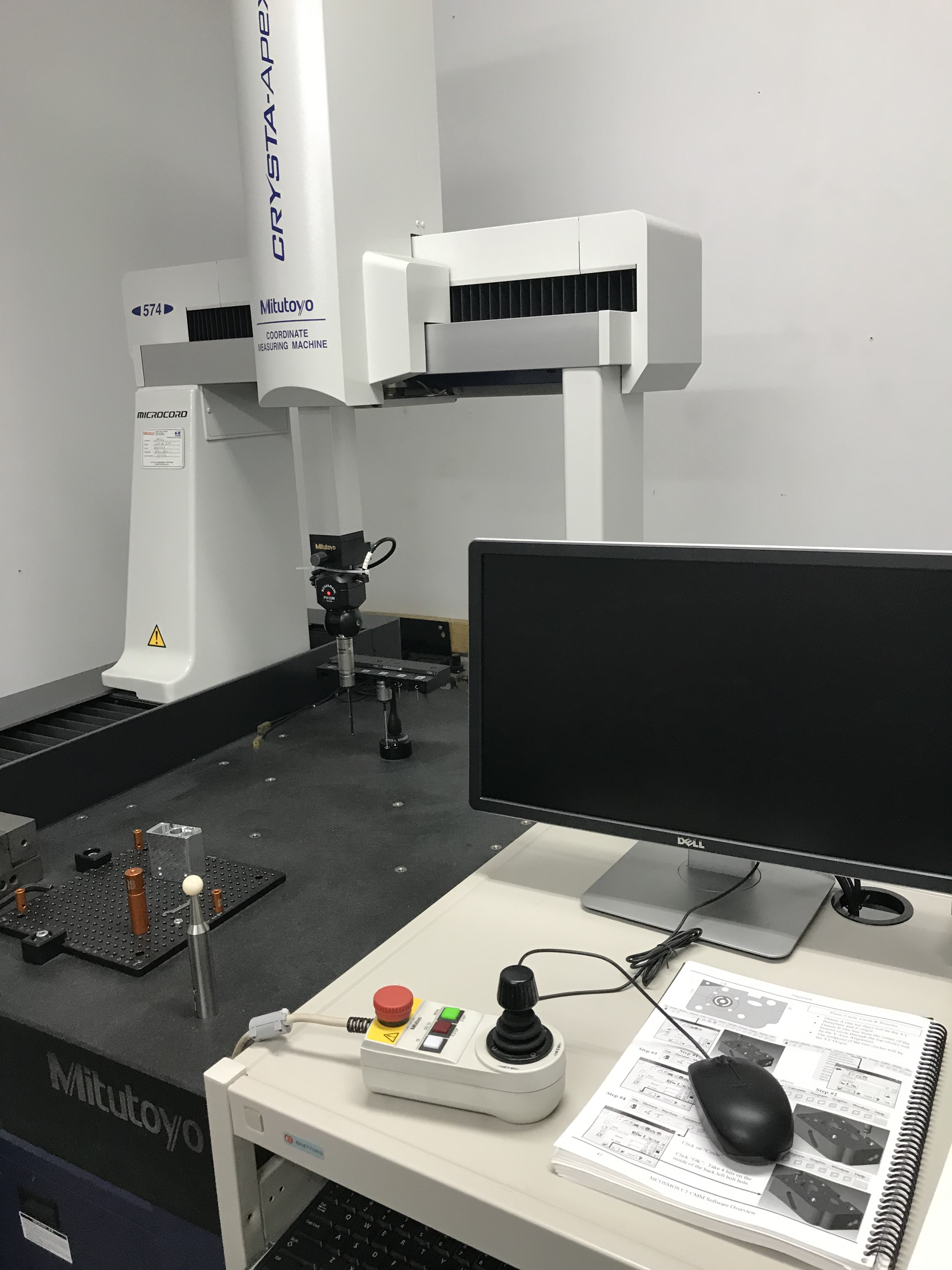

Mitutoyo Crysta Apex S Model 574 CMM (Coordinate Measuring Machine) mfg. in 2014.
Equipped with:

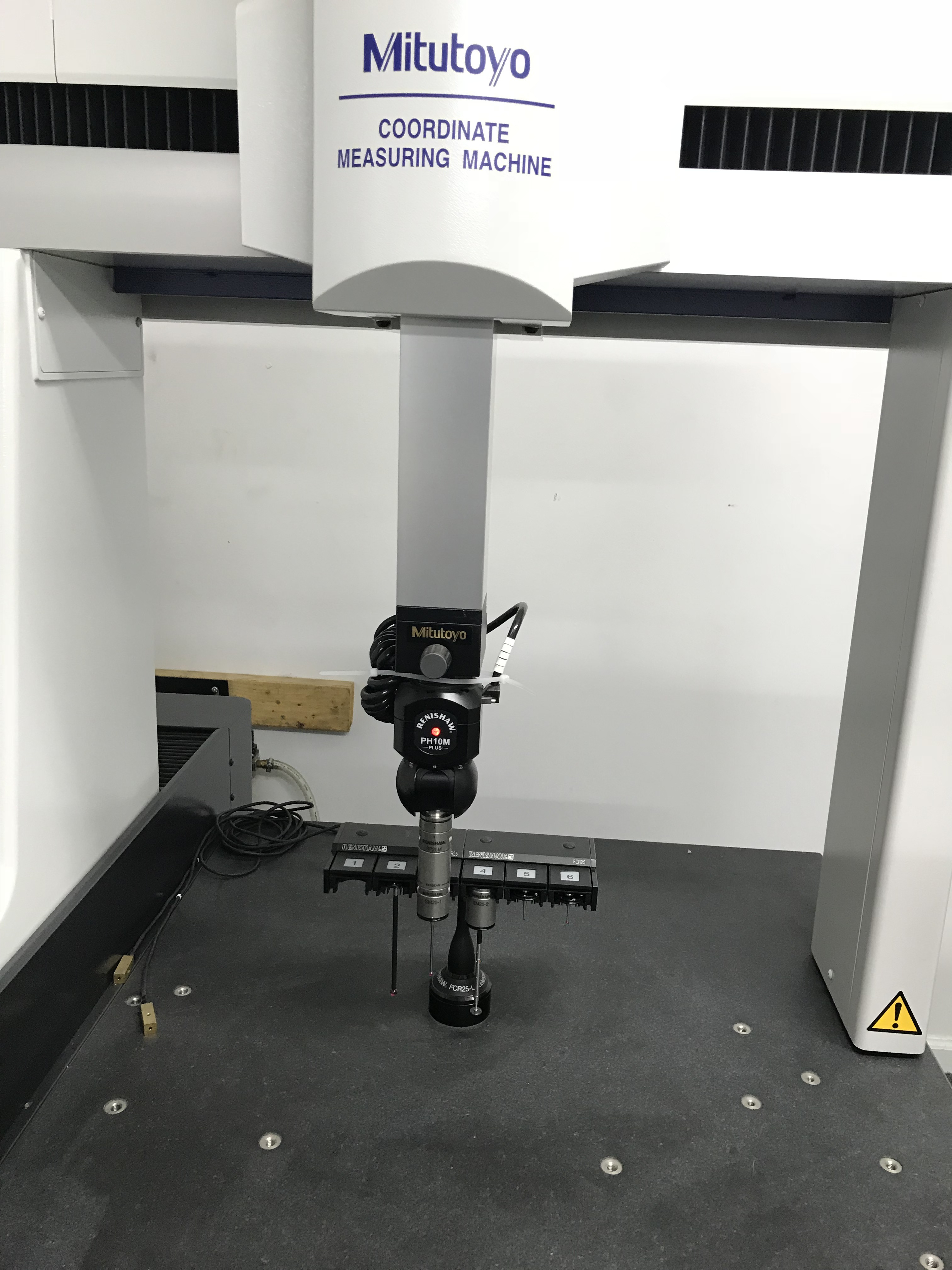

SP25m scanning probe module
PH10m indexing head
(10) Assorted Probes
(2) Force Modules for the probes
5 Tree Probe Rack
Calibration Master Ball

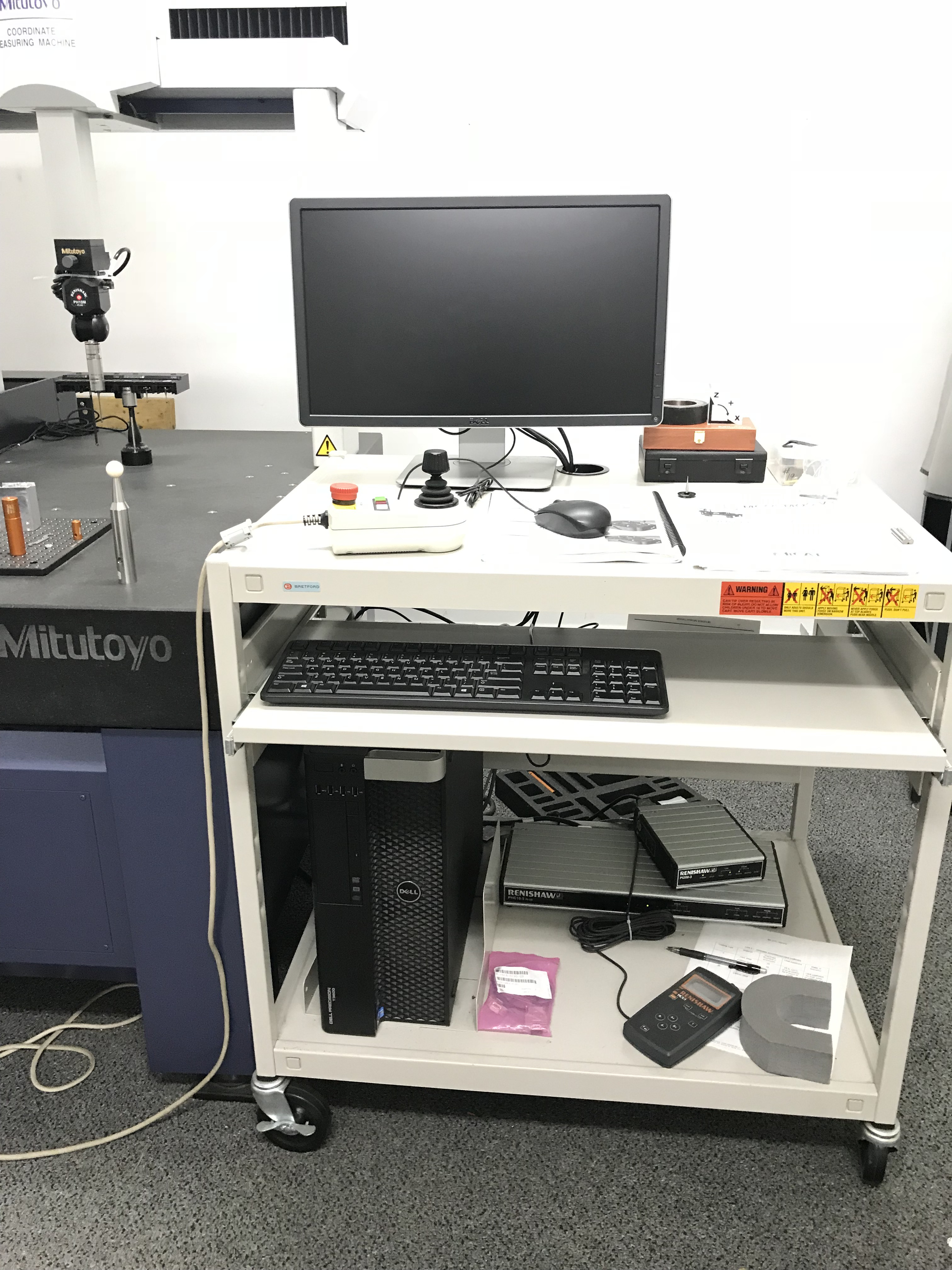

Software
CAT1000 Module which allows for part programming using 3D Cad Models.
Machine serial number is 84041123. Machine was prepped by Mitutoyo and removed from service and is currently kept in a temperature controlled storage unit.
Factory Specifications:
Crysta Apex S544 and S574 High Performance CNC CMM
Style: Bench Measurement Type: Scanning
Frame Type: Moving Bridge
Control: Mitutoyo
WORK ENVELOPE AND AXES Max Part Size 22.000 in X 22.000 in X 21.460 in
Max Part Size (Optional) 28.000 in X 22.000 in X 21.460 in
Table Size (inches) 25.110 Inches X 33.860 Inches
Table Size Optional 25.110 X 45.870
X Axis Travels 19.700 Inches Opt. 19.700
Y Axis Travels 15.700 Inches Opt. 27.600
Z Axis Travels 15.700 Inches Opt. 15.700
Maximum Rapid Rate 17
ACCURACY Resolution 0.000004 Inches
Temperature Range 60.8 to 78.8 deg F
WEIGHTS AND MEASURES Machine Length 43.00 Inches
Machine Width 58.00 Inches
Machine Height 86.00 Inches
Machine Weight 1,377 lbs.
Price is on location in NJ and does not include loading or delivery, but we can help;
Please call Marc @ (732) 390-0006
