MITUTOYO CRYSTA APEX S MODEL 574 CMM

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


Crysta Apex S Model 574
84041123
Measuring (Metrology) Equipment
CMM Machines
used
(LB)
2014
$39,500.00

Description

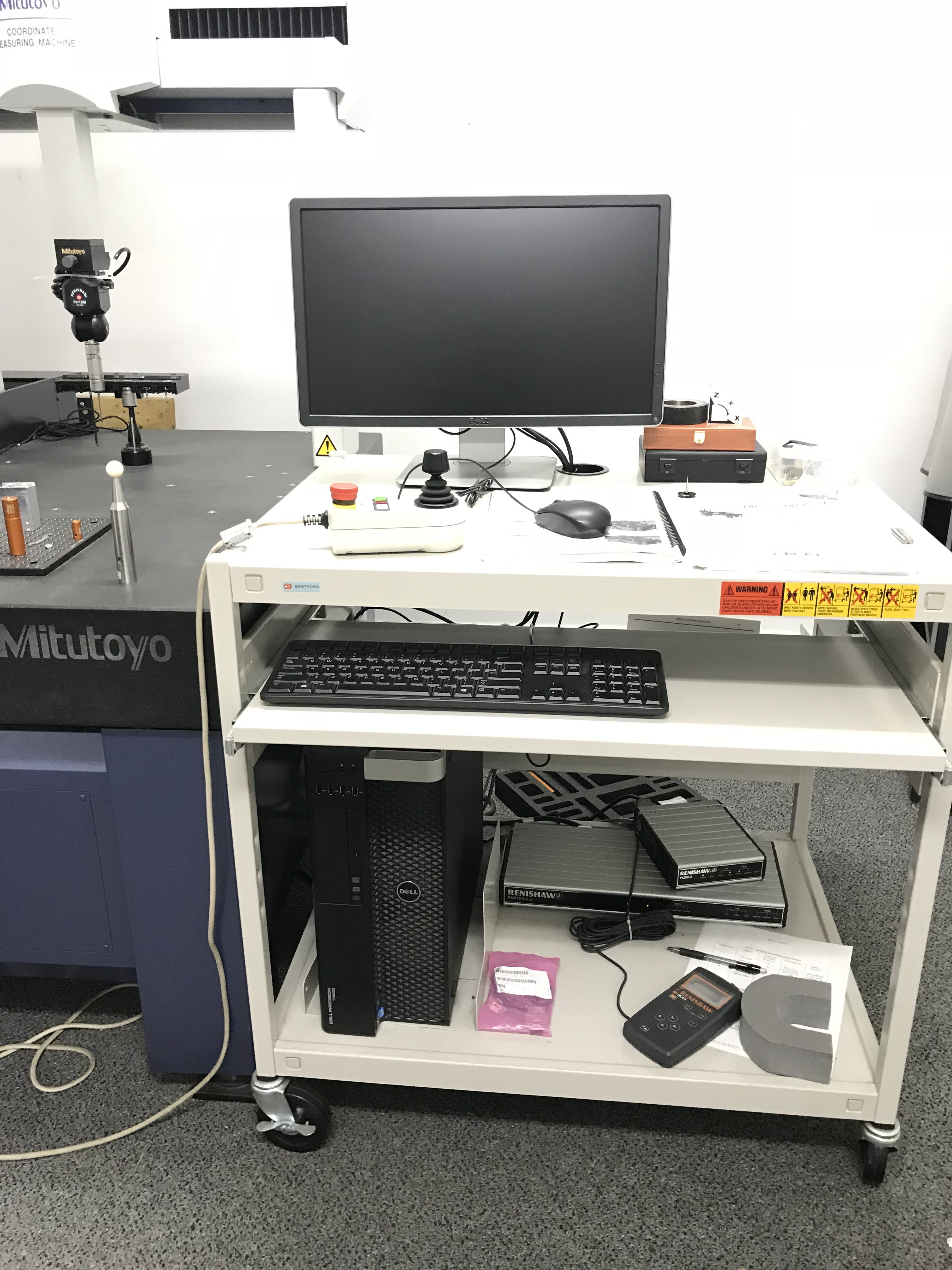

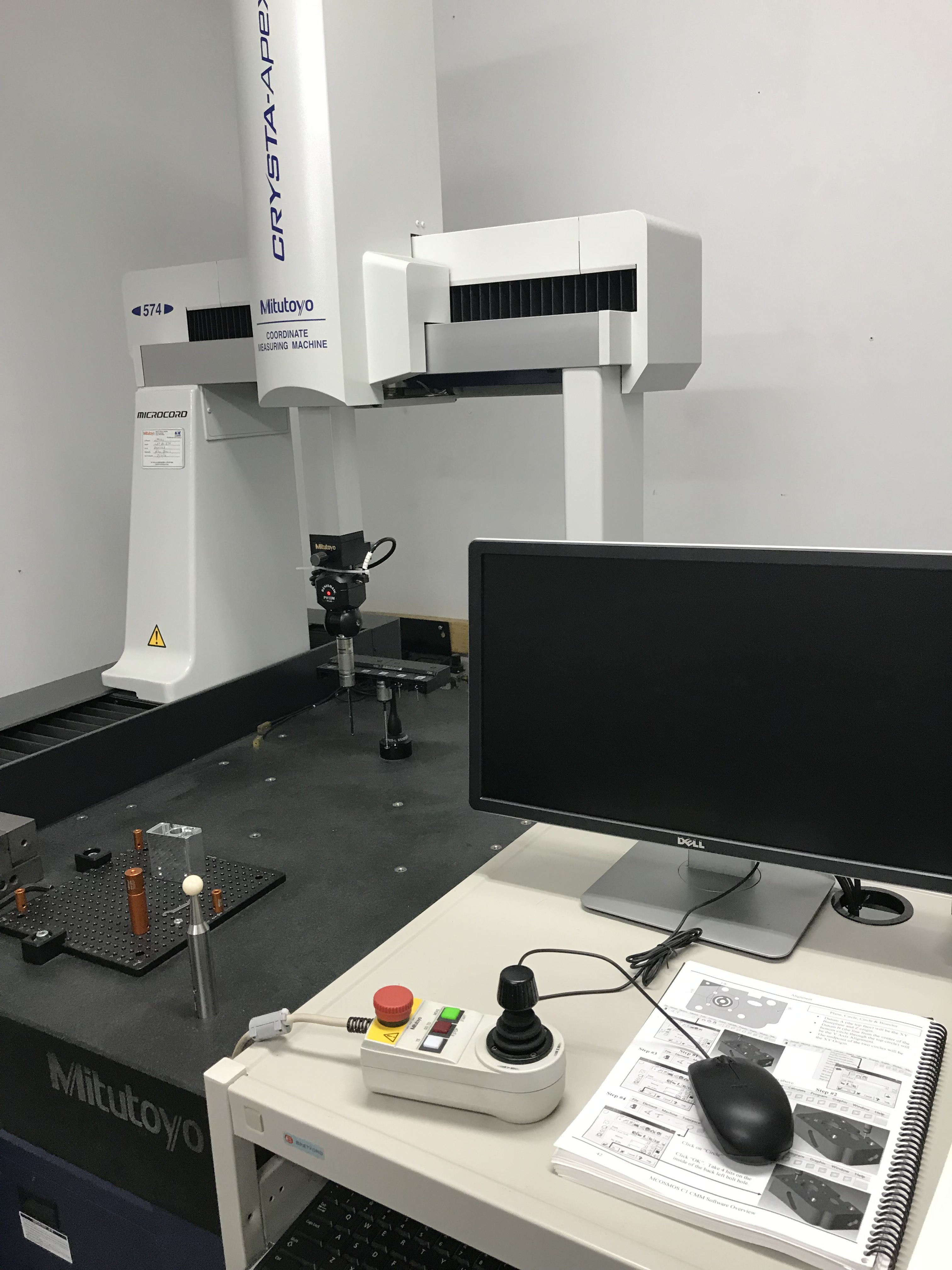

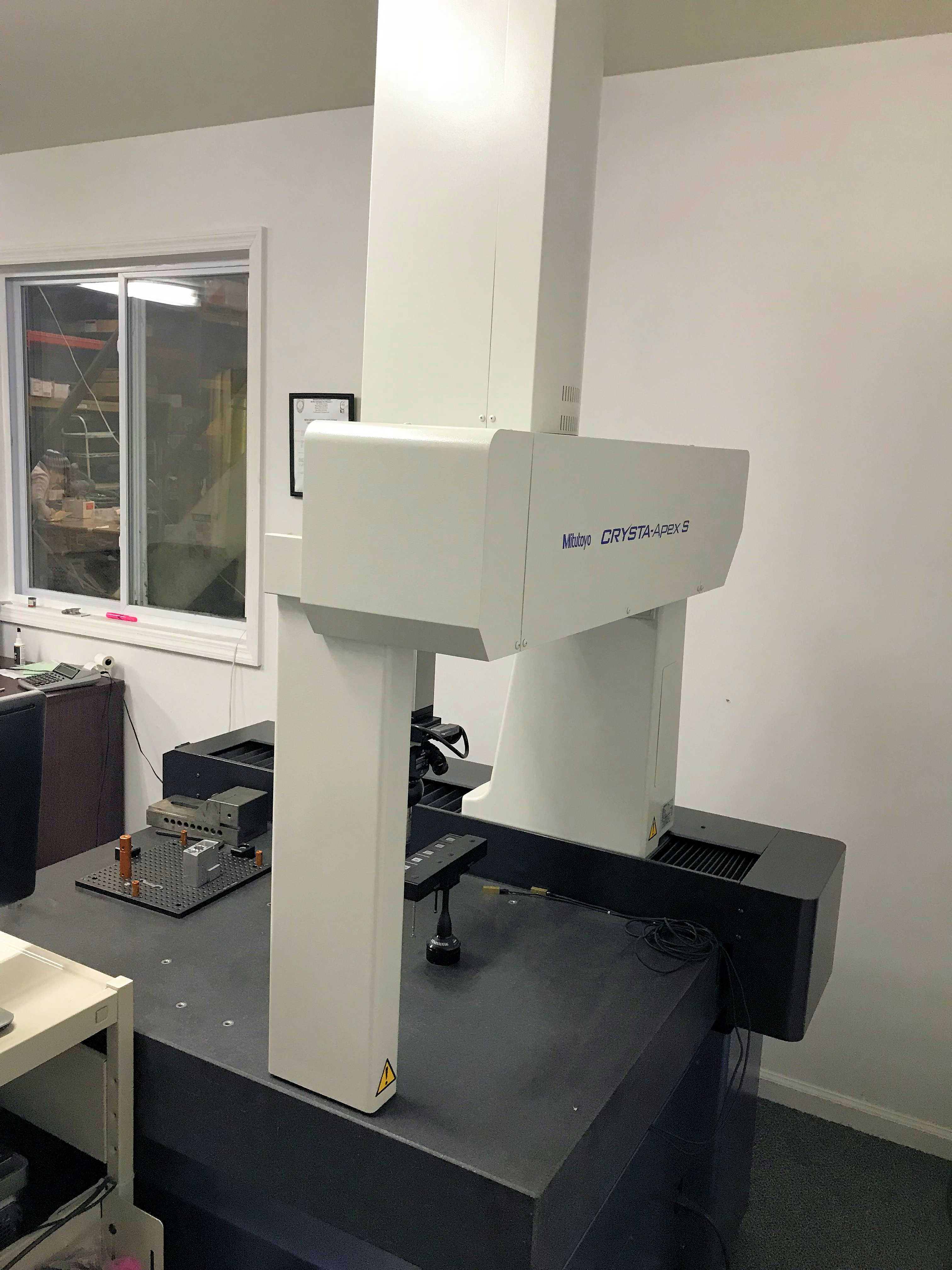

Mitutoyo Crysta Apex S Model 574 CMM (Coordinate Measuring Machine) mfg. in 2014.

Equipped with:

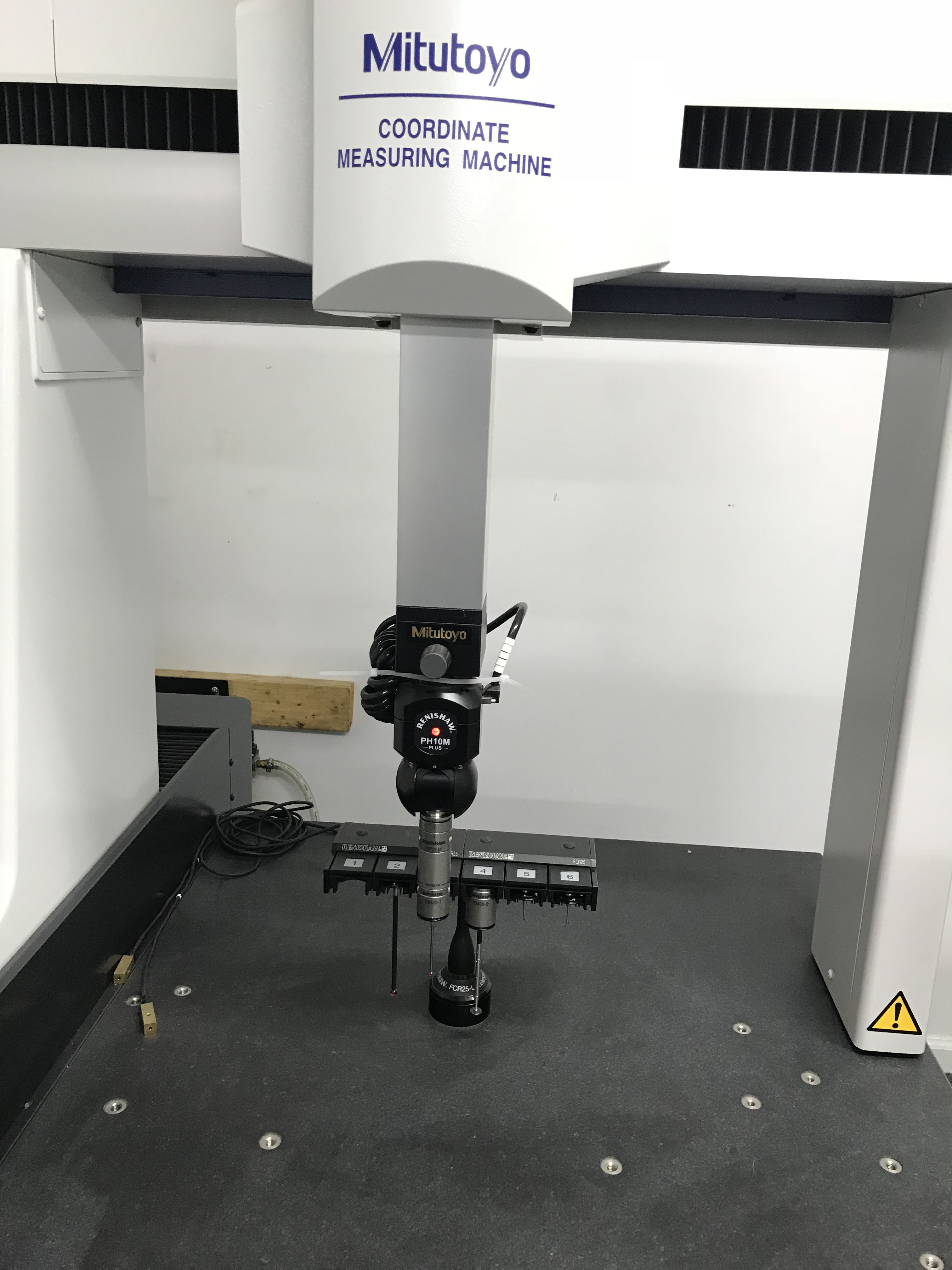

SP25m scanning probe module

PH10m indexing head

(10) Assorted Probes

(2) Force Modules for the probes

5 Tree Probe Rack

Calibration Master Ball

Software

CAT1000 Module which allows for part programming using 3D Cad Models.

Machine serial number is 84041123. Machine was prepped by Mitutoyo and removed from service and is currently kept in a temperature controlled storage unit.

Factory Specifications:

Crysta Apex S544 and S574 High Performance CNC CMM

Style: Bench Measurement Type: Scanning

Frame Type: Moving Bridge

Control: Mitutoyo

WORK ENVELOPE AND AXES Max Part Size 22.000 in X 22.000 in X 21.460 in

Max Part Size (Optional) 28.000 in X 22.000 in X 21.460 in

Table Size (inches) 25.110 Inches X 33.860 Inches

Table Size Optional 25.110 X 45.870

X Axis Travels 19.700 Inches Opt. 19.700

Y Axis Travels 15.700 Inches Opt. 27.600

Z Axis Travels 15.700 Inches Opt. 15.700

Maximum Rapid Rate 17

ACCURACY Resolution 0.000004 Inches

Temperature Range 60.8 to 78.8 deg F

WEIGHTS AND MEASURES Machine Length 43.00 Inches

Machine Width 58.00 Inches

Machine Height 86.00 Inches

Machine Weight 1,377 lbs.

Price is on location in NJ and does not include loading or delivery, but we can help;

Please call Marc @ (732) 390-0006
