Specification Description
Machine Travels 12.6" x 9.8" x 6.49"
U/V Travel 1.25" x 1.25"
Taper Capability 15 deg @ 4.0"
Max Workpiece Dimensions 33.8" x 29.9" x 6.3"
Workpiece Weight 771 Lbs
Table Dimensions 22.5" x 18.8"
Wire Spool Size 22 Lbs
Table Rapid Feed 51.18 IPM
Wire Diameter Range Capability .004" - .012"
Wire Guides Included .010"
Filter System Paper Cartridge
Filter Precision 3 Micron
Filter Tank Capacity 118 Gal
Machine Dimensions 57" x 77" x 80"H
Total Power Input 9 KVa
Total Machine Weight 4,210 Lbs
Equipped With:

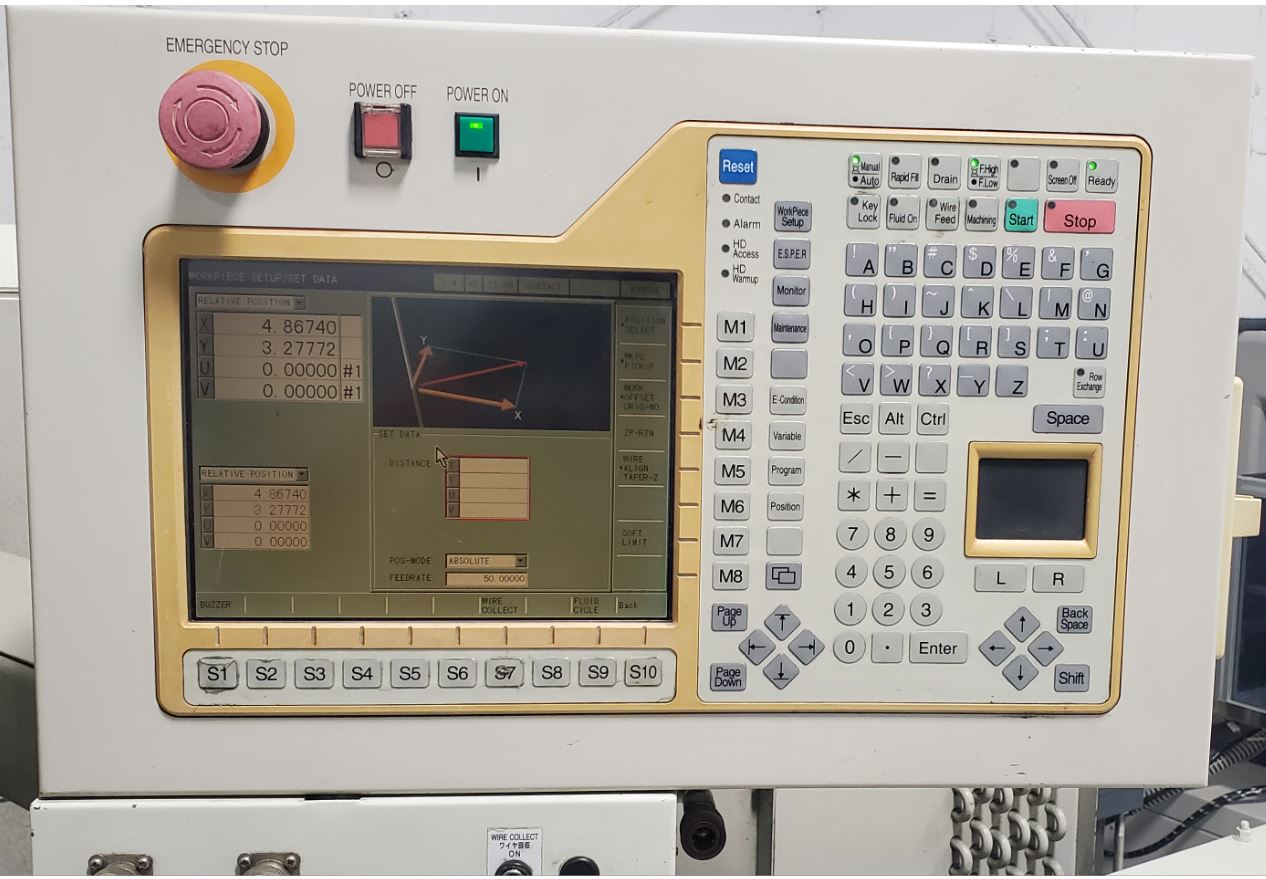

* Mitsubishi RAS-1 64 bit CNC Control * Non-submerged Machining Capabilty * No Automatic Wire Threader * Latest Version Software Updated * 50A Transistor Pulse Power Supply * Built-in AVR * 10.4" Color LCD Display * Handheld Pendant Control * Power Master * Air Cooling Unit * All Available Disks, Manuals and Accessories
Stock Number: 0727
Condition: * Hitech Verified

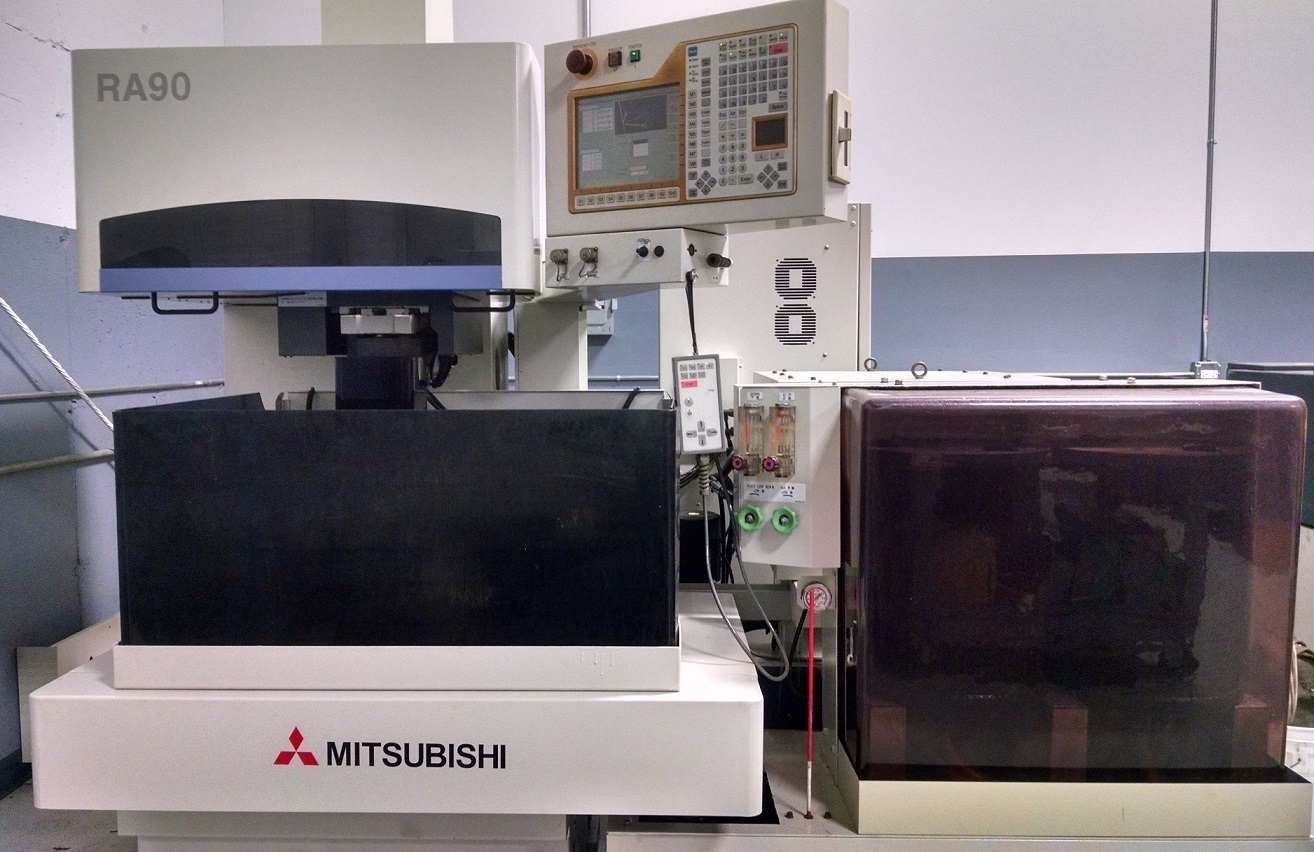

To view more information on the MITSUBISHI RA90 CNC WIRE EDM, including reviews, brand information, photos, videos, and more,
