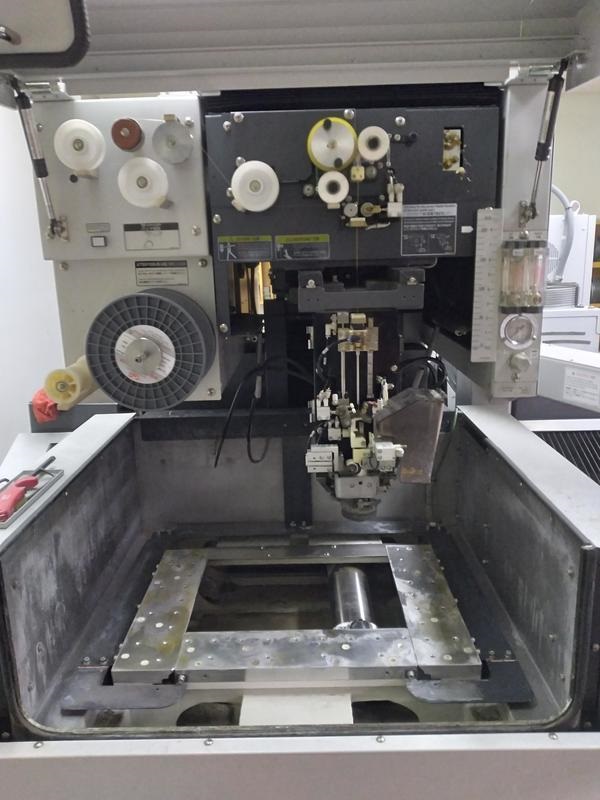

MITSUBISHI MV1200S WIRE EDM

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images


M700
Electrical Discharge Machining EDM
Wire Cut EDM
used
5952 (LB)
2016
$0.00

Description

The Mitsubishi MV series machine features the M700 series control with a 15-inch touchscreen for easier user interface. Mitsubishi is dedicated to constant innovation and strives to build only the highest quality machines. The MV series features new improvements in machine construction, auto-threading, internal machine communication, power supply technology and operating costs. The MV1200-S also includes a new, non-contact Cylindrical Drive System for the X&Y axis. The machines improved features are sure to advance your EDM machining. Features: * 10 Second Threading System * New-Style Cut-wire Collection System * AT Device for Various Wire Types including Coated Wires * Wire Break-point Insertion and Submerged Threading * New-Style Wire Tension System * AT Self-Cleaning Process * VF Monitor - Real-Time Cutting Speed Graphic * New-Style Work Tank Seal Plate Mechanism



Request A Quote On Our Stock Number: 0819 Mitsubishi MV1200S Wire EDMRequest a quote on stock# 0819

Specification                                                                      Description

Machining Stroke ( X x Y x Z )                                         15.7" x 11.8" x 8.7"

Table Size                                                                              25.2" x 21.3"

Maximum Workpiece Size                                                  31.9" x 27.6" x 8.5"

Maximum Workpiece Weight                                               1,102 lbs

Machining Stroke ( U x V )                               Plus/minu 2.4" x Plus/minus 2.4"

Taper Capacity                                                    +-30 deg max / +-15deg @ 8"

Wire Diameter Range Possible                                              0.004"~0.012"

Minimum Resolution                                                                 .000002"

Min Hole Diameter for Autothread                                           .020"

Max Wire Spool Size                                                                    22 lbs

Filter Tank Capacity                                                                   145 Gal

Electrical Requirements                                                  200-230V/3Phz/60Hz

Air Pressure Requirements                                                71-100 PSI 2.7 cu ft/min

Approximate Overall Dimensions                                     80" x 107" x 80"

Approximate Machine Weight                                                5,952 lbs

Equipped With:

* Mitsubishi M700 Series Control * 15" Touch Screen * Non-Contact Cylindrical Drive Technology * V350-V AEII Power Supply * DMX-S (Digital Matrix Sensor) Shapes Each Spark Reducing Electrode Wear * Linear Glass Scale Feedback (X-Y Axes) * 2 Axis LSM Linear Shaft Motors (X,Y) * Ballscrew Driven w/Rotary Encoders (U,V&Z) * Submerged Machining to 8.7" Deep * Automatic Fluid Level Control * Manual Vertical Machine Tank Door One Piece * Hardened 3-Sided Stainless Work Table * Fine Grain "Dianite" Casting Material * Split Axis Construction (Table Moves in X, Column Moves in Y) * Windows XP Operating System * PM5 Power Master Control Improves Poor Flush * Program Input Methods: Keyboard, USB Flash Memory, and Ethernet with FTP Standard * DC-Servo (Closed Loop) Torque Control Wire Tensioning System * All-Axes Absolute Control System * Auto-Threading with Scrap Wire Processor (Chopper) * 14" AT Annealing Length Improves Threading Reliability * Inverter Controlled 16-Step Programmable Flushing * Full Time AEII (Anti-Electrolysis) Power Supply Protection * Dielectric Fluid Chiller Standard * Auto-Oiler Lubrication System * All Available Manuals and Accessories

Stock Number: 0819

Mitsubishi MV1200S

Age: 2016

Condition: As Is, Where Is
