Mitsubishi MV1200R Wire EDM
Stock Number: 0811
Mitsubishi MV1200R
Age: 2012
Condition: As Is, Where Is

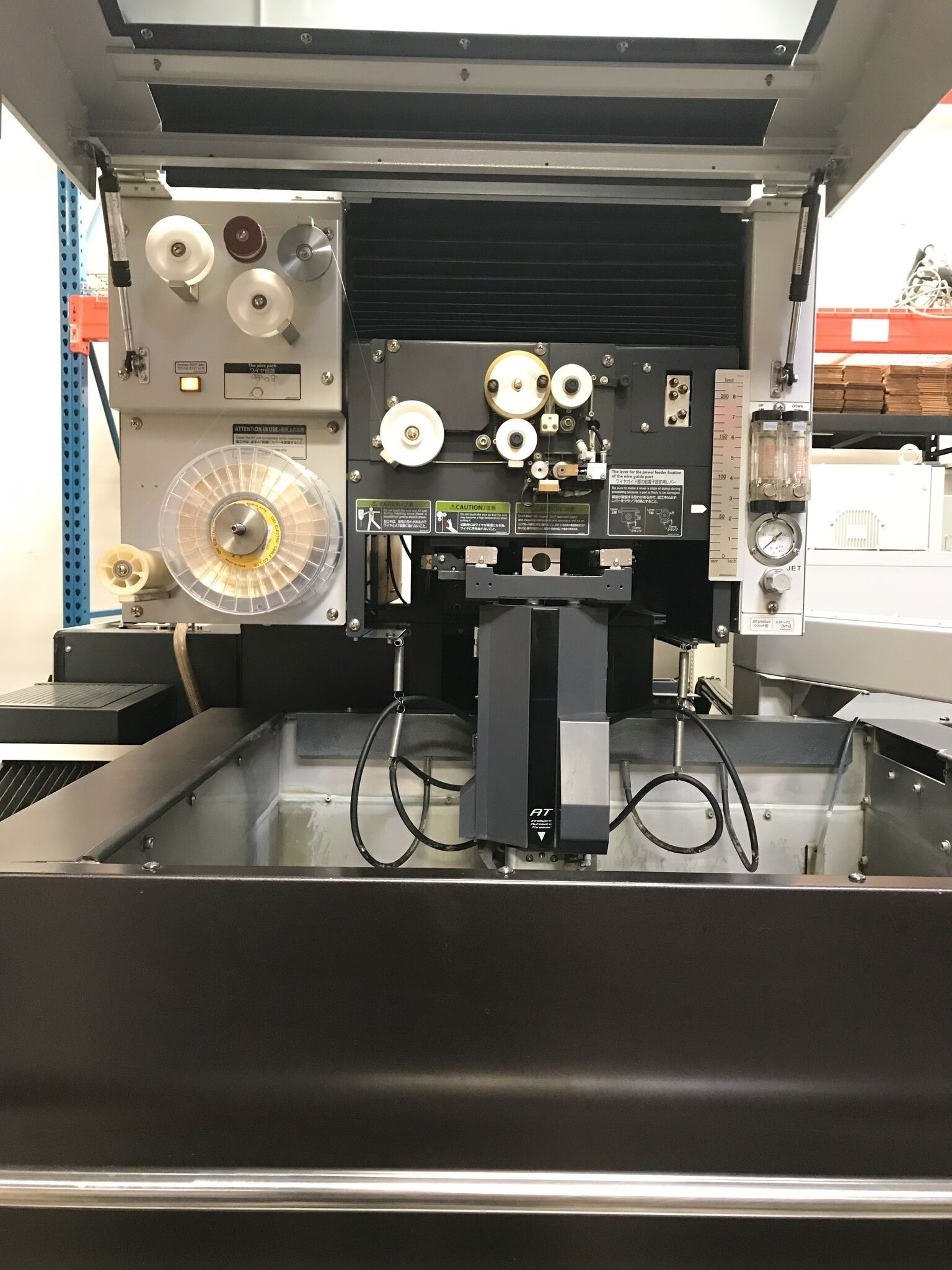

The Mitsubishi MV series machine features the M700 series control with a 15-inch touchscreen for easier user interface. Mitsubishi is dedicated to constant innovation and strives to build only the highest quality machines. The MV series features new improvements in machine construction, auto-threading, internal machine communication, power supply technology and operating costs. The MV1200-R also includes a new, non-contact Cylindrical Drive System. The machines improved features are sure to advance your EDM machining. Features: * 10 Second Threading System * New-Style Cut-wire Collection System * AT Device for Various Wire Types including Coated Wires * Wire Break-point Insertion and Submerged Threading * New-Style Wire Tension System * AT Self-Cleaning Process * VF Monitor - Real-Time Cutting Speed Graphic * New-Style Work Tank Seal Plate Mechanism
Request A Quote On Our Stock Number: 0811 Mitsubishi MV1200R Wire EDMRequest a quote on stock# 0811
Specification Description
Machining Stroke ( X x Y x Z ) 15.7" x 11.8" x 8.7"
Table Size 25.2" x 21.3"
Maximum Workpiece Size 31.9" x 27.6" x 8.5"
Maximum Workpiece Weight 1,102 lbs
Machining Stroke ( U x V ) lus/minus 2.4" x Plus/minu 2.4"
Taper Capacity +-30 deg max / +-15deg @ 8"
Wire Diameter Range Possible 0.004"~0.012"
Minimum Resolution .000002"
Min Hole Diameter for Autothread .020"
Max Wire Spool Size 22 Lbs
Filter Tank Capacity 145 Gal
Electrical Requirements 200-230V/3Phz/60Hz
Air Pressure Requirements 71-100 PSI 2.7 cu ft/min
Approximate Overall Dimensions 80" x 107" x 80"
Approximate Machine Weight 5,952 lbs
Equipped With:

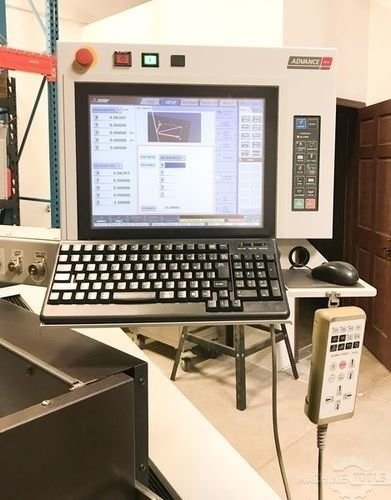

* Mitsubishi M700 Series Control * 15" Touch Screen * Non-Contact Cylindrical Drive Technology * V350-V AEII Power Supply * DMX-S (Digital Matrix Sensor) Shapes Each Spark Reducing Electrode Wear * Worlds First Linear Shaft Drive System XYUV All Fiber Optic Servo Control (4X Faster Internal Communication Speed) * Submerged Machining to 8.7" Deep * Automatic Fluid Level Control * Manual Vertical Machine Tank Door One Piece * Hardened 4-Sided Stainless Work Table * Fine Grain "Dianite" Casting Material * Split Axis Construction (Table Moves in X, Column Moves in Y) * Windows XP Operating System * PM5 Power Master Control Improves Poor Flush * Program Input Methods: Keyboard, USB Flash Memory, and Ethernet with FTP Standard * DC-Servo (Closed Loop) Torque Control Wire Tensioning System * Non-Contact, Zero Back-Lash Linear Shaft Motor Drive System (XYUV Axes) * Linear Motion Guide Ways * All-Axes Absolute Control System * Linear Glass Scale Feedback (X-Y-U-V Axes) * Optical Rotary Encoder Feedback (Z-Axis) * Auto-Threading with Scrap Wire Processor (Chopper) * 14" AT Annealing Length Improves Threading Reliability * Inverter Controlled 16-Step Programmable Flushing * Full Time AEII (Anti-Electrolysis) Power Supply Protection * Dielectric Fluid Chiller Standard * Auto-Oiler Lubrication System * All Available Manuals and Accessories
