MITSUBISHI M35J CNC SINKER EDM

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images


M35J
Electrical Discharge Machining EDM
Die Sink EDM
used
6820 (LB)
1994
$0.00

Description

n Tune with Next-Generation Machining Mitsubishi EDMs represent the ultimate in their field and provide a full range of functions and capabilites for the next generation of machining facilities. Mitsubishi power-supply waveform slope-control (patented worldwide) offers machining with ultra-low electrode wear and our high-precision, high-rigidity mechanisms make operation easy. A wide range of functions respond in full measure to the need for automation and unattended operation.

Specification                                         Description

Table Longitudinal Travel (DC Motor X)    13.78"

Table Cross Travel (DC Motor Y)                    9.84"

Main-Axis Servo Feed (DC Motor Z)            13.78"

Distance Between Platen and Table           22.68" - 9.84"

Table Dimensions (W x D)                           27.56" x 19.68"

Work-Tank Internal Dimensions (WxDxH)   31.5" x 21.6" x 12.2"

Max. Weight of Workpiece                            1,102 lbs

Max. Electrode Weight                               110 lbs

Dielectric-Reservoir Capacity                          99 Gallons

Electrical Requirements                            220V/3Phz/50-60Hz

Machine Unit Dimensions                           67.64" x 71.57" x 98.23"

Machine Unit Weight                                        6,820 lbs

Equipped With:

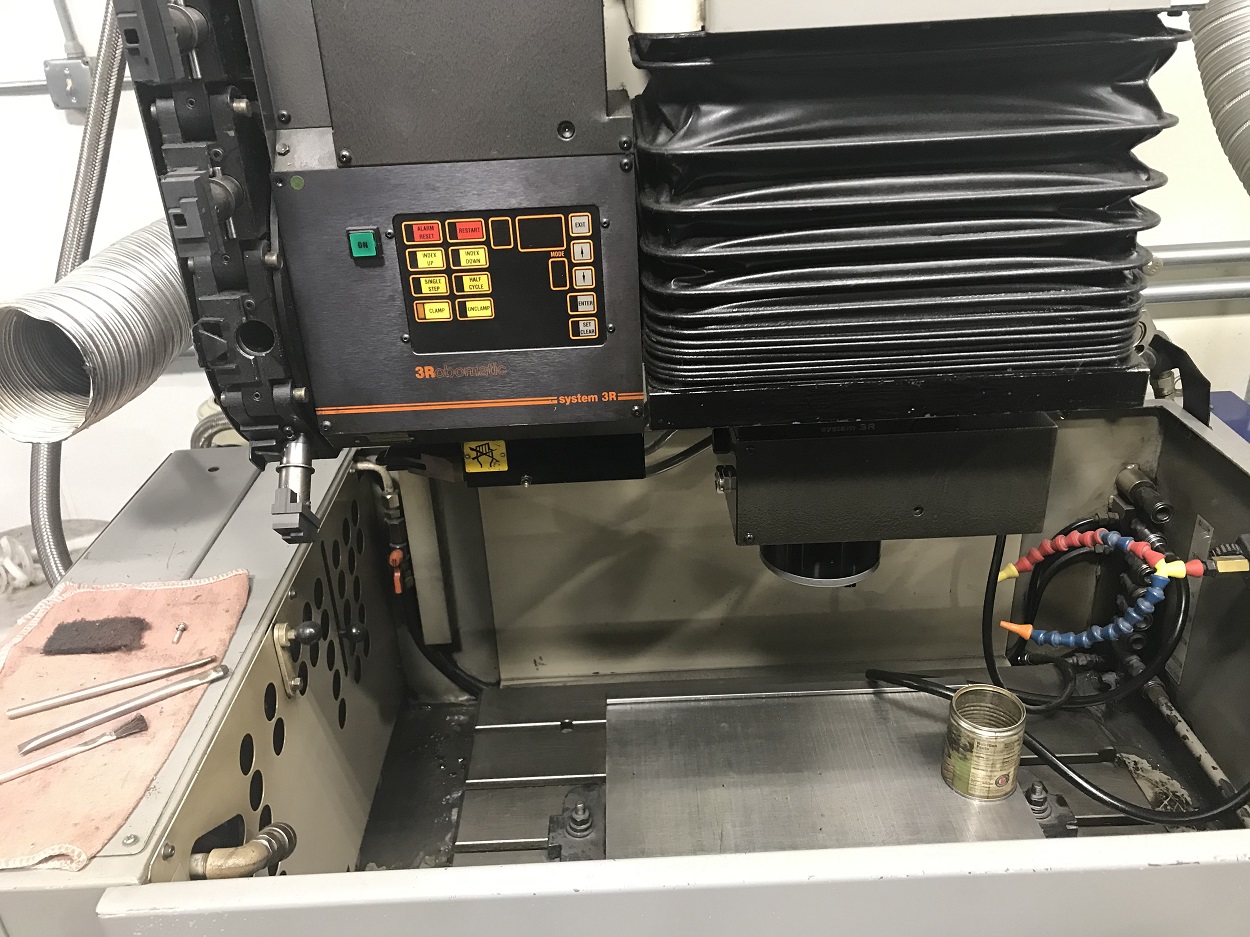

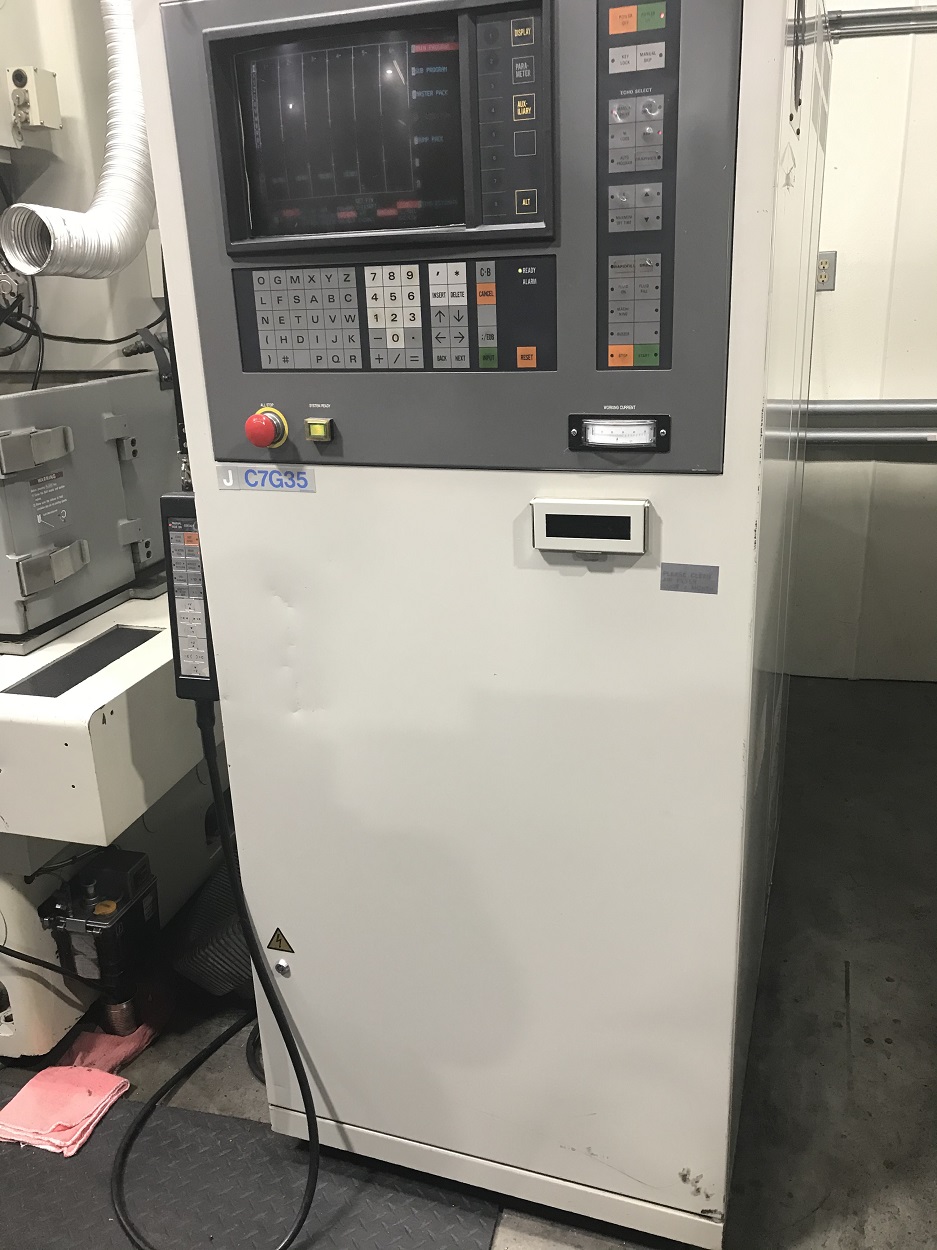

* Mitsubishi C7 CNC Controller * C-Axis * 16 Position AEC (3R Mini) * Mitsubishi Flexible Automated Programming (FAP) * Mirror-Surface (GM) Finishing Circuit * Superfine-Finishing (SF) Circuit * Graphite Machining Adapter * Mitsubishi Cooling Tower and Dielectric Tank * All Available Manuals

Stock Number: 1433

Condition: As Is, Where Is
