Description

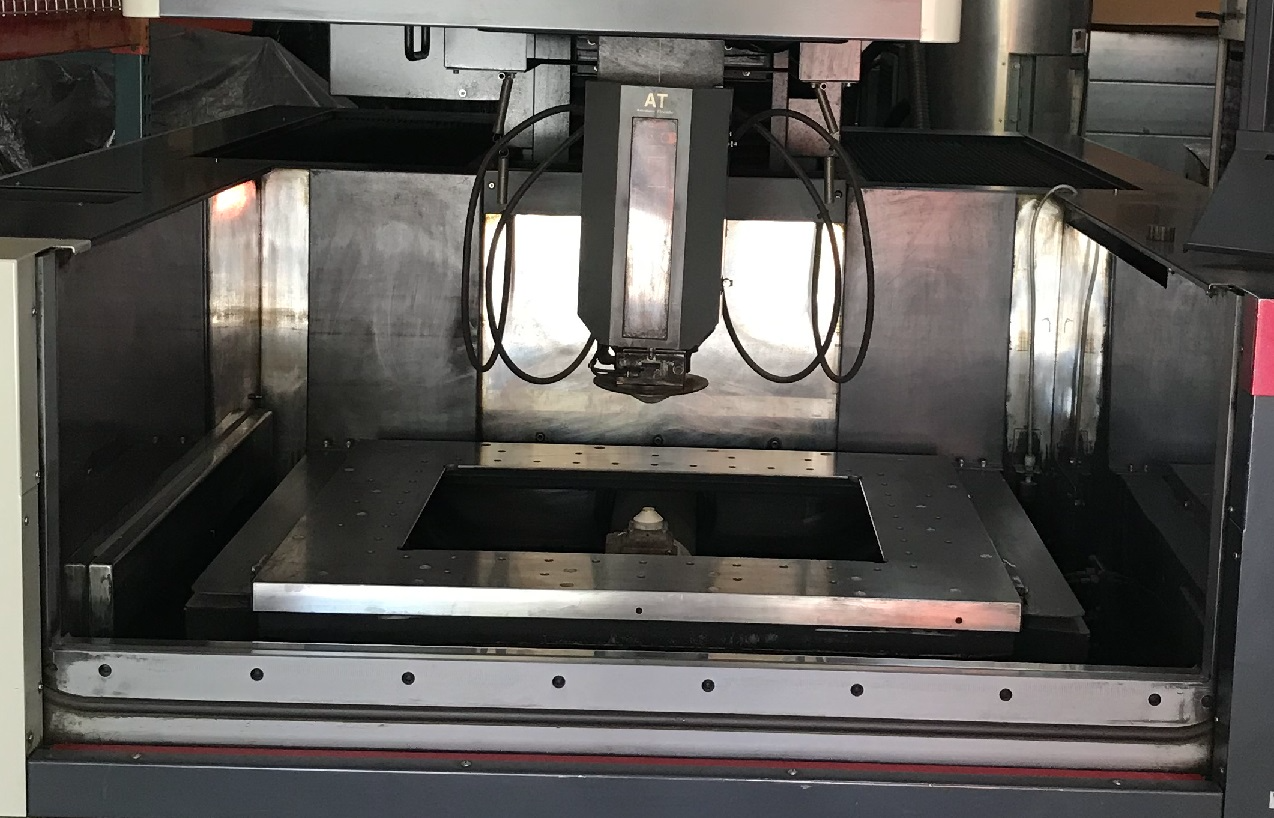

The FA Advance Series features the new M750 series control with 15" touch screen, providing easy user interface and many features that will Advance your edm machining. It also showcases Mitsubishis continuous dedication to high precision. * Die machining has never been as simple as it is now, with the S Series anti-electrolysis technology. * SL (Step Less) Control, developed with the FA-S Series, is a standard feature of the new S Series. * PM5s new stepped shape capabilities have made machining multiple parts with varying thicknesses and shapes faster and easier, saving up to 50% machining time over previous models.

Specification                                                         Description

Machining Stroke ( X x Y x Z )                            13.8" x 19.7" x 11.8"

Machining Stroke ( U x V )                                    +/- 3.0"

Maximum Workpiece Size                                    41.3" x 31.5" x 11.6"

Table Size                                                                 30.7" x 24.8"

Tank Dimensions                                              42" x 32" x 12"

Taper Capacity                                                     +/-30 Degrees

Taper Angle @ Thickness                                    15 deg @ 10.5"

Maximum Workpiece Weight                                 3,300 lbs

Maximum Drive Unit / Resolution                  0.00001mm / 2 Millionths

Min Hole Diameter                                                 .02"

Wire Diameter Capability                                       .004" - .012"

Wire Guides Included                                          .010"

Max. Wire Spool Size STD (Optional)                      22 Lb (44 Lb)

Machine System Footprint Dimensions              102"L x 109"W x 85"H

Machine Tool Dimensions                                      80" x 104" x 85"H

Machine System Weight                                              9,516 lbs

Equipped With:

* Mitsubishi M750 CNC Control w/Touchscreen * Submerged Machining Capability * Automatic Wire Threader * On-Board CAM Programming * Automatic Fluid Level Control * Auto-Lock Vertical Tank Door Mechanism * Fine-Grain Dianite Casting Material * Moving Column Design * DC-Servo (Closed Loop) Torque Control Wire Tensioning System: * Direct Drive 32mm Ball Screws * Linear Motion Guide Ways * New Digital 500 Watt AC Servo Drive System * All-Axes Absolute Control System * Linear Glass Scales * Fine Resolution Encoder Feedback * Standard Long Travel 3-Inch U-V Taper Unit * 16 Step Programmable Flushing Control * Wire Chopper * Filtration System * Electric Chiller * All Available System Disks, Manuals and Accessories

Stock Number: 0770

Condition: As Is, Where Is
