MITSUBISHI FA-20S WIRE EDM

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images


FA-20S
Electrical Discharge Machining EDM
Wire Cut EDM
used
7700 (LB)
2006
$0.00

Feature Video

Description

The FAS Series is Mitsubishi Electrics newest wire EDM machine that supplies customers the optimum solution by incorporating the worlds fastest technologies. This machine series sets new standards that thoroughly pursue the goal of "Fast, Easy, and Reliable" operation. It also showcases Mitsubishis continuous dedication to high precision. Features: * 10 Second Threading System * AT Device for Various Wire Types including Coated Wires * Wire Break-point Insertion and Submerged Threading * New-style Wire Tension System * AT Self-cleaning Process * VF Monitor - Real-time Cutting Speed Graphic * New-style Work Tank Seal Plate Mechanism.

Specification                                                                Description

Machining Stroke ( X x Y x Z )                          13.7" x 19.6" x 11.8"

Machining Stroke ( U x V )                                             +/- 1.25"

Maximum Workpiece Size                                  41.3" x 31.4" x 11.6"

Table Size                                                             30.7" x 24.8"

Tank Dimensions                                                      42" x 32" x 12"

Taper Capacity                                                        +/-30 Degrees

Taper Angle @ Thickness                                     15 deg @ 3.93"

Maximum Workpiece Weight                                          1,763 lbs

Wire Spool Capacity                                                     22 lbs

Max. Workpiece AWF Height                                             11.8"

Maximum Drive Unit / Resolution                         0.00001mm / 2 Millionths

Min Hole Diameter                                                             .02"

Wire Diameter Capability STD (Optional)         .008" - .012" (.004" - .006")

Dielectric Water Capacity                                           190 gal

Approximate Machine System Dimensions             101" L x 104"W x 83"H

Approximate Machine System Weight                             7,700 lbs

Equipped With:

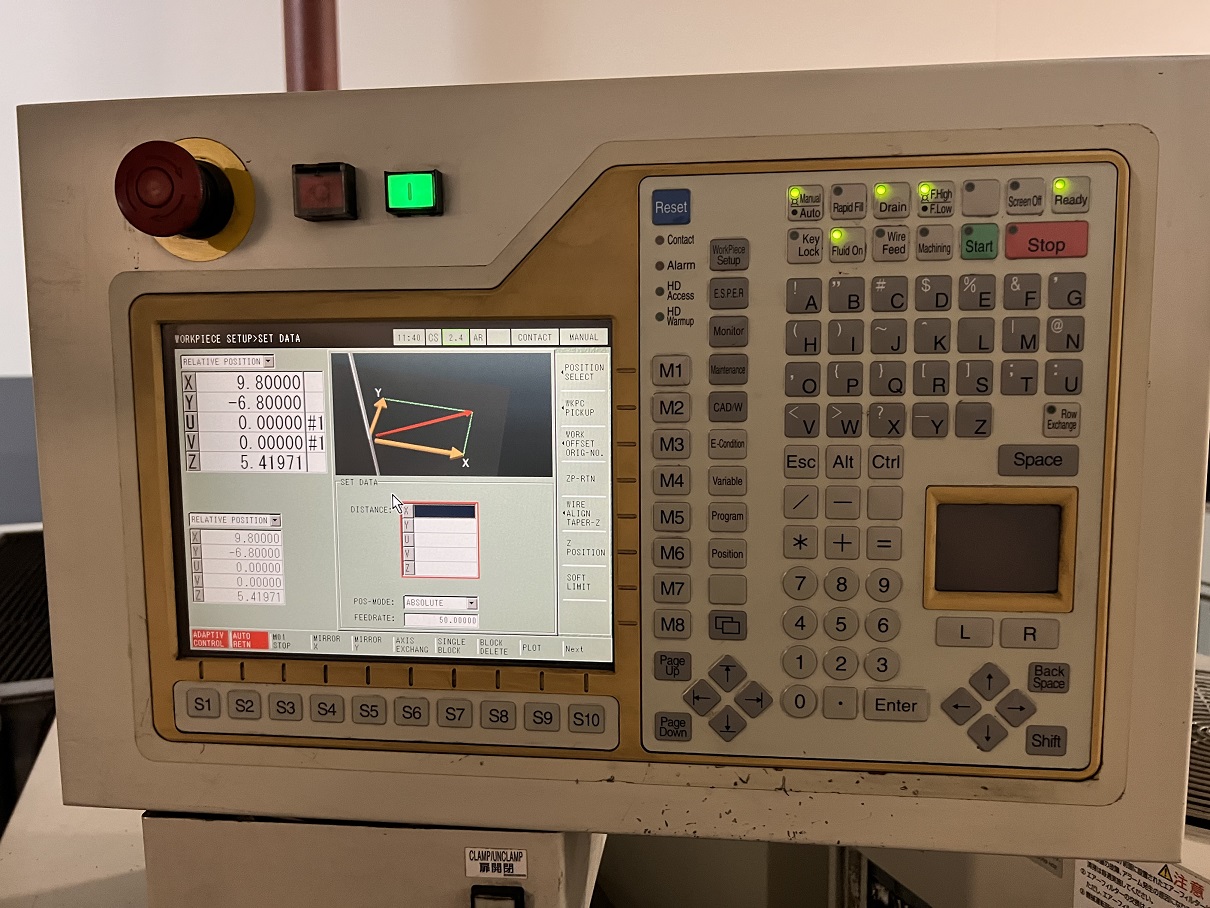

* Mitsubishi 64 Bit High-Speed CNC Control * Submerged Machining Capability * Automatic Wire Threader (AT) * Anti-Electrolysis Power Supply (AE3-HS) * Glass Scales on X & Y Axis * Power Master 2 - Automatic Varying Part Thickness Optimization * Corner Master II - Precision Corner Control * 3D Graphic Function * Ethernet and RS232 Port Communications * All Stainless Steel Machine Tank & Fluid Tank * Pendant Control * Wire Chopper * Filtration System * Electric Chiller * All Available System Disks, Manuals and Accessories

Stock Number: 0785
Condition: * Hitech Verified
