MITSUBISHI EA8 CNC SINKER EDM

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images


EA8
Electrical Discharge Machining EDM
Die Sink EDM
used
3080 (LB)
2011
$0.00

Feature Video

Description

Stock Number: 1468

Mitsubishi EA8

Age: 2011

Condition: As Is, Where Is

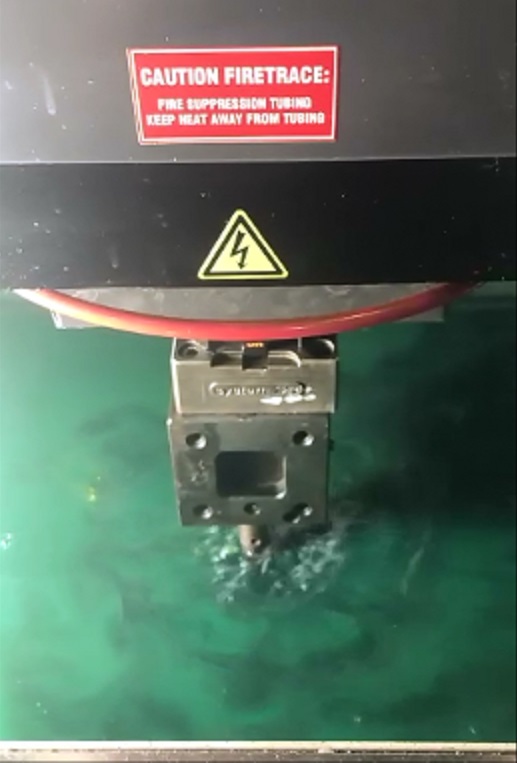

Mitsubishi EA Series Features: * Fuzzy Pro emulates an experienced operator optimizing the burn process from rough to finish orbit. * High-speed jump creates the ability to do most burns with no flush. * Saddle-less column movement system uses a special combined linear motion way system. * New digital AC Smart Servo System improves resolution to 0.05 Miu-m (2 millionths inch) speeding response time. * Fine Pulse 2 (FP2) function which operates in a pumping action to keep the gap clean, improves finish and reduces the power consumed. * SC circuit reduces electrode wear by enacting pulse discharge during high-precision machining. * PS circuit provides accurate finish by controlling surface pulse discharge. A Youtube video of this machine operating can be seen at: https://youtu.be/5mUw_8Y5s8

Request A Quote On Our Stock Number: 1468 Mitsubishi EA8 CNC Sinker EDMRequest a quote on

stock# 1468

Specification                                                                Description

Machining Stroke (X.Y,Z)                                         11.8" x 9.84" x 9.84"

Machining Movement (C)                                              360 Degrees

C Axis Rotation                                                     .001 Degree Increments

Worktank Size                                                       30.3" x 19.7" x 9.8"

Table Size                                                                   19.69" x 13.78"

Distance from Platen to Table                                    7.87" - 17.72"

Tank Type                                                                     Fixed Tank

Worktank Access                                                  Front Drop Door

Maximum Workpiece Weight                                        1,214 lbs

Maximum Current                                           60 Avg Amps / 80 Peak Amps

Maximum Electrode Weight                                           55 lbs

Electrical Requirements                                       200-220V/3Phz/8kVA

Machine Dimensions (LxWxH)                                  64" x 68" x 80"

Floor Space Required                                                  96" x 94" x 80"

Machine Weight                                                             3,080 lbs

Equipped With:

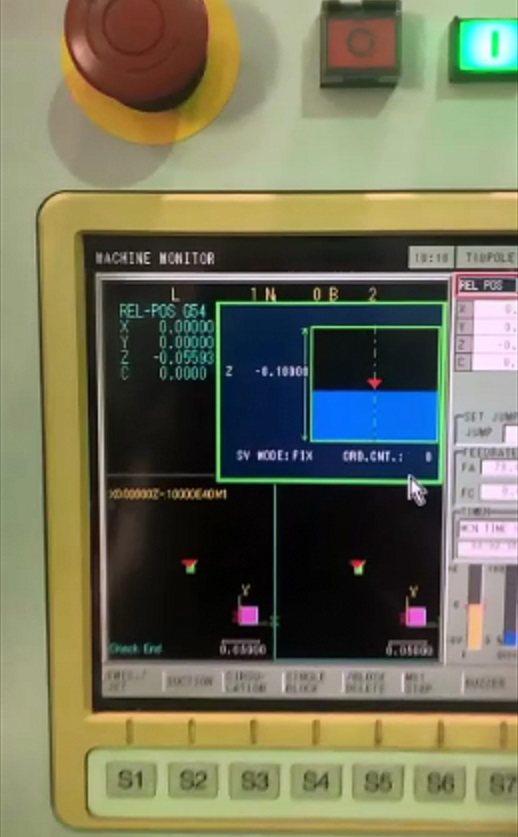

* Mitsubishi M700 PC "Fuzzy Pro-3 Plus" CNC Control * 4/7 Position Automatic Electrode Changer (3R Macro/MacroJr) * C-Axis (3R Macro Combi) * FP60EA Power Supply * 64-Bit PC Based CNC Control With a 10.4 inch TFT LCD Screen * 4GB Hard Drive * Remote Hand Pendant * X+Y Encoder/Z Axis Glass Scale Feedback Systems * ESPER Automatic Programming * USB, Ethernet, & RS232 Interface * CNC Orbiting (All Axes) * Auto Way Lubrication * Auto Fill/Drain * Manual Vertical Drop Door * Electric Chiller * All Available Manuals and Accessories
