Mitsubishi EA12E CNC Sinker
Stock Number: 1472
Mitsubishi EA12E
Age: 2001
Condition: As Is, Where Is

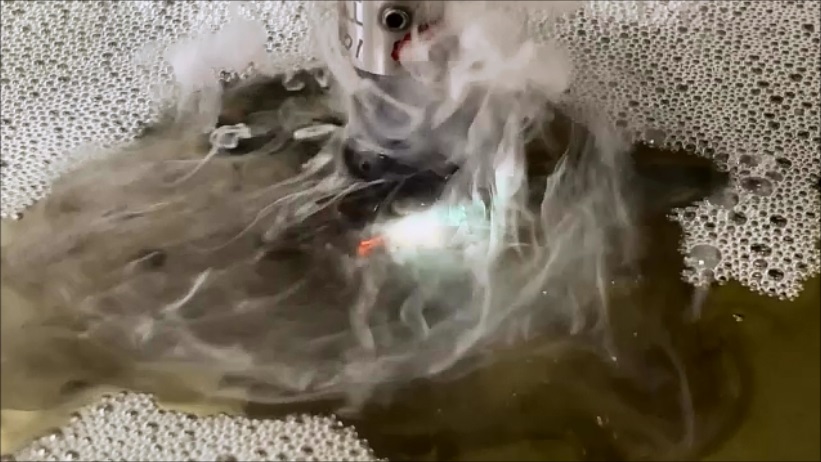

Mitsubishi EA SERIES features: Fuzzy pro emulates an experienced operator optimizing the burn process from rough to finish orbit. High-speed jump creates the ability to do most burns with no flush. Saddle-less column movement system uses a special combined linear motion way system. New digital AC Smart Servo System improves resolution to 0.05 Mm (2 millionths inch) speeding response time. Fine Pulse 2 (FP2) function which operates in a pumping action to keep the gap clean, improves finish and reduces the power consumed. SC circuit reduces electrode wear by enacting pulse discharge during high-precision machining. PS circuit provides accurate finish by controlling surface pulse discharge. A Youtube video of this machine operating can be seen at: https://youtu.be/cY_6MfbCn04


Request A Quote On Our Stock Number: 1472 Mitsubishi EA12E CNC SinkerRequest a quote on stock# 1472
Specification                                                               Description
Machining Stroke ( X x Y x Z )                                  15.7" x 11.8" x 11.8"
Machining Movement (C)                                               360 Degrees
Table to Platen                                                                7.8" - 19.6"
Worktank Size                                                              34" x 24" x 14"
Table Size                                                                          24" x 18"
Tank Type                                                                          Drop Tank
Maximum Workpiece Weight                                          1,500 lbs
Maximum Current                                           60 Avg Amps / 80 Peak Amps
Maximum Electrode Weight                              110 Lbs/22 lbs with C-Axis
Dielectric Capacity                                                            89 Gal
Machine Weight                                                                   6,000 lbs
Machine Dimensions ( L x W x H )                              92" x 87" x 94"H

Equipped With:

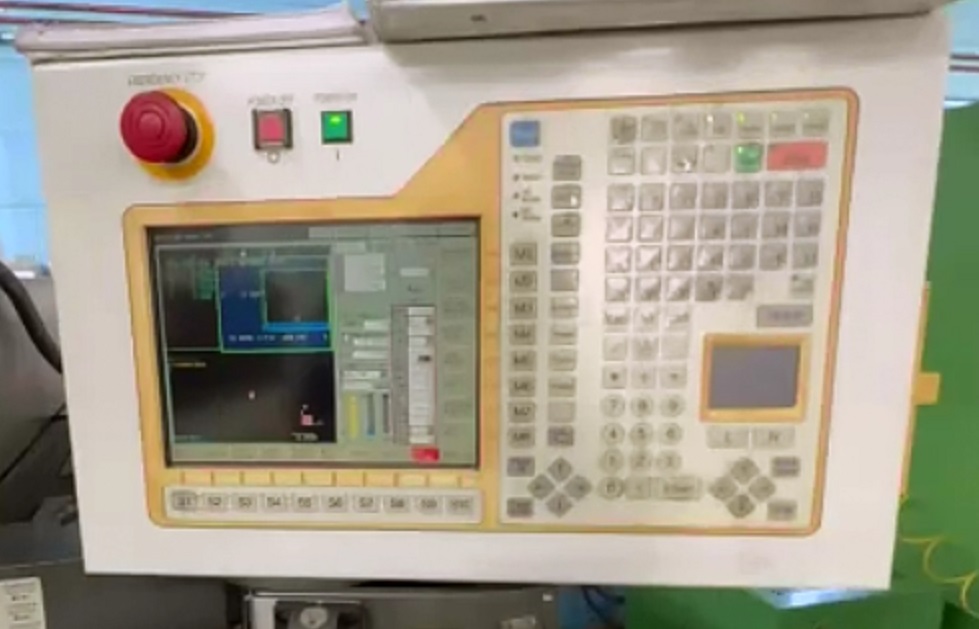

* Mitsubishi "Fuzzy Pro 3" Control * C-Axis (System 3R Macro) * 64-Bit PC Based CNC Control With a 10.4 Inch TFT LCD Screen * 10MB User Program Storage On Hard Drive * FP60EA Power Supply * 3-Sided Drop Tank * Encoder on X&Y/Glass Scale on Z-Axis * Remote Hand Controller * Electric Chiller * All Available Manuals
