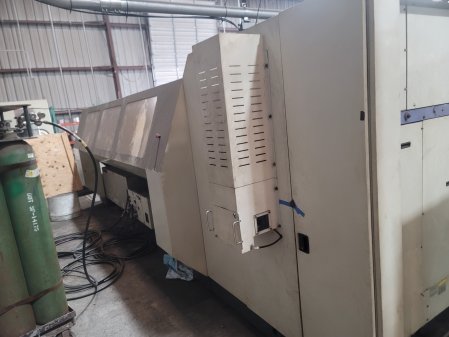

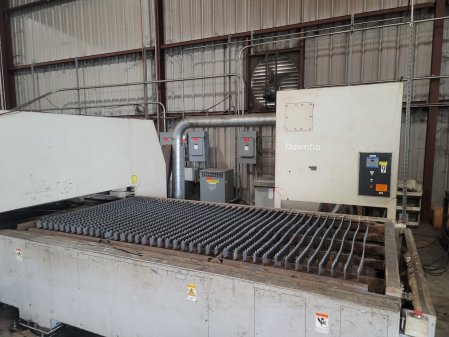

Machine structure:
Precision rack and pinion, direct drive
Travel drive method: X,Y, Z simultaneous 3 axes
Control method: X,Y, Z simultaneous 3 axis control
X-Axis stoke: 122.05"
Y-Axis stroke: 61.02"
Z-Axis Stroke: 3.54"
Maximum work piece size: 120.08" x 60.04"
Maximum processing feed rate: 1180 inches per minute
Maximum workpiece weight: 2050 lbs.
Table pass height: 33.5"
Rapid travel speed
Single axis: 3345 inches per minute
Simultaneous: 4730 inches per minute
Minimum command input: 0.001mm/.0001"
Drive motor type: intelligent AC servo
Machine unit dimensions: 418.5" L x 90.6" H x 183" W
Total system weight: 26,325 lbs.
Pallet change time: Approximately 25 seconds
Pallet changer weight: 4500 lbs.
Pallet changer drive mechanism: chain
Installation dimensions: 473.4" x 227.7"
Floor space requirement: 750 sq. ft.
Electrical requirements: 208 VAC +/- 5%, 3 phase, 60 Hz
Motion system, CNC control: 71 KVA (Total machine usage)
Laser resonator: 202 (Full load Amps)

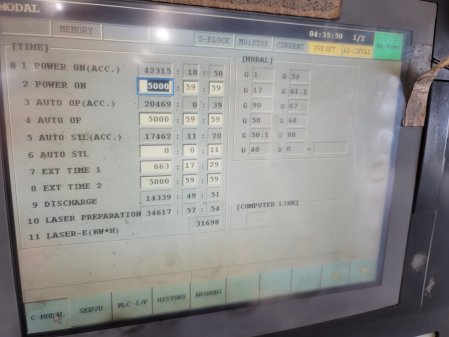

CNC controller specifications:
Model: Mitsubishi LC20BP2 (Windows 95)
Type: Self contained-simple dust proof design (mounted on processing machine)
CPU: 64 Bit
Display unit: 10.4" TFT color LCD touch screen
Hard disc drive capacity: 2.0 GB
Program memory capacity, standard: 5000m/approximately 2 MB with 400 registerable programs

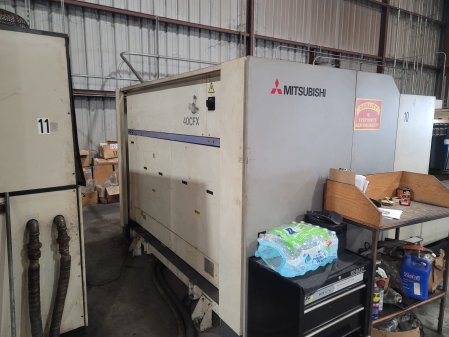

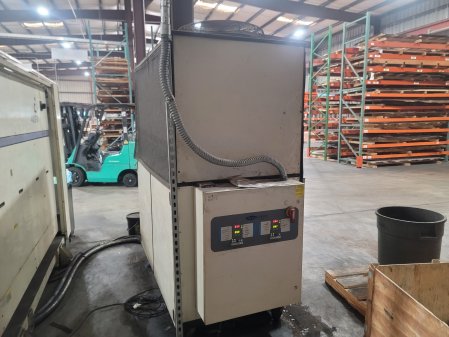

CO2 laser control
power control: Output power, frequency duty
Operation control: Shutter open/close, beam on/off. Laser gas change, etc...
Processing machine control
Drive method: X,Y, Z (Simultaneous control)
Position detection: encoder
Minimum command unit: .001mm/.0001"
Program input method: 3.5" floppy, computer link, Ethernet LAN
Operation method: Memory operation, HD direct drive
To view more information on the MITSUBISHI 3015LVP(PLUS)-40 CFX, 4000 WATT, 5 X 10, MFG:2005 OUR STOCK NUMBER: 12693, including reviews, brand information, photos, videos, and more,
