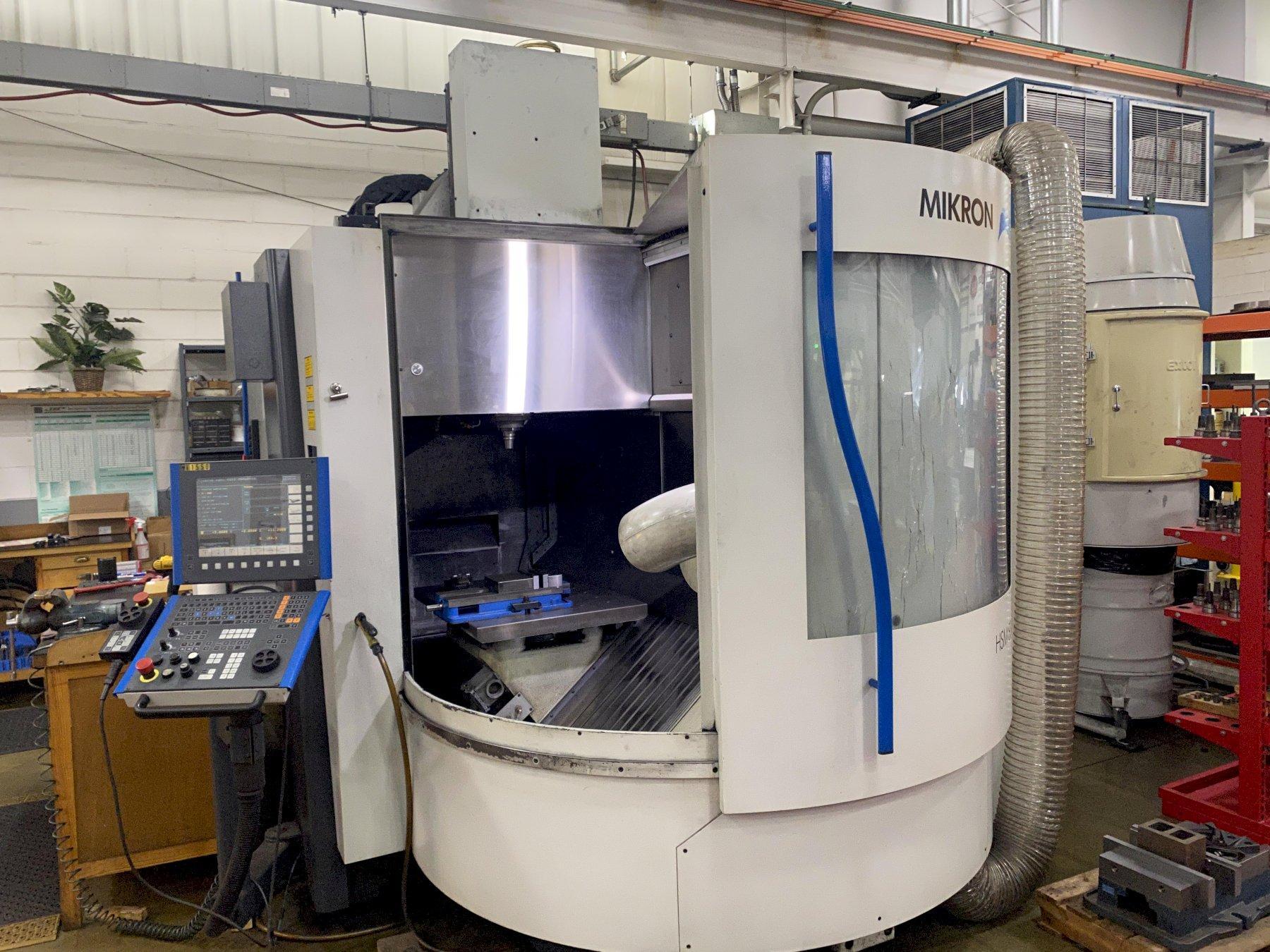

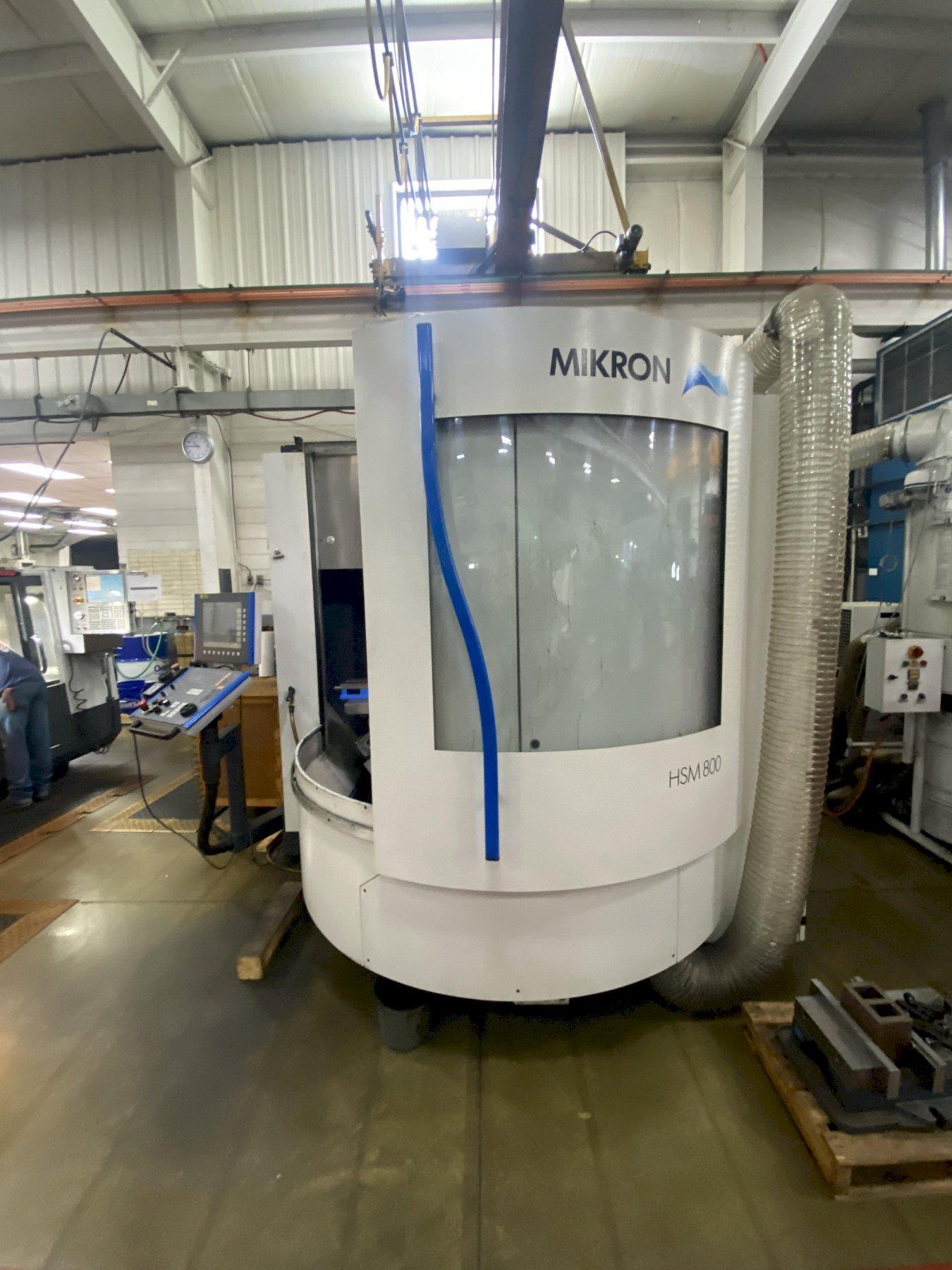

MIKRON HSM 800 HIGH SPEED CNC VERTICAL MACHINING CENTER W/ PALLET CHANGER

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


HSM 800
Machining Centers Vertical Horizontal CNC
HIgh Speed Machining Center
used
24000 (LB)
2003
$0.00

Description

STOCK # 17172

SPECIFICATIONS:

CNC Control: yes

Type of CNC Control: Heidenhain iTNC 530

# Axis: 3

Table Size: 31.49" x 23.6"

Table Capacity: 2200 pounds

X-Axis Travel: 31.49 inches

Y-Axis Travel: 23.6 inches

Z-Axis Travel: 19.68 inches

Spindle Speed: 36,000 RPM

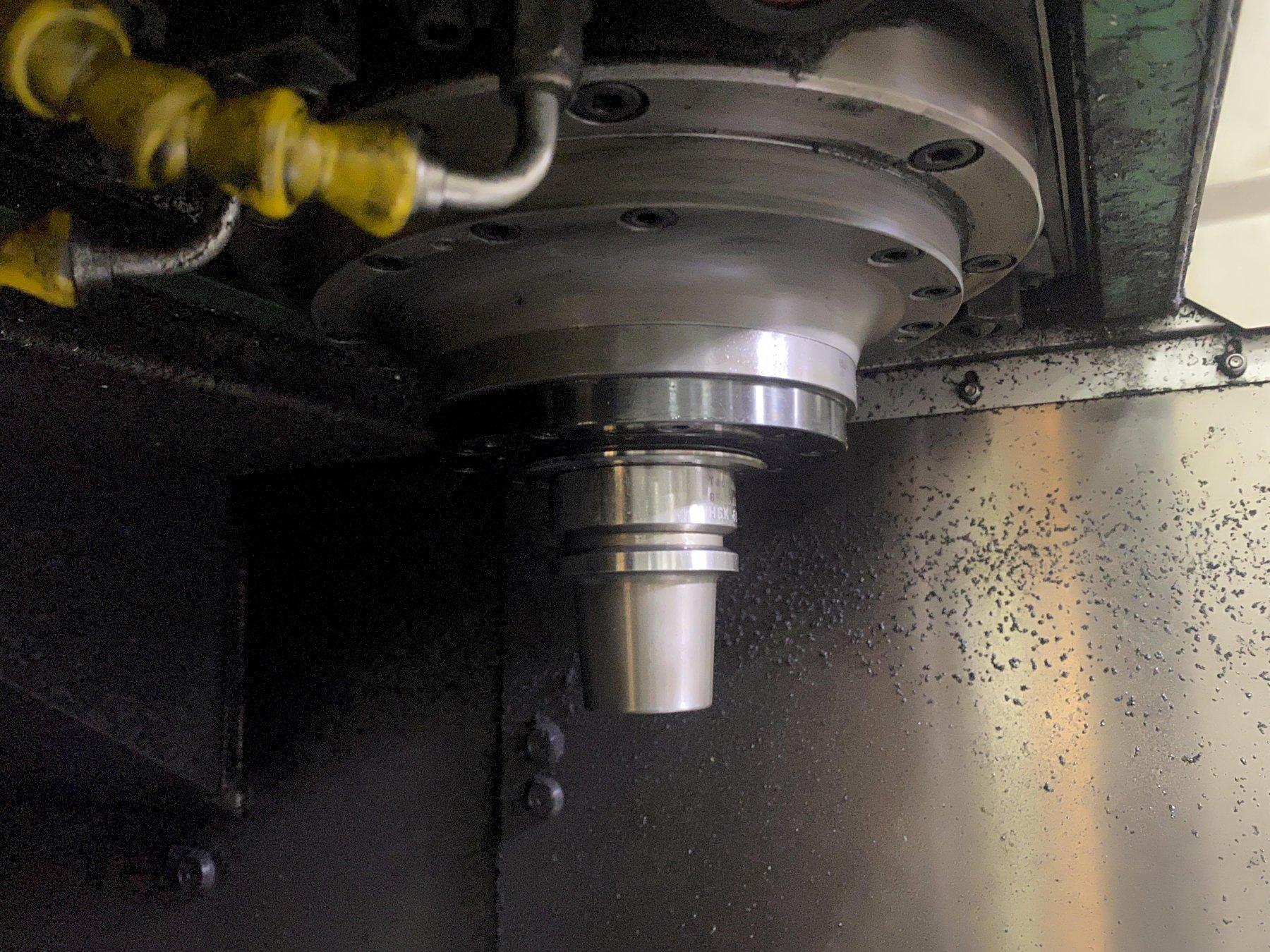

Spindle Taper: HSK 50

Main Motor: 41 HP

Tool Changer Capacity: 30

X-Axis Feedrate: No Specs Attached

Y-Axis Feedrate: No Specs Attached

Z-Axis Feedrate: No Specs Attached

X-Axis Rapid Traverse Rate: No Specs Attached

Y-Axis Rapid Traverse Rate: No Specs Attached

Z-Axis Rapid Traverse Rate: No Specs Attached

Coolant Thru Spindle: yes

Machine Hours: No Specs Attached

Dimensions: 153" x 101" x 98"

Max Distance Spindle To Table Top: No Specs Attached inches

Max Distance Spindle Nose To Trunnion Center: No Specs Attached inches

Torque, Up To: No Specs Attached

Tool Change Time: No Specs Attached

Max Spindle Speed For Tapping (RPM): No Specs Attached

Weight: 24000 pounds

Rapid Traverse Rate (X/Y/Z) 1,572 IPM

Equipped With:

- Heidenhain iTNC 530 CNC Control

- Mikron High Speed Machining Center

- Pallet Changer - 4 Stations

- 18 Bar Coolant

- ARO Coolant Filtration Unit

- Chip Conveyor

- Extor Dust Removal Unit Model 3500-3s MP IP

- Lehmann 4th Axis Rotary Table w/Tailstock

      * Model EA-420.2A

STOCK # 17172
