Mikron HSM-400U, Heid iTNC530 CNC, 42K RPM, X15.75",Y9.44",Z13.77", 36ATC, 2007
Mikron HSM-400U CNC 5-Axis High Speed Machining Center

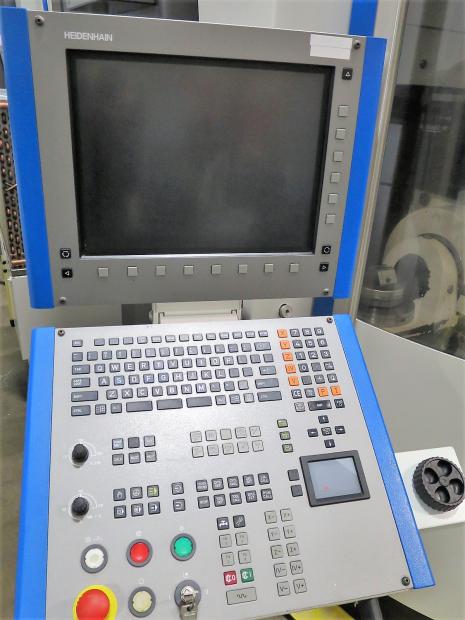

Heidenhain iTNC 530 5-Axis CNC Control Manual Pulse Generator

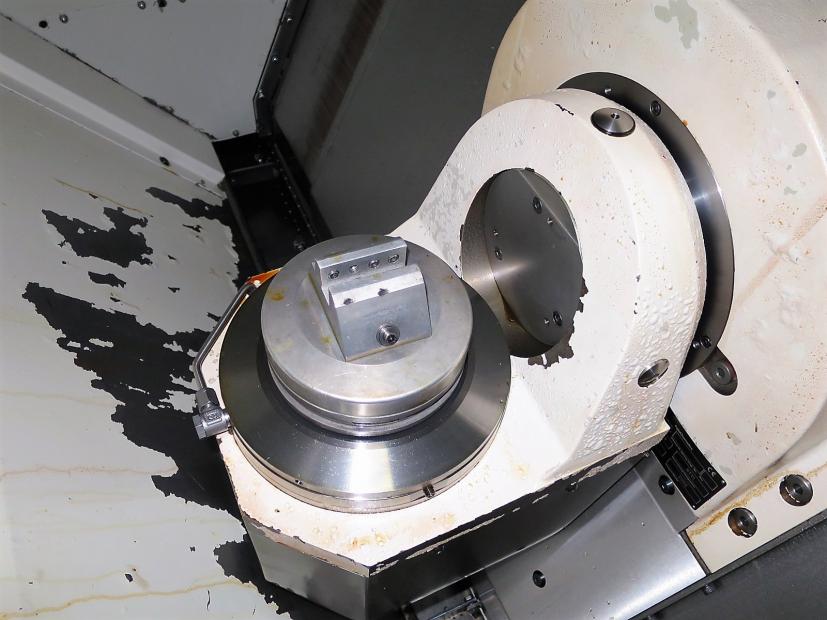

Swivel-Type Rotary Tilting Table with Erowa 148 mm table

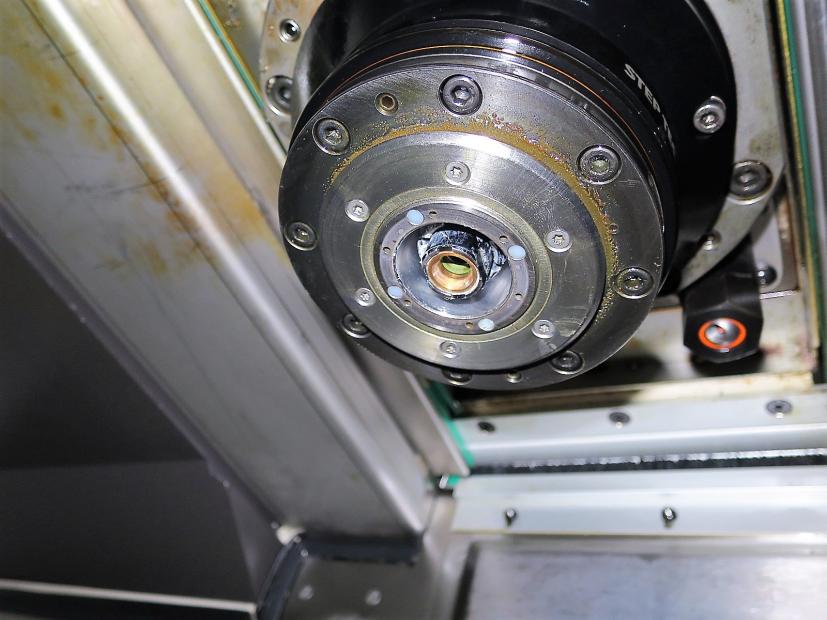

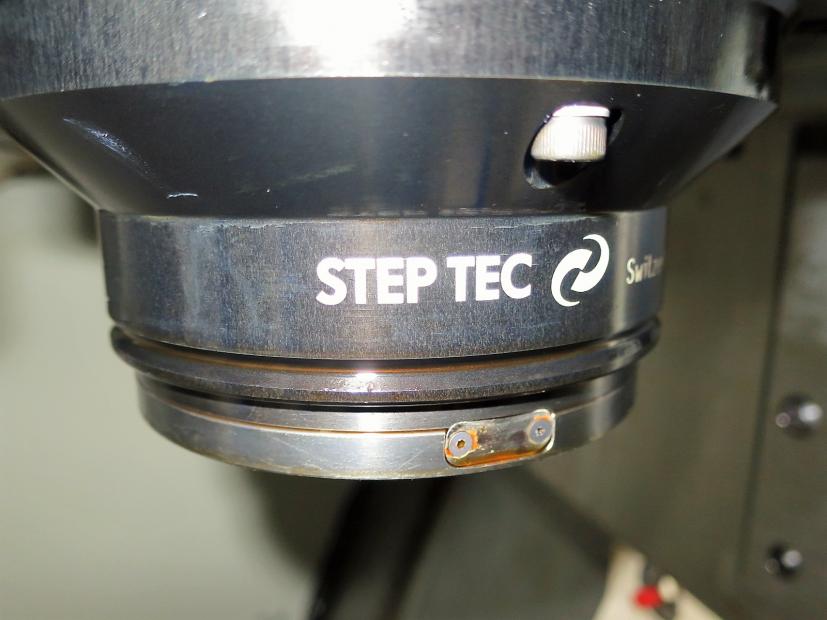

High-Speed 42,000 RPM Spindle

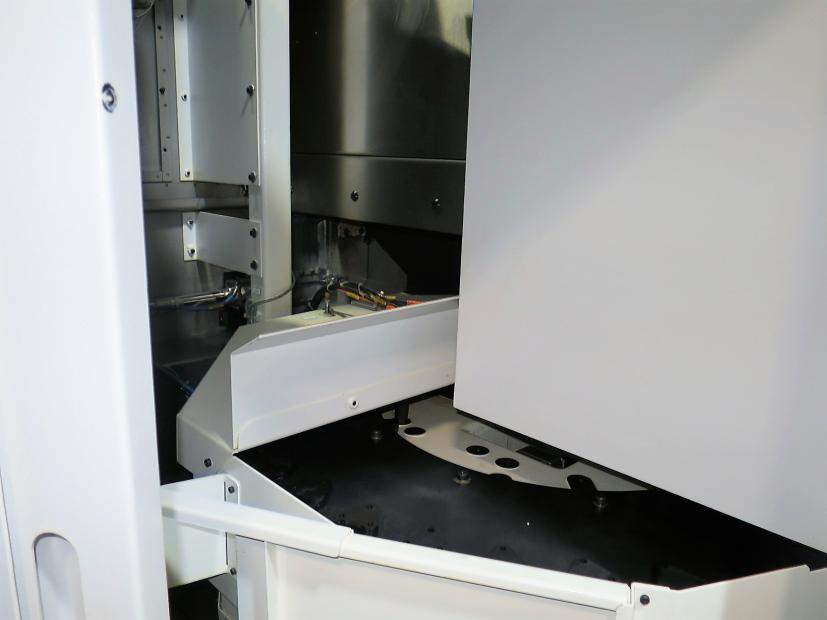

36-Position Automatic Tool Changer

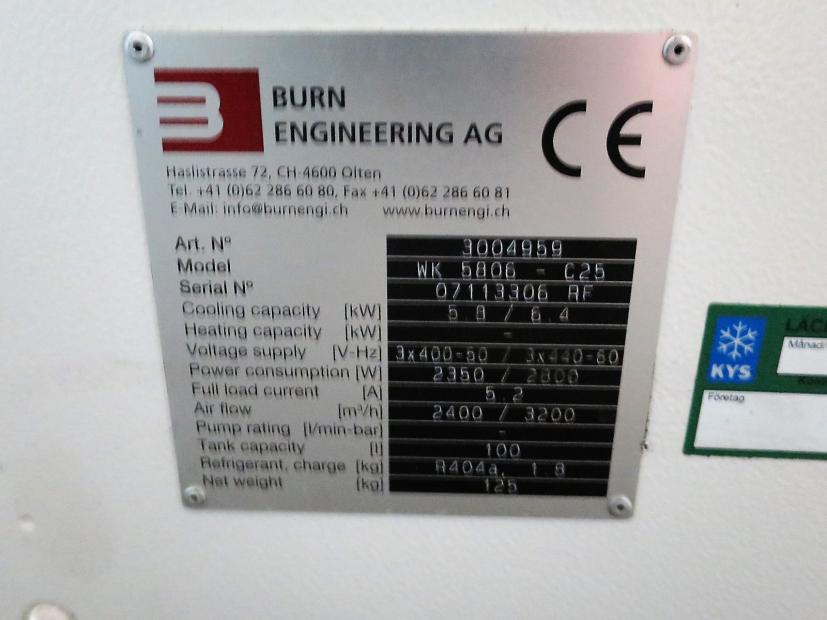

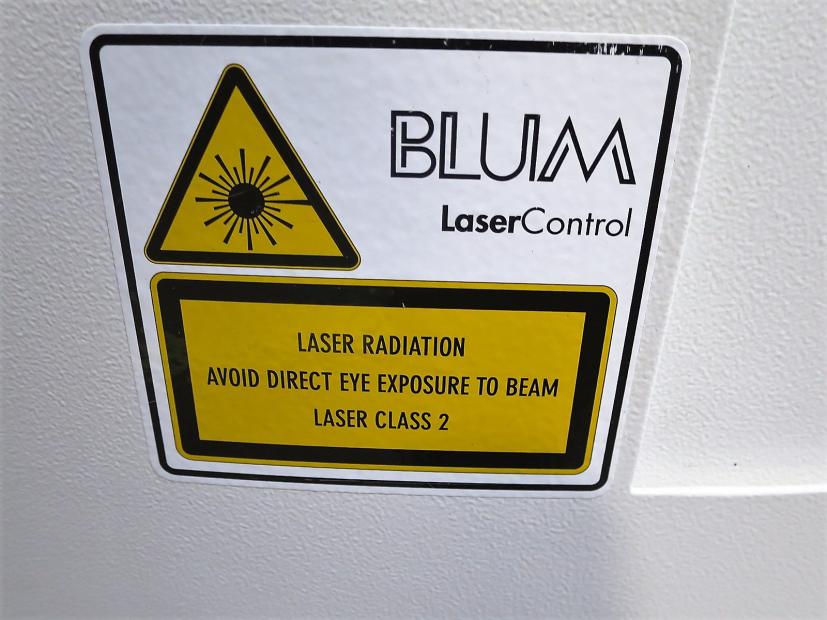

Blum Laser System for Tool Setting & Breakage Detection Chiller
SPECIFICATIONS:
X-Axis Travel, Longitudinal 15.74"
Y-Axis Travel, Cross 9.44"
Z-Axis Travel, Vertical 13.77"
B-Axis Table Swivel +/- 110 Degrees
Rotary Table Diameter 6.14"
Max. Workpiece Rotated, w/o Pallet 55 Lbs.
Max. Dia. of Work Rotated 360 Deg 9.05"
Max. Height of Workpiece 13.77"
Max. Work Weight 198 Lbs.
Spindle Speed Range .. 100-42,000 RPM
Spindle Taper HSK E40
Spindle Drive Motor 16.9 HP / 13 HP
Tool Changer 36 ATC
Tool Change Time 10 Seconds
Feed Rate, XYZ 1574 IPM
Machine Dimensions 151" X 100"
Machine Height 104"
Machine Weight 14,300 Lbs.
Heidenhain iTNC 530 5-Axis CNC Control with intelligent thermal control Manual Pulse Generator

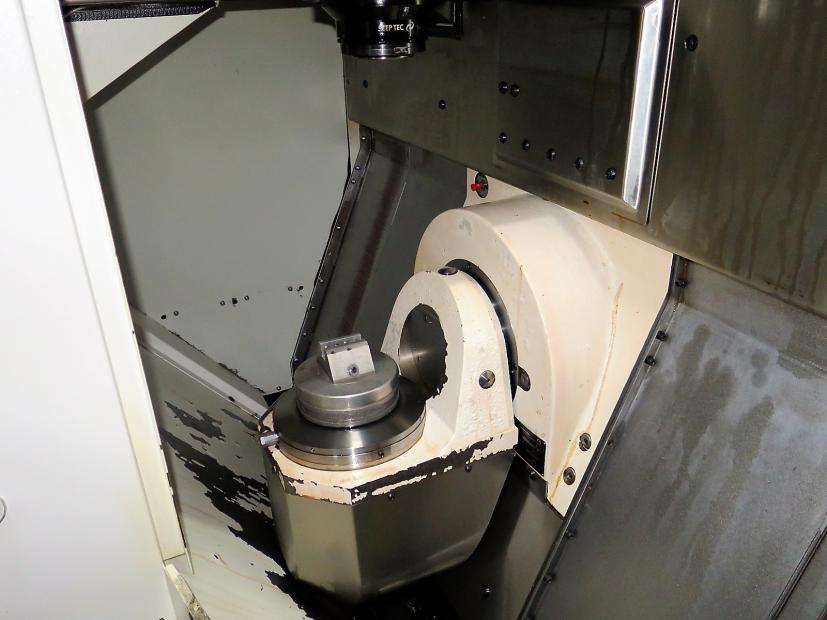

Swivel-Type Rotary Tilting Table with Erowa 148mm Pallet
High-Speed 42,000 RPM Spindle
36-Position Automatic Tool Changer
Blum Laser System for Tool Setting & Breakage Detection Chiller
Spindle probe
Stationary handwheel
Optical modes of display
Increased accuracy
As Taken from Service of Dental Implant Manufacturing Facility
