PRO 4210
Machining Centers Vertical Horizontal CNC
Vertical Machining Centers
used
(LB)
0
$0.00

Description

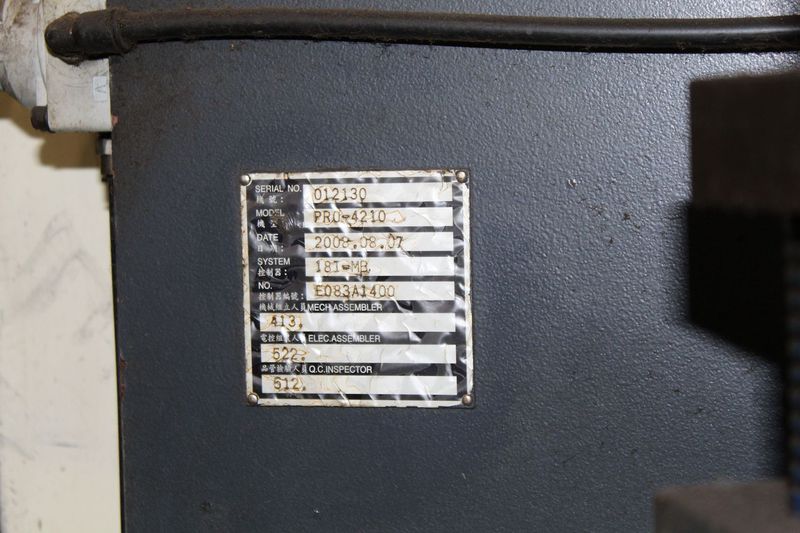

Specifications Model:Pro-4210Manufacturer:Mighty USA Inc.Manufacture Year:2008Working Surface:4150MMx200MM (163.9" x 78.74")T-Slot:W22MMX20XP200MMMax Table Load:10000KGTravel:

X 4050MM (159.45")

Y 2100MM (82.68")

Z 1070MM (42.13")

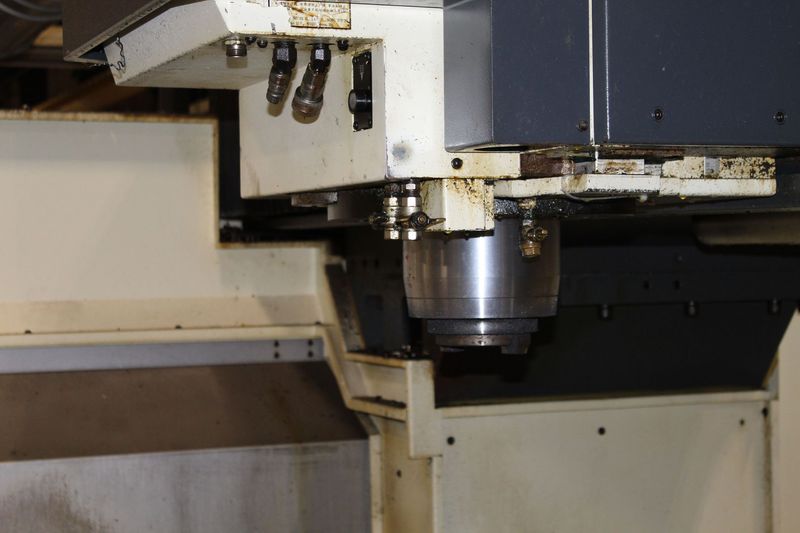

Spindle:

Gear Type

6000 RPM

Spindle Taper: #ISO50

Feed:

Feed Rate: (X,Y,Z) 7000MM/MIN / 2761IPM

Rapid Traverse: (X,Y,Z) 12000MM/MIN / 3941 IPM

Tool Changer:

ATC : Arm Type

Magazine Cap.: 40 Tool

Max Tool Weight: 15KG

Max Tool Size: 125MM Dia. x 350MM Length

Tool Shank: CAT-50

Pull Stud: P50T-1

Motor:

Spindle: 35HP (OPT.)

X,Y,Z Axis Drive Motor: 7/7/4 KW

Standard Accessories:

Full Splash Guard

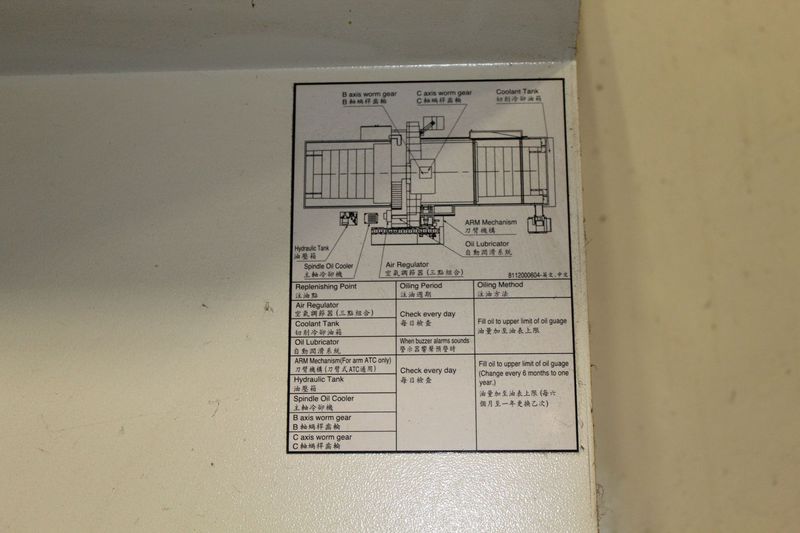

Auto Lubrication System

Work Light

Leveling Bolts, Blocks

Adjusting Bolts, Blocks

RS232 Interface

Air Blast Thru Spindle

Coolant System

Spindle Oil Cooler with Bracket

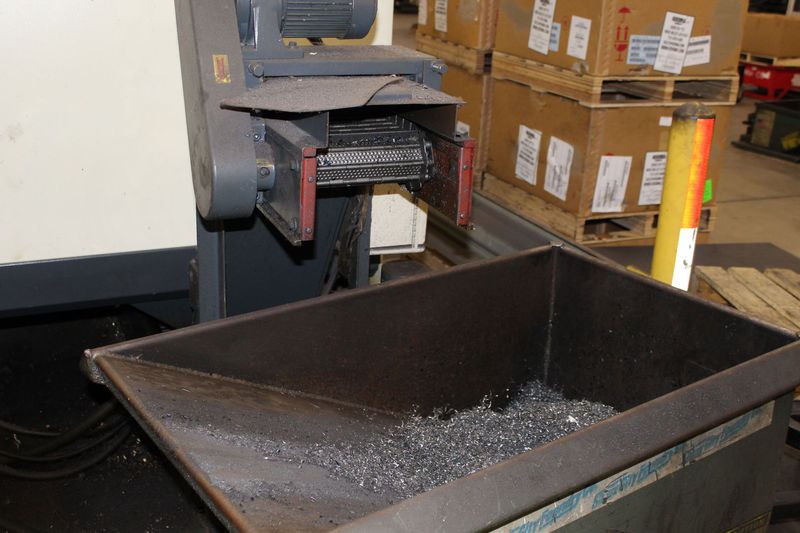

Screw Type Chip Conveyor

Link Type Chip Conveyor

W/Chip Bucket

Portable Chip Bucket

Automatic Power Off

Convection Heat Exchanger

In Control Cabinet

Operation Manual &

Electrical Drawing

3 Axis Absolute Encoder

Remote Manual Pulse

Generator

Operation Finish Lamp

Handy Coolant Gun

Foot Pad Switch For Spindle

Clamp & Unclamp

Rigid Tapping

Tool Box and Hand Tool

2 Coolant Nozzles & One Air

Nozzle On Spindle with M Code

On/Off Control, Manual

Pressure Control

Equipped With:

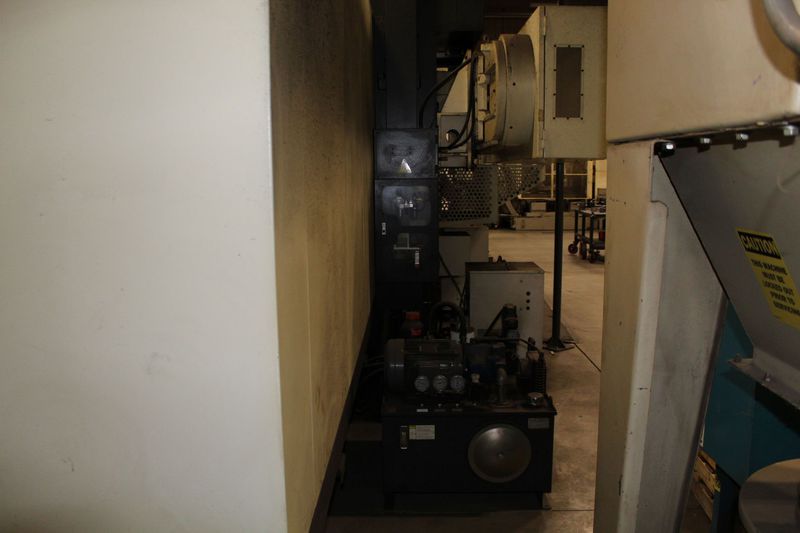

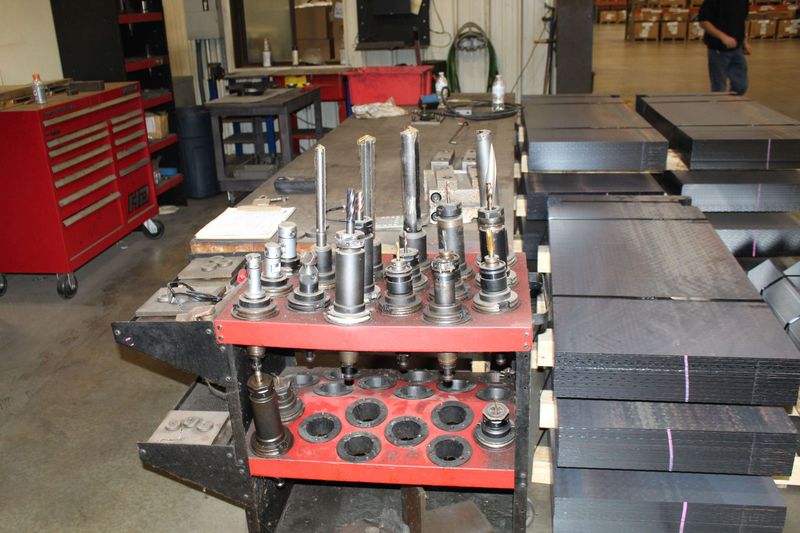

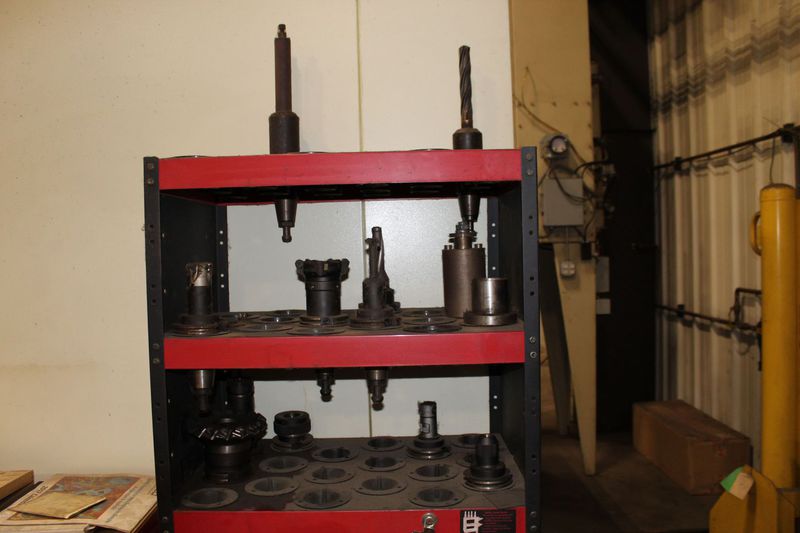

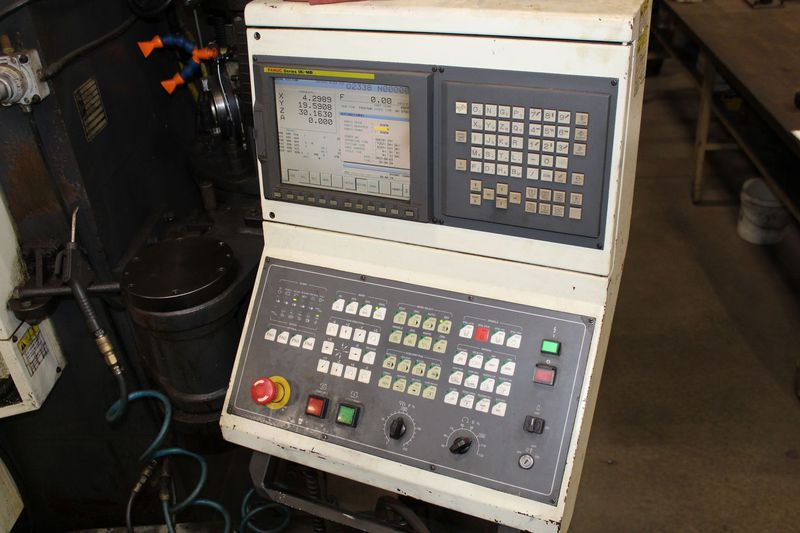

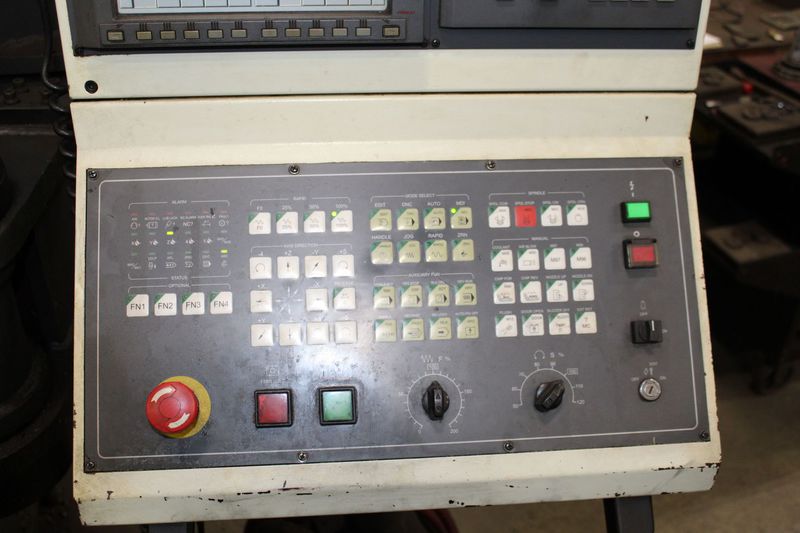

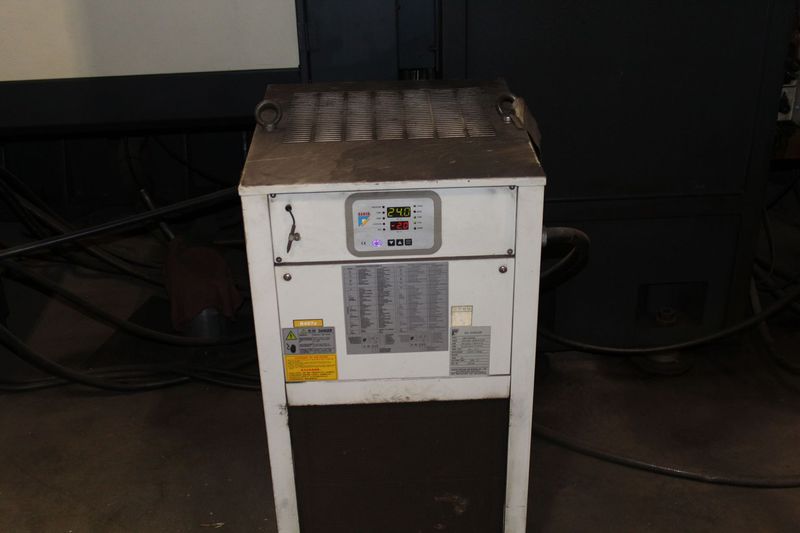

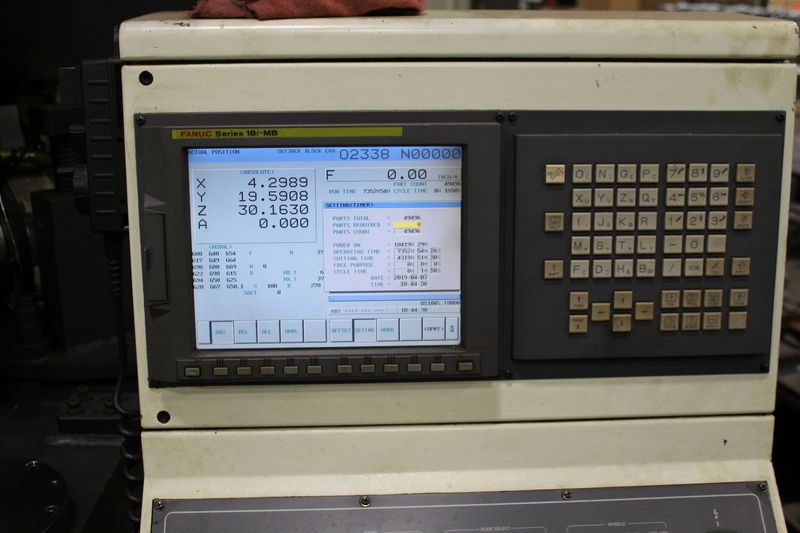

Fanuc 18iM CNC Control, 6000 RPM 35HP Cat-50 Spindle, 90° Programmable Angular Head Attachment with 5° Programmable Indexing, 42" Extended Z Axis, Chip Blaster 1200 PSI Through Spindle Coolant System, 40 Station Twin-Arm Automatic Tool Changer, Ballscrew and Bearing Chiller System, Harbor HBO-750 Oil Chiller System, Outboard Hydraulic System, Dual Internal Chip Auger System, Link Type Chip Conveyor System with Rear Discharge, Coolant System and Tank, Machine Enclosure, Machine Manuals. *Workholding and fixturing in photos not included**
