Max. Sheet Size (X,Y) 120" x 60"
Max. Axis Travel (X, Y, Z) 121" x 61" x 3.93"
Travel Method Stationary table, X, Y, and Z-axis movement for cutting head
Control Method X, Y, and Z (simultaneous 3-axis control)
Drive motors FANUC AC servo motors
Max. Axis Positioning Speed (X, Y) 4,724"/min. per axis (6,693"/min. 45
vector)
Max. Z-Axis Speed 4,724"/min.
Repeatability 0.0002"
Max. Material Weight 2,000 lbs.
Power Supply 200/60 V/Hz ( 10%), 3-Phasechine Control

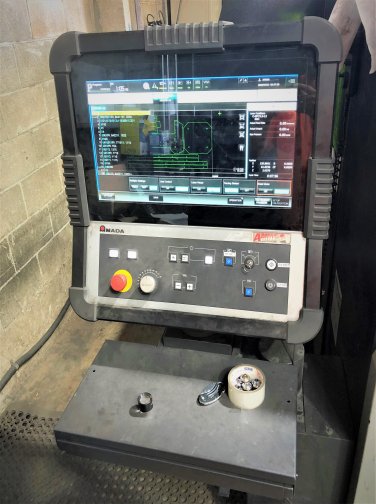

Model AMNC 3i Control
Display Touchscreen color LCD
Control Function X, Y, Z-axis, simultaneous and focus lens B-axis, and laser
power control (CW, gated pulse, pierce routines etc.)
Data Storage Compact flash driveFiber Laser Resonator
Wattages Available 4KW
CW Output Power 4 KW
Resonator Style LD excited Yb fiber
Laser Wavelength 1.08 m
LCG AJ Series Fiber Laser
The LCG AJ Series uses approximately a third of the electricity required by
the same wattage CO2 laser system. It is also three times more efficient with
the electricity it does utilize, reducing costs and providing a more
environmentally-friendly laser system. LCG AJ Series does not require laser
gas, mirrors, or any other items typically associated with generating a CO2
laser beam. A single fiber optic delivery cable eliminates the need for
additional external mirrors. The result is significantly less operating costs
and maintenance.

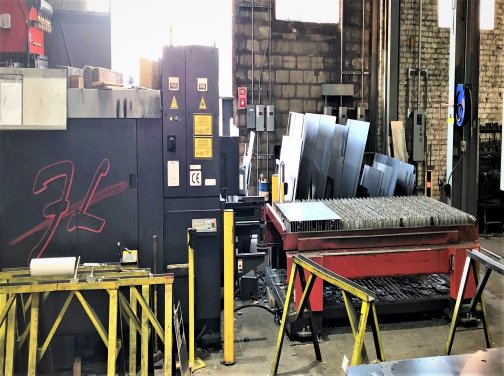

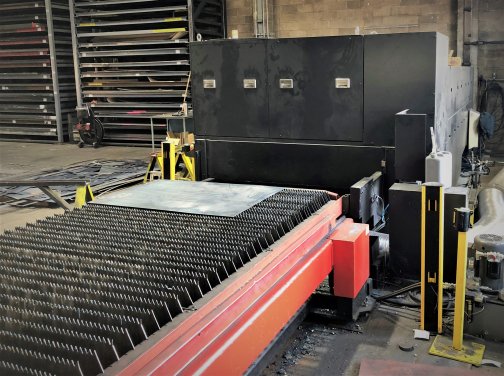

To view more information on the MF4000 WATT AMADA LCG3015AJ FIBER LASER, G:2015, INSTALLED:2016 OUR STOCK NUMBER: 11795, including reviews, brand information, photos, videos, and more,
