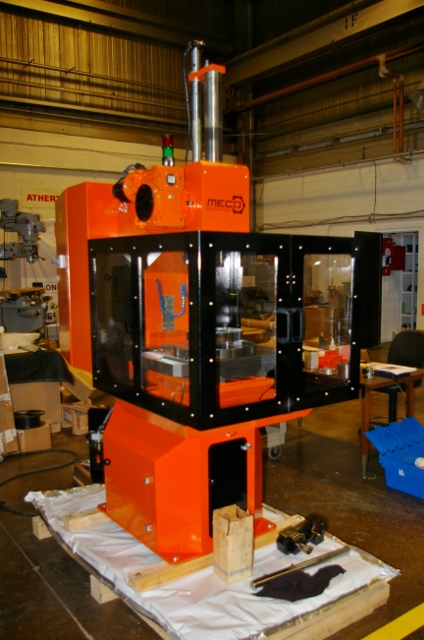

NEW MECO MODEL MEC-80/440X800 PREMIUM CNC KEYSEATER
MANUFACTURED 2017
STOCK# 80171

MAIN FEATURES:

. VERTICAL STROKE ADJUSTABLE FROM 0 - 440MM (0 TO 17.3")

  DIRECTLY WITH THE TOUCH SCREEN

. KEYWAY WIDTH FROM 1/8" TO 2"

    ACCORDING TO CURRENT REGULATIONS

    (OTHER DIMENSIONS UPON REQUEST - SPECIAL WIDTHS UP TO 3-15/16")

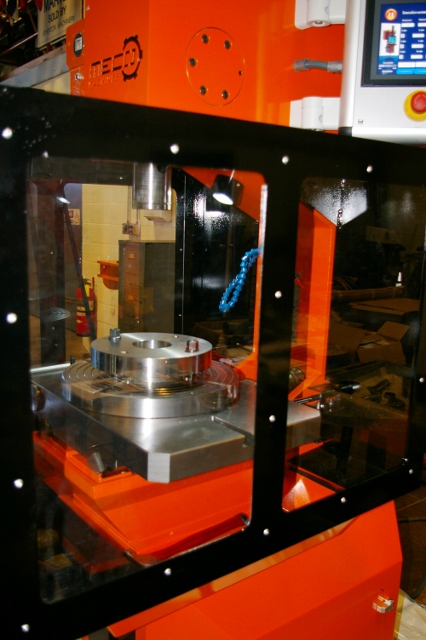

. WORKING TABLE WITH ROOM FOR SAMPLES UP TO 600 MM(23.6")DIAMETER(APPROX.)



EQUIPPED WITH A 360 MM(14.1")DIAMETER HORIZONTAL MANUAL DIVIDING PLATE

    WITH PREFIXED DIVISIONS (1,2,3,4,5,6,7,8,10,12,14,16) REGULATED

    DEGREE BY DEGREE, INTEGRATED ON THE WORKING TABLE OF THE MACHINE.

    THAT ALLOWS THE USER WORK WITH THE MAXIMUM VERTICAL STROKE

    (440MM)(17.3")

. 2 HP - SERVO MOTOR WITH THE ELECTRICAL SECURITY EQUIPMENT

. AUTOMATIC SYSTEM BY MEANS OF SERVO MOTOR EQUIPMENT FOR:

    APPROXIMATION OF THE TOOL TO THE SAMPLE (INITIAL WORKING POINT)

    AND ADJUSTMENT OF THE STROKE AND SEPARATION OF THE TOOL FROM

    THE SAMPLE EACH TIME WORKING CYCLE BEGINS.

    ADJUSTABLE FROM 0 TO 1.5 MM ( 0 TO .059")

. PREMIUM MODEL - 3RD AXIS IS AUTOMATIC, SO THE ROTARY PLATE IS AUTOMATIC.

    IN THIS MACHINE YOU CAN DO SPLINES AND DIVISIONS AUTOMATICALLY.

THE REST OF CHARACTERISTICS ACCORDING TO OFFICIAL CATALOG:

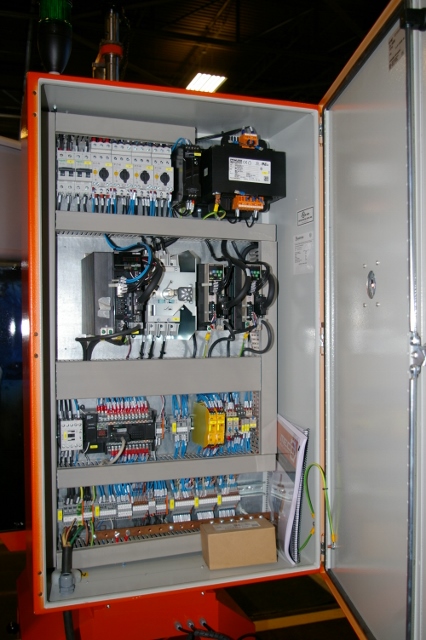

CNC CONTROL FOR THE MAIN SERVO MOTOR AND FOR THE WORKING TABLE.

    CNC ADVANTAGES:

. CONICAL KEYWAYS MECHANIZATION IN BLIND HOLES OR THROUGH SAMPLES

. REGULATION OF THE VERTICAL STROKE

. VERTICAL STROKE ADJUST TOLERANCE OF  0.05 MM (.002")

. REGULATION OF THE MAIN STEM WORKING SPEED

. REGULATION OF THE TRANSLATION WORKING SPEED

. NC CONTROL OVER THE KEYWAY DEPTH

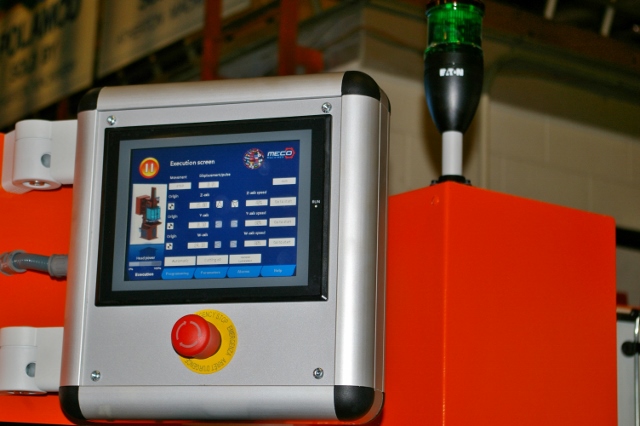

. ALL THE FUNCTIONS CAN BE ADJUSTED FROM THE TOUCH SCREEN

. SELECTABLE USER LANGUAGE

. ACCESS TO THE E-HANDBOOK

. SELECT DIFFERENT WORKING UNITS (INCHES OR S.M.I.)

COSTS ARE AVAILABLE FOR METRIC OR INCH TOOLHOLDERS, AND CUTTERS

   ARE TO BE DETERMINED BY SUBMISSION OF BLUEPRINTS AND CUSTOMERS CHOICE.

COST FOR LOWER GUIDE AND BARS IS $ 2,500.

CENTERING AND MOUNTING FIXTURE NORMALLY RANGE BETWEEN $ 5,500-$ 6,500 USD.

IF START UP IS REQUESTED THE COST OF A SERVICE TECHNICIAN WILL BE

   $ 3,500 USD PLUS TRAVEL & LODGING.

OPTIONS:

WORK LIGHT -------------------------------- $   728.00

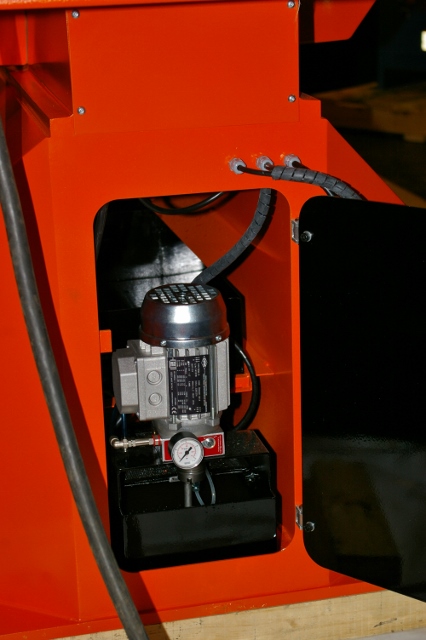

MACHINE LUBE SYSTEM ----------------------- $   572.00

CENTERING FIXTURE SPRING LOADED ----------- $   750.00

CUTTING OIL SYSTEM FOR TOUGH STEELS AND ALLOYS $ 1,645.00

LOWER GUIDE/SUPPORT FOR LONG KEYWAYS

    (USES SPECIAL HOLDER FOR LOWER GUIDES) $ 2,575.00

INTERCHANGEABLE INSERTS FOR LOWER GUIDE --- $  267.00

SPECIAL HOLDER FOR WORKING OD/EXTERNAL CUTTING OF PART

    (GEARS, SPLINES, ETC.) ---------------- $ 2,926.00

6" VERTICAL EXTENSION IN Z AXIS ----------- 5,000.00

SPECIFICATIONS ARE APPROXIMATE, INTENDED SOLELY AS A GUIDE AND ARE NOT

   BINDING.

IT IS THE BUYERS RESPONSIBILITY TO INSPECT THE GOODS AND ASCERTAIN

   IF THE SPECIFICATIONS, DESCRIPTION, AND CONDITION OF THE GOODS

   CONFORM TO THE BUYERS REQUIREMENTS.

WARRANTY 1 YEAR AGAINST ANY DEFECT OF FABRICATION ACCORDING TO CE RULES.

THE GUARANTEE DOES NOT INCLUDE FAULTS OR DAMAGES CAUSED BY A WRONG USE

   OF THE MACHINE OR ANY OTHER CAUSE ALIEN TO MECO.

THE ABOVE NEW MACHINE IS QUOTED F.O.B. DES PLAINES, IL.

SHIPPING RESPONSIBILITY TRANSFERS TO THE BUYER WHEN DELIVERY

IS MADE TO THE CARRIER.  ANY CLAIM FOR LOSS OR DAMAGE MUST

BE HANDLED BETWEEN PURCHASER AND CARRIER.

TERMS: 35% WITH ORDER, BALANCE PRIOR TO SHIPMENT.

PRICING DOES NOT INCLUDE ANY APPLICABLE TAXES, FREIGHT OR RIGGING.

SEE "CONDITIONS OF SALE" ON REVERSE SIDE.

2/2017
