MAZAK VERTICAL MACHINING CENTER

PRICE: Loaded on Truck, Our Warehouse, York, PA …… $52,500.00

HMC Stock No. 18333-P

Machine Serial No. 178484

Machine Model No. VNC-510C

New Date: 2005

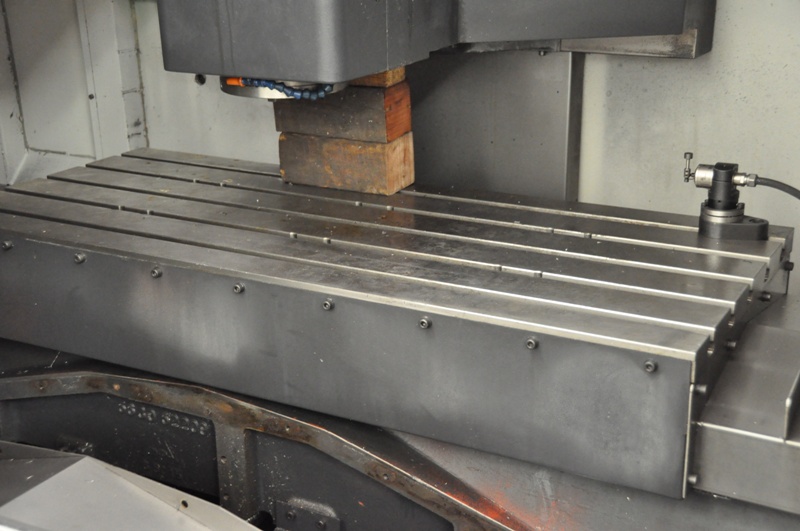

Table Size: 51.1" x 21.6" with (5) T-Slots
X-Axis Travel: 41.3"
Y-Axis Travel: 20"
Z-Axis Travel: 20"
Distance from Spindle Nose to Table Top: 5.9" to 25.9"
Distance from Center of Spindle to Front of Column: 22.6"
Distance from Bottom of Machine to Table Top: 33.4"
Table Load Capacity: 2,640 Lbs.
Spindle Taper: Cat 40
Spindle Speeds: 40 to 12,000 RPM
Cutting Feed Rate: .04 to 314.96 IPM
Rapid Feed Rate: 1417.32 IPM
Number of Tools in Changer: 30
Maximum Tool Diameter with Adjacent Tools: 3.15"
Maximum Tool Diameter without Adjacent Tools: 4.92"
Maximum Tool Weight: 18 Lbs.
Maximum Tool Length: 13.78"

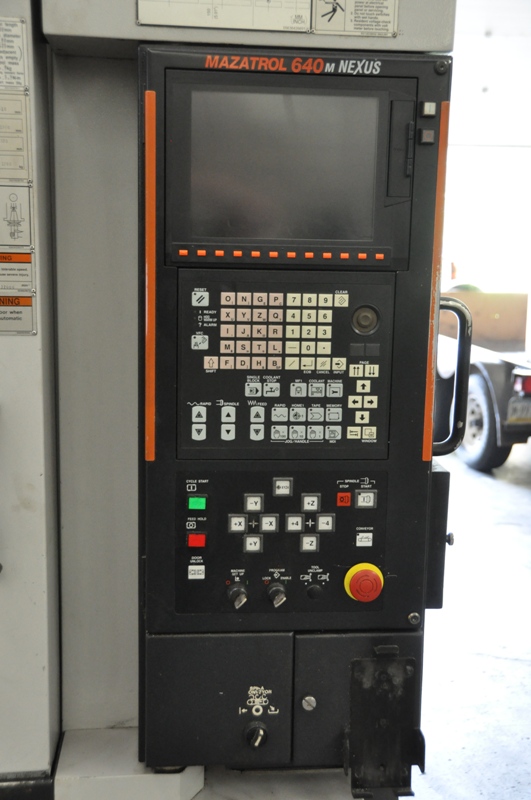

MAZATROL 640M NEXUS CONTROL:
Control Options:
EIA
Spiral
EIA 3D Comp.
Rotation
Geometric
Scaling
EXT-Data I/O
Shape Comp.
Thread
Inverse Time
Auto TLM (Tool Length Measurement)
Comparison Stop
G54.1
Sync. Tap
GOO Slope Construction
Variable 600 Sets
Navigation
EIA Helical Tap Cycle
Mazatrol Helical
Mazatrol CO-OR Shift
Mazatrol Planet Tap

EQUIPPED WITH:
VCN-510C Standard Option Package Cassette
Champion Mazatrol Cassette
PCMCIA Card (HR841) Not Installed in Machine (Packed in Static Bag)
Mouse and Keyboard Plug in Ports (No Mouse or Keyboard with Machine)
Hand Held MPG
Through Spindle Coolant
3.5" Floppy Drive
RS-232 Port
Interior Work Light
Jorgensen Chip Conveyor (Sits in Coolant Tank)
Coolant Tank
(3) Interior Chip Augers
Manuals
25 HP Main Motor
Wired for 3 Phase, 60 Cycle, 480 Volts

Overall Machine Size: 116" L-R x 114" F-B x 111" High x 15,200 Lbs.
Chip Conveyor Size: 160" x 65" x 65" H
