MAZAK ST-50 CNC TURNING CENTER.

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


Mazak Slant Turn 50NX-2000U
125859/1996
Lathes and Turning Centers CNC
Slant Bed Turning center
used
26000 (LB)
1996
$79,500.00

Description

MAZAK ST50N/2000U CNC TURNING CENTER

SPECIFICATIONS:

Model                                                 Mazak Slant Turn 50NX-2000U

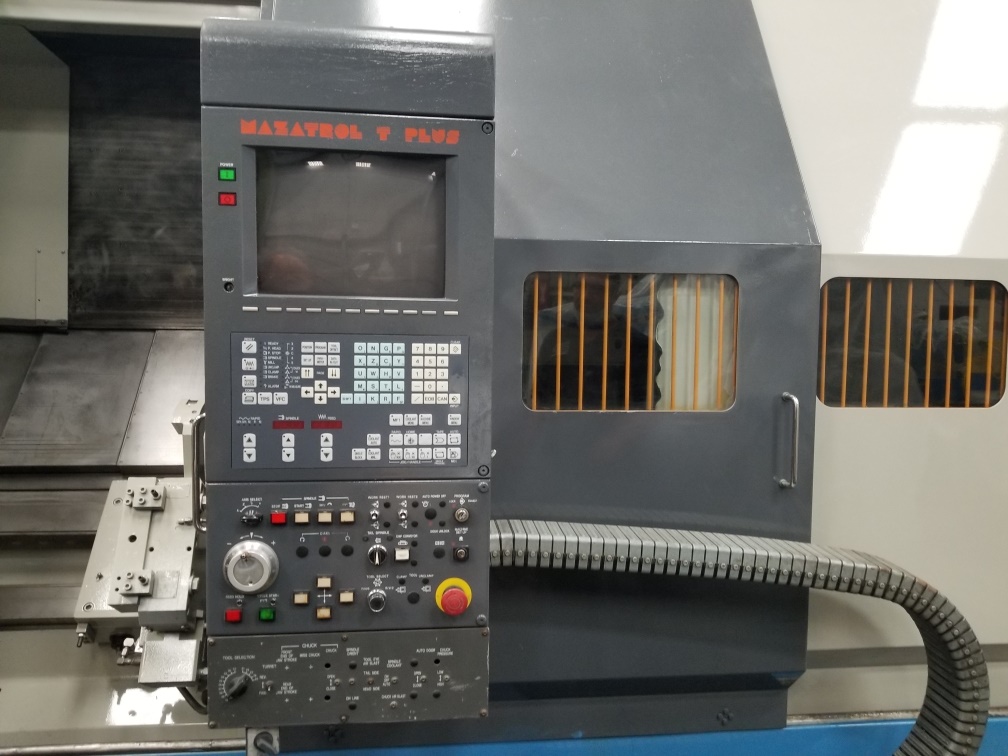

CNC Control                                      Mazatrol T-Plus

Serial number/YOM                           125859/1996

Max. Swing Over Bed                        31.69"

Max. Swing Over Carriage                22.05"

Chuck                                                 Noble 18 in 4-jaw, 7 in bore

Max. Cutting Diameter                      25.98"

Distance Between Centers                80 in

Tailstock Diameter Taper                  5.9"

Max. Cutting Load                             1763.68 lbs.

Spindle Speeds, 3 Ranges                   2-750 rpm

Spindle Bore                                       6.5 in

Spindle Drive Motor                          50 hp.

Travel X-Axis                                     22.64"

Travel Z-Axis                                     80"

Rapid Traverse X-Axis                      472.4 IPM

Rapid Traverse Z-Axis                      551.18 IPM

Coolant                                              Yes

Chip conveyor                                   Yes

Approx. Weight                                 26,000 lbs. apx.


Dimensions:  Main body:  8 ft 4 in W x 19 ft L x 9 ft H.   Chip conveyor:  22/42 in W x 16 ft L x 6 ft H.


Equipped with: Hydraulic Steady Rest 9.65 in capacity, Tailstock, Chip Conveyor.  Coolant, Way Lube, Hydraulic System.


Price:  $ 84,500.  FOB Houston, TX.  Subject to prior sale.


Mazak Slant Turn 50 CNC oil country lathe
