MAZAK SLANT TURN 450 CNC LATHE
Slant Turn 450
148280
Lathes and Turning Centers CNC
Slant Bed Turning center
used
21800 (LB)
0
$164,500.00

Description

Specifications:

Model                                               Mazak 450

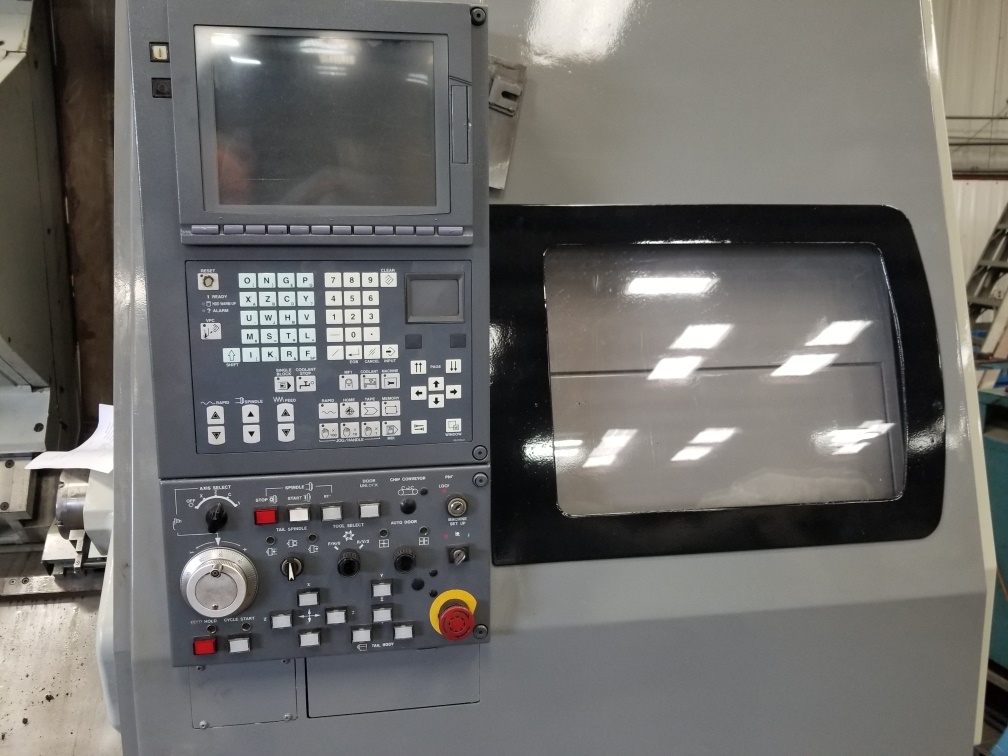

CNC control                                     Mazatrol Fusion 640T
Year of manufacture                        2004
Serial number                                  148280
Swing                                              28.125"
Turning Diameter                            24.4"
Center Distance                               44"

Chuck Size                             Front and Rear SMW BB-N-460-175-3
                                             Extended Stroke chucks

Bar Capacity                                   6.5"
X Axis Travel                                  14.375"
Z Axis Travel                                  48"
Spindle Nose                                   A2-15
Spindle Speed                                 1,500 rpm
Main Motor                                    40 hp
Tailstock                                          Yes
Chip Conveyor                                 Yes
Coolant                                             Yes
Turret Capacity                                12
Tooling                                              Some
Manuals                                            Yes

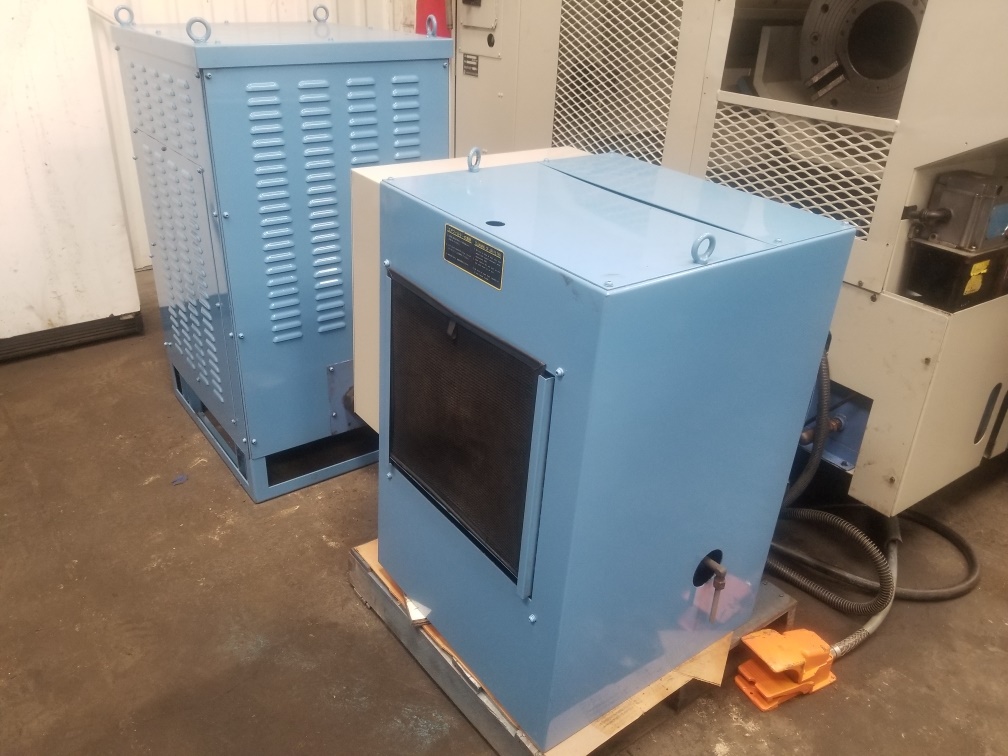

Transformer                                      Yes
Chiller                                                Yes
Machine Dimensions                        168" x 85" x 100"
Machine Weight                               21,800 pounds

Sale Price: $ 164,500. FOB Houston, TX.

Condition:  Good.

EQUIPPED WITH:
The MAZAK Slant Turn 450 is a two (2) axis, heavy duty CNC lathe developed for Heavy Cutting, High Precision metal removal in the medium piece part production range.  Engineered for optimum rigidity  with heavy duty precision ground and hardened boxed ways, the Slant Turn 450 offers constant horsepower and spindle torque over 3 speed ranges.  The Slant Turn 450 is responsive to the production needs of todays rapidly changing manufacturing environment and is constructed with a 45 degree slant bed. It was offered as a chucking lathe, without a tailstock, as well as with 40", 60", or 80" centers.  It was also offered with spindle bore sizes of 4.09", 7.1", and 10.2" in order to cater toward a variety of different types of turning work.

The Slant Turn 450 is a model that effectively replaced the Slant turn 40N that had been produced years prior.  The Slant 450 offers larger maximum swing and cut diameter than its predecessor.  The Mazak Slant Turn 450 is comparable in size to both the Mori Seiki SL65 series of lathes as well as somewhat of a cross over between both the Doosan Puma 400 and Puma 500 series of lathes.
