MAZAK QUICK TURN 28N UNIVERSAL LATHE

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


Quick Turn 28N Universal
109529/1994
Lathes and Turning Centers CNC
Slant Bed Turning center
used
12100 (LB)
1994
$29,500.00

Description

Specifications:

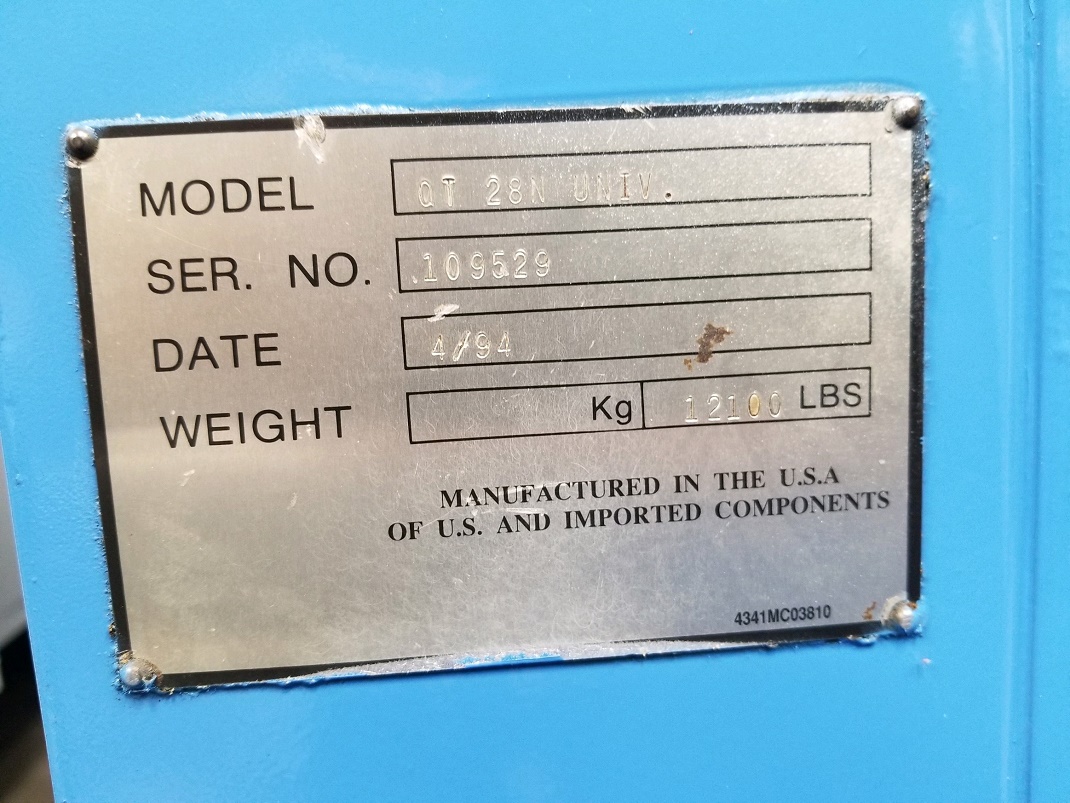

Model                                                         Quick Turn 28N Universal

Serial number/YOM                                   109529/1994

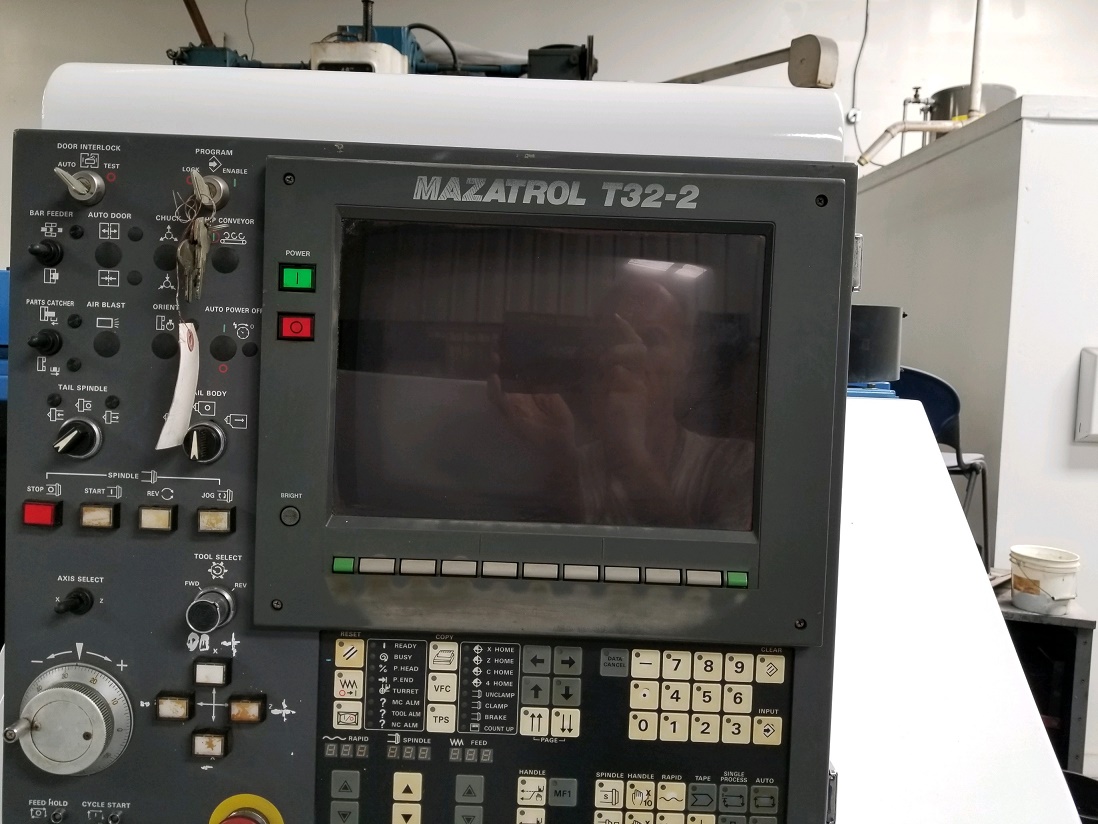

CNC control                                               Mazatrol T-32 2

Tool pre-setter                                           Yes

Max. swing                                                 20.08 in
Max. machining diameter                          12.6 in
Center distance                                         39 in
Tailstock                                                    Yes

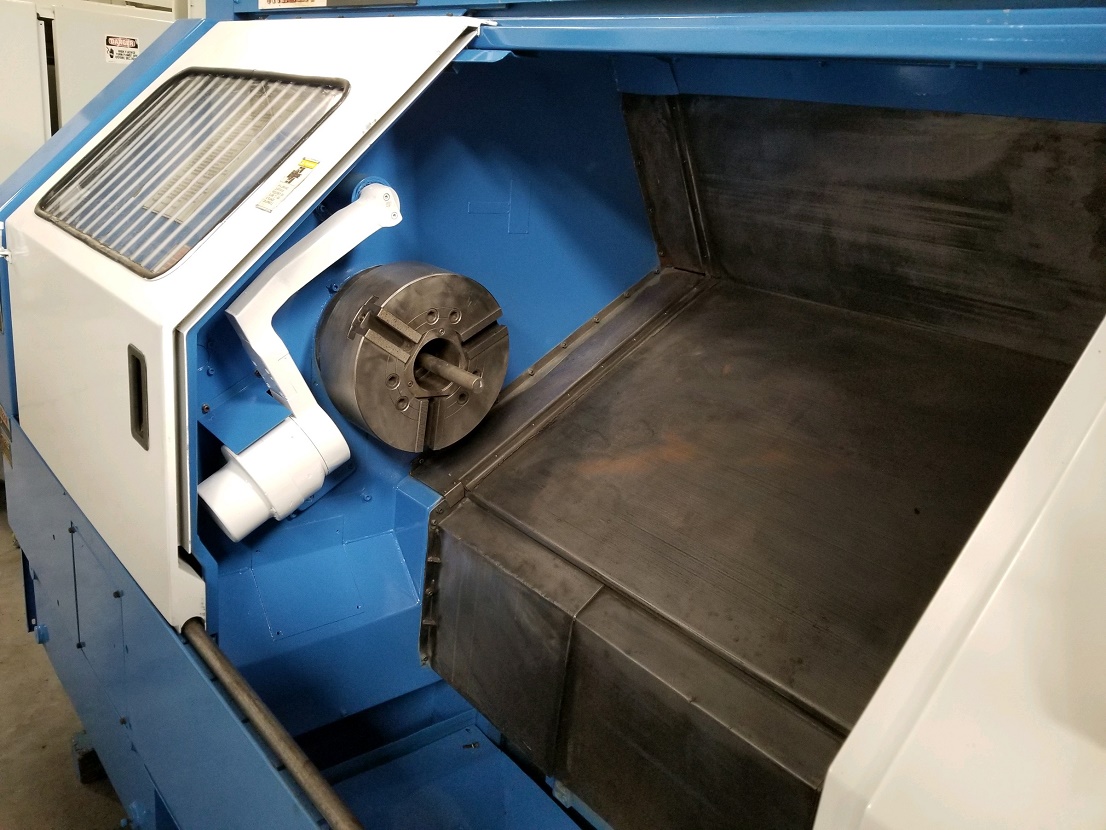

Chuck diameter                                        12 in 3-jaw Kitagawa B-312
Spindle nose                                             A-2-8
Spindle bore                                              3.15 in
Max. bar diameter                                     2.75 in
Stroke, X & Z                                            7.87 in & 40 in
Traverse rate, rapid X & Z                        707 & 945 IPM
Spindle speed                                          50-3,000 rpm.

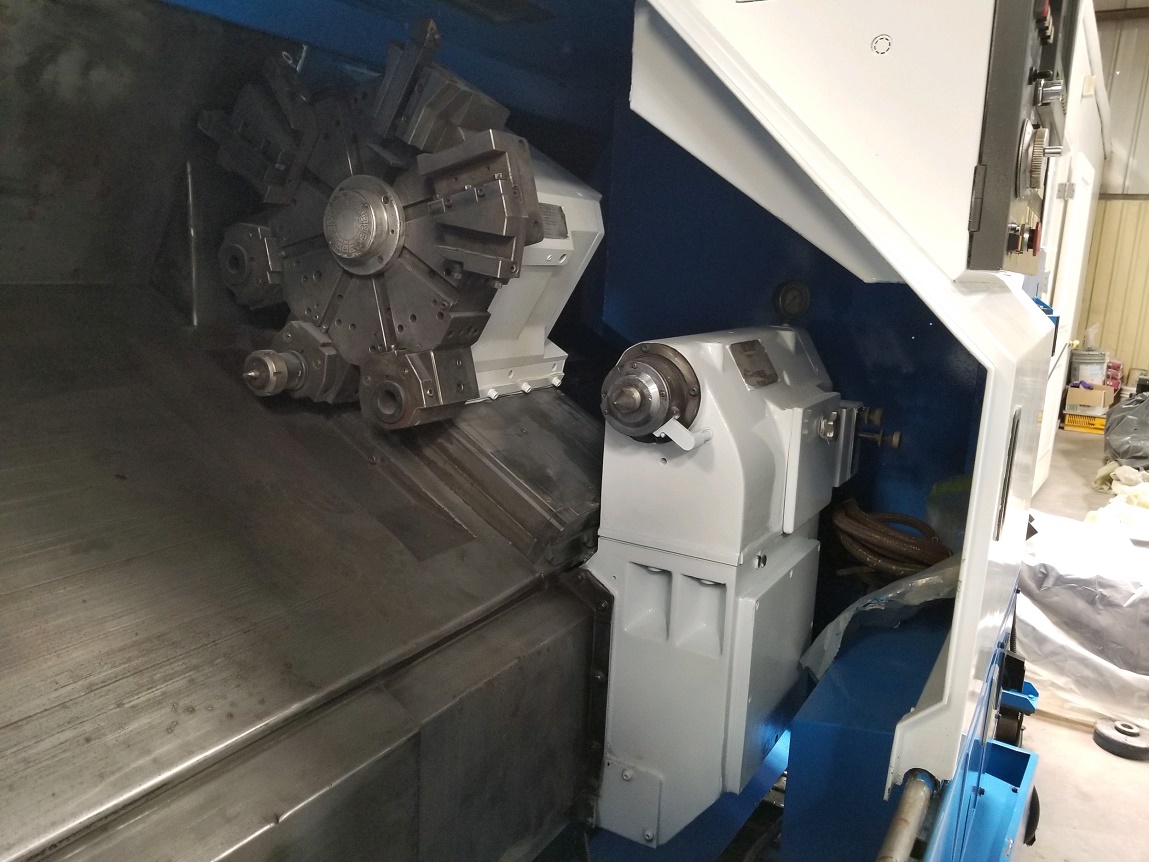

Turret stations                                         16 stations
Turning tool shank                                   1 in
Boring bar diameter                                 1.5 in
Main motor                                               30 hp./ 26 hp.

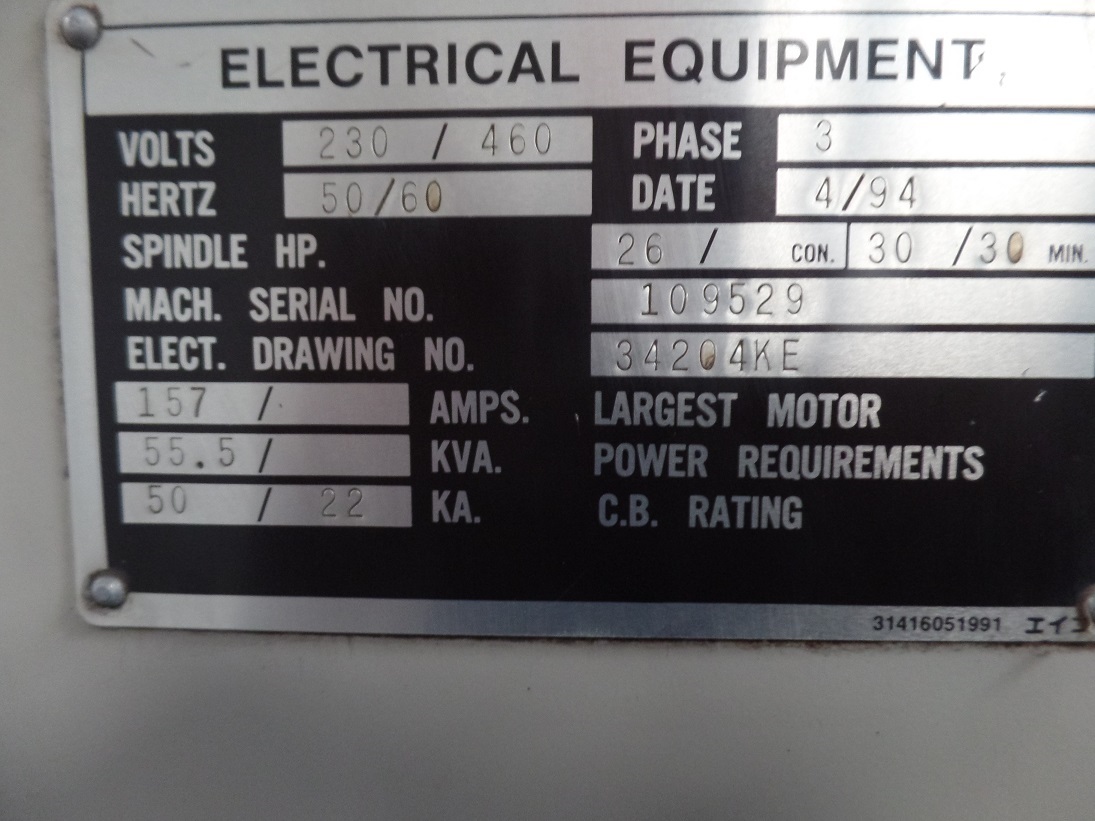

Electrics                                                   230/3/60
Max. electric draw                                   48 kVA/36 kVA
Chip conveyor                                         Yes
Dimensions, lathe                                   144 in W x 75 in L x 80 in H
Dimensions, chip conveyor                    134 in W x 37 in L x 57 in H
Machine weight                                       12,100 lbs.



Price: $ 29,500. FOB Houston, TX.
