Specification Description
Chuck Size 15" 3-Jaw
Swing Over Bed 20.3"
Standard Cutting Diameter 12.2"
Maximum Cutting Length 39.37"
Spindle Nose A2-11
Spindle Bore 4.13"
Spindle Speed 2,000 RPM
Rapid Traverse X / Y 591 / 797 IPM
Turret Positions 8D / 16 Positions
Spindle Motor 28 HP
Electrical Requirements 230/460V/3Phz/50-60HZ
Machine Dimensions 102" x 75" x 80"H
Machine Weight 12,100 lbs
Equipped With:

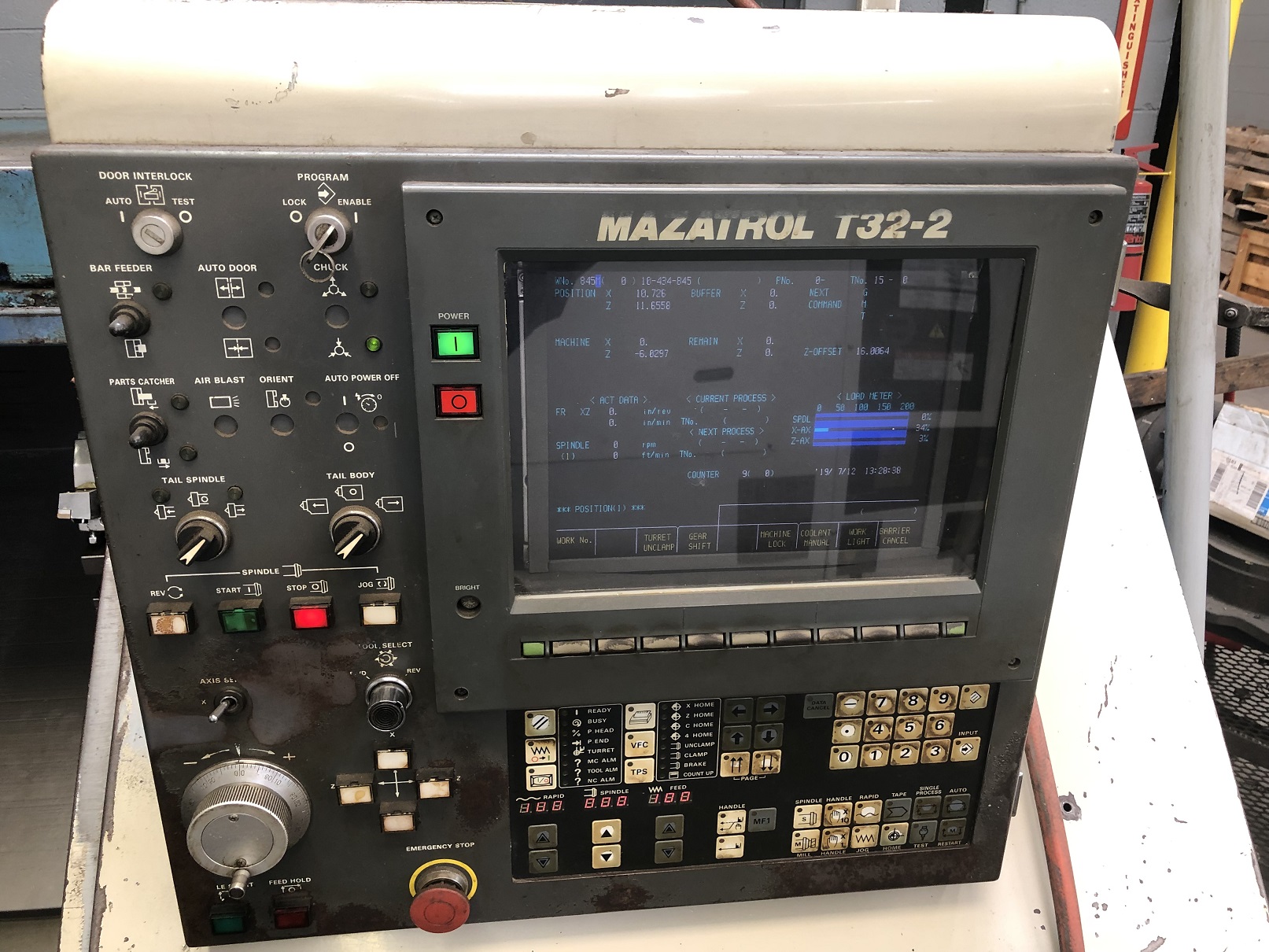

* Mazatrol T-32-2 Conversational Control * 15" SMW Front Load 3-Jaw Air Chuck * Big Bore Option * Chucker * All Available Tool Holders and Manuals
Stock Number: 4299
Condition: As Is, Where Is

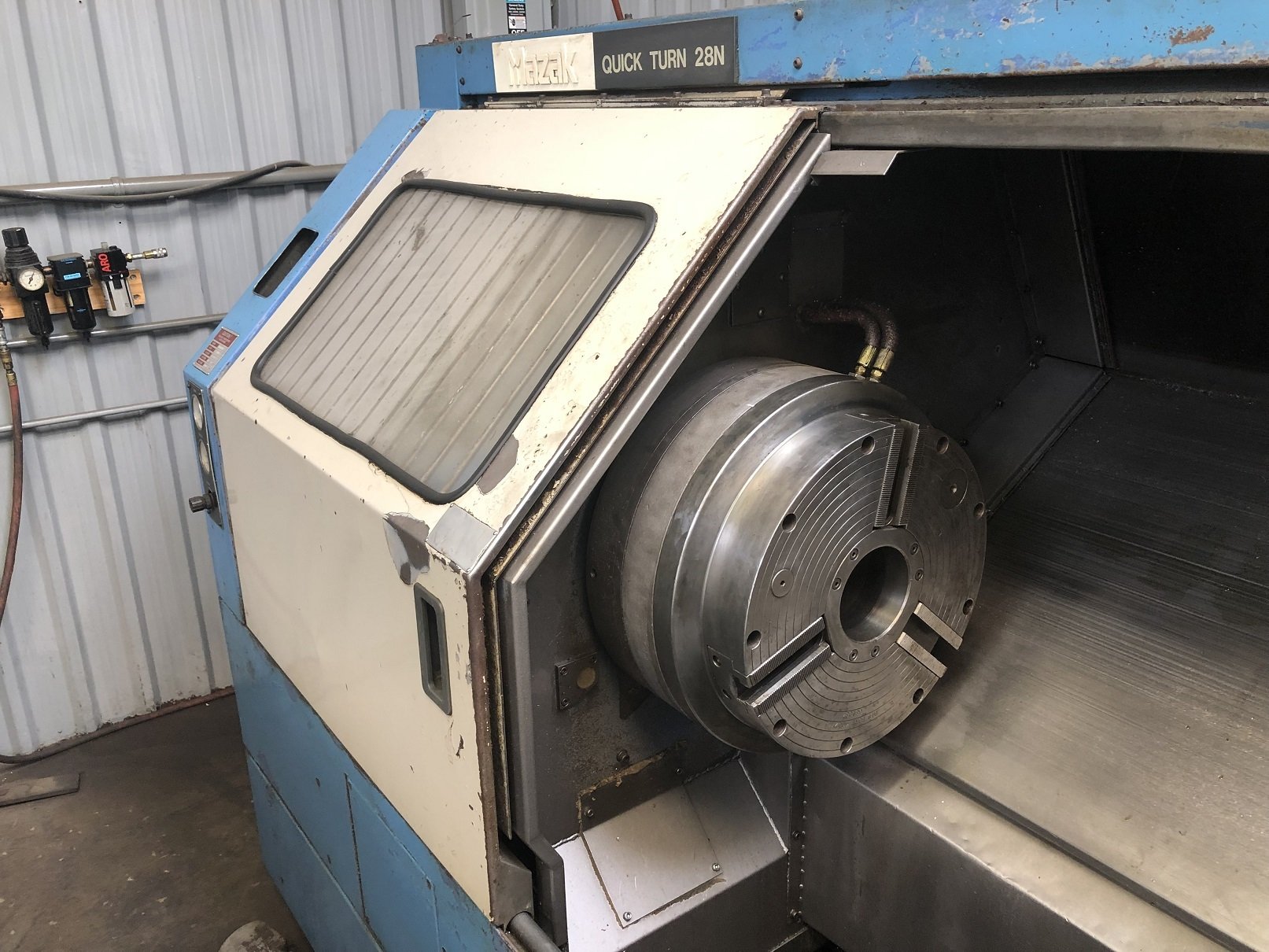

To view more information on the MAZAK QT 28N BIG BORE CNC LATHE, including reviews, brand information, photos, videos, and more,
