Description

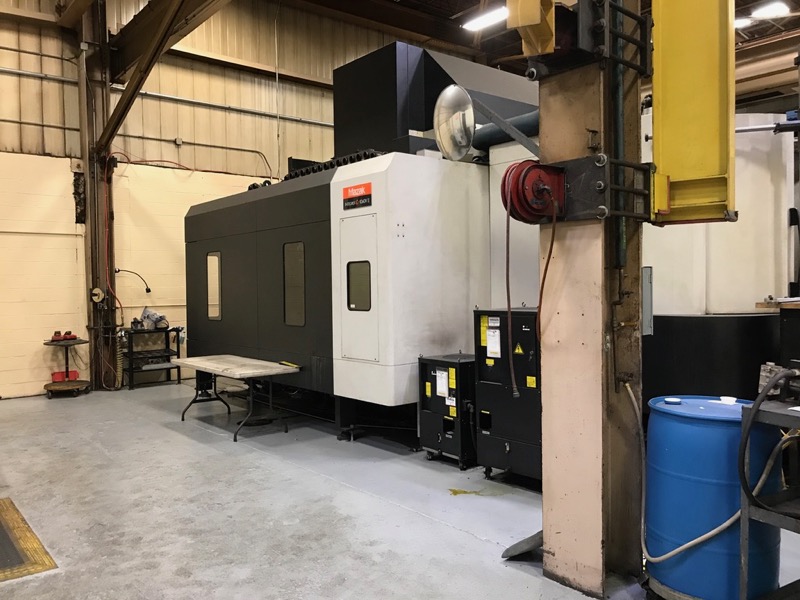

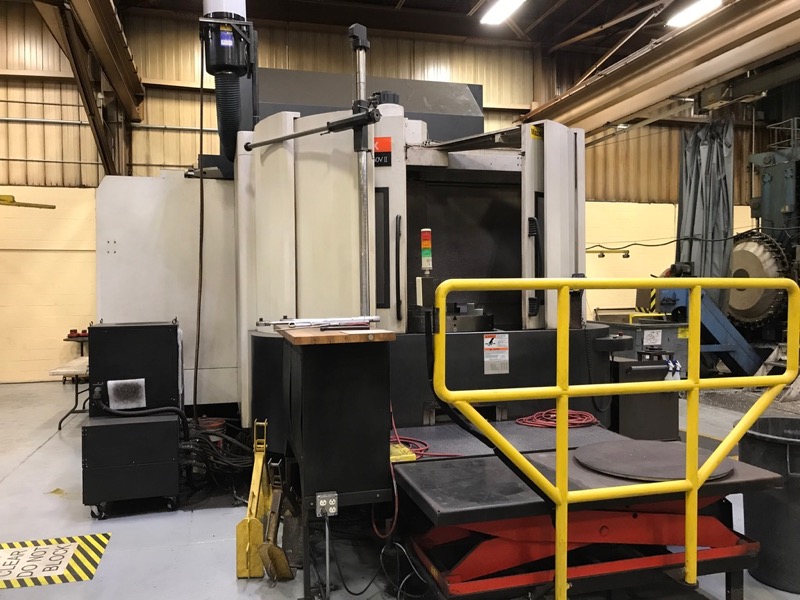

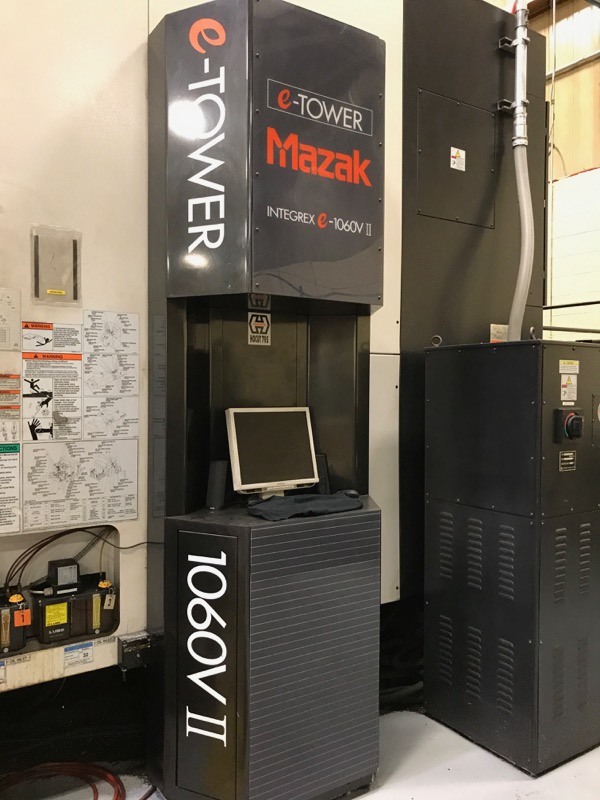

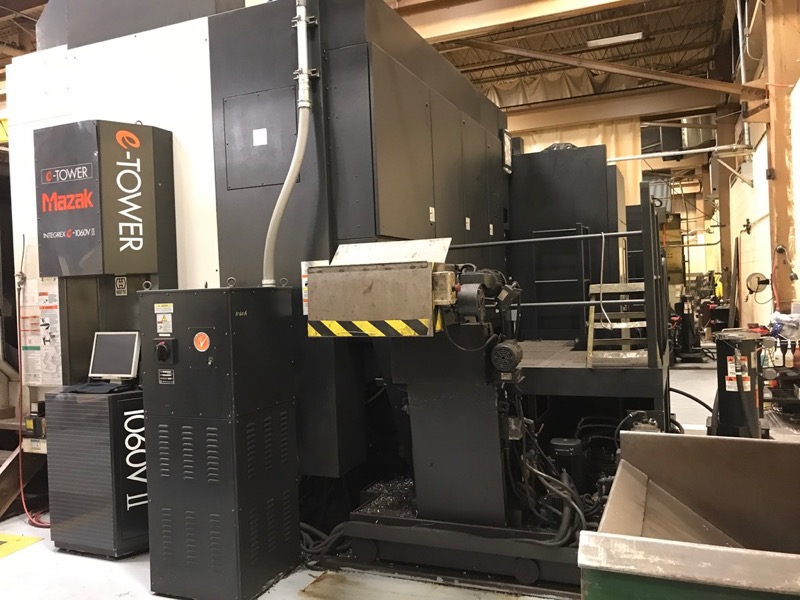

Pre-owned Mazak Integrex

Model: e1060 V 5-Axis

Year of Manufacture: 2008

Location: Maine

Condition: Very Good, Installed 2010

SPECIFICATIONS

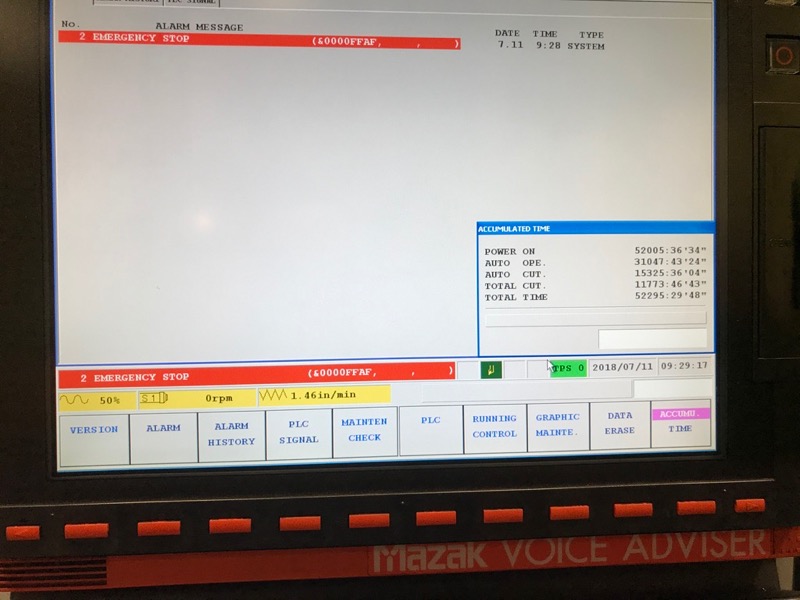

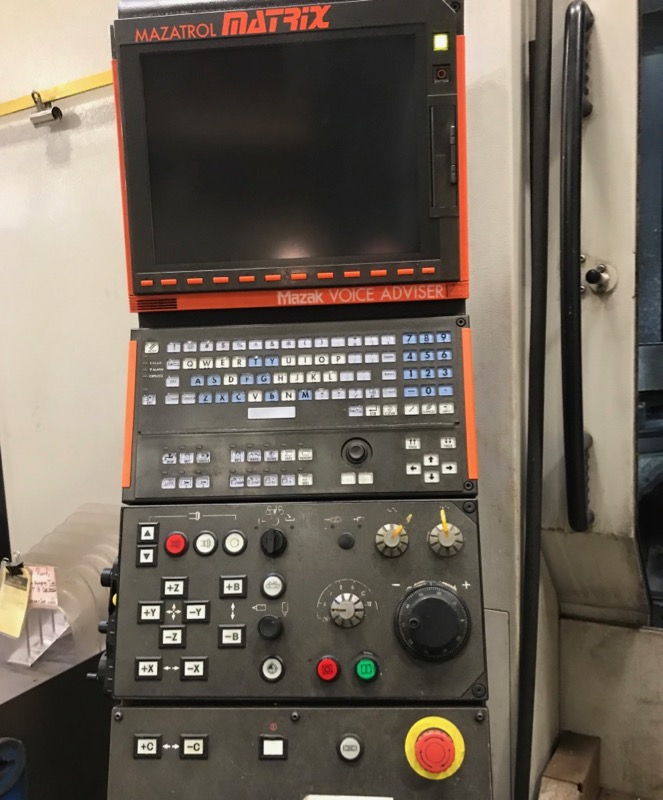

Control: Mazatrol Matrix (2 64-Bit Risc Processors)

X-Axis Travel: 73.82 inch

Y-Axis Travel: 41.73 inch

Z-Axis Travel: 52.95 inch

B-Axis Range: -30 to +120 DEG

C-Axis Index: .0001 DEG

Max Workpiece Height & Diameter: 49.21 inch x 49.21 inch

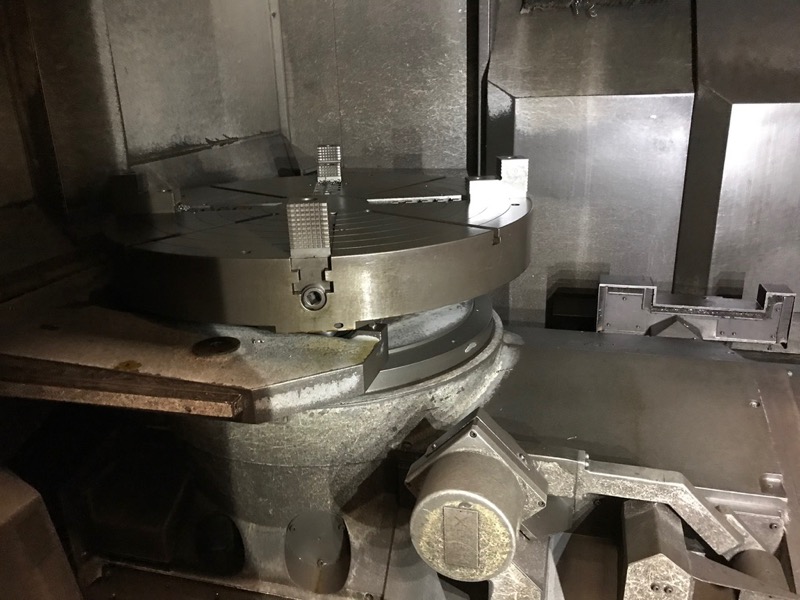

Chucks/Tables, Number of: 2
Chucks/Tables Size: 39.4 inch Diameter
Chucks/Tables Speed: 500 RPM
Spindle Taper: Big+ CAT 50
Spindle Motor: 50 HP
Spindle Speed: 5,000 RPM

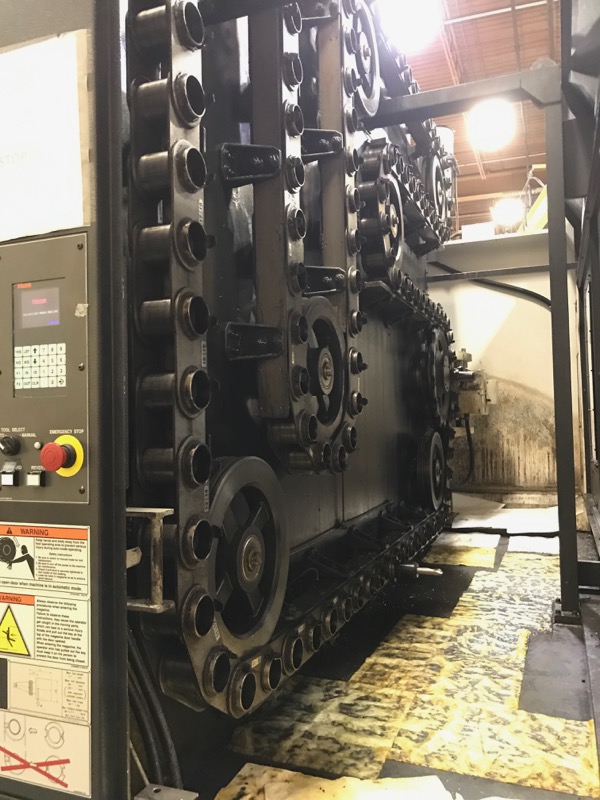

Tool Changer: 120 ATC
Machine Weight: 84,000 LBS

-EQUIPPED WITH-
Chip Conveyor Concept 2000
Laser Tool Measurement NC-4 (For Rotary Tools Only)
Supeflow 1,000 PSI Coolant Stage I
Work Measuring System OMP-60 Spindle
Automatic Tool Eye For Turning Tools
Prep Without High Pressure Coolant
Air Blast For NC-4 Laser Tool Measuring System
Ethernet Operation
Work Setting Error Compensation
Palletech Prep W/O Cell Controller
Absolute Positioning System Linear Axes
EIA / ISO G-Code Input
Additional EIA / ISO G-Code Input
8MB Program Slot and Drive Board
EIA / ISO 5-Axis Simultaneous Input
EIA / ISO Tool Tip Control 5-Axis
EIA / ISO Tool Radius Control Compensation
Through The Spindle Coolant
3 USB inputs
Preparation For Optical Part Probe
High Speed Software for Automatic Feedrate Control
(Acceleration and Deceleration Software)
5-Axes Simultaneous Software Input Function
Thermal Control System (Chillers) For Ball Screws and Motors
B-Axis With Roller Cam Design (NO BACKLASH)
2-Pallet Changer
Rapid Movement All Axes 1,575 (I.P.M.) Excludes B&C-Axis
Maximum Cutting Feedrate 1,575 (I.P.M.) Excludes B&C-Axis
Flood Coolant& Niagara Coolant (Shower)
Coolant Fed Ball Screws
Price: $389,500.00
To the best of our knowledge, the specifications contained herein are accurate but should be verified at time of inspection. If you have any further questions please call me at (207) 784-1999.
