Type: 5-Axis or More CNC Lathes
Manufacturer: MAZAK

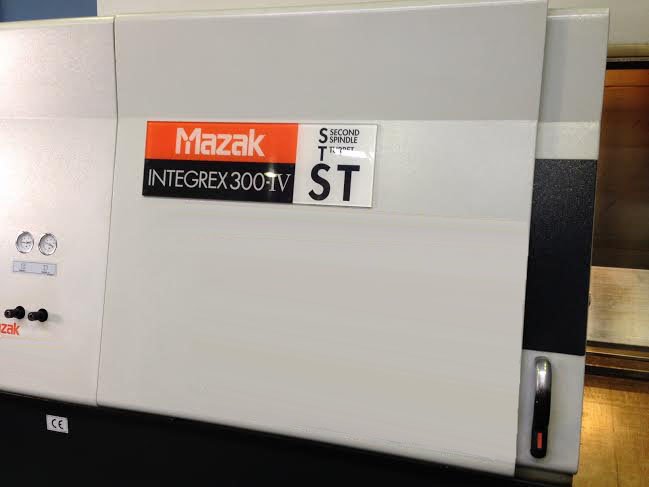

Model: INTEGREX 300 IV ST
Condition: Used - Good
Year: 2006
Stock #: 1204
Status:For Sale

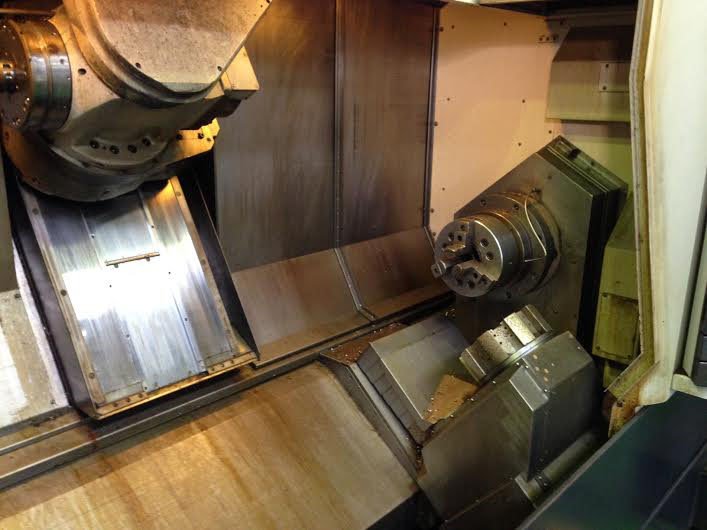

Well-optioned Mazak Integrex Series IV 300 ST with second spindle, lower turret, 40 ATC, 60 in center distance, chip conveyor and Mazak Matrix control
# Axis5Swing 30"
Machining Length 60"
Chuck Size 10"
Bar Capacity 3"
Power 40 hpMax
RPM 4,000 RPM
Turning Dia 30"
Tailstock No
Control CNC (Mazak Matrix)Weight30,000
Standard Chuck Dia. Main Spindle (L) 10 in
Standard Chuck Dia. Second Spindle (R).. 10 in
Maximum Swing 33.5 in
Maximum Swing using Y-Axis 26 in-33.5 in
Maximum Swing over Cross Slide 33.5 in
Maximum Swing over Lower Turret 16.5 in
NOTE: Without boring bar holder on turret.
Maximum Cutting Diameter: Chucking 30 in (Upper)
Maximum Cutting Diameter: Chucking 16.5 in (Lower)
Maximum Cutting Length 60 in
Maximum Distance Between Chuck Faces 60 in
MAIN SPINDLE SPECIFICATIONS (L):
Spindle Nose A2-8
Spindle Bore 3.46 in
Maximum Bar Work 3.0 in Dia.
Spindle Speed 4,000 RPM
Spindle Index (Programmable) 0.0001 Deg.
Spindle Horsepower (Cont./30 Mins.) 30/40 HP (AC)
Spindle Torque 534 ft-lbs.
SECOND SPINDLE SPECIFICATIONS (R:
Spindle Nose A2-8
Spindle Bore 3.46 in
Maximum Bar Work (Non-thru) 3.0 in Dia.
Spindle Speed 4,000 RPM
Spindle Index (Programmable) 0.001 Deg.
Spindle Horsepower (Cont./30 Min.) 30/35 HP (AC)
Spindle Torque 368.8 ft-lbs.
UPPER TURRET AND TOOLING SPECIFICATIONS:
Magazine Capacity 40 Tools
Maximum Tool Weight 22 lbs.
ATC Tool Shank Mazak KM63
Rotary Tool Spindle Speed 12,000 RPM
Rotary Tool Spindle Horsepower (20%ED) 25 HP (AC)
Rotary Tool Torque (20%ED) 88.5 ft-lbs.
LOWER TURRET AND TOOLING SPECIFICATIONS:
Type of Turret Drum
AXIS TRAVELS:
B-Axis 225 degrees
Y-Axis +/- 4.53 in
X-Axis 24.8 in
Z-Axis . 62.41 in
X2 Axis Lower 9.06 in
Z2 Axis Lower 60.24 in
Second Headstock W-Axis 60.24 in
GENERAL SPECIFICATIONS:
Floor Space (WxL) 201.2 in x 97.6 in
Machine Height 114.6 in
Total Power Required (Machine Only) 90.7 KVA
Air Requirements 72.5 PSI/24.7 CFM
Machine Weight 29,980 lbs.
