Stock Number: 87315
Swing Over Bed: 24 in
Swing Over Carriage: 17.71 in
Max. Machining Length: 40 in
X-Axis Travel: 22.83 in
Z-Axis Travel: 43.19 in
Y-Axis Travel: 9.06 in (+/-4.53)
Rotary Tool Spindle: 20 HP
Rotary Tool Spindle Speed Range: 15-10,000 RPM
Hole Thru Spindle: 3.46 in
Bar Capacity: 3.03 in
Main Spindle HP: 35 HP
Main Spindle Speed: 35-3,500 RPM
Sub-Spindle HP: 30 HP
Sub-Spindle Speed Range: 35- 3,500 RPM
Equipped With:

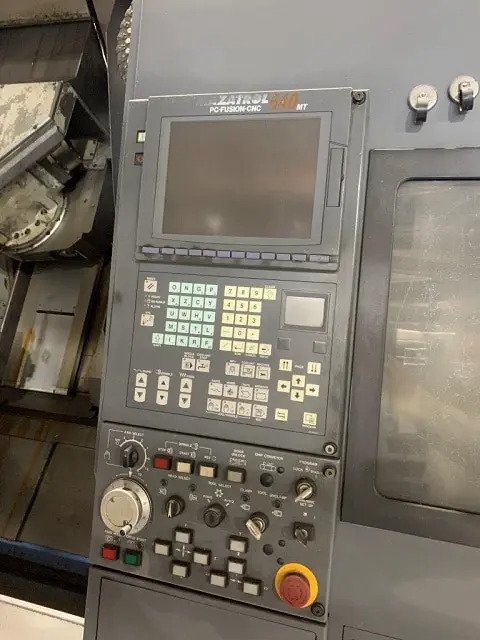

Mazatrol Fusion 640MT Control

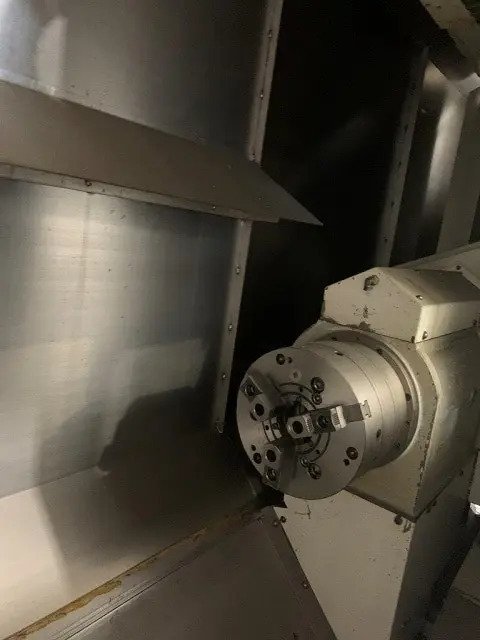

10 in 3-Jaw Chuck
Chip Conveyor
Weight, Approximately: 26,600 Lbs.
Overall Dimensions, Approximately: 229 in L-R x 96 in F-B x 106 in H
