Machine structure: Flying optics
Maximum workpiece dimensions: 60.030 in x 120.078 in
Maximum workpiece weight: 2,050 lbs.

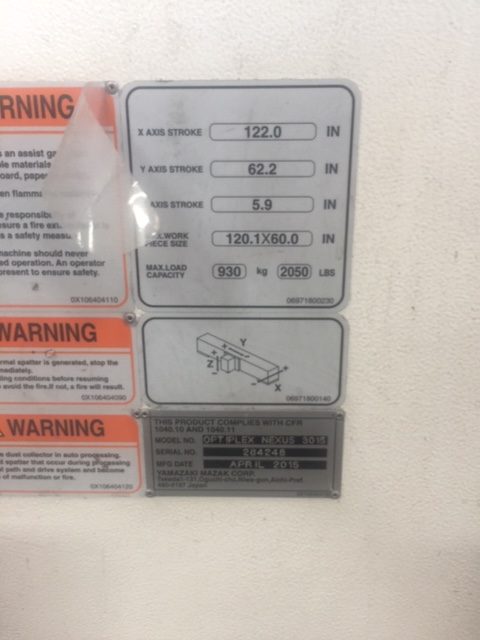

Machine travels
X-axis: 122.5 in
Y-axis: 62.20 in
Z-axis: 4.33 in
Work table height: 35.43 in
Maximum material thickness (2500 watt Panasonic CO2 resonator)
Mild steel: .750 in
Stainless steel: 0.375 in
Aluminum: 0.125 in
Motion drive system design
X, Y Axis: Rack and Pinion drive
Z Axis: Ball screw drive
Number of control axes: 3
Rapid travel speed
X, Y Axis: 4,724 Inches per minute
Positioning accuracy:
X,Y Axis: 0.0002 inch/19.68 inch
Z Axis: 0.0004 inch/3.94 inch
Repeatable Accuracy
X, Y Axis: 0.0012 in
Maximum processing feedrate
X, Y axis: 2,362 IPM
Total electrical requirement: 55 kVA
Installation dimensions (W x D): 394 inches x 240 inches
Machine unit dimensions: 334.21 inches x 137.2 inches x 79.13 inches
Machine unit weight: 33,069 lbs.
CNC type: MAZATROL Preview 2
CPU: 64 bit
Display screen: 15 in Color LCD
Memory capacity: 16 GB (Program memory capacity: 1 GB)
Position detection system: Encoder
Minimum command unit: 0.0001 in
Program input system: EIA/ISO
