MATSUURA MC 1000 V5, 5 AXIS VERTICAL MACHINING CENTER

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


MC 1000 V5
86015120
Machining Centers Vertical Horizontal CNC
Vertical Machining Centers
used
19500 (LB)
1985
$0.00

Feature Video

Description

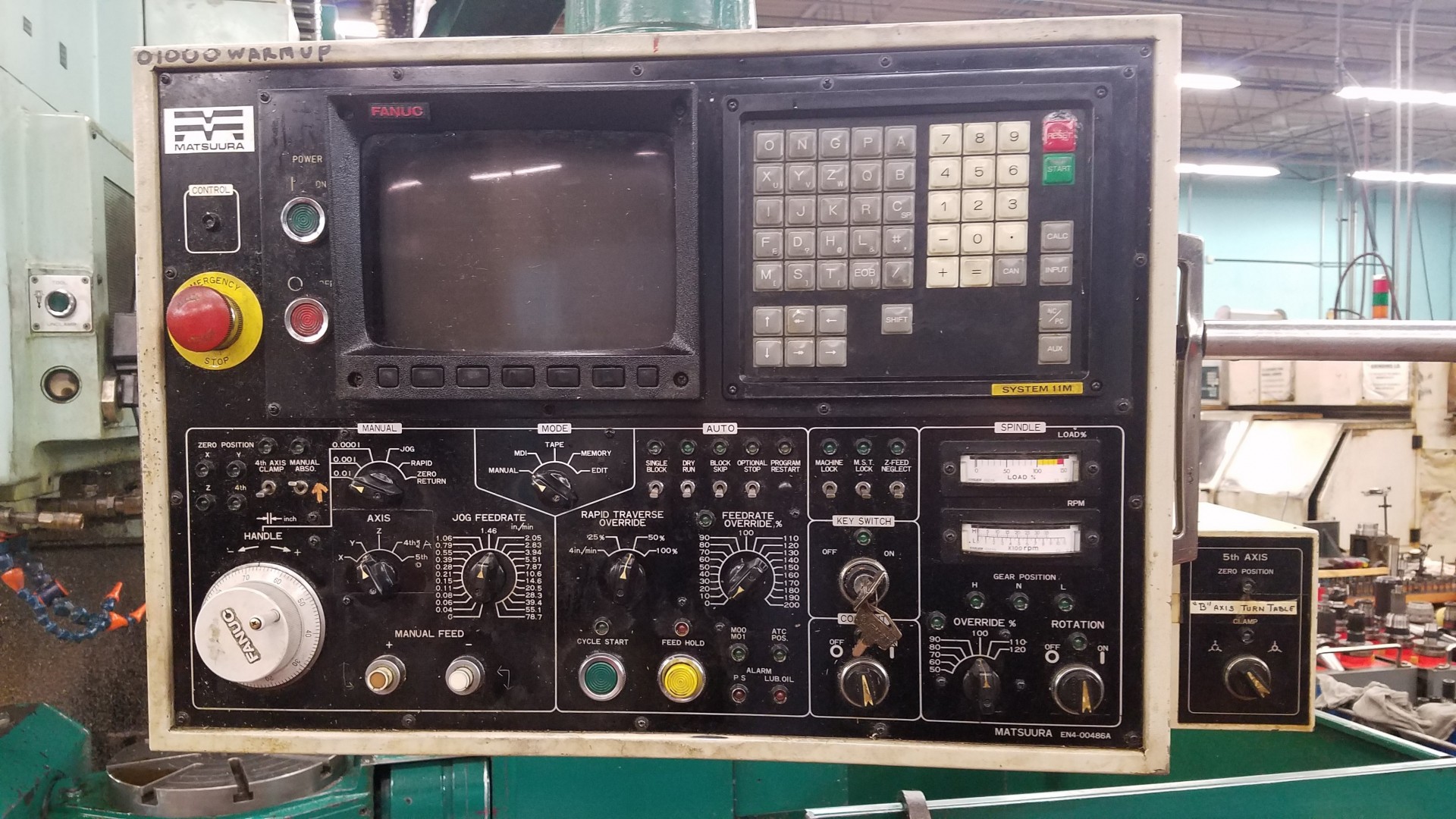

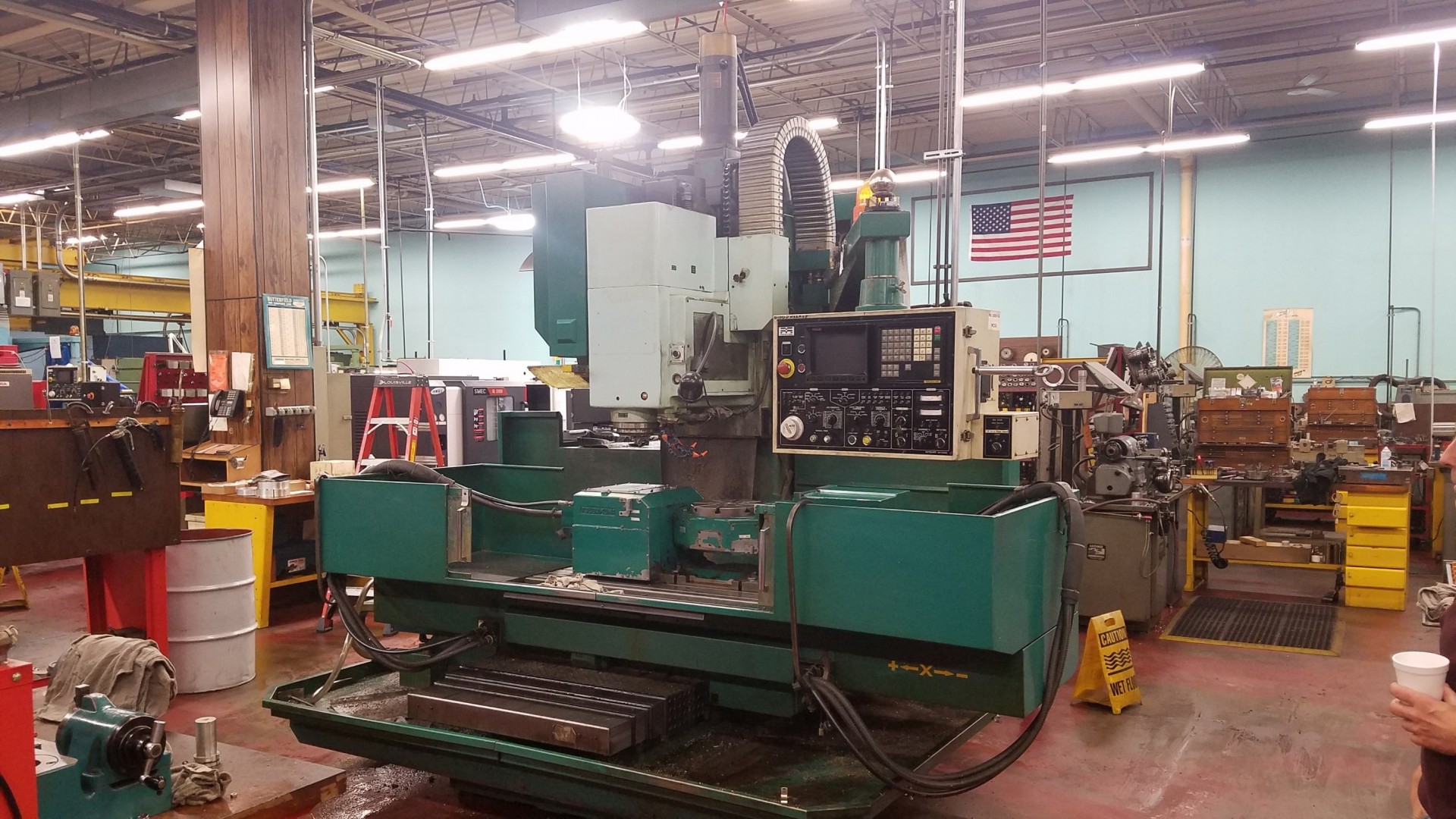

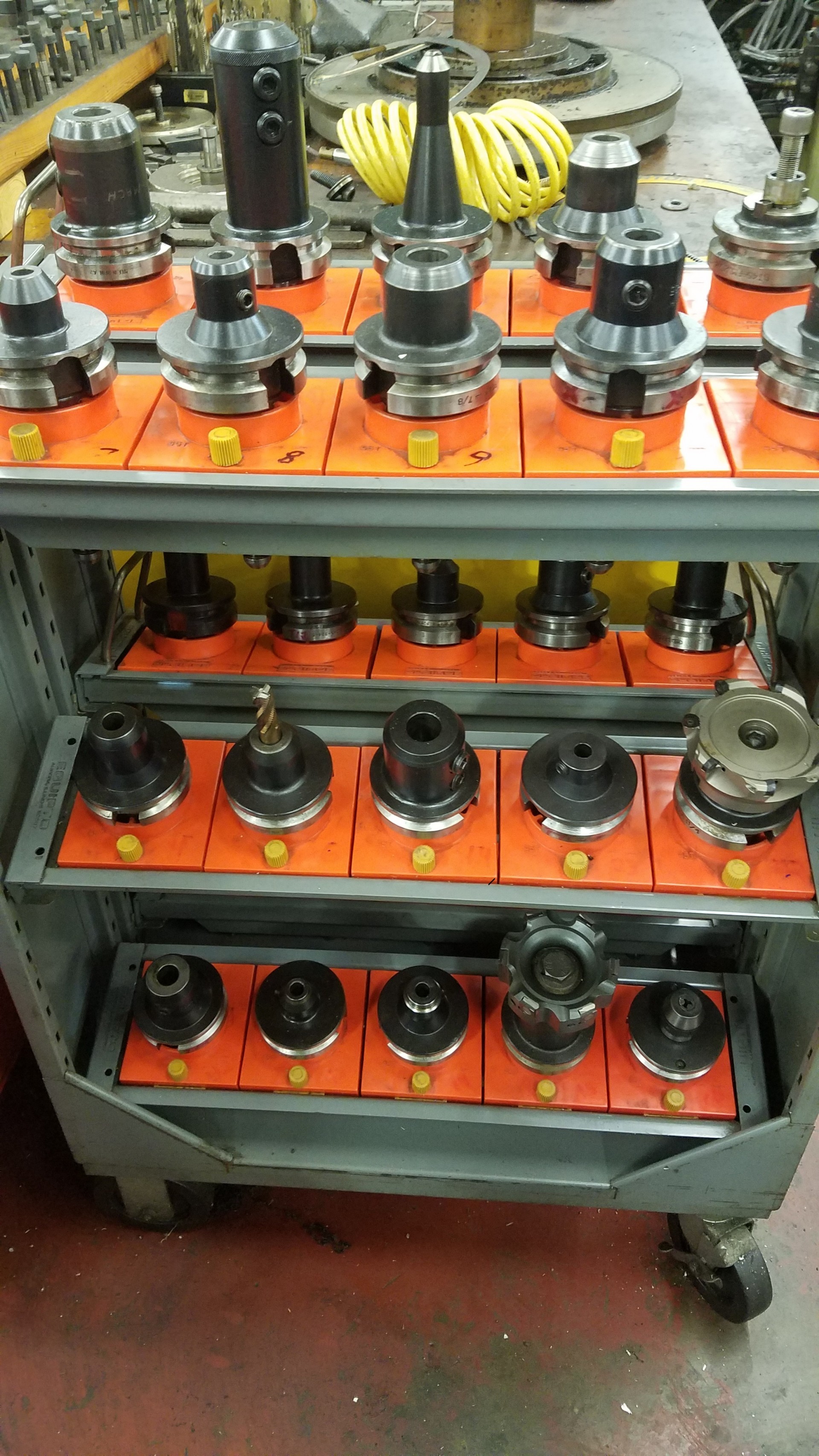

Matsuura MC 1000 V5, 5 Axis Vertical Machining Center. Very well maintained from Aerospace supplier, holds +/- .001", 35 ATC, Tsudakoma 12" Trunnion 2 axis rotary table, Scales on "X", "Y" & "Z". Extended Column, Machine built in Japan by Matsuura, Spindle Oil Chiller, Fanuc 11M control, Table splash guards, Coolant System, Parameters, Box Ways, 100 tools, Tightening fixture, touch probe and all manuals.

Stock Number:

3845

Model:
MC 1000 V5
Serial No.:
86015120
Machine Age:
1985
Condition:
Excellent
New-Used:
Used
Specifications:
Table size:
55" 20"
Travel "X":
40"
Travel "Y":
20"
Travel "Z":
22", extended Column
Spindle taper:
BT 45
Spindle Speeds:
3,200 RPM
Spindle Power:
20/25 HP
Spindle Gears:
2
Tool changer capacity:
35
ATC time:
4.5 secs.
Ways:
BOX
Rapid feed rate:
472 IPM
Control:
Fanuc 11M
No. of Axis:
5
Tsudakoma Table model:
RNCM 301
Rotary table Diameter:
12"
Tilt forward:
2 degrees past 90
Tilt backwards:
4 degrees past 90
Approx. dimensions:
10 x 10 x 114" H w/o motor
Weight:
19,500 lbs.
