MAKINO U6 WIRE EDM

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images


U6
Electrical Discharge Machining EDM
Wire Cut EDM
used
11464 (LB)
2019
$0.00

Description

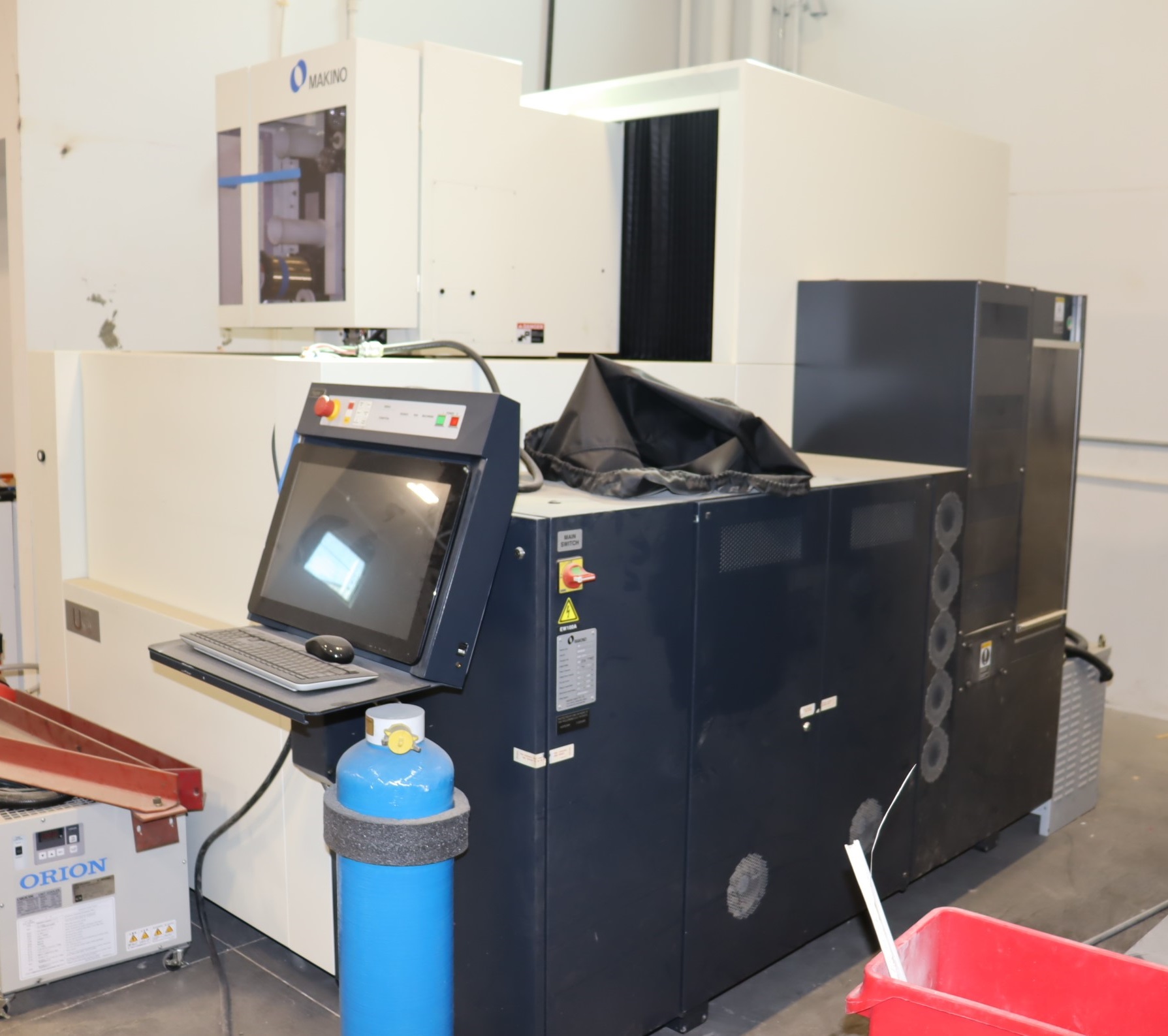

Makino U6 Wire EDM
Stock Number: 0828
Makino U6
Age: 2019
Condition: As Is, Where Is
The Makino U6 Wire EDM machine features the Hyper i control, which provides the same efficient and user-friendly interface for Wire and RAM EDM machines. The large 24" class HD touch-screen display provides a commanding view for the operator, and utilizes intuitive and familiar touch Pinch/Swipe/Drag operations similar to smartphones and tablets. Straightforward machine operation is accomplished on the Hyper i control with a 3-Step process of Program/Setup/Run flow, and there are many helpful intelligent tools and functions for the operator that provide greater convenience and flexibility, such as the standard full-function advanced Handbox. Digital onboard electronic manuals, instructional training videos, and advanced E-Tech Doctor help functions provide the operator with practical resources at their fingertips to remain highly productive.


Request A Quote On Our Stock Number: 0828 Makino U6 Wire EDMRequest a quote on stock# 0828
Specification                                                                            Description
X,Y,Z Travels                                                                      25.6" x 17.7" x 16.5"
U/V Travels                                   Plus/minus 3.0"/Plus/minus 3.0"
Tank Size                                                                                 42.12" x 34.64"
Inside Tank Dimensions                                                           35.8" x 28"
Table Type                                                                             3 Sided
Wire Spool Size                                                                               22 lbs
Wire Sizes                                                                                  .004" - .012"
Maximum Work Piece Weight                                                    3,307 lbs
Maximum Work Piece Size                                                 39.4" x 31.5" x 15.8" Tall
Approx. Machine Dimensions                                                115" x 91" x 93"
Approx. Machine Weight                                                           11,464 lbs

Equipped With:
* Makino EW100A Hyper i Control * Large HD Touch Screen * EDM Explorer * Ethernet Network Connection * Antivirus Function * Pro Tech (Anti Rust Function) * USB Terminal * PICO Precision Round Guide System * Fine Hole Automatic Wire Threading Unit * AWT Jet Needle Type 10 (0.08" Dia.) * Taper Machining Unit * Progammable Z-Axis * Automatic Wire Threading Unit * AWT Thermal Cutter * AWT Jet Nozzle (PICO 1.2) * AWT Jet Filter Unit * Special Hardening U-Shape Table * 0.05 Micron Scale Feedback (X Y-Axis) * Automatic Tank Height Setting Function * Dielectric Fluid Cooling Unit * Two Filters Unit * Dielectric Filter Air Purge * Washdown Hose Kit * Resin Tank System * Export Transformer * 10 GM Part Program Storage * Power Supply Line Filter * Automatic Power Failure Recovery * Portable Operation Panel FPB2 * Wire Box * All Available Disks and Manuals
