Description

Makino U3 Wire EDM

Stock Number: 0815

Makino U3

Age: 2013

Condition: As Is, Where Is

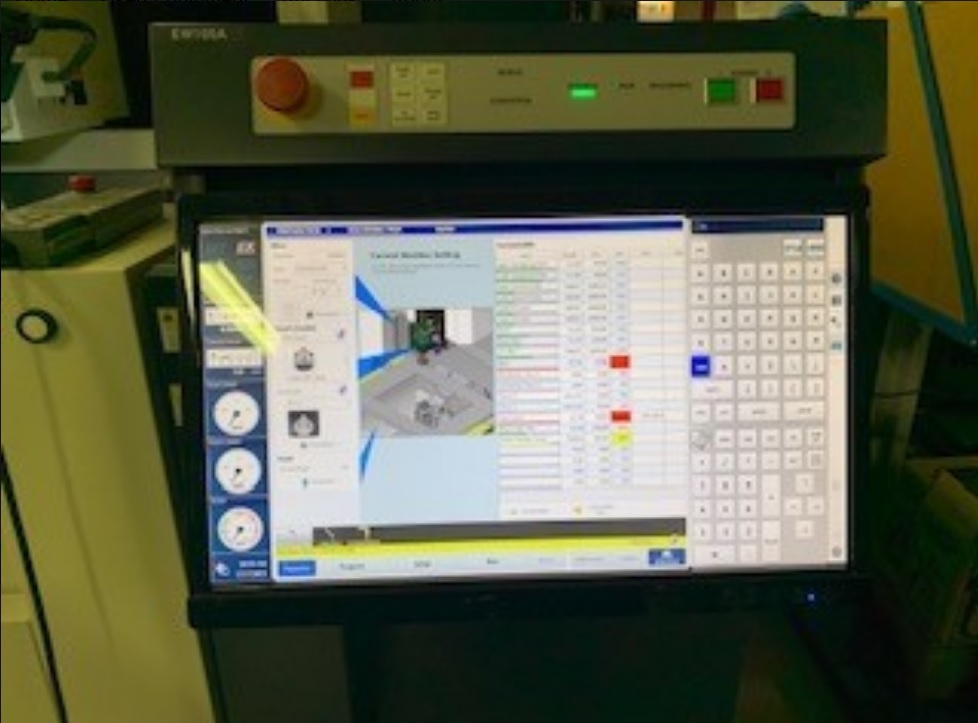

The Makino U3 Wire EDM machine features the Hyper i control, which provides the same efficient and user-friendly interface for Wire and RAM EDM machines. The large 24" class HD touch-screen display provides a commanding view for the operator, and utilizes intuitive and familiar touch Pinch/Swipe/Drag operations similar to smartphones and tablets. Straightforward machine operation is accomplished on the Hyper i control with a 3-Step process of Program/Setup/Run flow, and there are many helpful intelligent tools and functions for the operator that provide greater convenience and flexibility, such as the standard full-function advanced Handbox. Digital onboard electronic manuals, instructional training videos, and advanced E-Tech Doctor help functions provide the operator with practical resources at their fingertips to remain highly productive.

Request A Quote On Our Stock Number: 0815 Makino U3 Wire EDMRequest a quote on stock# 0815

Specification                                                                     Description

X,Y,Z Travels                                                                 14.6" x 10.6" x 8.7"

UV Travels Plus/minus                                                                2.0"

Taper Capability                                                    Plus/minus 15 deg in 4"

Maximum Workpiece Size                                             30.3" x 23.2" x 8.7"H

Maximum Work Piece Weight                                          1,323 lbs

Table Size                                                                         24.8" x 17.7"

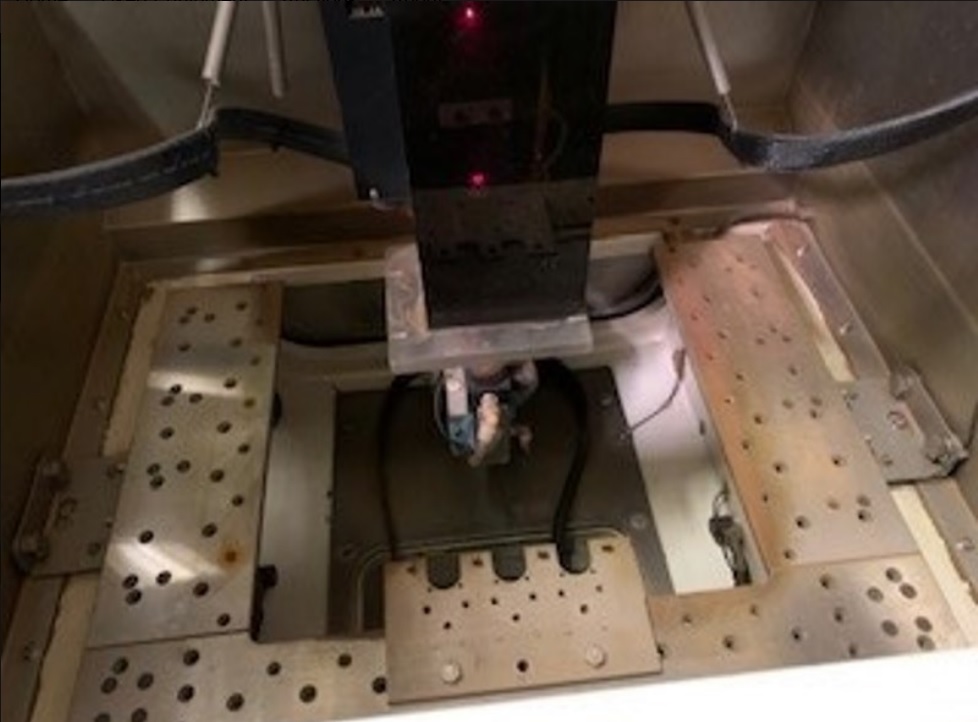

Table Type                                                                  3 Sided

Inside Tank Dimensions                                          31.1" x 24.0 x 10.0"H

Wire Sizes Capability                                                      .004" - .012"

Wire Guides Included                                              .006" & .010"

Wire Spool Size                                                                   22 lbs

Approx. Machine Dimensions                                     91" x 77" x 83"

Approx. Machine Weight                                                 7,054 lbs

Equipped With:

* Makino Hyper i Control w/24" HD Touch Screen * 0.05 Micron Glass Scale Feedback (X Y-Axis) * PICO Round Diamond Guide System * Submerged & Non-Submerged Machining Capability * Automatic Wire Threader * Hardened U-Shape Zeroline Table * Automatic Tank Height Setting Function * On-Board Training System * Ethernet Network & USB Connections * Antivirus Function * Progammable Z-Axis * Automatic Front Drop Door * Crash Prevention System * Automatic Power Recovery * Dual Inverter Flushing Pumps * Dielectric Water Filtration System * Electric Chiller * Multi-Tap Transformer * All Available Disks and Manuals
