MAKINO EDNC 85W-A32 CNC SINKER

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images


EDNC 85W-A32
Electrical Discharge Machining EDM
Die Sink EDM
used
18,750 (LB)
2013
$0.00

Feature Video

Description

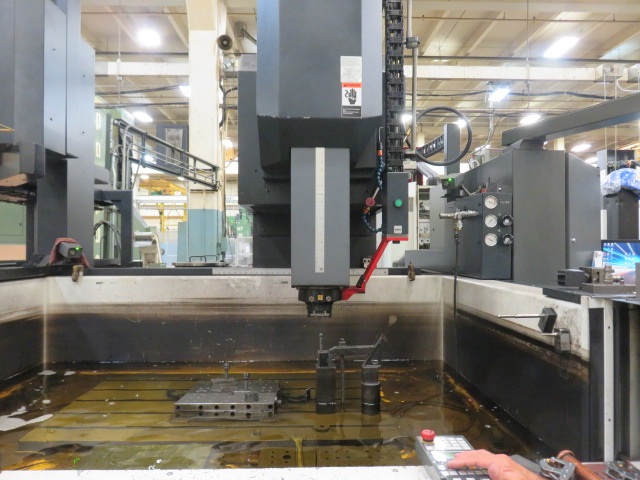

Makino EDNC 85 CNC Ram EDM machine combines rugged construction, simple programming and advanced design and performance features for accurate EDMing of large work pieces. Once loaded, the EDNC 85 is equally easy to operate. Menus allow simple selection and input of the machining conditions for the desired feature shape and surface finish then automatically calculate machining time. Graphic prompts allow automated programs to be created without NC programming. In addition, the operator is provided with excellent access to the work zone for easy part setups and operational viewing. The combined features and technologies that are embedded into the EDNC 85 machine make it a reliable and powerful tool that can efficiently tackle any application

Specification                                                   Description

Machine Travels (X,Y,Z)                                   31.49" x 19.68" x 19.68"

                                                                     800mm x 500mm x 500mm

C-Axis Positioning                                            0-360 deg

C-Axis Rotation                                                    0-10 RPM

Table Dimensions                                            43.4" x 27.6"

                                                                     1100mm x 700mm

Work Tank Size                                                    70.8" x 47.2" x 19.7"

                                                                     1800mm x 1200mm x 500mm

Work Tank Drop Door Design

Distance From Plate to Table                             15.74"-29.52" / 40mm-750mm

Maximum Workpiece Weight                              4,410 lbs / 2,000kg

Electrode Holder                                              Erowa ITS

Maximum Electrode Weight                              110 lbs / 50 kg

Generator (Mean Amperage)                              120 Amp

Machine Tool Dimensions                                      110"LR x 102"FB x 119"H

Machine Tool Weight                                              18,750 lbs / 8500 kg

Control/Power Supply Dimensions                      26"LR x 42"FB x 78"H

Control/Power Supply Weight                              480 lbs / 218 kg

Equipped With:

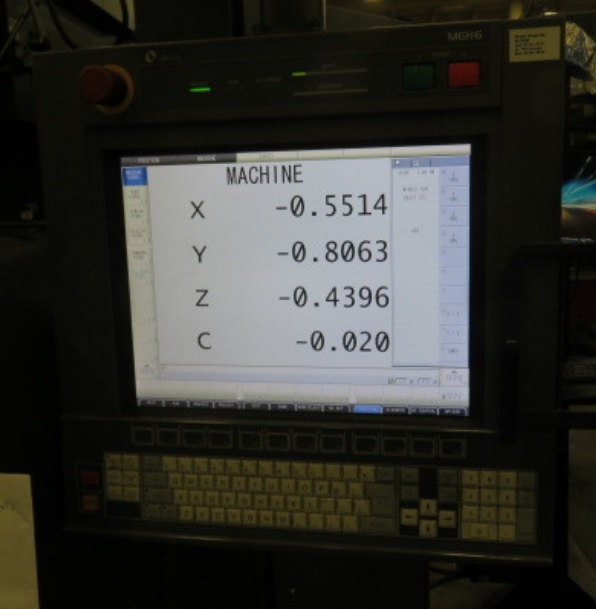

* Makino MGH6 CNC Control * Bridge-Frame Construction * MR Work Head C-axis w/Erowa ITS Chuck * 32 Position Automatic Electrode Changer * 120 Amp Generator * Fixed Table Design * Programmable Rise-and-Fall Front Door * Dielectric Filtration System * Electric Chiller * All Available Manuals and Accessories

Stock Number: 1440

Condition: As Is, Where Is
